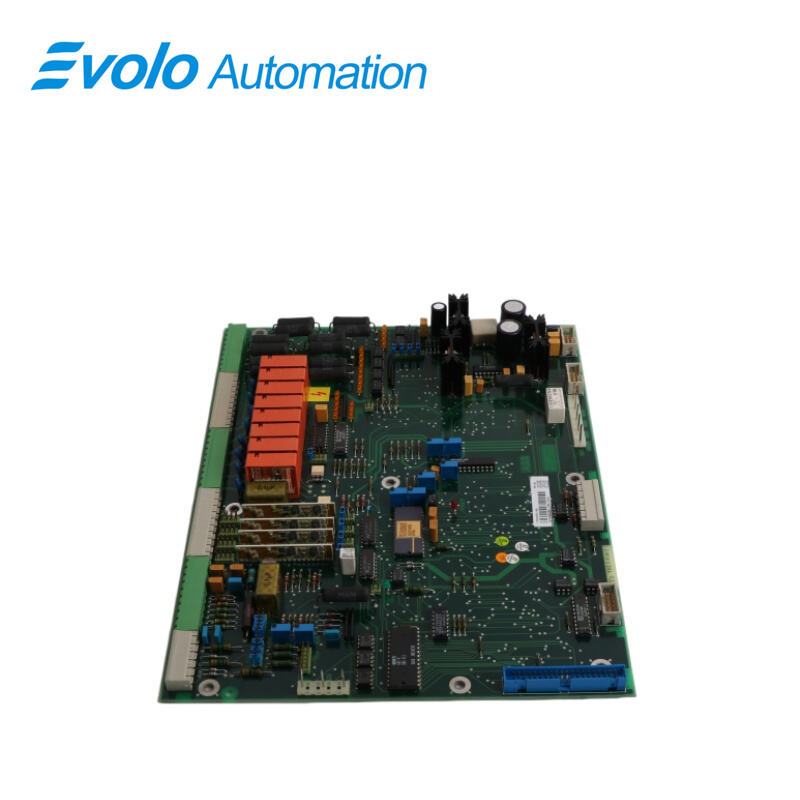

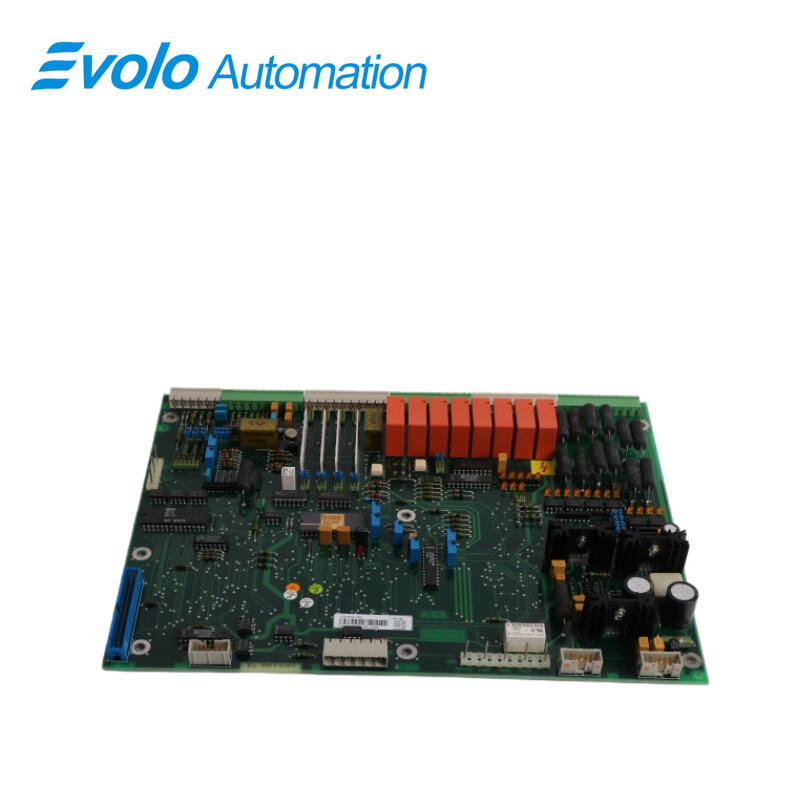

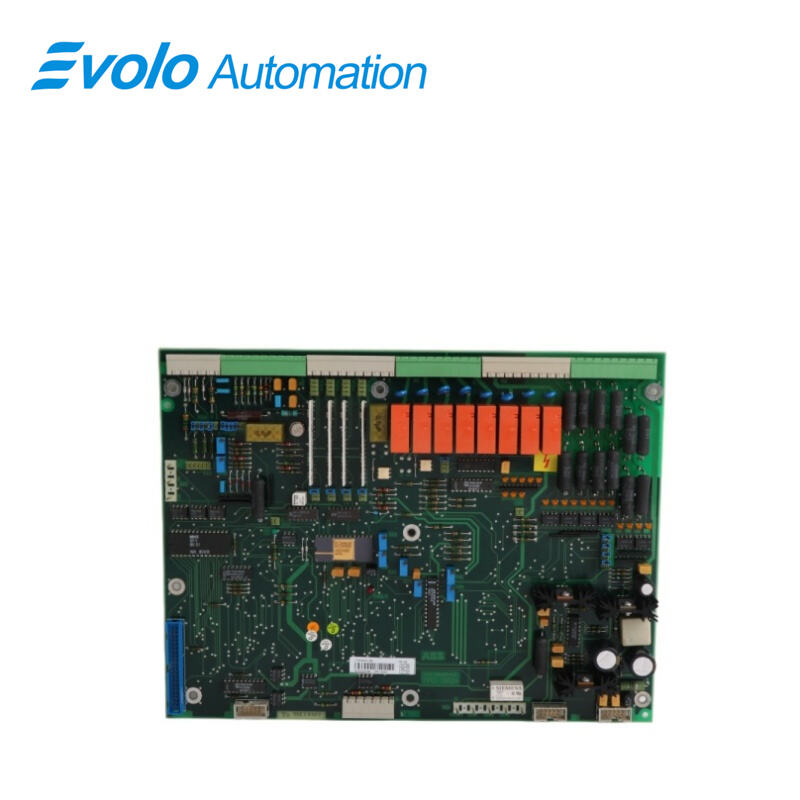

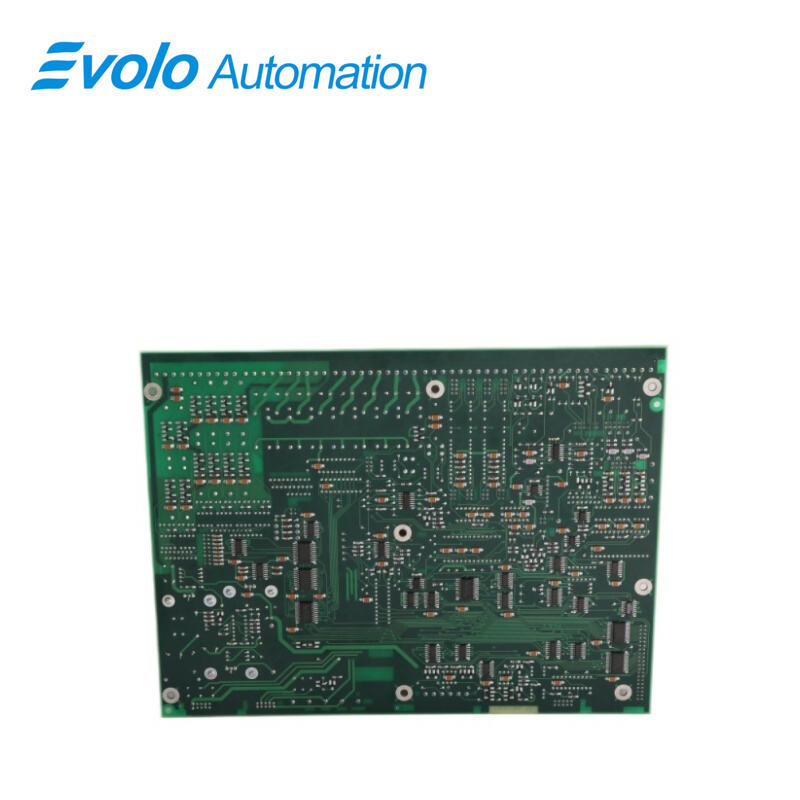

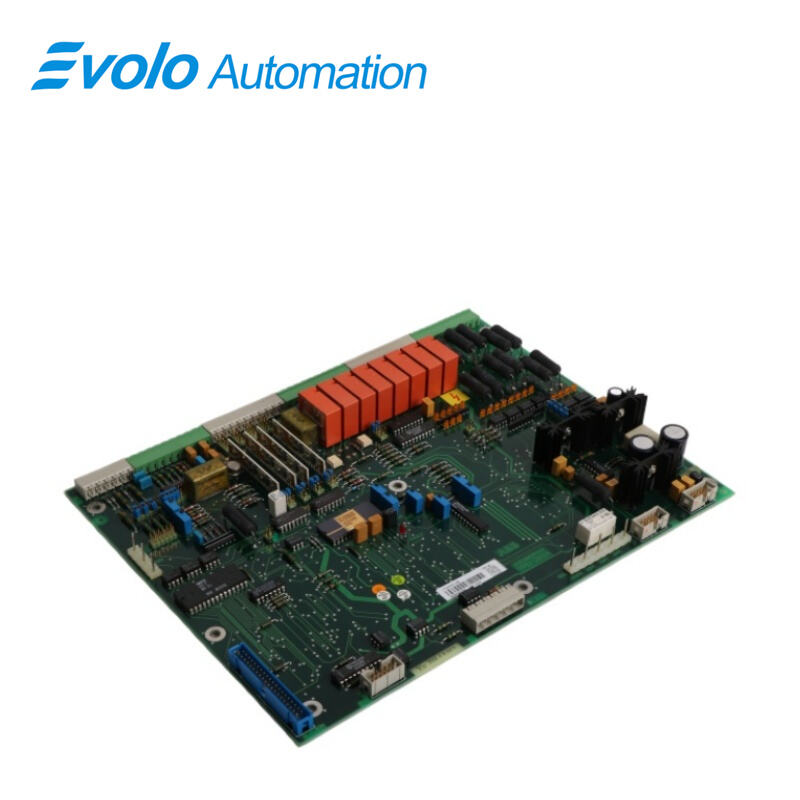

YPQ202A YT204001-KB I/O Board

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	YPQ202A YT204001-KB
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB YPQ202A YT204001-KB is a high-performance industrial I/O board designed for seamless integration in complex automation systems, ensuring precise data handling and reliable operation in demanding environments. Designed for reliability and durability, the board withstands harsh environmental conditions without compromising performance, ensuring continuous operation even in challenging industrial settings.

Applications

CNC Equipment Manufacturer: Serves as the core control unit of the machine tool control panel, displaying machining paths and parameters in real time.

Automated Production Line Assembly Plant: Integrated into the HMI terminal, responsible for real-time monitoring of the production line status and manual command input.

Intelligent Power Distribution Monitoring Plant: Applied to power monitoring systems, intuitively displaying voltage, current, and energy consumption distribution curves.

Packaging Machinery Manufacturer: Responsible for setting logical parameters for high-speed packaging processes, improving interaction efficiency.

Troubleshooting and Maintenance

Troubleshooting: Screen no display or flickering: Check for loose wiring on the YT204001-KB backplane and confirm input voltage stability.

Slow command response: Clean the interface oxide layer and check if the communication protocol baud rate matches the main control system.

Maintenance Recommendations: Regularly clean the front panel with an antistatic cleaner to prevent industrial dust accumulation from affecting operation.

Check the mounting bolts on the back to prevent physical displacement due to prolonged mechanical vibration.

FAQ

Q1: Does the YPQ202A YT204001-KB support modifying I/O response time via MODBUS?
A: This board primarily performs logic pass-through. Response speed depends on the communication baud rate setting and typically supports millisecond-level data refresh.

Q2: Can a 5A @ 24VDC relay of the YPQ202A YT204001-KB be connected to a 220VAC load?
A: This parameter is labeled as DC. If an AC load is required, please ensure the AC rated current does not exceed the limit, or use an external AC contactor.

Q3: Can the YPQ202A YT204001-KB output 24V when powered by 12VDC?
A: No. The output voltage range depends on your external input voltage. Without a boost function, the output is usually equal to or lower than the input voltage.

Q4: How do I set the MODBUS slave address of the YPQ202A YT204001-KB module?
A: Address assignment (1-247) is usually done via onboard DIP switches or specific configuration software.
