Overview
Place of Origin: |
USA |
Brand Name: |
SBS |
Model Number: |
VIPC616 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
VIPC616 |
|
Part name |
IndustryPack Carrier |
|
Dimensions |
2.1x18.8x26.2cm |
|
Weight |
0.38kg |
|
VMEbus conformance revision |
IEEE P1024/D1.2 |
|
VMEbus form factor |
6U (double high) |
|
IndustryPack conformance |
ANSI/VITA 4—1996 |
|
Number of IndustryPacks |
Four single-high or two double-high |
|
IP ID PROM mapping |
A16, 128 bytes/IP |
|
IP I/O mapping |
A16, 128 bytes/IP |
|
IP memory mapping |
A24 or A32 |
|
Memory size |
None, or 128 kB to 4 MB (A24 space), or 32 MB fixed (A32 space) |
|
VMEbus interrupts |
IRQ1 through IRQ7 (shunt or user PLD selectable) |
|
I/O interconnect |
Four latching 50-pin 0.100 inch flat cable connectors |
|
Front panel indicators |
Six green LEDs, one ACK flash LED per slot, two PWR check LEDs (A/B and C/D) |
|
Power requirements |
+5 V @ 610 mA typical; +12 V @ 0 mA; -12 V @ 0 mA |
|
Operating temperature |
0°C to 70°C |
|
Storage temperature |
-10°C to +85°C |
|
Humidity |
5% to 95% non-condensing |
Description

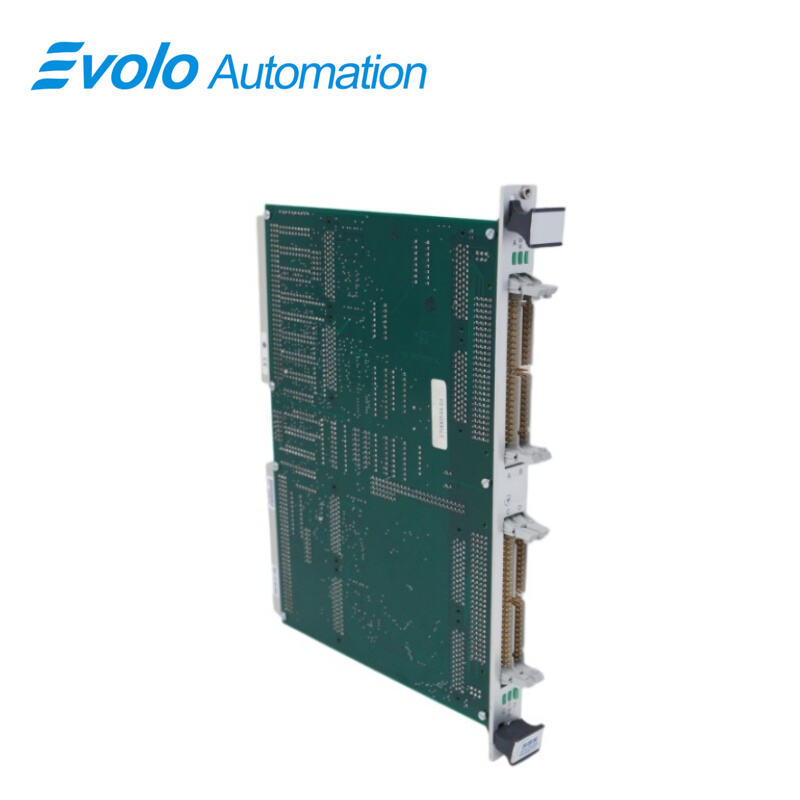

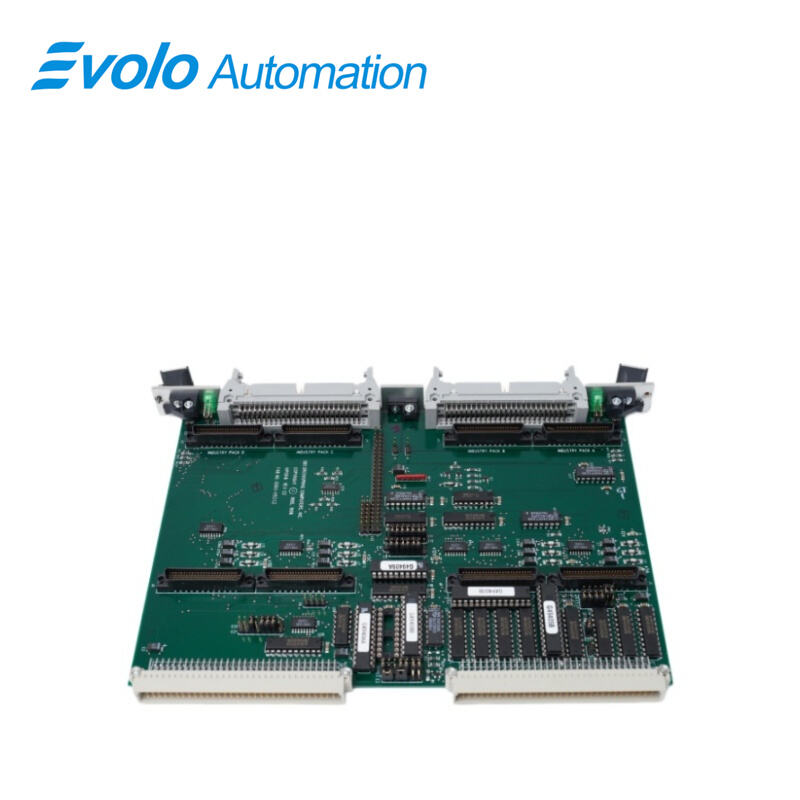

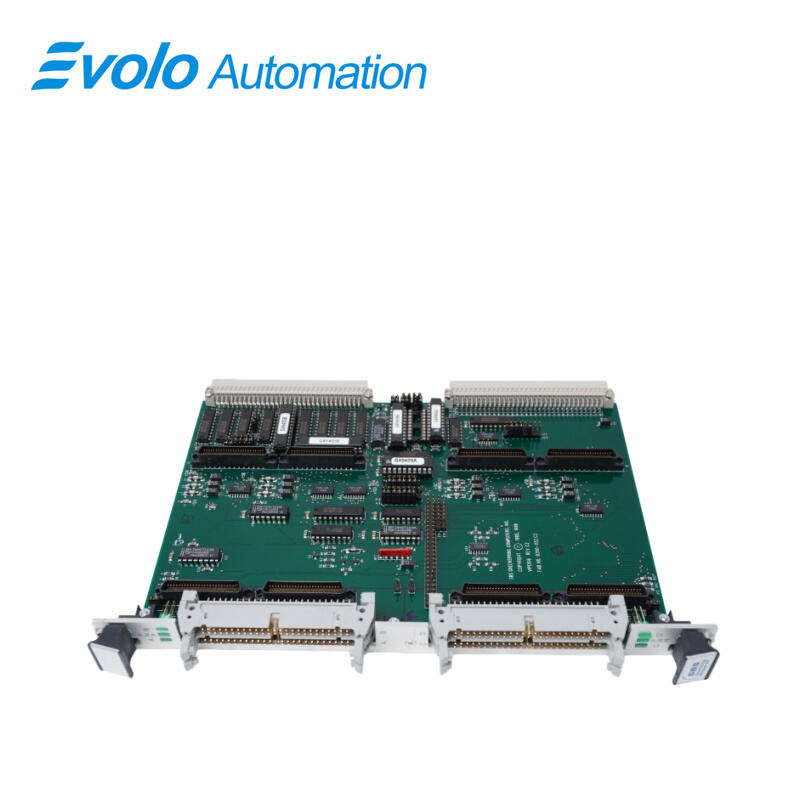

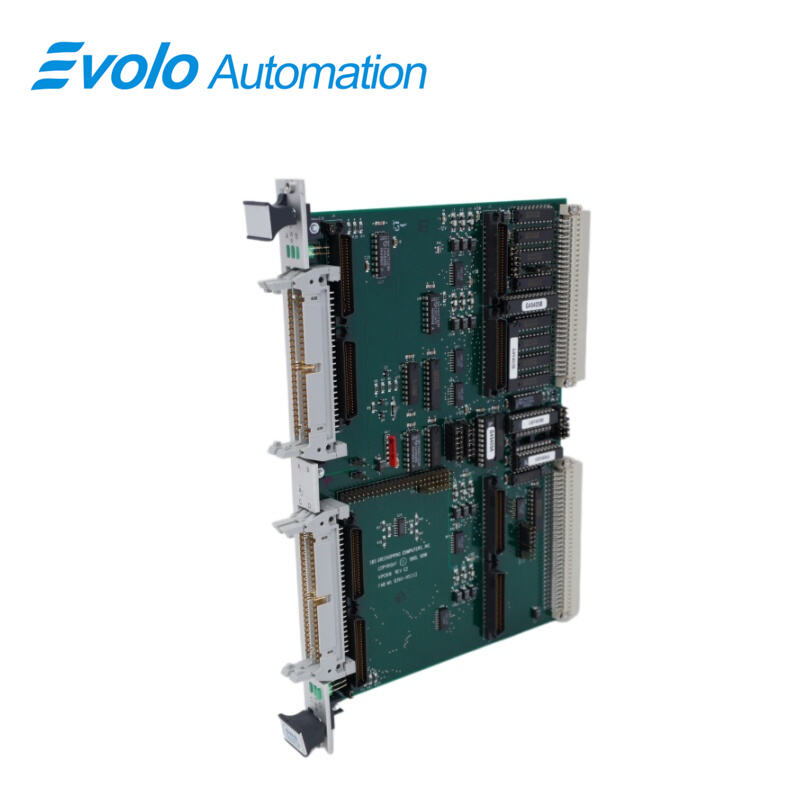

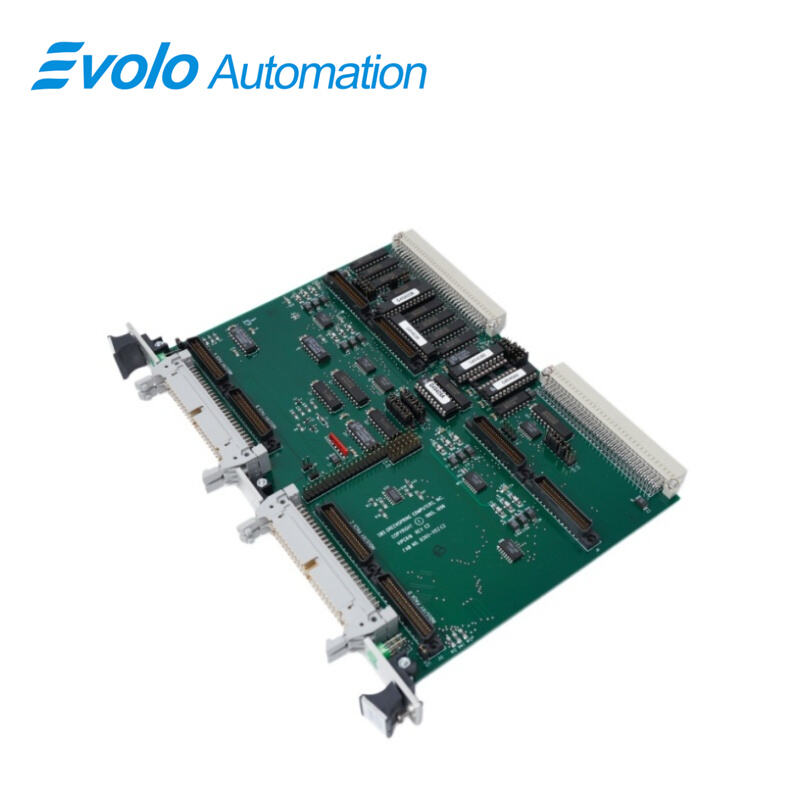

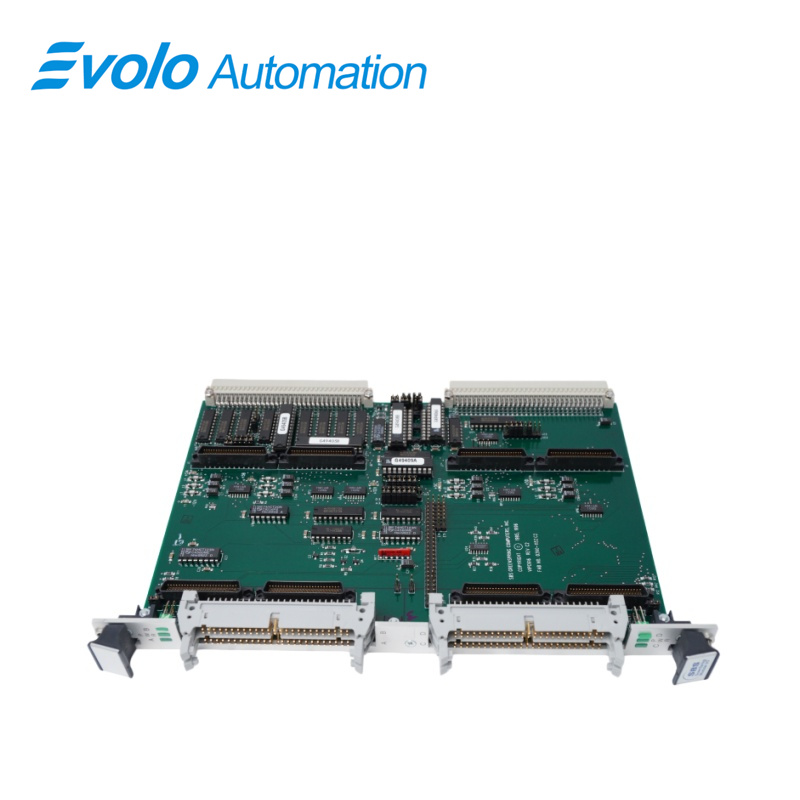

The VIPC616 is a high-performance IndustryPack (IP) carrier board conforming to the 6U VMEbus standard, designed for demanding industrial automation and embedded systems. As the core support unit of its IP module family, the VIPC616 provides robust mechanical support and standardized electrical interfaces for multiple independent expansion modules, supporting key functions such as input/output, memory expansion, and interrupt triggering.
Applications
Semiconductor Plants: Distributed sensor acquisition in wafer equipment with modular expansion.
Aerospace Plants: Signal conversion hub for test benches in high-vibration environments.
Power Monitoring Plants: Substation units for multi-signal monitoring and fast feedback.
Automotive Plants: Controls robot motion and equipment interlocking in production lines.
Precision Instrument Plants: Multi-channel data processing for accurate low-noise measurements.
Installation
IndustryPacks snap into the VIPC616 carrier board by pressing both parts together until the connectors are fully seated. Keyed connectors ensure correct installation only.
The board provides four IP slots labeled A, B, C, and D, marked on the VIPC616 panel.
Each IP uses a 50-pin flat cable I/O connector with front-access latches, labeled on the front panel. Pin 1 is indicated by a connector mark or square solder pad.
Be careful: IP slots B and D may have reversed keying.
FAQ
Q: How many IndustryPack expansion units can a single VIPC616 support?
A: It supports 4 single-height IP modules or 2 double-height IP modules simultaneously.
Q: How is the storage addressing capability of the VIPC616 in VMEbus architecture?
A: It supports VMEbus memory mapping including A24:D16 and A32:D16 address spaces.
Q: How does the VIPC616 handle real-time interrupt processing?
A: It provides multiple interrupt channels with flexible mapping to VMEbus interrupt lines.
Q: Is the VIPC616 durable under frequent cable plugging and unplugging?
A: Yes. It uses self-locking right-angle connectors for strong and reliable long-term connections.
Q: Is the VIPC616 stable in low-ventilation control cabinets?
A: Yes. It uses low-power circuits and a 6-layer PCB design for efficient heat dissipation and stable operation.
