Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
UR8CH |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
UR8CH |
|
Part name |
CT/VT Module |
|
Dimensions |
4x18.5x17.2cm |
|
Weight |
1.22kg |
|
Phase current CT |
3-1A / 5A |
|
Ground current CT |
1 / 5A |
|
Operating temperature |
-25°C ~ +70°C |
|
Relative humidity |
5% ~ 95% (non-condensing) |
|
Installation method |
Screw mounting |
|
Connection type |
Terminal block connection |
Description

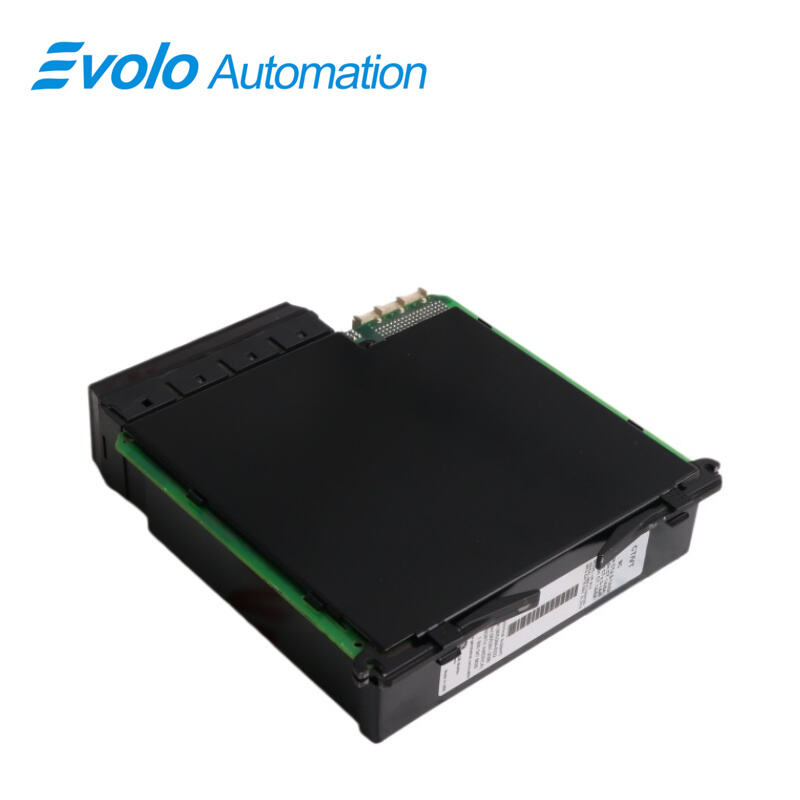

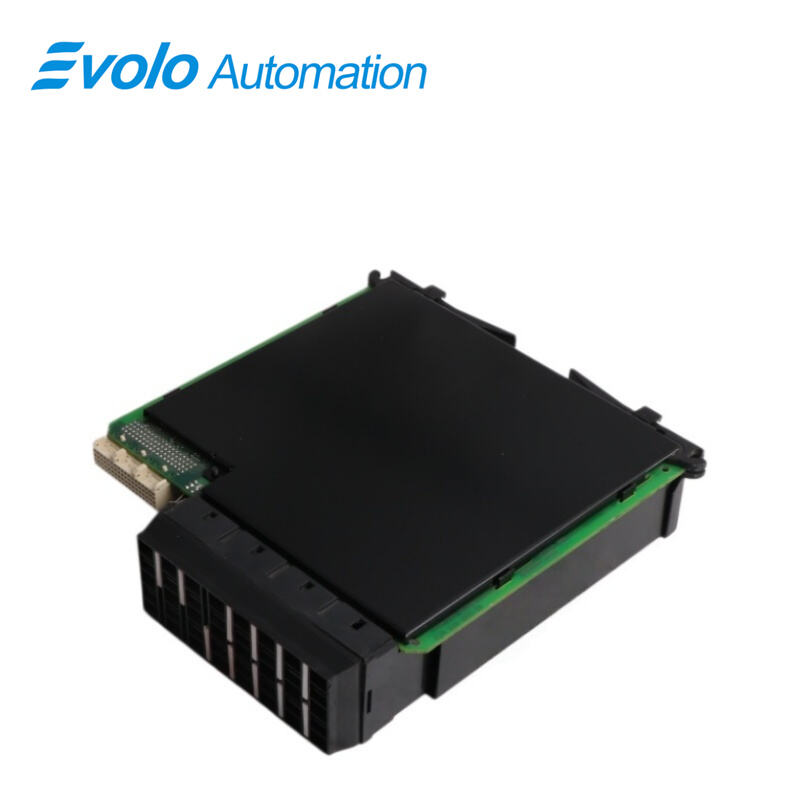

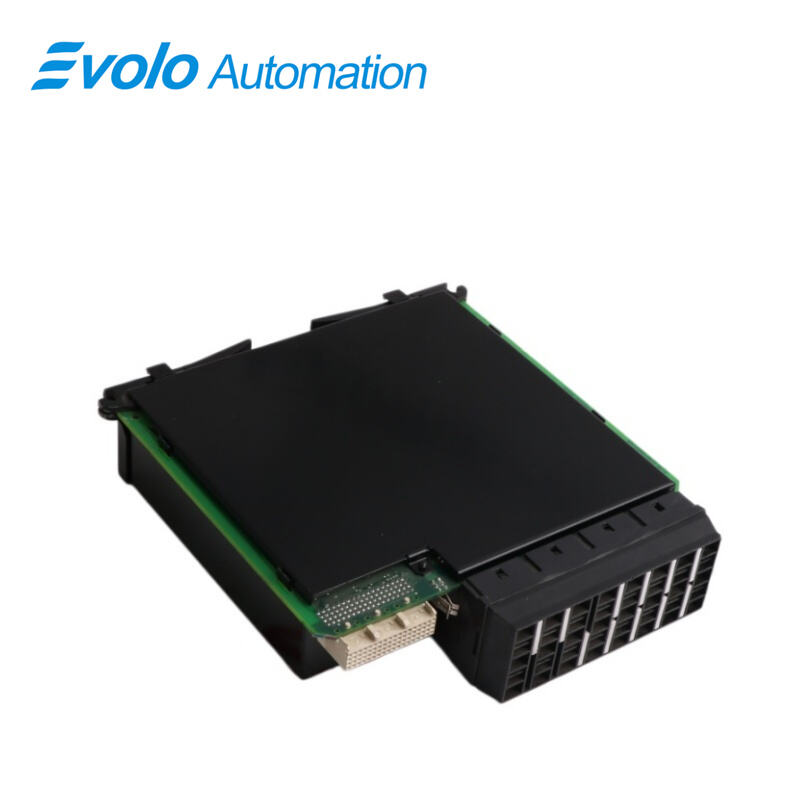

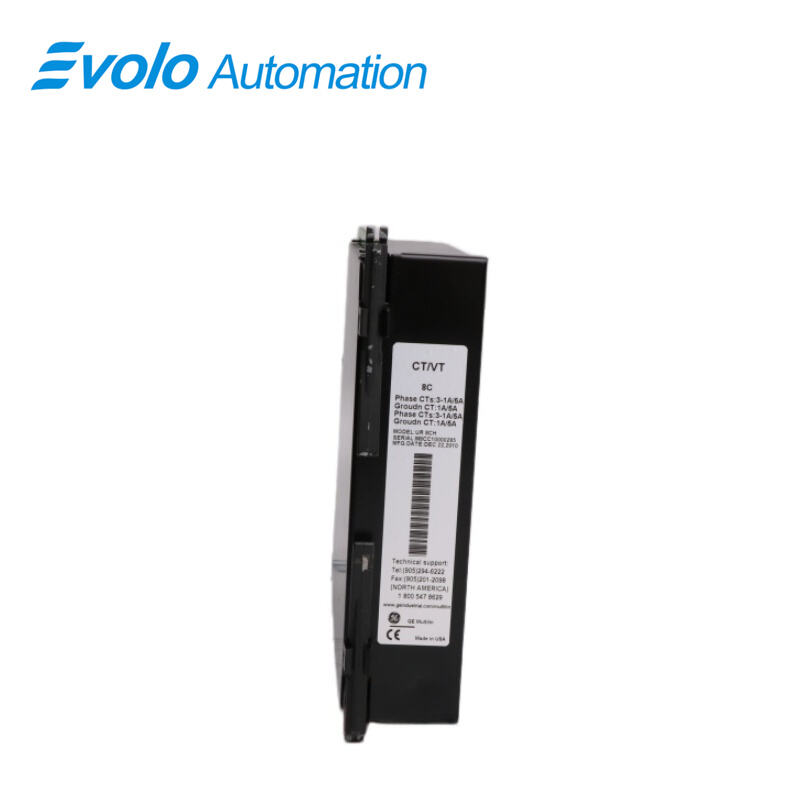

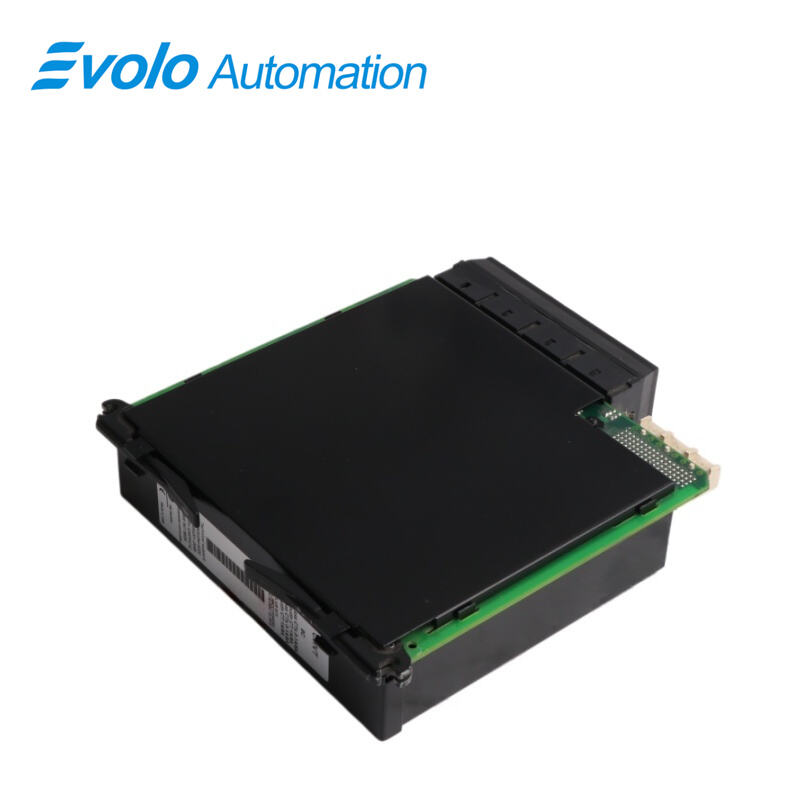

The GE UR8CH is a CT/VT Module. It can provide reliable protection, control, and monitoring for various electrical systems. With their advanced features and flexible configuration options, these relays offer enhanced performance and ensure the safety and efficiency of electrical operations.
Applications
Thermal power plants: Installed in the plant's auxiliary power distribution cabinet, it monitors the phase current status of high-power motors in real time to prevent overload and short-circuit risks.
Oil refineries: It continuously monitors the power circuits of critical oil pump sets, leveraging their high reliability to ensure electrical safety in continuous production processes.
Large metallurgical plants: It provides highly stable analog feedback to cope with severe current fluctuations caused by nonlinear loads such as electric arc furnaces.
Features
High Versatility: Can be used as a replacement or upgrade for UR series relays, adaptable to various application scenarios.
Rich Functionality: Provides phase current and ground current measurement functions, offering more comprehensive system protection.
Flexible Configuration: CTs of different current ratings can meet the needs of different systems, enabling flexible configuration.
High Reliability: Utilizes high-quality materials and advanced processes, exhibiting excellent stability and reliability.
FAQ
Q: What types of phase current transformers does the UR8CH support?
A: It supports standard 1A or 5A secondary current inputs for compatibility with industrial CTs.
Q: What support does the UR8CH provide for ground fault detection?
A: It includes a dedicated ground current CT channel (1/5A) for sensitive zero-sequence current detection.
Q: Can the UR8CH operate in extreme outdoor substation temperatures?
A: Yes. It works reliably from -25℃ to +70℃ in harsh seasonal environments.
Q: How is the UR8CH mounted in the relay rack?
A: It is screw-mounted on the back of the rack for strong mechanical stability under vibration.
Q: Is the UR8CH resistant to high-humidity conditions?
A: Yes. It operates in 5%–95% non-condensing humidity with industrial-grade moisture protection.
