Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	TK-PPD011 51309241-175
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Model	TK-PPD011 51309241-175
Product Type	Battery Extension Module
Weight	0.36 kg
Input Voltage Range	5.1–24 VDC
Current Draw @ 24 VDC	0.036 A
Current Draw @ 5 VDC	0.112 A
Current Range	36–112 mA
Output Rating	30 VDC, 100 mA

Description

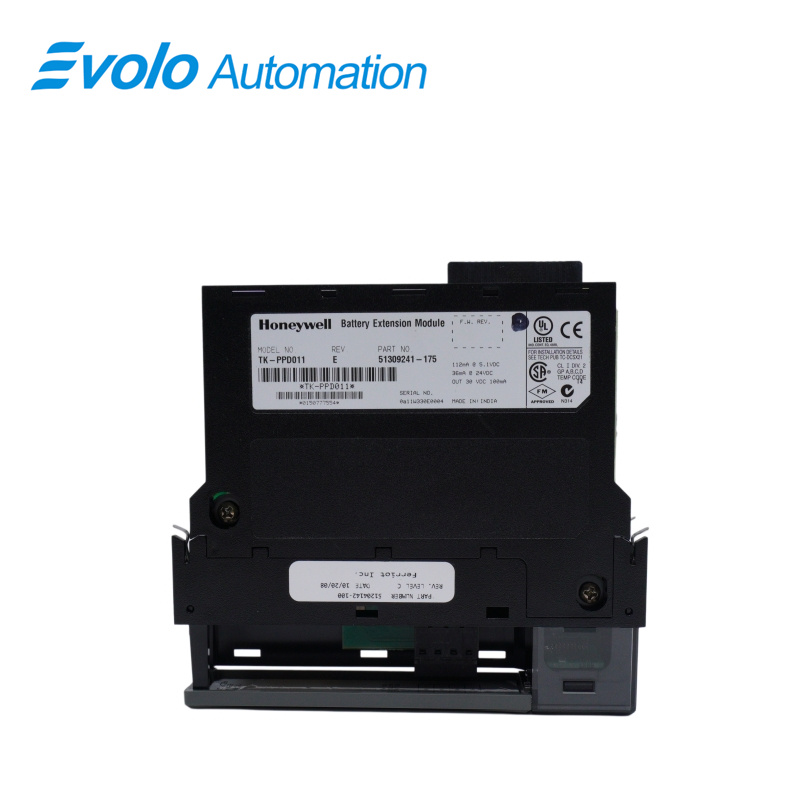

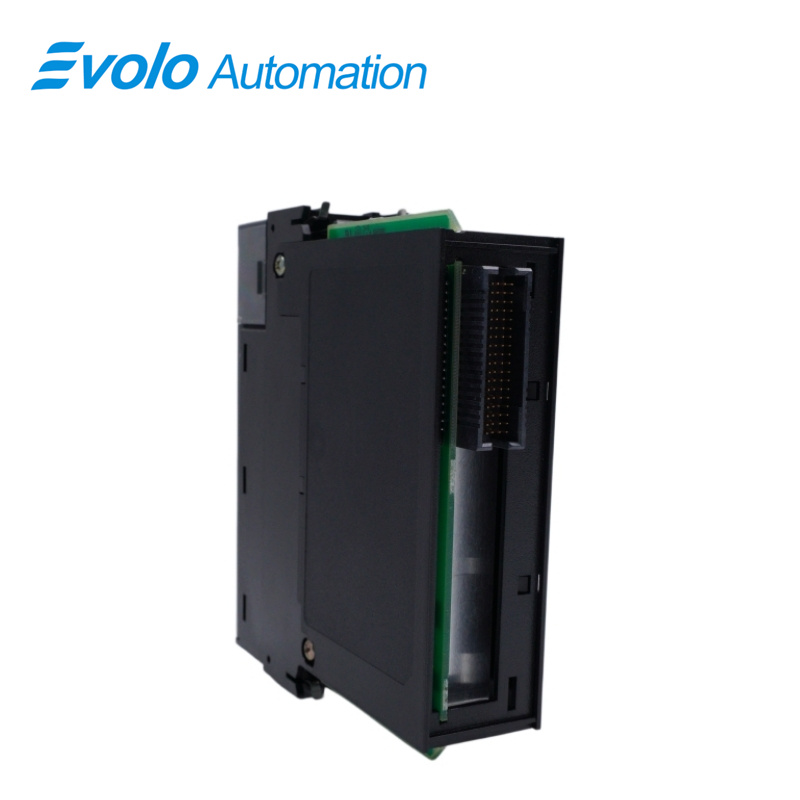

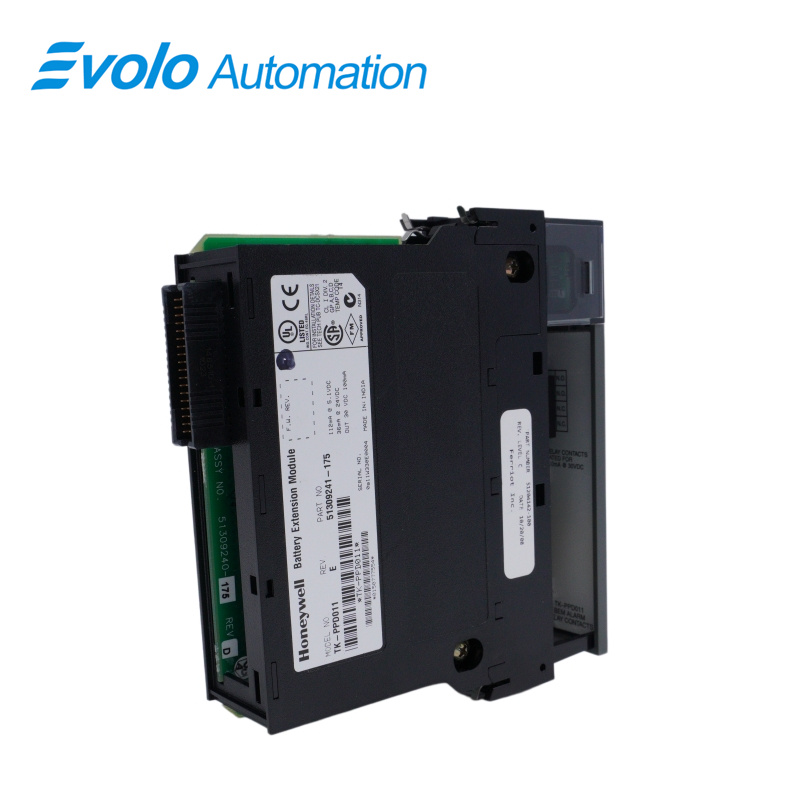

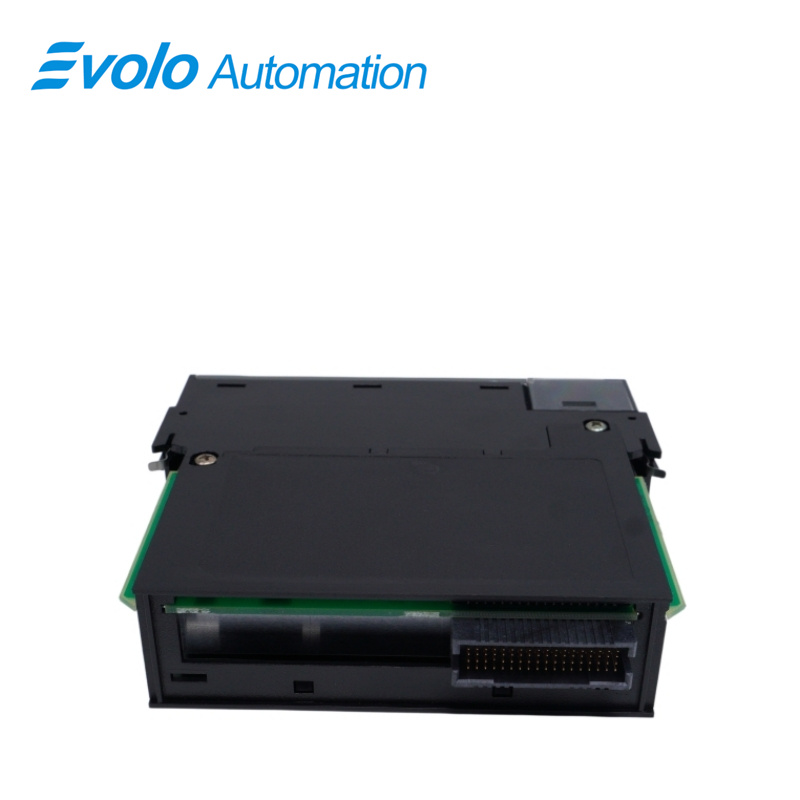

HONEYWELL TK-PPD011 51309241-175 is a Battery Extension Module for the Experion PKS C300 Controller. It provides extended backup power to the controller's memory during main power loss.

Applications

Chemical Plants: Ensure safety shutdown during power loss.

Power Plants: Maintain system clock and configuration data.

Refineries: Keep core controllers running during grid fluctuations.

Steel Mills: Prevent blast furnace data loss.

Paper Mills: Support backup power for continuous production.

Troubleshooting

Battery Depletion Alarm: Triggered when the backup cells drop below functional voltage thresholds. Fix: Check controller diagnostic logs and replace the corresponding battery cells immediately.

Incorrect Voltage Readings: Occurs if backplane connections are loose or oxidized. Fix: Reseat the module securely into the C200 chassis and clean backplane connector pins with electronics-safe cleaner.

Output Fault Signal: The 30VDC 100mA output trips if field monitoring circuits exceed current limitations. Fix: Inspect the external alert loop for short circuits or excessive resistive loads.
