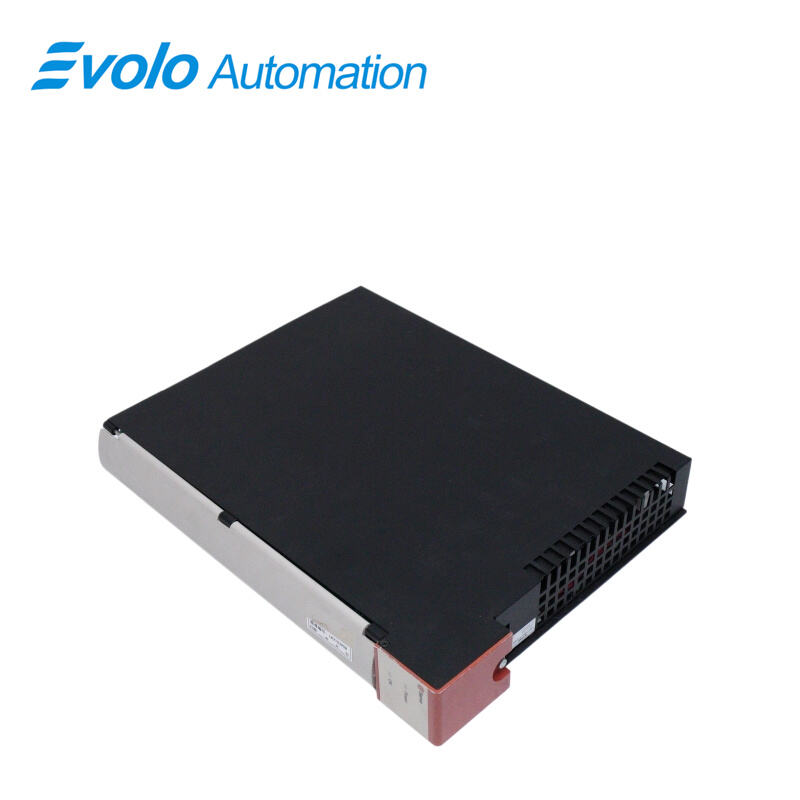

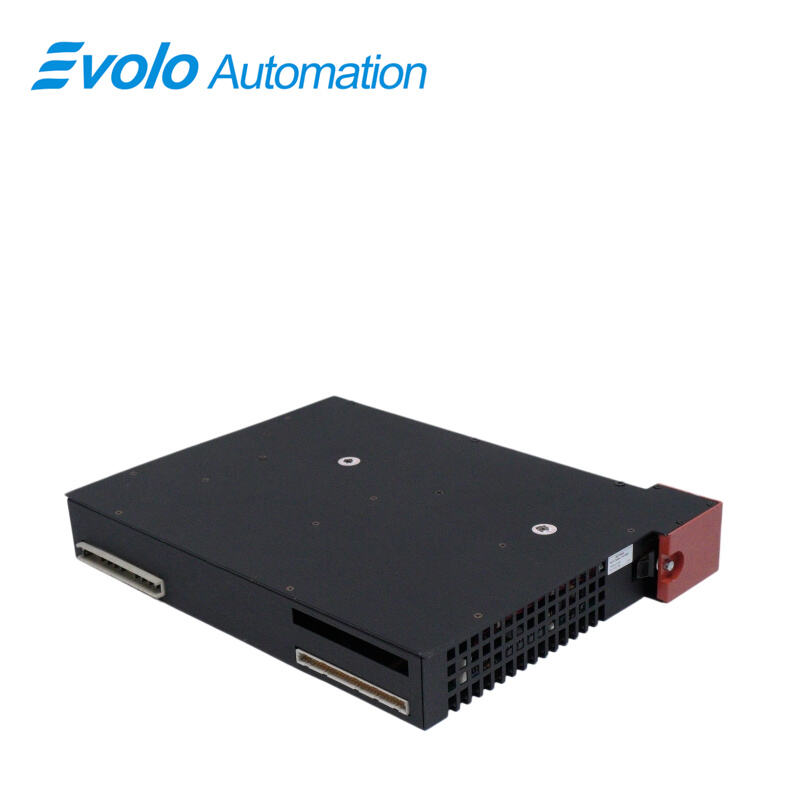

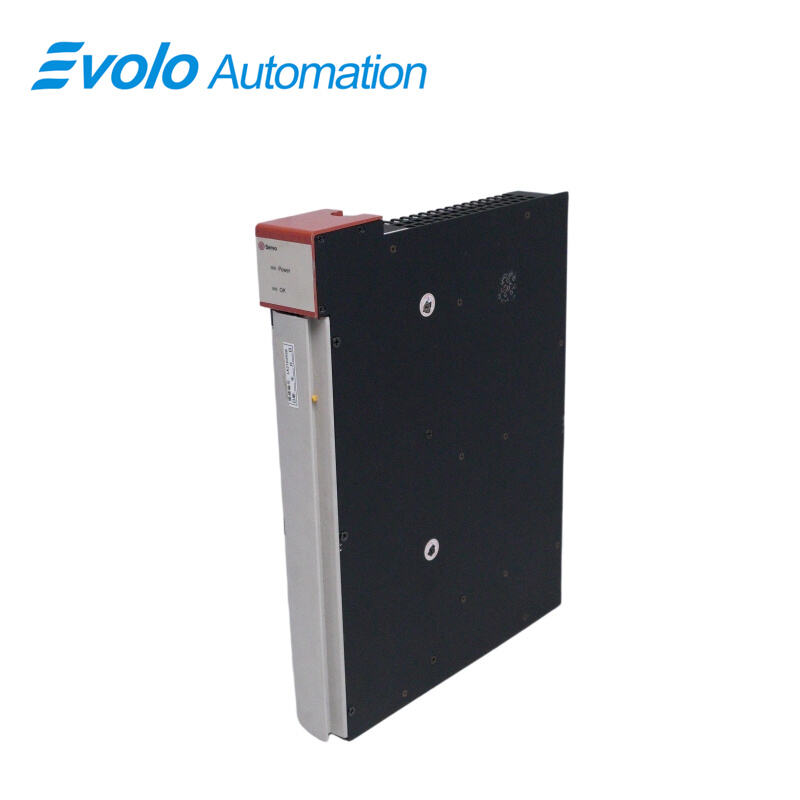

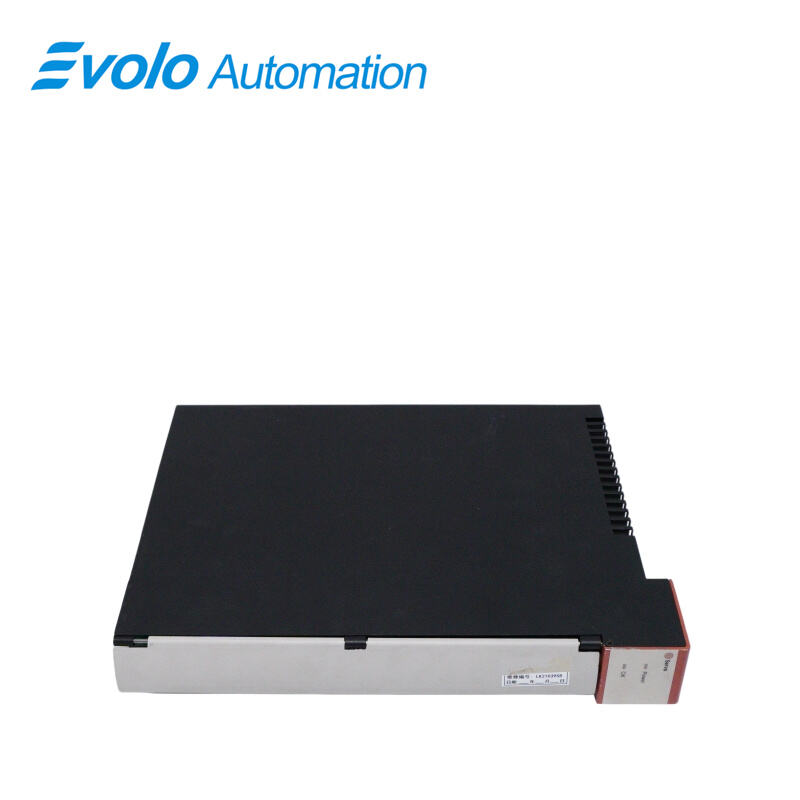

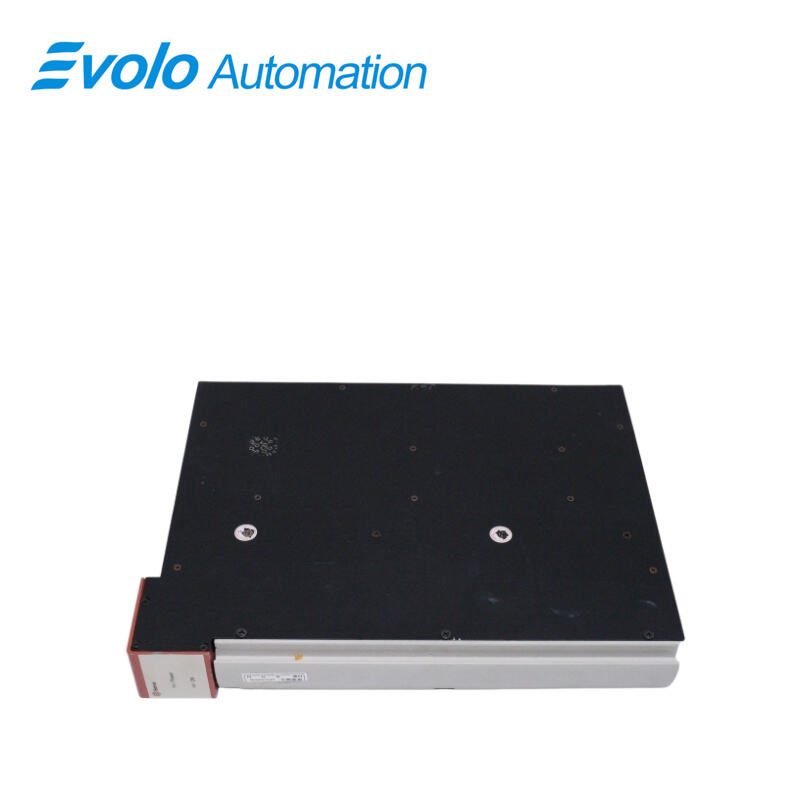

Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
TGT-3X6L-1-0-BD |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
TGT-3X6L-1-0-BD |
|
Part name |
Servo Power Module |
|
Dimensions |
4.7x27x34cm |
|
Weight |
3.86 kg |
|
Continuous current |
6 A |
|
Input voltage range |
AC 220V–440V |
|
Output voltage |
DC 24V |
|
Rated power |
3 kW |
|
Efficiency |
≥95% |
|
Protection rating |
IP65 |
|
Operating temperature range |
-20°C ~ +60°C |
|
Certifications |
CE, RoHS |
Description
The TGT-3X6L-1-0-BD is a high-performance industrial-grade servo power module that integrates dynamic energy management and transient suppression technology to provide stable, low-ripple power support for automated control systems. This module features optimized heat dissipation and electromagnetic compatibility, making it suitable for complex industrial scenarios involving high loads and high-frequency braking.
Applications
CNC Plants: Powers servo systems in machining centers with stable voltage output.
Packaging Plants: Supports sealing and sorting lines while reducing cabinet heat.
Semiconductor Plants: Provides clean power for wafer-handling robots with low interference.
Automotive Plants: Used in painting and welding robots for reliable harsh-environment operation.
Woodworking Plants: Ensures stable servo control in dusty workshops during continuous use.
Troubleshooting and Maintenance Recommendations
Heat Dissipation Cleaning: Remove dust from the heatsink to maintain cooling efficiency.
Terminal Inspection: Regularly tighten terminals to avoid overheating from vibration.
Voltage Monitoring: Check AC input harmonics and add filters if alarms occur frequently.
Protection Maintenance: Inspect seals and connectors to prevent water ingress.
FAQ
Q: How does the TGT-3X6L-1-0-BD perform in energy conversion under high load?
A: It achieves ≥95% efficiency, reducing power loss and heat generation in industrial use.
Q: What power drive system can the TGT-3X6L-1-0-BD support?
A: It supports 3kW rated power for medium to high-power servo motors and motion axes.
Q: Can the TGT-3X6L-1-0-BD adapt to multinational voltage environments?
A: Yes. It supports AC 220V–440V input, suitable for global industrial power systems.
Q: Is the TGT-3X6L-1-0-BD safe in humid or misty environments?
A: It has IP65 protection, offering strong dust and water resistance for harsh conditions.
Q: What is the continuous output current of the TGT-3X6L-1-0-BD?
A: It provides up to 6A continuous output to support stable full-load servo operation.
