Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
TC-306-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
TC-306-02 |
|
Part Name |
Input Smart Slot Jumper Cable |
|
Dimensions |
36 × 27 × 6 cm |
|
Weight |
1.96 kg |
|
Cable Type |
56-way LSZH wire harness (Megamide sleeving) or UL certified wire harness (TC-308-02 / TC-308-03) |
|
Insulation / Sheath |
Low smoke zero halogen (LSZH) |
|
Fire Performance Standard |
IEC 60332-3 Cat A (high severity) |
|
Compatible Input Channels |
40-channel or 60-channel Trusted analog/digital input modules |
|
Wire Harness Structure |
96-core LSZH cable assembly |
|
Module End Connector (SKT1) |
96-pin C-type connector (Type C) |
|
Field / Fault Module End Connector |
96-pin R-type connector (Type R) |
|
Application |
Smart Slot module interconnection cable for Trusted input systems |
Description

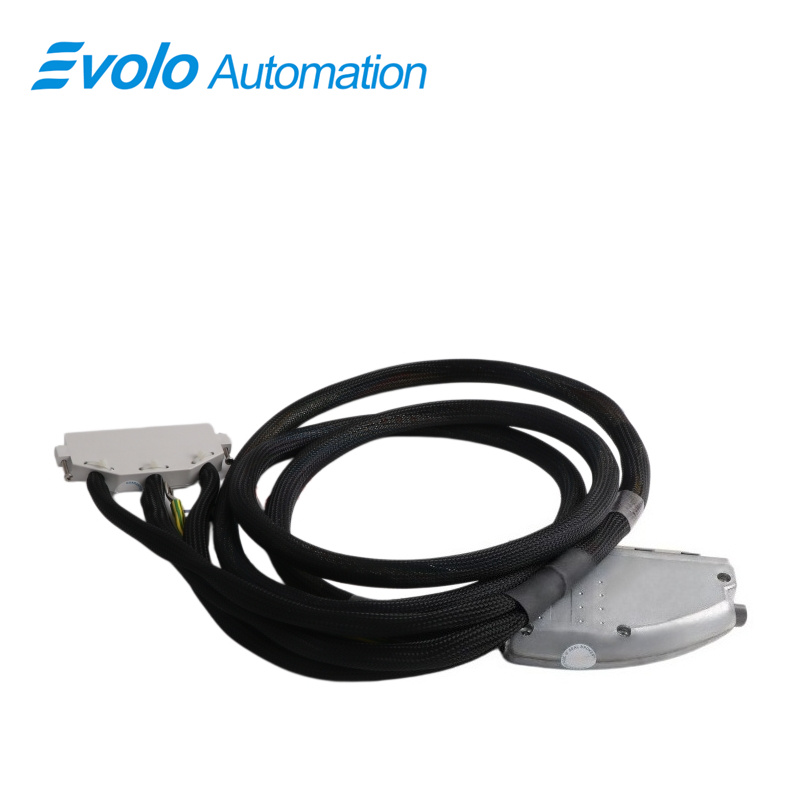

The TC-306-02 is a premium, high-density input smart slot jumper cable designed for high-availability safety instrumented systems. Engineered for seamless hardware cross-connections, it directly links the smart slot module side to the faulty module or field distribution terminal.
Applications
Rail Transit Control Plants: LSZH design ensures fire safety in underground signal rooms.
Semiconductor Wafer Plants: Supports high-density I/O for smart slot switching in cleanroom cabinets.
LNG Processing Plants: Wear-resistant sleeve handles mechanical stress in compressor areas.
Petrochemical Plants: Maintains transmitter signals during SIS hot-swap operations.
Biopharmaceutical Plants: Low-toxicity wiring meets strict control system standards.
Usage and Safety Specifications
Mandatory Pre-Use Testing: As TC-306-02 carries safety interlock signals, insulation and channel integrity tests are required before each connection to avoid shutdown faults from storage damage.
Grounding Braided Wire: The Type C terminal braid must be firmly connected to the rack grounding busbar; proper grounding blocks high-frequency EMI in 1oo2D / 3oo2 systems.
Spare Parts Handling: After replacement, functional modules should be returned to main slots to keep TC-306-02 in standby readiness for emergencies.
FAQ
Q: How does TC-306-02 support 40/60-channel Trusted modules?
A: Uses a 96-core LSZH matrix with flexible pin mapping for both 40 and 60-channel DI/AI modules.
Q: Does TC-306-02 meet North American compliance?
A: Yes, via UL-certified 56-core option (TC-308-03) for compliance use.
Q: Why use Megamide sleeving on TC-306-02?
A: Protects dense 96-core LSZH wiring from abrasion, cuts, and heat in tight routing.
Q: How are Type C and Type R connectors used in TC-306-02 hot-swap?
A: Type C (SKT1) goes to Smart Slot; Type R connects to fault or field module.
Q: What does IEC 60332-3 Cat A provide in TC-306-02?
A: High flame resistance and self-extinguishing behavior, preventing toxic gas release.
