Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9882 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
T9882 |
|
Product Type |
Analog Output Termination Assembly |
|
Dimensions |
13 x 8.2 x 4.5 cm |
|
Weight |
0.15 kg |
|
Channels |
8 Channel Dual Commoned |
|
Output Type |
4–20 mA |
|
Electrical Isolation |
Isolated |
|
Supply Voltage |
18–32 VDC |
|
Installation Interface |
Direct plug-in and lock to T9300 I/O Base Unit |
|
Certifications |
China CCC; DNV-GL; UK EX Certificate |
Description

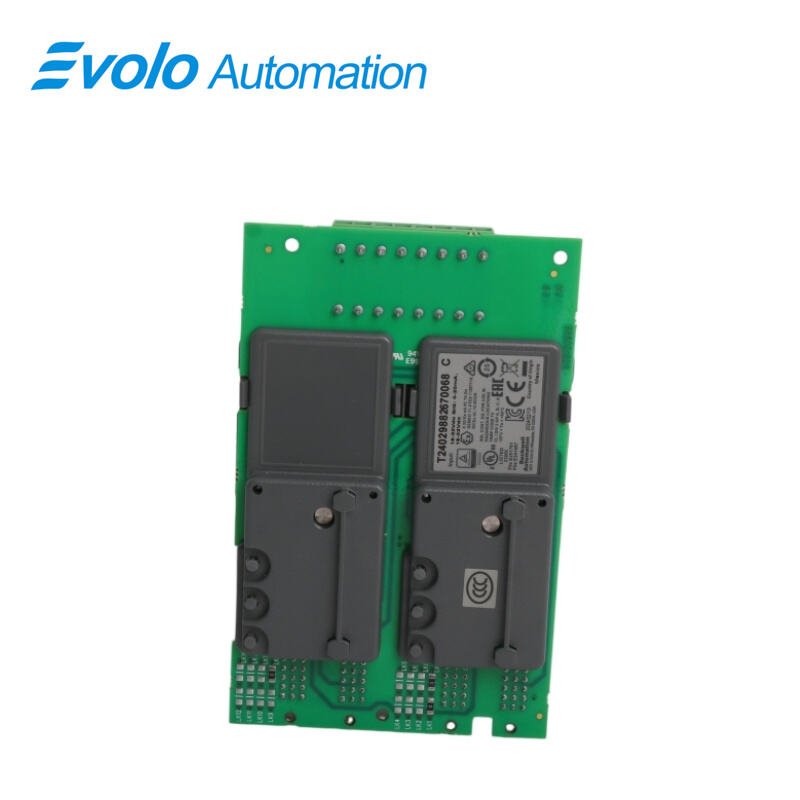

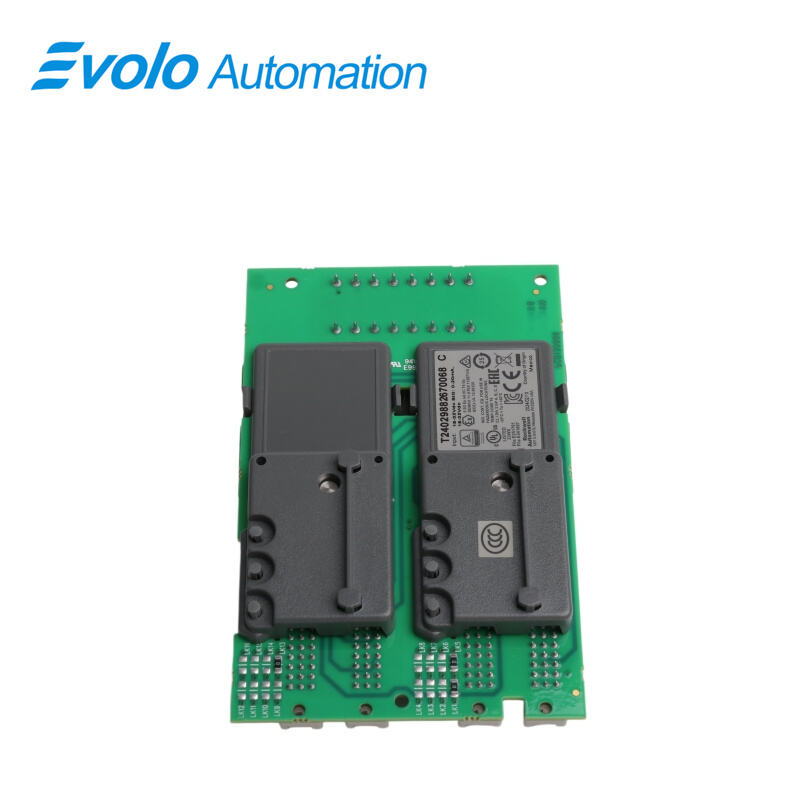

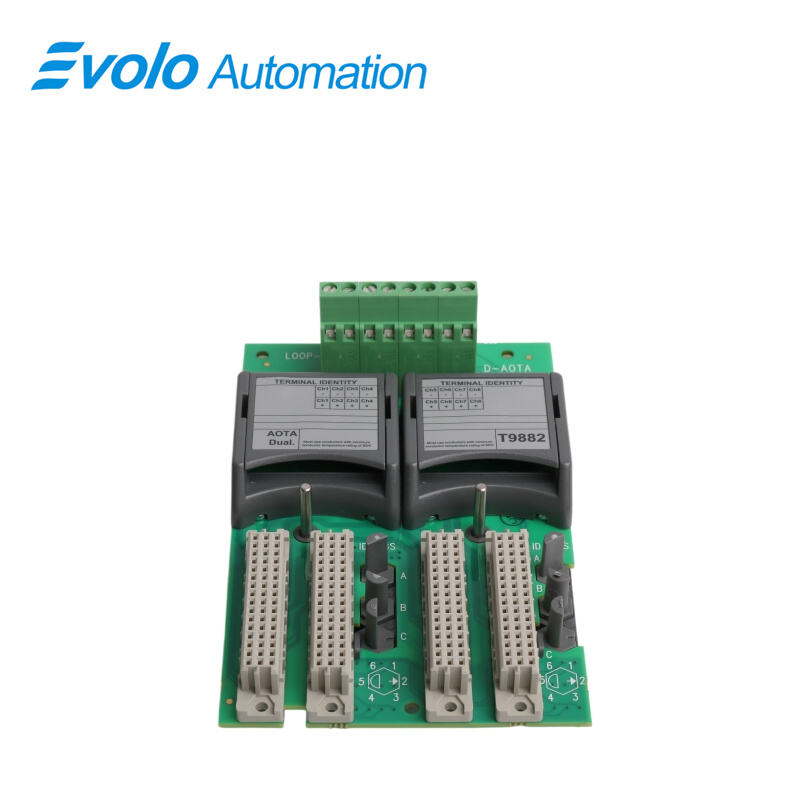

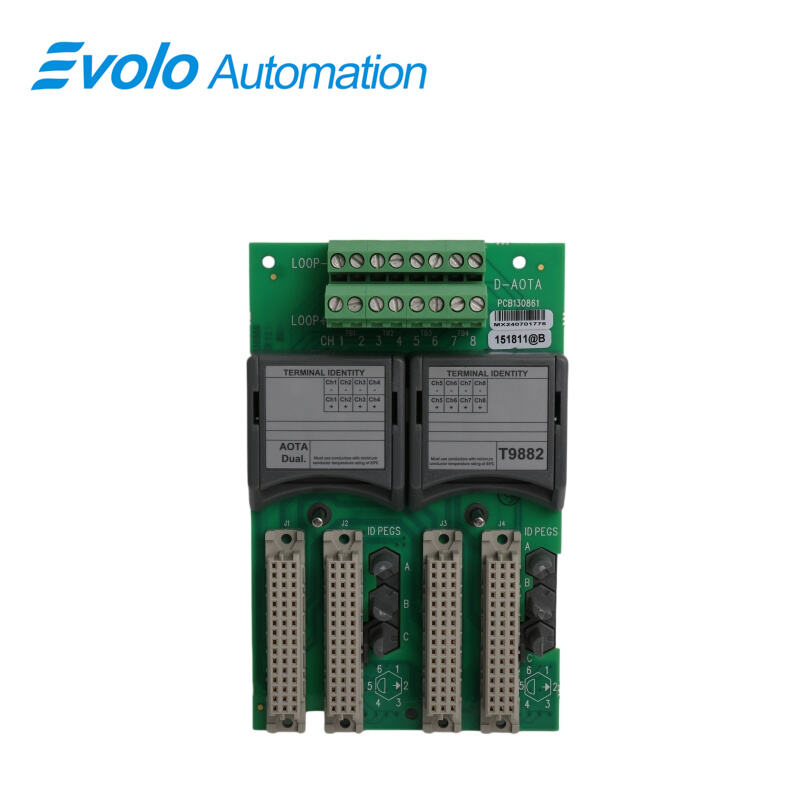

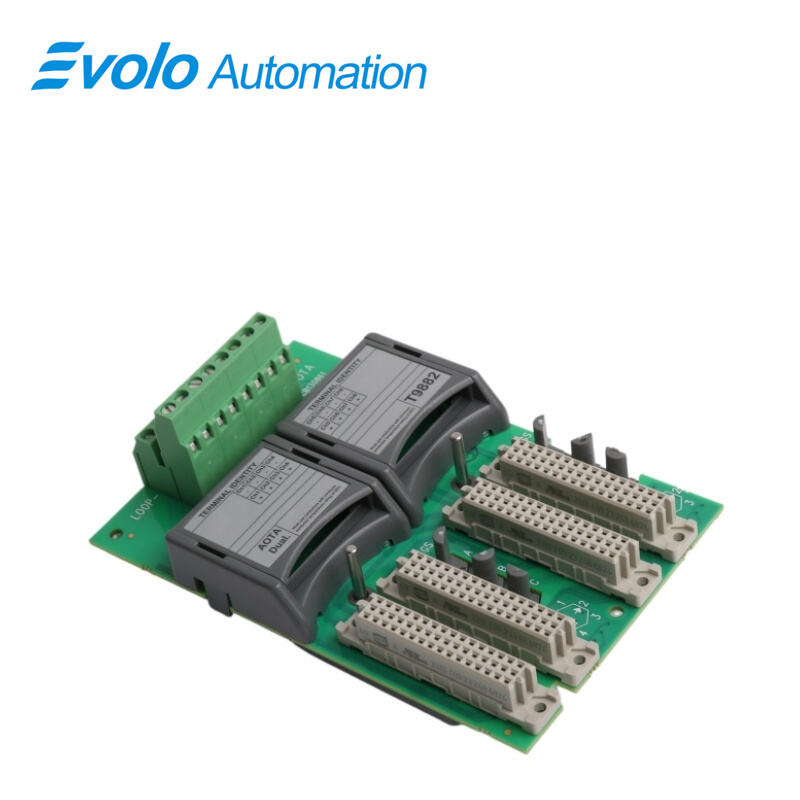

The T9882 is an 8-channel analog output termination component manufactured by ICS Triplex Trusted. This technology features a dual-channel shared topology, ensuring complete electrical isolation between all channels and has passed global critical safety certifications.
Applications
Petroleum Refineries: Controls catalytic and hydrocracking valves for high-pressure processes.
Ethylene Plants: Regulates furnace and reactor feed control valves.
LNG Plants: Drives compressor guide vanes and anti-surge valves.
Thermal Power Plants: Controls feedwater pumps and turbine speed systems.
Nuclear Power Plants: Operates reactor cooling pumps and containment isolation valves.
Competitive Advantage
Full-channel high-level electrical isolation: Isolated design eliminates ground loop currents between different grounding points, improving anti-interference capability.
Dual Commoned High-Availability Topology: Dual-path redundant design enables seamless switchover during single path failure, ensuring continuous 8-channel control.
Authoritative Marine and Explosion-Proof Certifications: Certified by CCC, DNV-GL, and UK EX, suitable for offshore, hazardous, and high-safety industrial environments.
FAQ
Q: How many signal output channels does the T9882 support?
A: It provides 8 dual-redundant common-ground output channels.
Q: What current output range does the T9882 support?
A: 4–20 mA current output.
Q: What is the electrical isolation status of the T9882?
A: Internal circuits are isolated from the channels.
Q: What is the operating DC power supply range of the T9882?
A: 18–32 VDC supply range.
Q: What certifications does the T9882 comply with?
A: China CCC and UK EX explosion-proof certification.
