Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9852 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
T9852 |
|
Product Type |
Digital Output Termination Assembly |
|
Channels |
8 Channel Dual |
|
Output Voltage |
24 VDC |
|
Supported Output Modules |
Dual T9451 Digital Output Modules |
|
Conductor Cross-Section |
Max 1.31 mm² (16 AWG) |
|
Stripping Length |
6 mm (1/4 in.) |
|
Field Supply Fuses |
10 A per power supply |
|
Weight |
0.26 kg |
|
Grounding Type |
Commoned (shared ground) |
Description

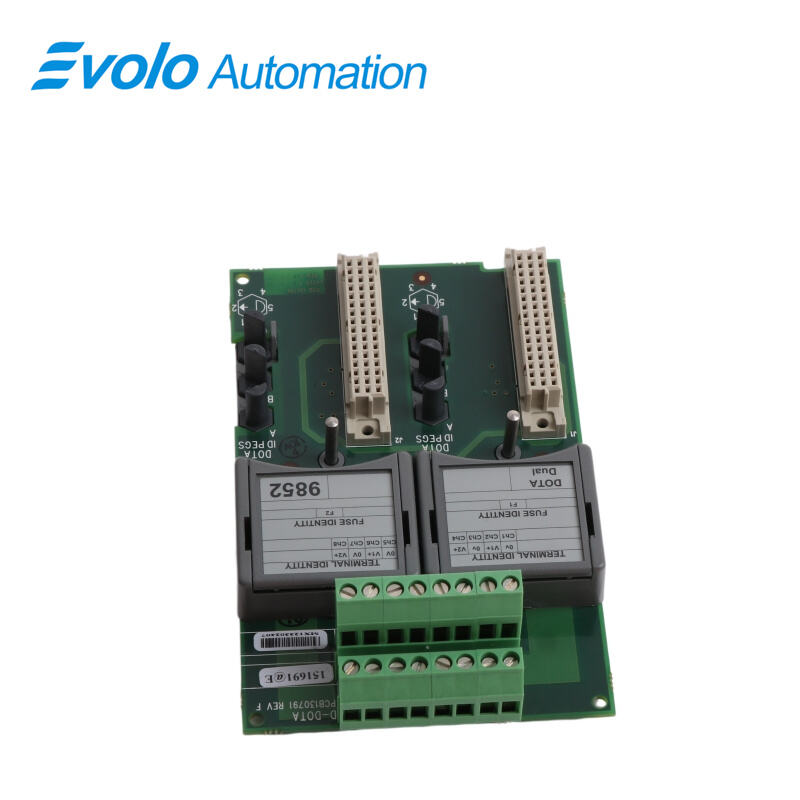

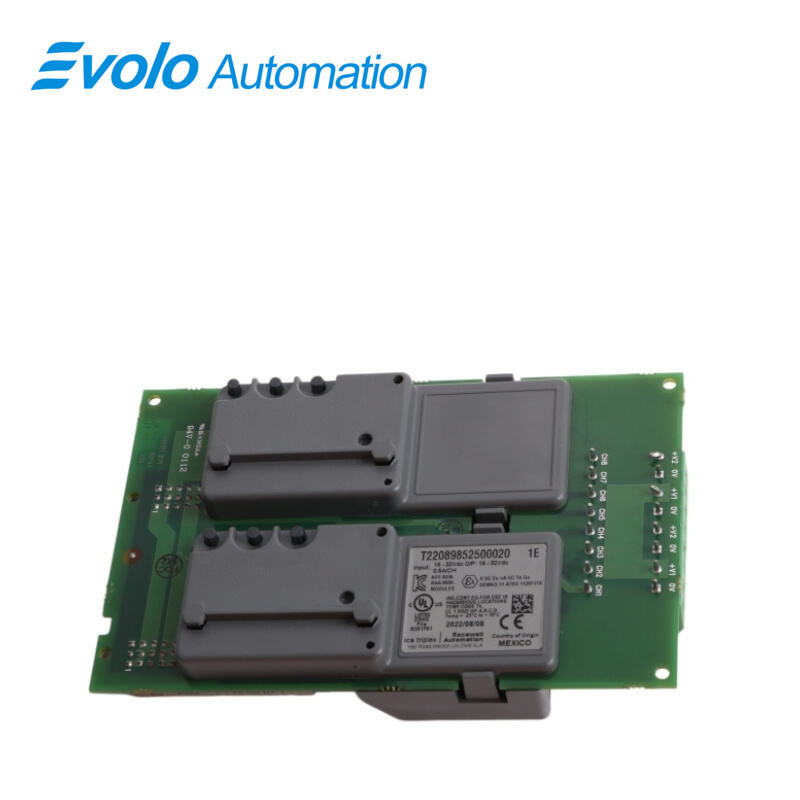

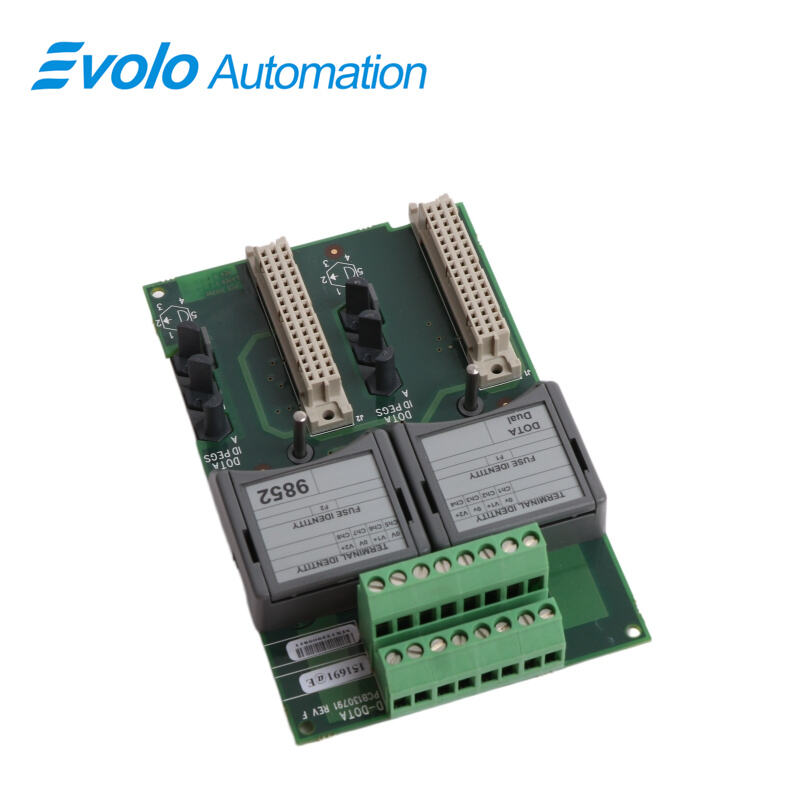

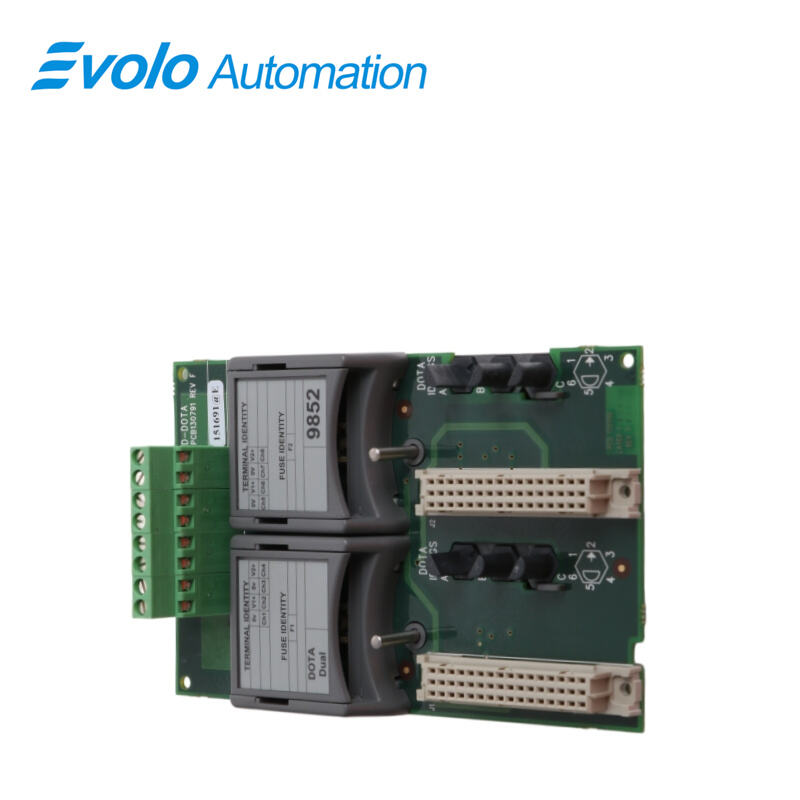

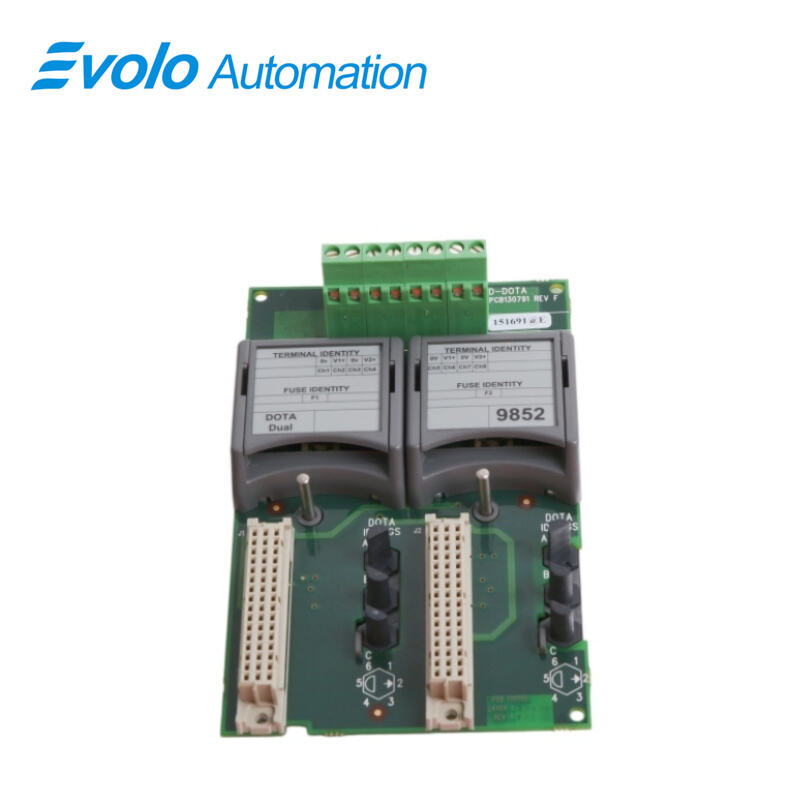

The lCS Triplex T9852 is a dual 8-channel digital output termination assembly designed to provide reliable and efficient power distribution and signal termination for various digital output applications.
Applications
Petroleum Refineries: Controls emergency shutoff valves and pump contactor circuits.
LNG Plants: Controls shutdown valves and alarm systems in compressor areas.
Chemical Plants: Operates feed valves and mixer motor control systems.
Thermal Power Plants: Drives fuel shutoff valves and turbine trip systems.
Features
Dual 8-Channel Output: Supports 16 digital output channels.
Dual Field Power Supply: Accepts two independent 24VDC power sources for redundancy.
Fuse Protection: Incorporates replaceable 10A fuses for each power supply.
FAQ
Q: How many dual digital output channels does the T9852 have?
A: It has 8 dual output channels.
Q: What is the maximum wire cross-sectional area allowed for terminals on the T9852?
A: Maximum 1.31 mm² (16 AWG).
Q: What stripping length is required when wiring the T9852?
A: 6 mm (1/4 inch).
Q: What fuse rating is used per field power circuit on the T9852?
A: 10 A fuse per circuit.
Q: What is the rated output control voltage of the T9852?
A: 24 VDC.
