Overview
330130-040-01-00 3300 XL Standard Extension Cable
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-040-01-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330130-040-01-00 3300 XL Standard Extension Cable is a high-performance signal transmission component independently developed by Bently Nevada, specially designed for extending the connection distance between 3300 XL series proximity probes and signal conditioning modules in industrial machinery condition monitoring systems. As a key link in the proximity transducer system, this 3300 XL Standard Extension Cable is engineered to ensure low-loss, interference-free signal transmission, effectively supporting the accurate monitoring of vibration, position and speed parameters of critical rotating equipment.

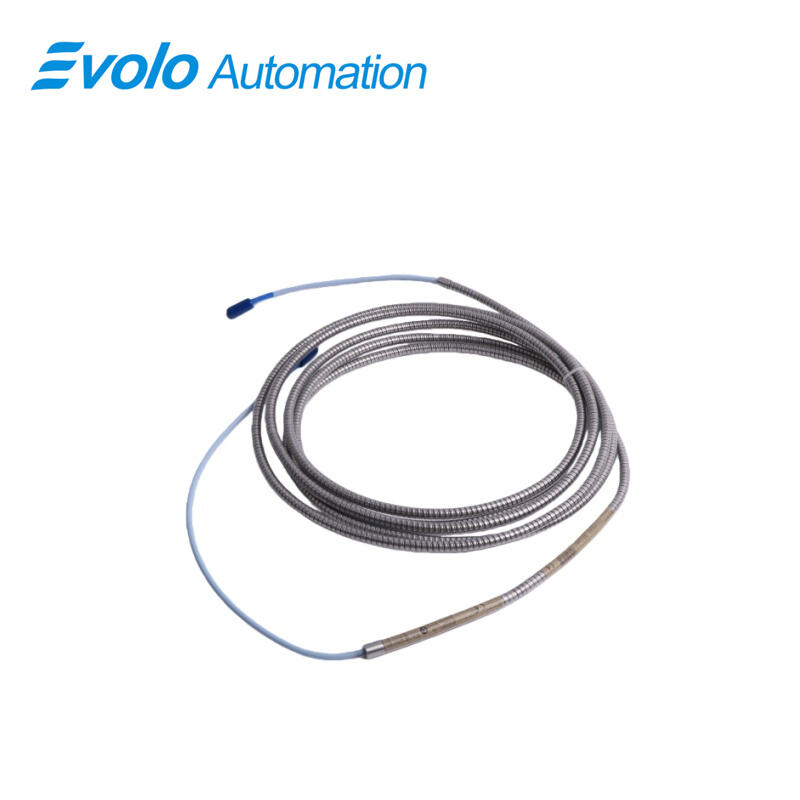

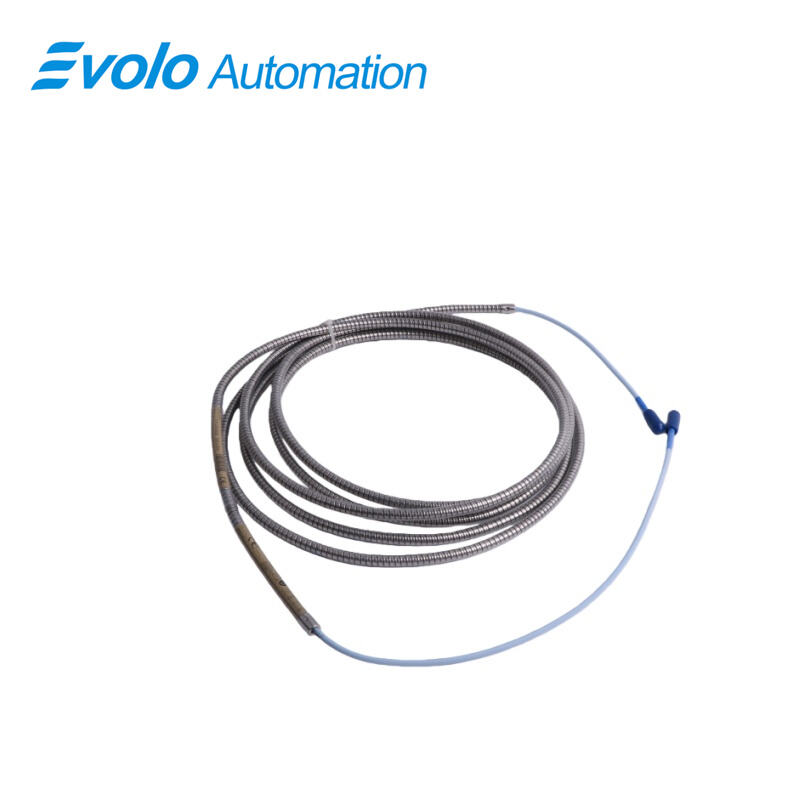

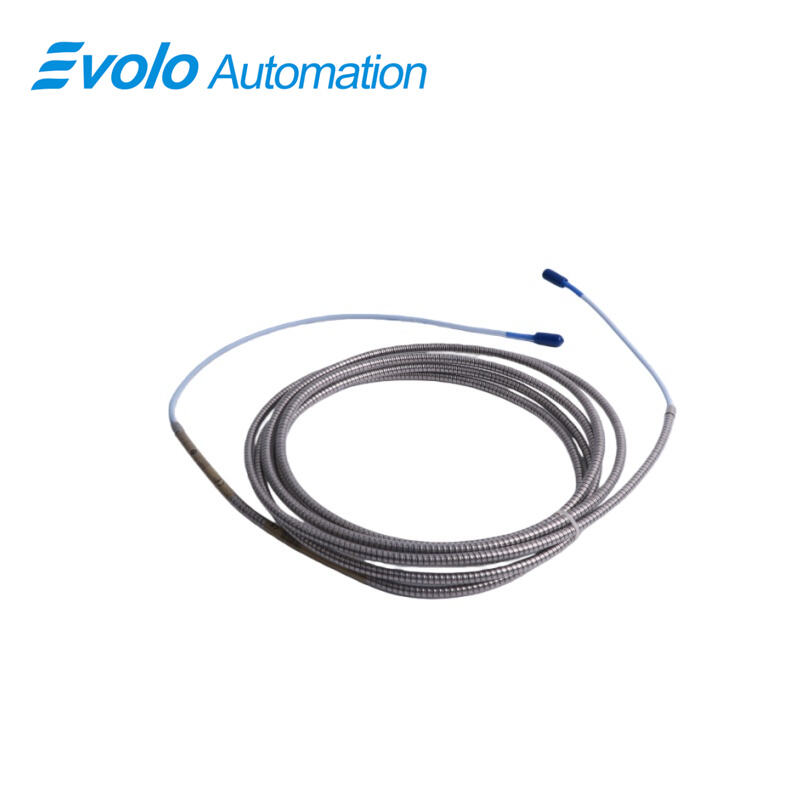

The 330130-040-01-00 3300 XL Standard Extension Cable is configured with a standard cable and miniature coaxial ClickLoc connector, which realizes quick and stable connection with Bently Nevada's proximity probes and monitoring hosts, avoiding signal interruption caused by loose connectors under high-vibration industrial conditions. The cable adopts armored cable design, which has excellent mechanical protection performance, can resist external abrasion, extrusion and impact, and is suitable for complex installation environments such as industrial plants with dense pipelines and heavy machinery. With a standard length of 4.0 meters (11.5 feet), dimensions of 26×26×3 cm and a weight of 0.46 kg, this extension cable balances flexibility and structural stability, facilitating flexible routing and fixed installation in limited space.
In terms of electrical performance, the 330130-040-01-00 3300 XL Standard Extension Cable has a typical capacitance of 69.9 pF/m (21.3 pF/ft) and a stable output resistance of 50 Ω, which ensures the linearity and consistency of signal transmission, and avoids signal distortion or attenuation during long-distance transmission. The cable supports field wiring with a cross-sectional area of 0.2 to 1.5 mm² (16 to 24 AWG), complying with standard industrial wiring specifications and reducing the difficulty of on-site integration. It can operate stably in a wide temperature range of -50°C to +115°C (-65°F to +205°F), adapting to the temperature changes in power generation, petrochemical, metallurgical and other industrial sites.
Key Functions
Applications
1.Long-Distance Signal Transmission in Turbine Monitoring Systems
The 330130-040-01-00 3300 XL Standard Extension Cable is widely used in turbine condition monitoring systems in power plants. It can extend the connection between the proximity probe installed on the turbine shaft and the remote signal conditioning cabinet, with a 4.0-meter length covering the installation distance between the equipment and the control room. The armored cable design resists the vibration and mechanical impact of the turbine during operation, ensuring the stable transmission of radial vibration and axial position signals.
2.Signal Extension in Compressor & Pump Monitoring Layouts
In petrochemical plants, compressors and pumps are usually installed in harsh environments such as outdoor or semi-outdoor. The 330130-040-01-00 3300 XL Standard Extension Cable can connect the proximity probe on the equipment to the monitoring host in the safe area. Its excellent temperature adaptability ensures normal signal transmission under high-temperature or low-temperature conditions, and the ClickLoc connector realizes quick plug-and-play, reducing the time of on-site maintenance and debugging.
3.Dense Equipment Area Wiring in Heavy Manufacturing Workshops
In heavy manufacturing workshops with dense equipment and complex pipelines, the 330130-040-01-00 3300 XL Standard Extension Cable with compact dimensions can be flexibly routed between equipment. The armored protection structure prevents the cable from being damaged by heavy objects or mechanical friction, and the stable 50 Ω output resistance ensures that the monitoring signal is not interfered by the surrounding electromagnetic environment, realizing accurate condition monitoring of large motors, reducers and other equipment.
Official Specifications
Quick Detail
|
Agency Approval Option: |
Not required |
|
Cable Length Option : |
4.0 meters (11.5 feet) |
|
Connector Protector and Cable Option : |
Armored cable |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
26x26x3cm |
|
Weight: |
0.46kg |
Specifications
|
Operating Temperature Range: |
-50°C to +115°C (-65°F to+205°F) |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Extended Temperature Range cable: |
75Ω triaxial |
Frequently Asked Questions
What is the model number?
The listed model number is 330130-040-01-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Armored Protection Design & Strong Mechanical Durability
The cable adopts armored cable structure, which can resist external abrasion, extrusion and impact, effectively avoiding cable damage and signal interruption in harsh industrial environments. Compared with ordinary extension cables, it has longer service life and lower maintenance and replacement costs.
2.Low-Loss Signal Transmission & High Monitoring Accuracy
With a typical capacitance of 69.9 pF/m and stable 50 Ω output resistance, the cable ensures low-loss and interference-free signal transmission. It can maintain the linearity of the proximity probe's output signal during long-distance transmission, providing accurate data support for equipment condition monitoring and fault diagnosis.
3.Quick-Connect ClickLoc Connector & Easy Installation
Equipped with miniature coaxial ClickLoc connector, the cable realizes quick and firm connection with Bently Nevada's proximity probes and monitoring modules, without the need for complex wiring operations. The plug-and-play design shortens on-site installation and debugging time, improving the efficiency of system deployment.
4.Wide Temperature Adaptability & Versatile Industrial Compatibility
The cable can operate stably in the temperature range of -50°C to +115°C, adapting to the working conditions of different industrial fields such as power generation, petrochemical and metallurgy. It supports field wiring of 0.2-1.5 mm² (16-24 AWG), which is compatible with standard industrial wiring specifications and has strong versatility.
5.Simplified Procurement & Deployment Process
The product does not require additional agency approval for general industrial applications, which simplifies the procurement approval process for users. The 4.0-meter standard length meets the most common extension distance requirements in industrial sites, reducing the need for custom processing and shortening the supply cycle.
