Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9300 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
T9300 |
|
Product Type |
I/O Base Unit |
|
Dimensions |
23.6 x 13.2 x 3 cm |
|
Weight |
0.22 kg |
|
Power Supply |
120 VAC / 240 VAC / 480 VAC |
|
Maximum Power Consumption |
100 W |
|
Safety Integrity Level |
SIL 3 |
|
Mounting Type |
DIN rail |
|
Operating Temperature Range |
Up to 70 °C (158 °F) |
|
Maximum I/O Modules |
Up to 3 modules simultaneously |
Description

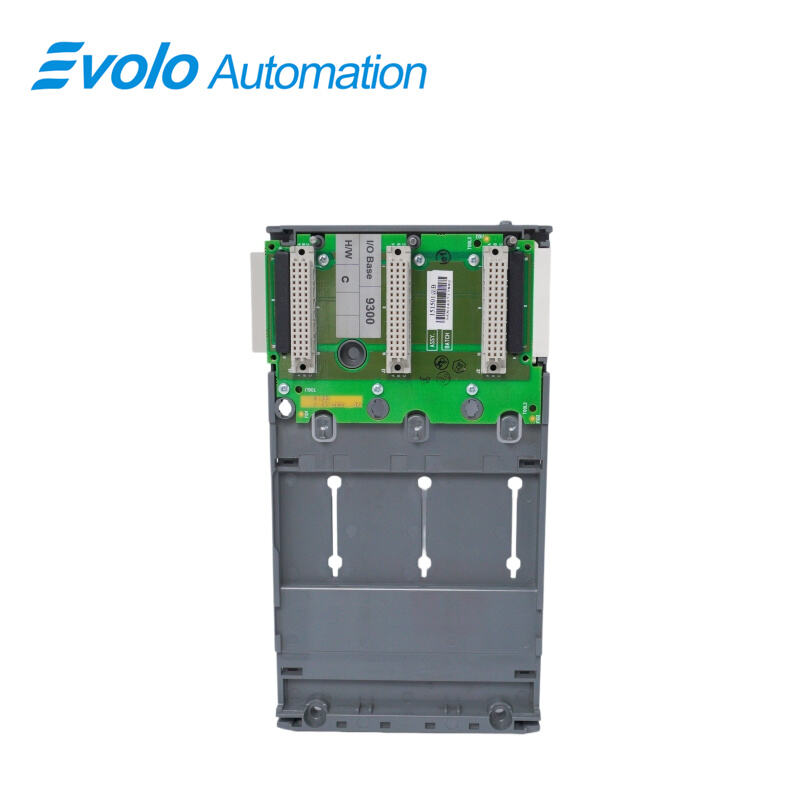

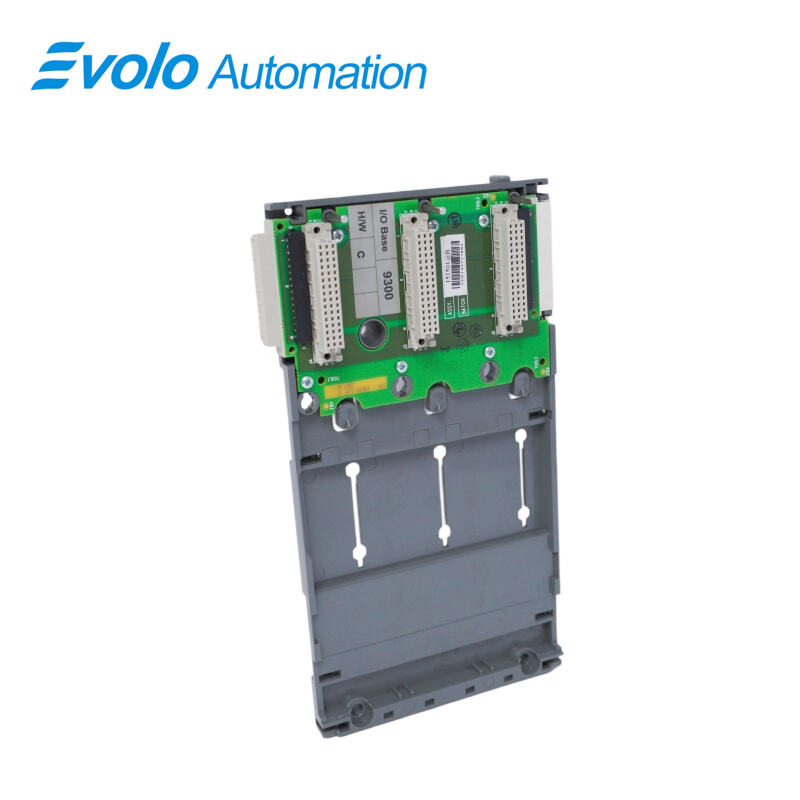

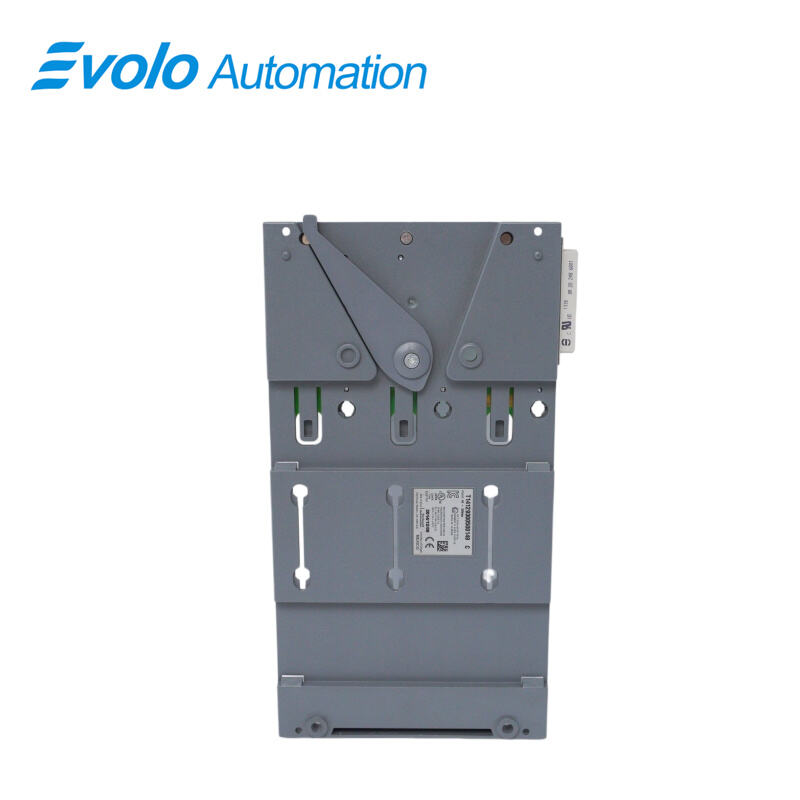

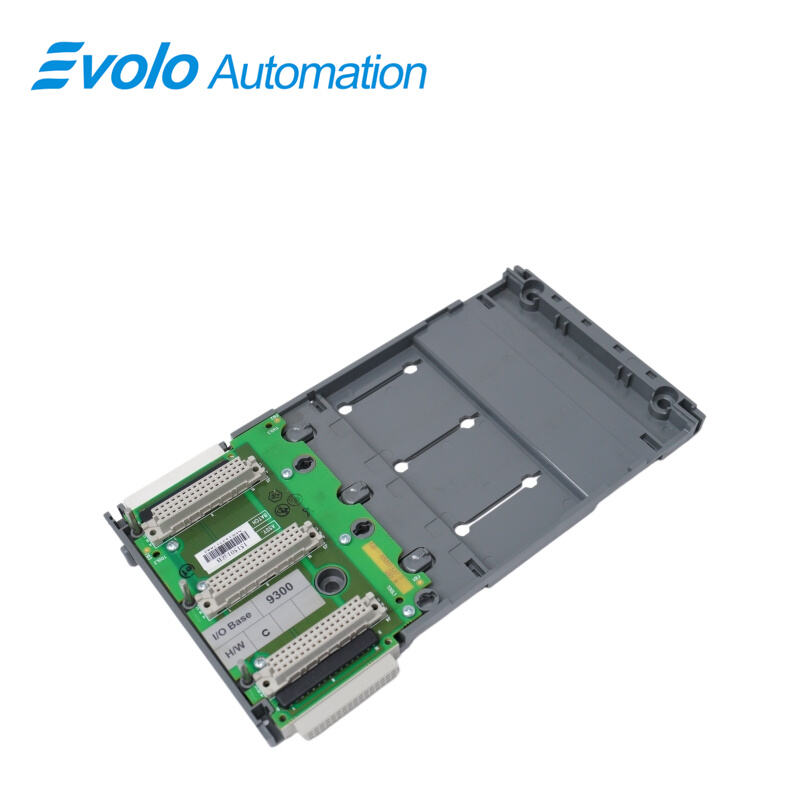

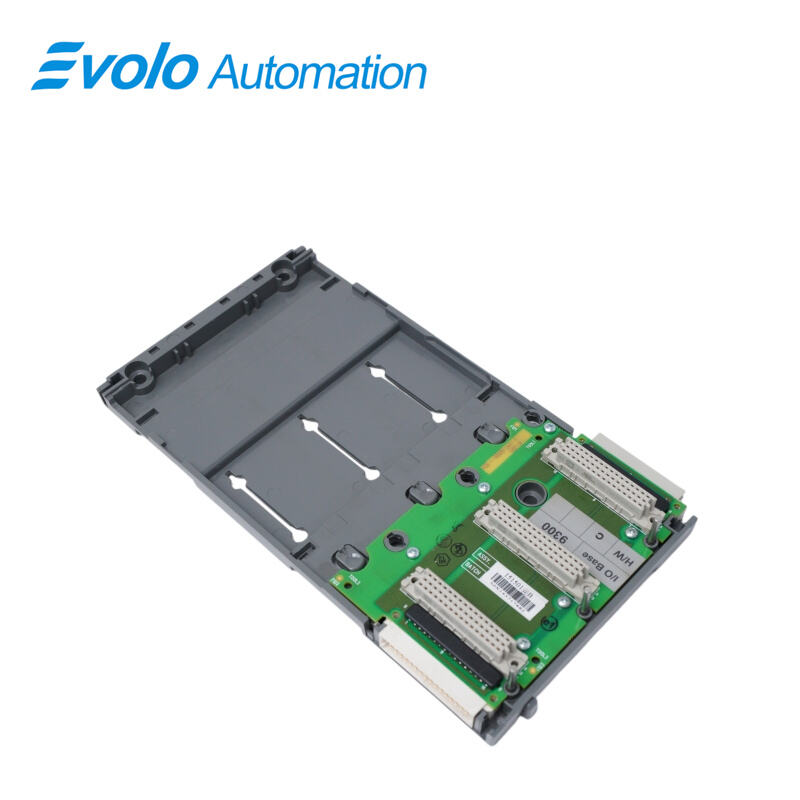

The T9300 is the I/O base unit of the AADvance 9000 series high-instrument safety control system. Physically and electrically, it serves as a passive base to support and securely mount various input and output (I/O) modules and field terminal assemblies.
Applications
Large Petrochemical Plants: Distributed I/O and safety interlocking in hazardous units.
Heavy Equipment Manufacturing: Modular signal control in power cabinets and drive systems.
Thermal & Nuclear Power Plants: High-reliability I/O for boiler, turbine, and instrumentation systems.
Steel & Metallurgy Plants: Remote I/O control in high-heat and high-EMI environments.
Smart Water Treatment Plants: DIN-rail modular integration for pumps and dosing systems.
Functionality
Interfaces with up to 40 field devices.
Performs triplicated diagnostic tests.
Tests include measurements for current and voltage on each portion of the voted output channel.
Mounting
Mount each T9300 I/O base unit:
Place a T9300 I/O base unit onto the DIN rails to the right of the T9100 processor base unit.
Slide the I/O base unit to the left until the joining connectors are fully mated.
Insert the retaining clips at the top and bottom of the base units.
Secure the I/O base unit onto the DIN rails by sliding the retaining lever (below the base unit) to the left. Then insert the backplane clips into the top and the bottom slots.
FAQ
Q: What role does T9300 play in industrial automation network architecture?
A: I/O base unit for module hosting and secure signal integration between field devices and control systems.
Q: Does installing T9300 in a control cabinet require a special mounting bracket?
A: No. It uses standard DIN-rail mounting for easy cabinet integration.
Q: How does T9300 simplify control cabinet power distribution design?
A: Supports multiple AC voltage inputs, reducing power conversion complexity.
Q: Can T9300 operate in high-temperature, non-air-conditioned field enclosures?
A: Yes. It maintains stable operation under elevated ambient temperatures.
Q: What safety certifications does T9300 have for high-reliability plants?
A: Designed to meet SIL 3 safety integrity standards with self-diagnostics.
