Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T8830C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
T8830C |
|
Part Name |
Trusted 40 Channel Analogue Input FTA |
|
Dimensions |
33.5 × 12.3 × 6.5 cm |
|
Weight |
0.7 kg |
|
Number of Channels |
40 channels |
|
Input Type |
Analog |
|
Signal Type |
Typically 4–20 mA or 0–10 V (varies by configuration) |
|
Accuracy |
High accuracy for precise measurements |
|
Isolation |
Electrical isolation between channels and system |
|
Power Supply Voltage |
18 to 32 Vdc |
|
Maximum Field Current |
50 mA (fused per loop) |
|
Power Consumption (Field Supply) |
0.25 W (LED indicator power) |
|
Operating Temperature |
0°C to +60°C (+32°F to +140°F) |
|
Non-operating Temperature |
-25°C to +70°C (-13°F to +158°F) |
|
Relative Humidity |
10–95% RH (non-condensing) |
|
Approvals |
CE; UL |
Description

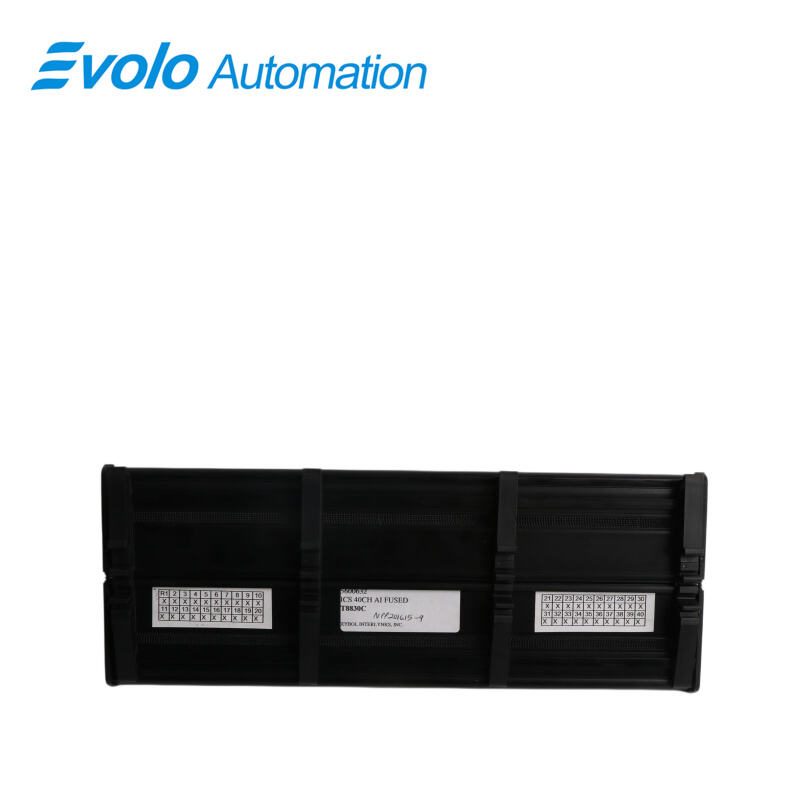

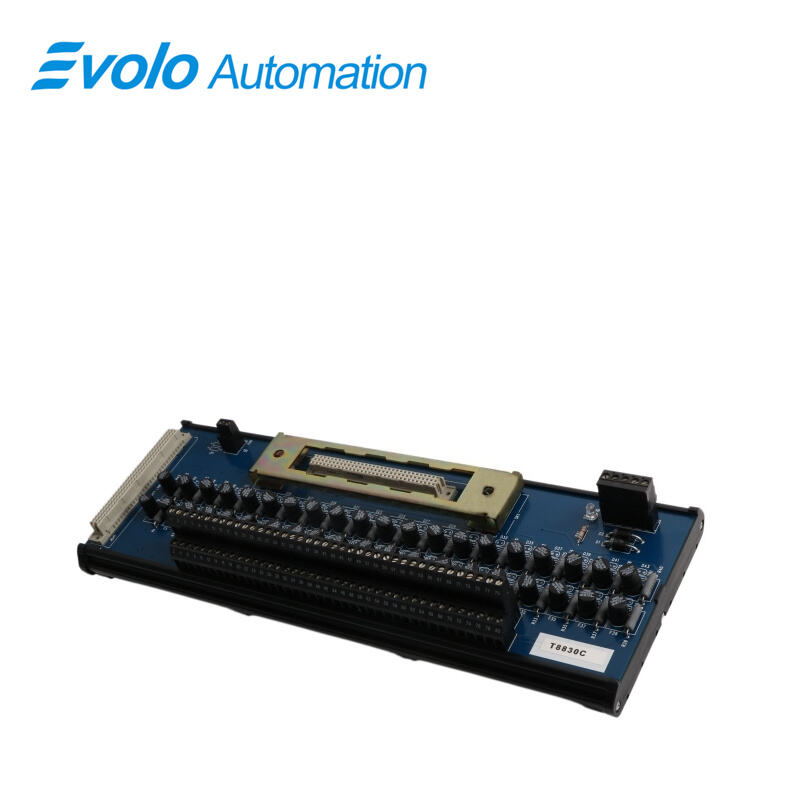

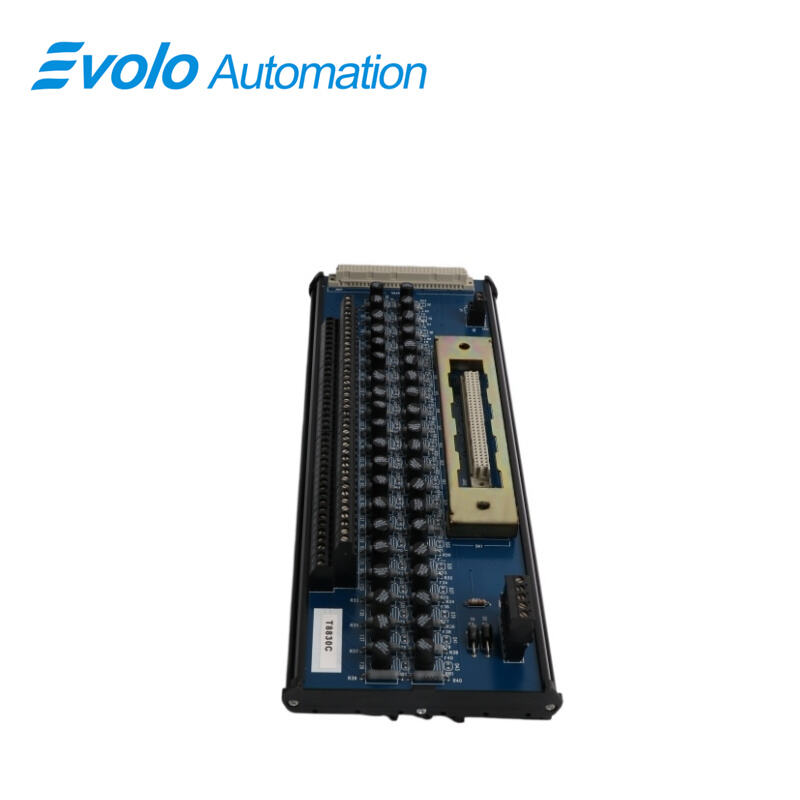

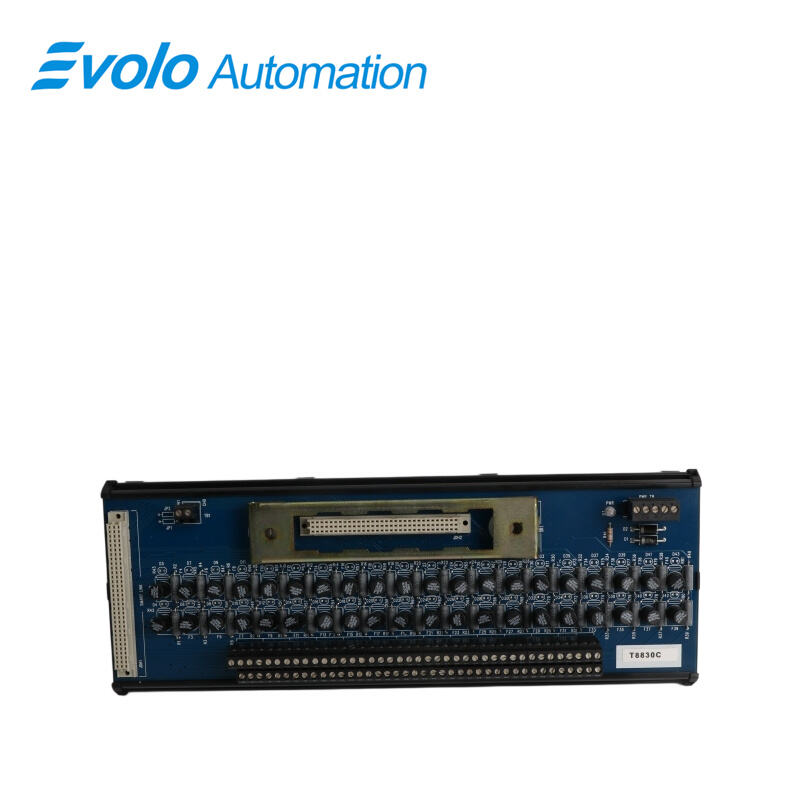

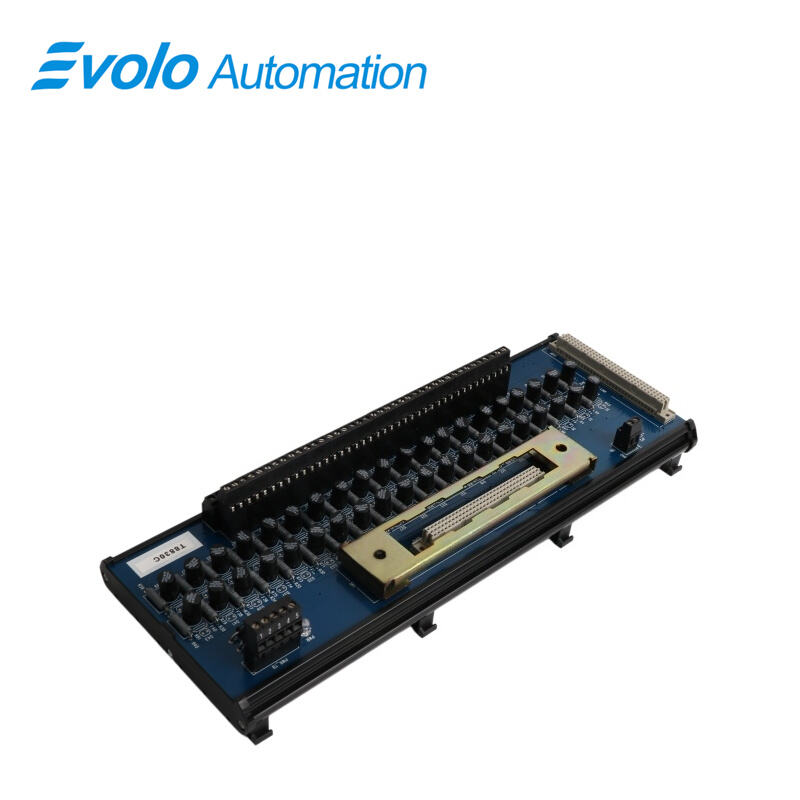

The T8830C is a Trusted 40 Channel Analogue Input Field Termination Assembly (FTA), designed to act as the main interface between a field device generating an analogue signal and the Trusted TMR Analogue Input Module T8431.
Applications
Oil & Gas: Collects 4–20mA pressure and temperature signals with protected inputs.
Offshore Oil Fields: Uses electrical isolation to reduce subsea cable interference.
Combined Cycle Power: Acquires accurate turbine and boiler temperature signals for control systems.
Steel Smelters: Protects signals in blast furnace and blower control cabinets.
Water Treatment: Manages analog inputs for dosing and flow with local status indication.
Features
40 input channels per FTA
Industry standard field device connections (2-wire)
Standard DIN rail compatibility
Simple installation and connection
4 Vdc operation
SmartSlot connection for ‘one to many’ hot replacement of input modules
Fused field power supply per channel
On-board Light Emitting Diode (LED) indication of field power supply integrity
FAQ
Q: How many channels and what supply range does the T8830C analog input termination support?
A: It supports 40 analog input channels with a field supply range of 18 Vdc to 32 Vdc.
Q: What is the per-loop protection current rating of the T8830C module?
A: Each loop has independent fuse protection with a 50 mA current limit.
Q: What signal types are supported by the T8830C termination module?
A: It supports standard 4–20 mA and 0–10 V analog signals.
Q: What is the power consumption of the T8830C module under full load?
A: Field power consumption is 0.25 W, mainly for LED indicators.
Q: What humidity range does the T8830C module support?
A: Operating, storage, and transport humidity is 10% to 95% non-condensing.
