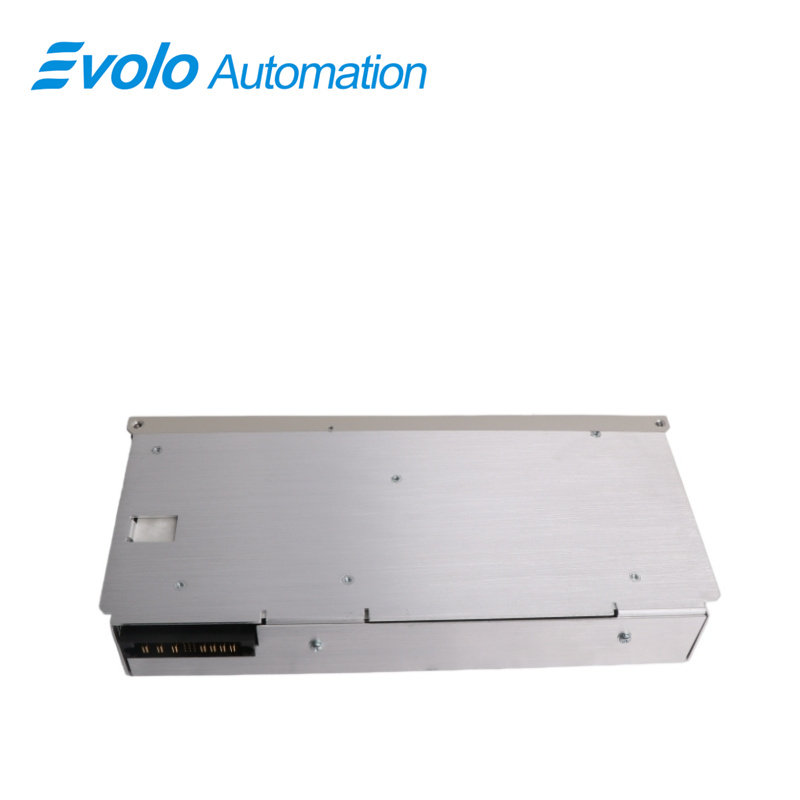

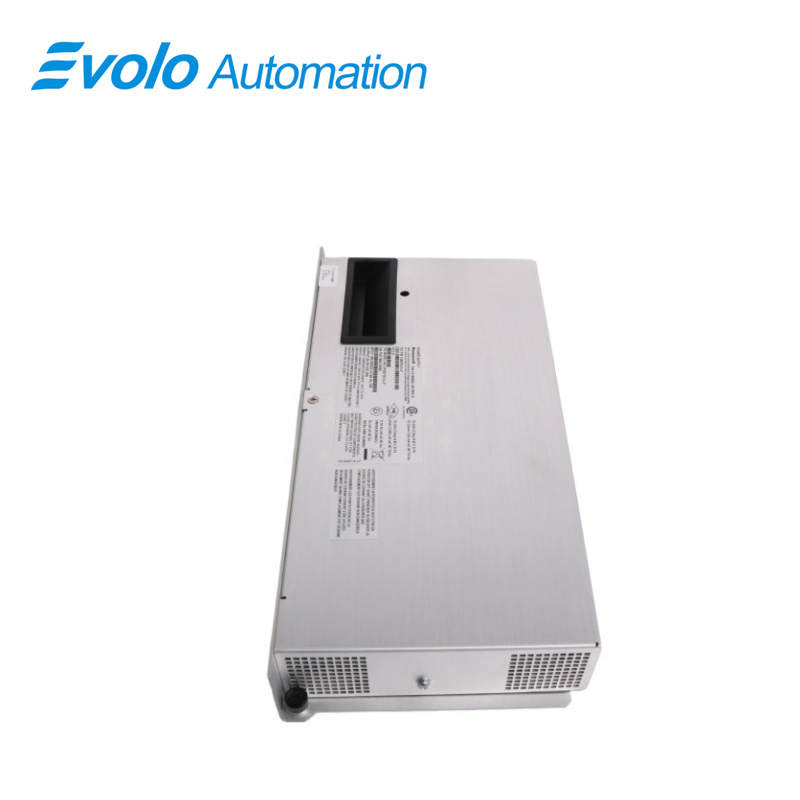

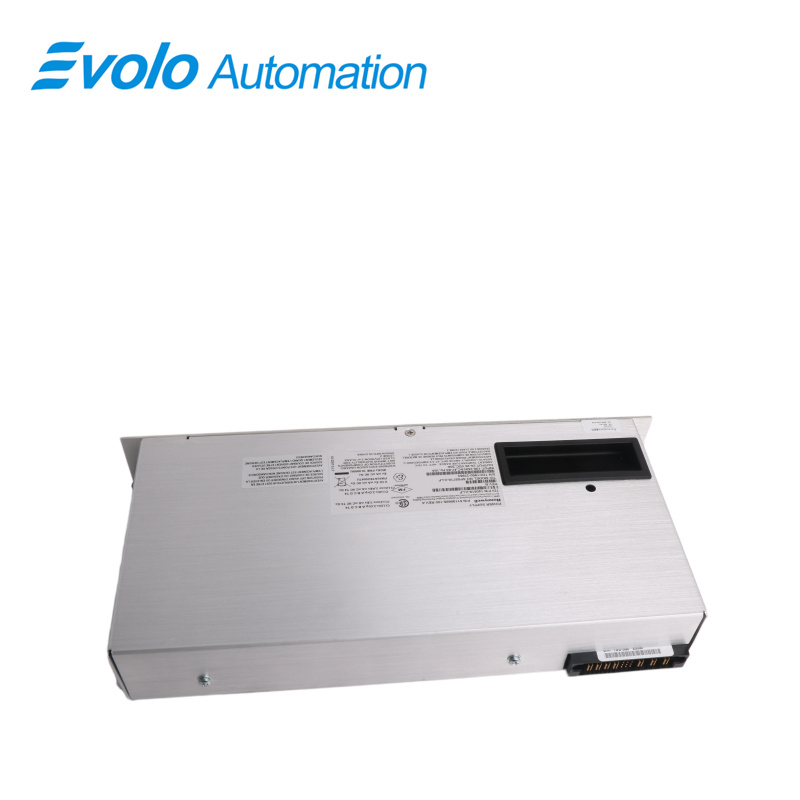

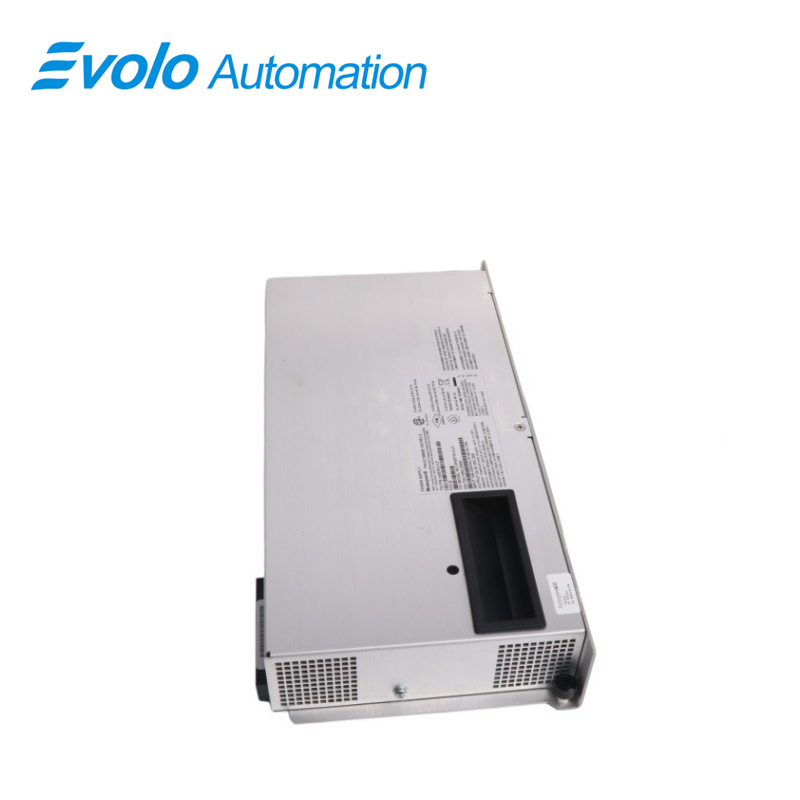

SPS5710 51198685-100 Power Supply Module

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	SPS5710  51198685-100
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The Honeywell SPS5710 51198685-100 is a power supply module. It is primarily used to provide continuous and stable power support for automated equipment in industrial settings. In practical applications, it often comes in a dual-module configuration. When one power supply fails, the other automatically takes over the entire power supply, preventing production line shutdowns due to power outages. It also features protection mechanisms to block external power grid interference and protect valuable backend control chips from voltage fluctuations.

Applications

Oil Refineries: High-current parallel expansion for redundant 24 VDC power in DCS and ESD systems.

Chemical Plants: Wide temperature operation ensures stable DC output near reactors and high-heat areas.

Thermal Power Plants: DIN rail mounting enables compact integration into boiler and turbine control cabinets.

Natural Gas Plants: Rugged enclosed design resists continuous vibration in compressor and pipeline stations.

Metallurgy Plants: Strong current handling and low-noise DC input resist interference from heavy electrical equipment.

Features

High Reliability: Ensures continuous operation in demanding environments

Low Noise output: Optimized for sensitive automation equipment

Modular Design: Easy integration into multi-brand racks

Industrial Grade: Built for long lifecycle and robust performance

Serviceability: Simplified replacement and maintenance procedures

Troubleshooting

Complete DC output loss: Check 24V DC input, voltage drop, and terminal connections. If input is normal, disconnect load and inspect for short circuit or overload protection trigger.

Overheating during 100A–400A parallel operation: Indicates current imbalance. Check current-sharing wiring, cable length, and contact resistance consistency.

High temperature and voltage drop near 60°C: Inspect cooling airflow and dust blockage. Add forced cooling if ambient temperature is too high.

FAQ

Q: What is the input voltage of SPS5710 51198685-100?
A: Its input voltage is 24 VDC.

Q: What is the current capacity of SPS5710 51198685-100?
A: Its current capacity is 20 A.

Q: What is the output current range supported by SPS5710 51198685-100?
A: It supports an output current range of 100 A – 400 A.

Q: What mounting method does SPS5710 51198685-100 use?
A: It uses DIN rail mounting.

Q: What is the protection rating of SPS5710 51198685-100?
A: Its protection rating is IP20.
