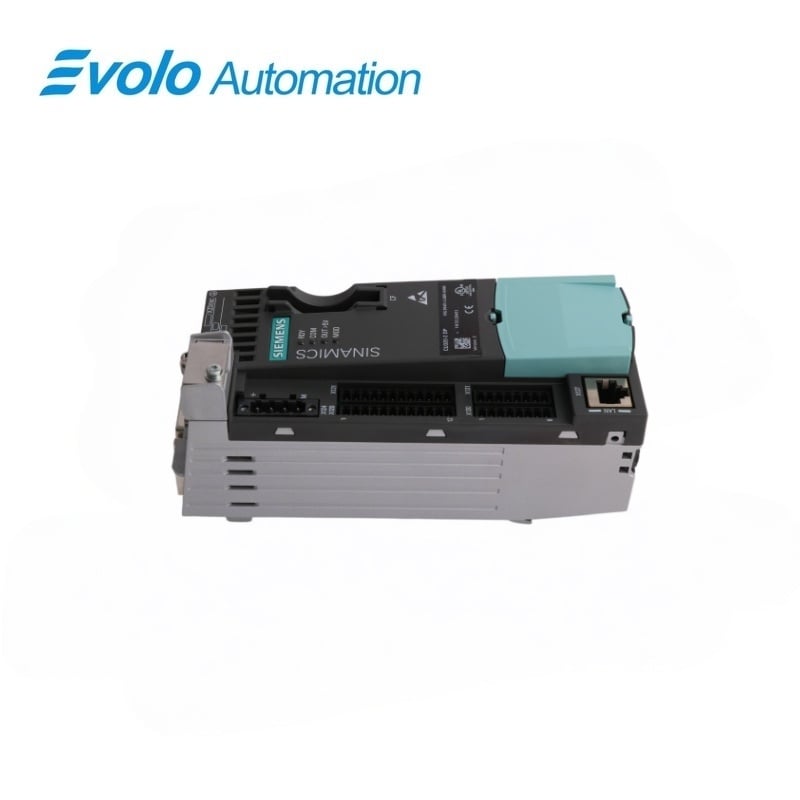

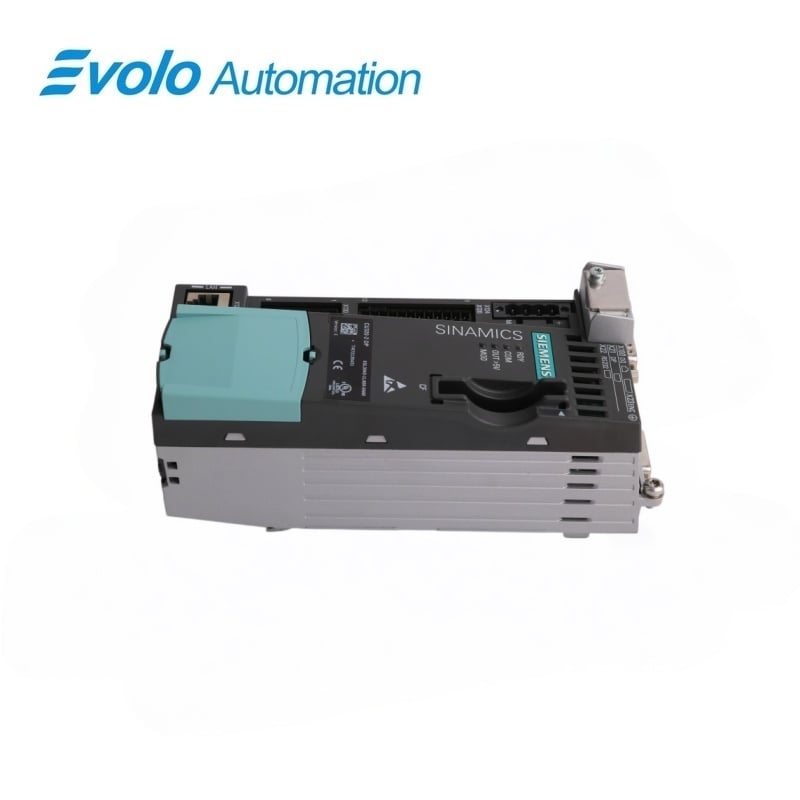

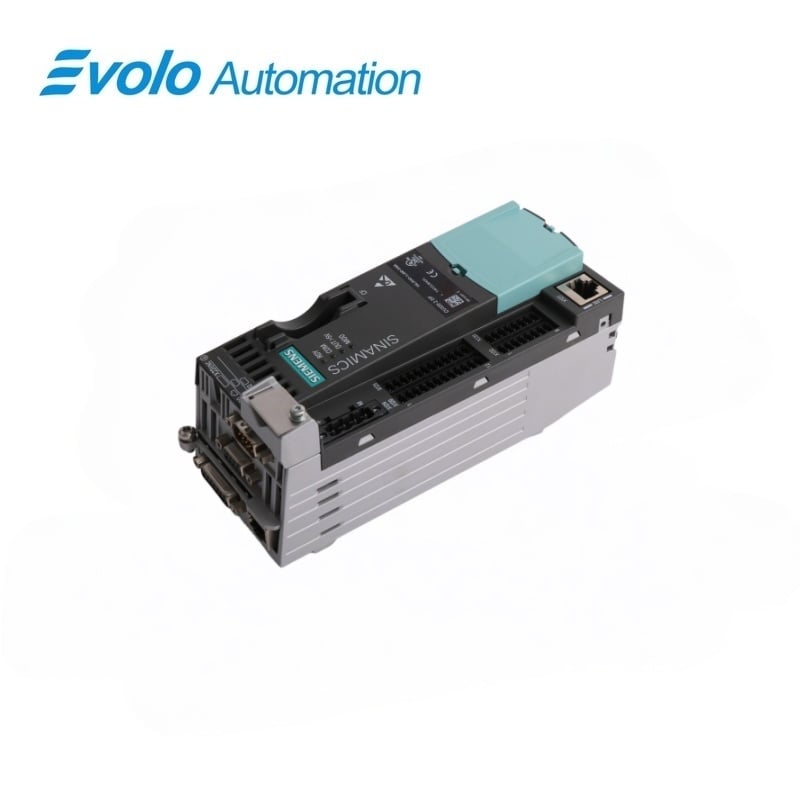

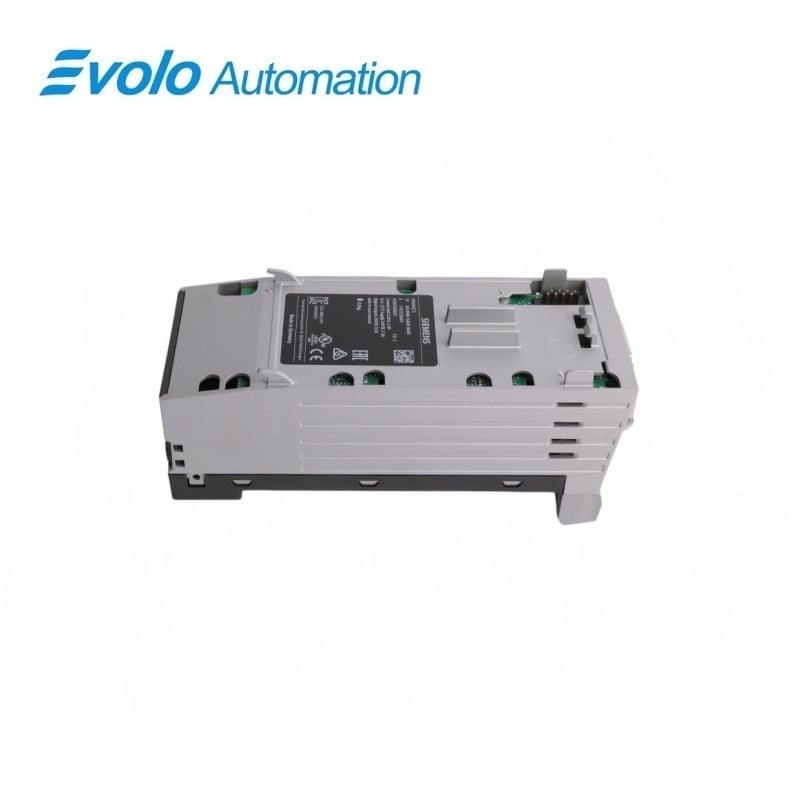

Siemens SINAMICS S120 6SL3040-0LA00-0AA1 CU310 DP Control Unit
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6SL3040-0LA00-0AA1 CU310 DP
Official Siemens identification and specifications for 6SL3040-0LA00-0AA1, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6SL3040-0LA00-0AA1 |
|---|---|
| Manufacturer | Siemens |
| Platform | SINAMICS S120 |
| Product Type | CU310 DP Control Unit |
| Bus Interface | PROFIBUS DP |
| Drive Platform | SINAMICS S120 |
| Encoder Interface | HTL / TTL / SSI at X23 |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6SL3040-0LA00-0AA1.
Drive Control
CU310 DP control unit for a SINAMICS S120 single-axis drive with PROFIBUS communication.
Compatibility Check
Verify firmware, CompactFlash card, PROFIBUS address, encoder wiring, DRIVE-CLiQ and stored parameters.
Product Overview
6SL3040-0LA00-0AA1 is officially identified in Siemens documentation as the SINAMICS S120 CU310 DP control unit with PROFIBUS communication.
The unit supports encoder evaluation at interface X23 and provides temperature-sensor inputs at X23 and X120 from the applicable hardware and firmware version.
Key Functions
Single-Axis Drive Control
Controls a SINAMICS S120 single-axis drive configuration.
PROFIBUS Communication
Connects the drive to the automation system through PROFIBUS DP.
Encoder and Temperature Evaluation
Interface X23 supports HTL, TTL and SSI encoder signals plus the Siemens-specified temperature channel.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SINAMICS S120 |
| Article Number | 6SL3040-0LA00-0AA1 |
| Product Type | CU310 DP Control Unit |
| Product Designation | CU310 DP |
| Drive System | SINAMICS S120 |
| Fieldbus | PROFIBUS DP |
| Encoder Interface | X23, 15-pole SUB-D |
| Supported Encoder Signals | HTL / TTL / SSI |
| Temperature Interfaces | X23 and X120 with applicable firmware |
| Applicable Firmware Reference | V2.5 SP1 or higher for added X23 functions |
| Project Storage | CompactFlash card; verify installed card and firmware |
| Country of Origin | Germany |
Frequently Asked Questions
What is 6SL3040-0LA00-0AA1?
It is the Siemens SINAMICS S120 CU310 DP control unit.
Which fieldbus is used?
The CU310 DP communicates through PROFIBUS DP.
Which encoder interface is provided?
Siemens documents the 15-pole X23 interface for HTL, TTL and SSI encoders.
Where are temperature sensors connected?
The applicable version supports temperature evaluation at X23 and X120.
Where are drive parameters stored?
Siemens documentation identifies the CompactFlash card as the project-storage medium for CU310.
Which configuration data must be backed up?
Back up the drive parameters, PROFIBUS settings, encoder data and DRIVE-CLiQ topology.
What should be checked before replacement?
Verify the full article number, firmware, CompactFlash card, PROFIBUS address, encoder wiring and drive archive.
Compatibility & Ordering Notes
Compatibility Checklist for 6SL3040-0LA00-0AA1
- Match the complete article number 6SL3040-0LA00-0AA1.
- Back up the SINAMICS drive archive and CompactFlash card.
- Record hardware/firmware version and PROFIBUS settings.
- Verify encoder, temperature-sensor and DRIVE-CLiQ connections.
