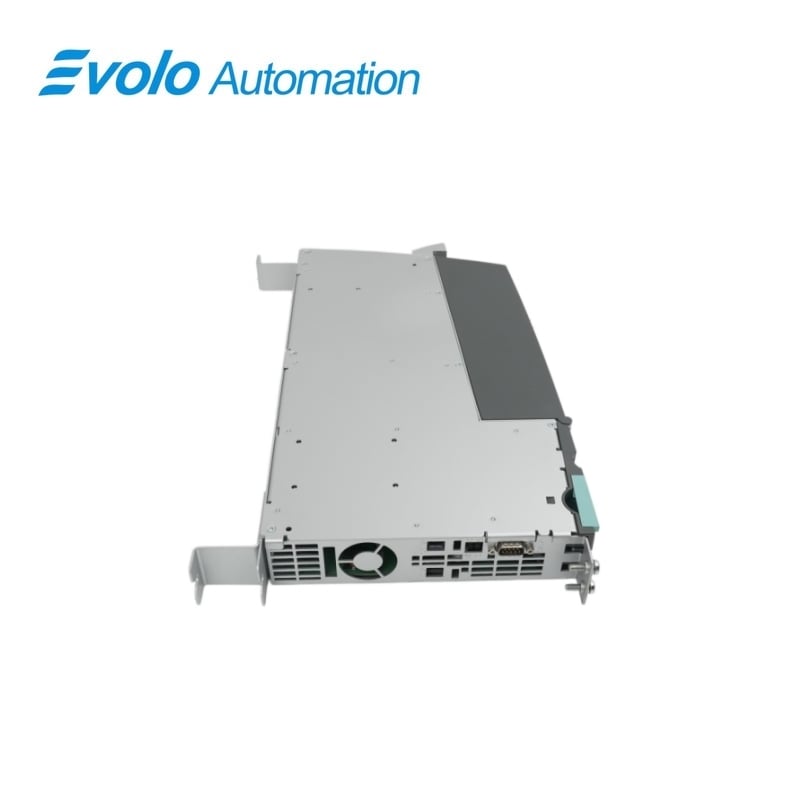

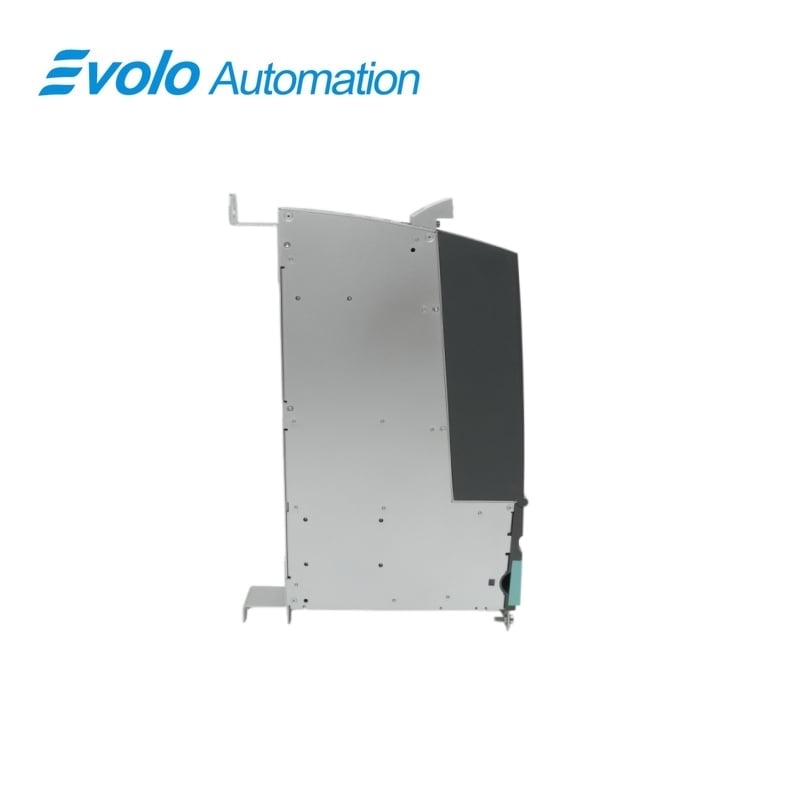

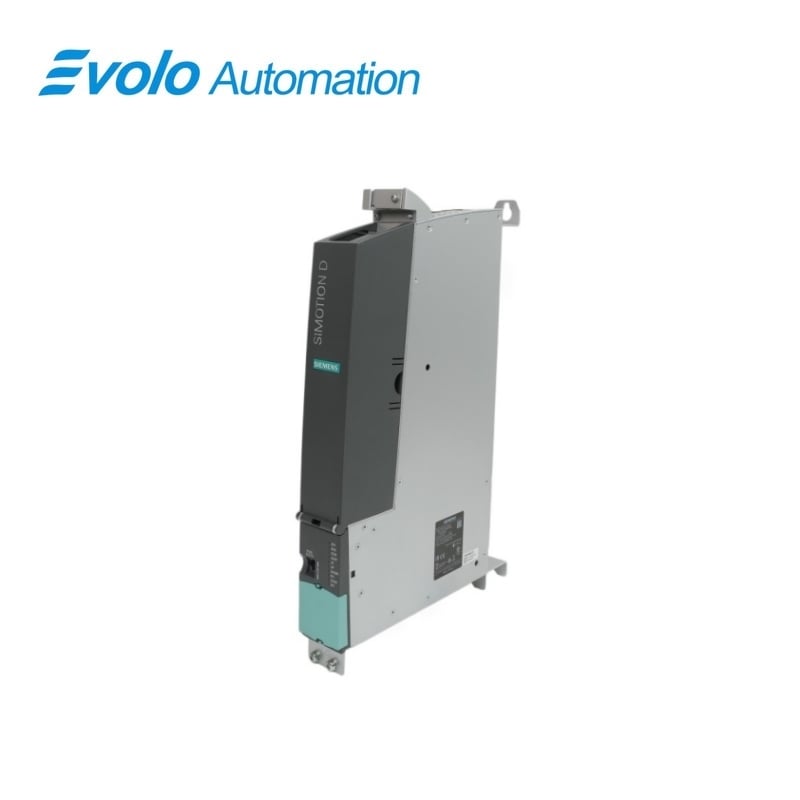

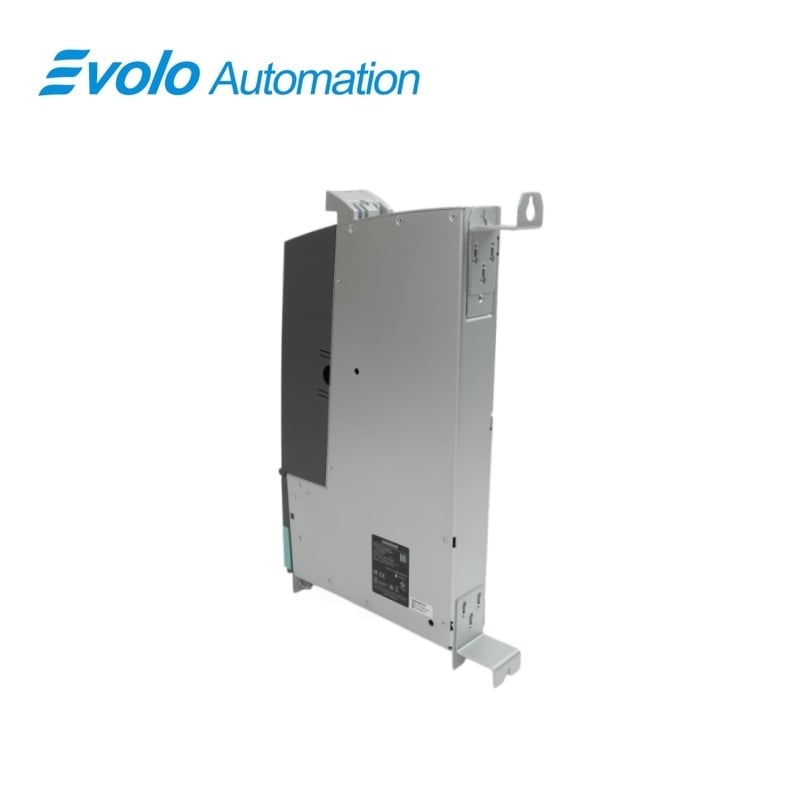

Siemens SIMOTION D455-2 DP/PN 6AU1455-2AD00-0AA0 Control Unit
Manufacturer: Siemens
Product Family: SIMOTION D
Product Type: Drive-based Control Unit
Article Number: 6AU1455-2AD00-0AA0
Official Lifecycle: PM410 Product Cancellation
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6AU1455-2AD00-0AA0 Control Unit
Official Siemens identification and configuration data for the SIMOTION drive-based Control Unit D455-2 DP/PN.
At a Glance
| Article Number | 6AU1455-2AD00-0AA0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMOTION D |
| Product Type | Drive-based Control Unit |
| Lifecycle | PM410: Product cancellation |
Exact Identification
Match the complete article number 6AU1455-2AD00-0AA0 and the installed hardware revision.
Motion Interfaces
Six DRIVE-CLiQ, two PROFIBUS and three PROFINET ports.
Replacement Check
Confirm I/O, communication ports, option slot and fan/battery assembly.
Product Overview
6AU1455-2AD00-0AA0 is officially described by Siemens as a SIMOTION drive-based Control Unit D455-2 DP/PN with ultra-high performance for programmable motion control.
The official configuration includes 12 digital inputs, 16 configurable DI/DO, six DRIVE-CLiQ interfaces, two PROFIBUS interfaces, three PROFINET ports, two Ethernet interfaces, two USB interfaces and one option slot. Siemens identifies the supplied assembly with a dual fan/battery module and battery.
Key Functions
Ultra-High-Performance Motion Control
Siemens identifies the D455-2 DP/PN as a programmable SIMOTION motion-control system with ultra-high performance.
Integrated Communication
The official interface set includes DRIVE-CLiQ, PROFIBUS, PROFINET, Ethernet and USB connections.
Integrated I/O and Expansion
The configured unit includes 12 DI, 16 DI/DO and one option slot.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Article Number | 6AU1455-2AD00-0AA0 |
| Product Type | SIMOTION drive-based Control Unit D455-2 DP/PN |
| Performance | Ultra-high performance |
| Digital Inputs | 12 DI |
| Configurable Digital I/O | 16 DI/DO |
| DRIVE-CLiQ Interfaces | 6 |
| PROFIBUS Interfaces | 2 |
| PROFINET Ports | 3 |
| Ethernet Interfaces | 2 |
| USB Interfaces | 2 |
| Option Slots | 1 |
| Included Assembly | Dual fan/battery module and battery |
| Product Lifecycle | PM410: Product cancellation |
| Lifecycle Date | Cancelled since 01.10.2024 |
| Net Weight | 4.300 kg |
| Country of Origin | Germany |
Official source: Siemens Industry Mall product data for 6AU1455-2AD00-0AA0. Confirm the current lifecycle and spare-parts route with Siemens.
Frequently Asked Questions
What is 6AU1455-2AD00-0AA0?
It is a Siemens SIMOTION D455-2 DP/PN drive-based control unit for programmable motion control.
Which interfaces are integrated?
The official Siemens configuration lists six DRIVE-CLiQ, two PROFIBUS, three PROFINET, two Ethernet and two USB interfaces.
What I/O is integrated?
Siemens lists 12 digital inputs and 16 configurable digital inputs/outputs.
Does the unit include an option slot?
Yes. The official product description identifies one option slot.
What is included with the unit?
The official description identifies a dual fan/battery module and battery as part of the configured assembly.
What performance level does Siemens specify?
Siemens describes the SIMOTION D455-2 DP/PN as an ultra-high-performance programmable motion-control system.
What should be checked before replacement?
Confirm the full article number, SIMOTION project, firmware and hardware revision, interfaces, option slot and supplied fan/battery assembly.
Compatibility & Ordering Notes
Compatibility Checklist for 6AU1455-2AD00-0AA0
- Match 6AU1455-2AD00-0AA0 without shortening or substituting the suffix.
- Confirm the SIMOTION D455-2 DP/PN project and installed firmware/hardware revision.
- Verify DRIVE-CLiQ, PROFIBUS, PROFINET, Ethernet, USB and digital I/O requirements.
- Confirm the option slot and dual fan/battery assembly in the written quotation.
