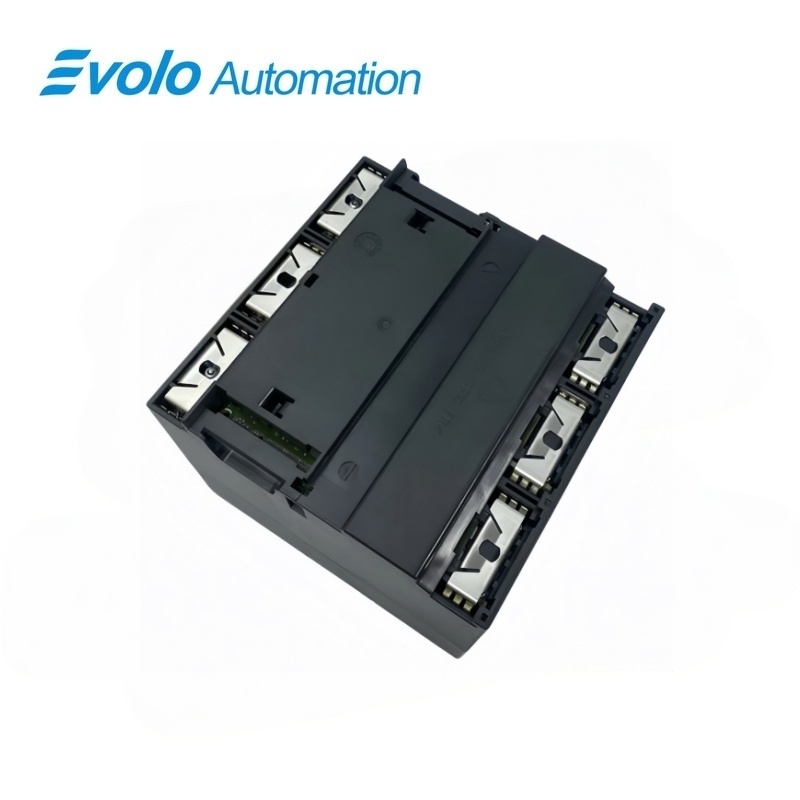

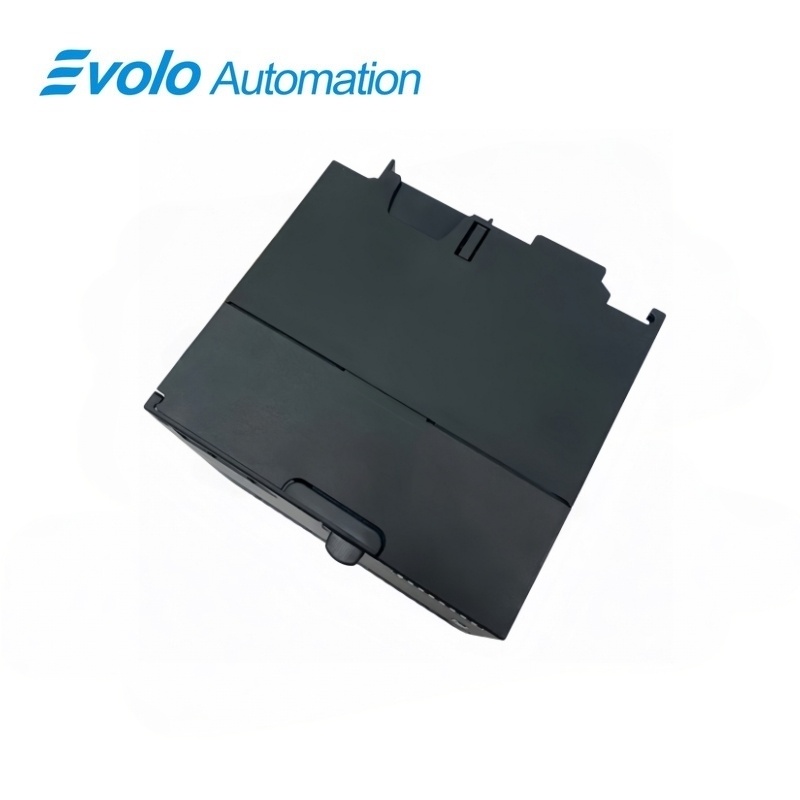

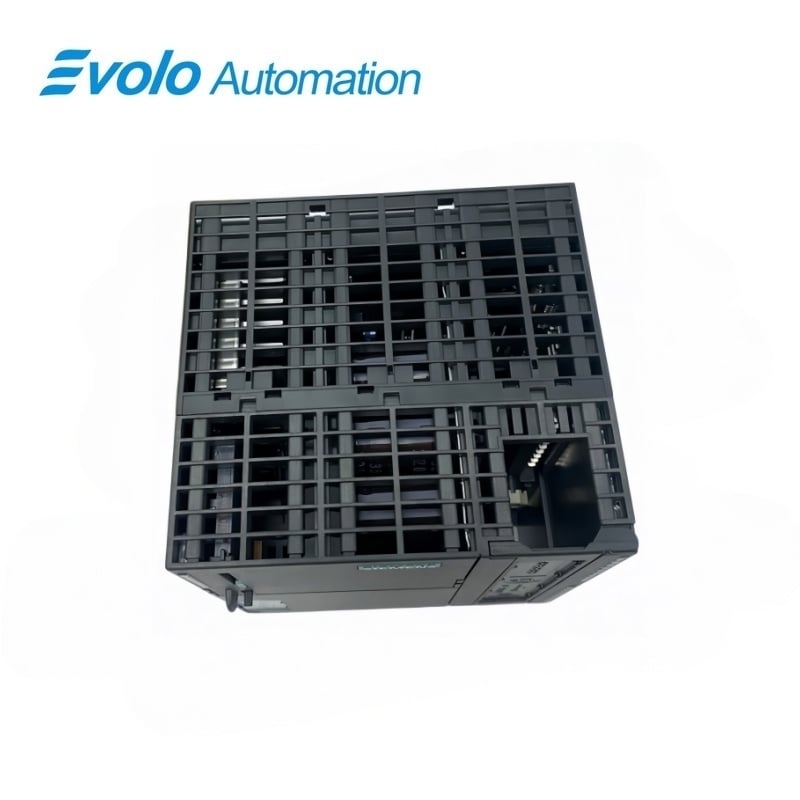

Siemens SIMATIC S7-300T 6ES7317-7TK10-0AB0 CPU 317T-3 PN/DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7317-7TK10-0AB0 CPU 317T-3 PN/DP
Official Siemens identification and technical data for 6ES7317-7TK10-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7317-7TK10-0AB0 |
| Product Type | CPU 317T-3 PN/DP |
| Core Function | PLC and technology control with integrated motion-related I/O and PN/DP communication |
| Application / Compatible Series | SIMATIC S7-300T technology automation systems |
Exact Identification
Match the complete Siemens article number 6ES7317-7TK10-0AB0 and the photographed hardware revision.
Interfaces
MPI/DP, drive PROFIBUS DP, PROFINET 2-port and integrated technology I/O
Configuration Check
Confirm 1024 KB work memory; CPU firmware V3.2 and technology firmware V4.1.5; MMC of at least 8 MB required before replacement.
Product Overview
6ES7317-7TK10-0AB0 is officially identified by Siemens as SIMATIC S7-300T CPU 317T-3 PN/DP. 1024 KB work memory; CPU firmware V3.2 and technology firmware V4.1.5; MMC of at least 8 MB required.
The complete article number 6ES7317-7TK10-0AB0 should be matched against the installed hardware, nameplate and official system documentation. Similar revisions can differ in memory, interfaces, operating system or configuration.
Key Functions
Model-Specific Configuration
6ES7317-7TK10-0AB0: 1024 KB work memory; CPU firmware V3.2 and technology firmware V4.1.5; MMC of at least 8 MB required.
System Interface
6ES7317-7TK10-0AB0: MPI/DP, drive PROFIBUS DP, PROFINET 2-port and integrated technology I/O.
Replacement Control
6ES7317-7TK10-0AB0: verify the complete article number, hardware revision and official project documentation before replacement.
Official Specifications
| Hardware Functional Status | 01 |
|---|---|
| CPU Firmware Version | V3.2 |
| Integrated Technology Version | V4.1.5 |
| Engineering Software | STEP 7 V5.5 SP2 or higher |
| Technology Option Package | S7-Technology V4.2 SP3 |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Rated Current Consumption | 1,050 mA |
| No-load Current Consumption | 230 mA typical |
| Inrush Current | 6.5 A typical |
| Power Loss | 7.5 W typical |
| Integrated Work Memory | 1,024 KB |
| Maximum Micro Memory Card | 8 MB |
| Isochronous Mode | Supported via PROFIBUS DP or PROFINET |
| Technology Front Connector | 1 x 40-pole |
| Communication | MPI/DP, drive DP and PROFINET with 2-port switch |
Official source: Siemens technical data for 6ES7317-7TK10-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which applications are appropriate for 6ES7317-7TK10-0AB0?
It combines standard PLC functions with integrated technology tasks for coordinated automation and drive-related applications.
Which engineering packages are required for 6ES7317-7TK10-0AB0?
Use STEP 7 V5.5 SP2 or later together with the S7-Technology V4.2 SP3 option package.
What Micro Memory Card is required by 6ES7317-7TK10-0AB0?
A Micro Memory Card of at least 8 MB is required by the product description.
How should the three interfaces on 6ES7317-7TK10-0AB0 be assigned?
Match the MPI/DP interface, the drive-oriented PROFIBUS DP interface and the PROFINET two-port interface to the existing project topology.
What should be checked on the technology I/O of 6ES7317-7TK10-0AB0?
Verify the 40-pole front connector, signal assignment and technology configuration before energizing the station.
Which supply conditions apply to 6ES7317-7TK10-0AB0?
Use a 24 V DC source within 19.2 to 28.8 V DC and retain the recommended external protection.
What commissioning checks follow replacement of 6ES7317-7TK10-0AB0?
Load the matching PLC and technology project, verify drive-bus and PROFINET communication, then test the configured technology functions.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7317-7TK10-0AB0
- Match the complete article number 6ES7317-7TK10-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300T family and hardware revision.
- Verify MPI/DP, drive PROFIBUS DP, PROFINET 2-port and integrated technology I/O.
- Confirm included connectors, memory media and accessories in the written quotation.
