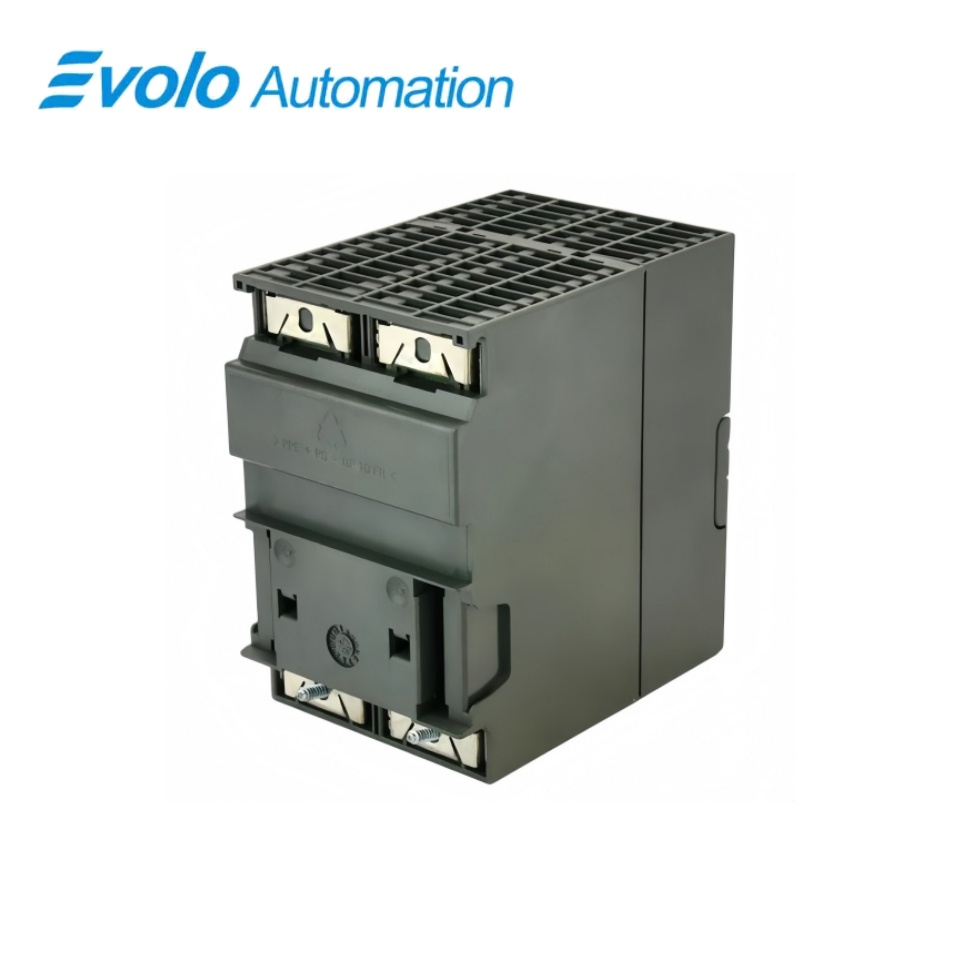

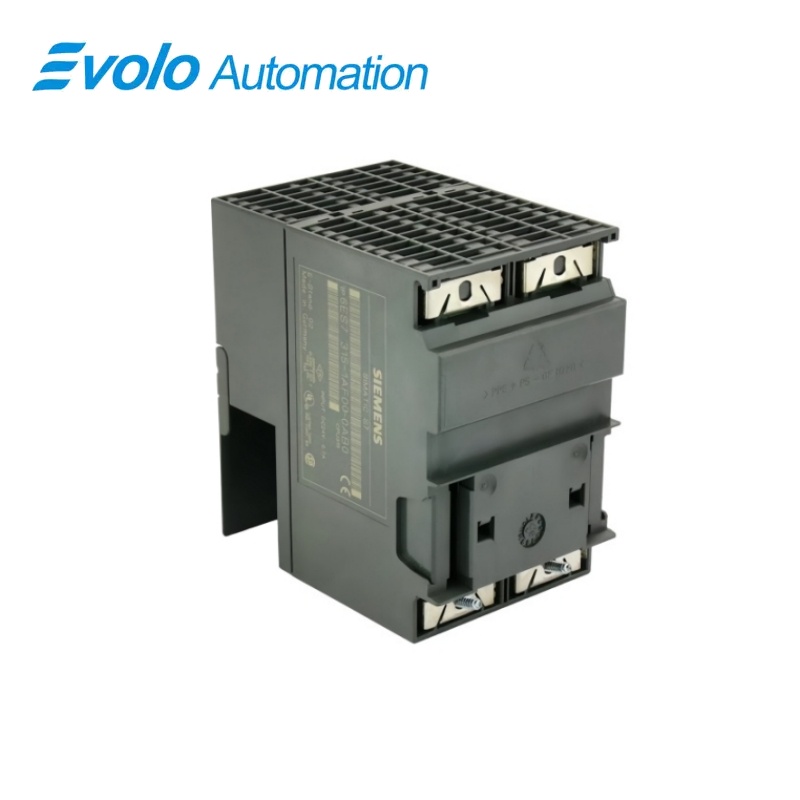

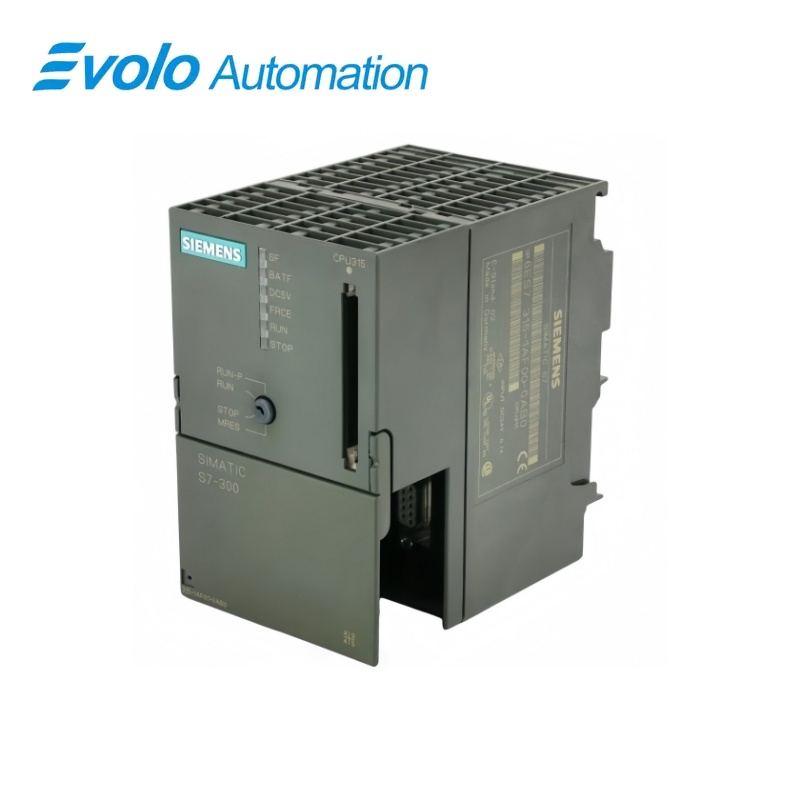

Siemens SIMATIC S7-300 6ES7315-1AF00-0AB0 CPU 315
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7315-1AF00-0AB0 CPU 315
Siemens SIMATIC S7-300 CPU 315 for executing modular PLC programs and coordinating configured I/O over MPI.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7315-1AF00-0AB0 |
| Product Type | SIMATIC S7-300 CPU 315 |
| Core Function | Executes PLC logic and coordinates modular S7-300 I/O |
| Application / Compatible Series | SIMATIC S7-300 and compatible C7-626 systems |
Match the complete article number and installed hardware version.
Confirm the installed interfaces, connectors and wiring.
Back up and verify the matching engineering project before replacement.
Product Overview
6ES7315-1AF00-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 315 CPU WITH INTEGRATED 24 V DC POWER SUPPLY, 48 KBYTES, 16KAW, 0,3MS/KAW, CLOCK,.
The complete article number 6ES7315-1AF00-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7315-1AF00-0AB0: Integrated 24 V DC power supply.
System Interface
6ES7315-1AF00-0AB0: Complete article-number replacement matching.
Replacement Control
6ES7315-1AF00-0AB0: Official Siemens product identification.
Official Specifications
| Working Memory | 48 KB |
|---|---|
| Program Capacity | 16 K instructions |
| Instruction Processing | 0.3 ms per 1,000 instructions |
| Integrated Clock | Available |
| Rated Supply Voltage | 24 V DC |
| Communication Interface | MPI |
| Integral Load Memory | 80 KB RAM |
| Expandable FEPROM | Up to 4 MB |
| Data Blocks | Maximum 255 |
| Maximum Data Block Size | 16 KB |
| Bit Memories | 2,048 |
| Local Data | 1,536 bytes |
| Process Image | 128 input bytes / 128 output bytes |
| Peripheral Address Area | 1 KB digital / 1 KB analog |
| Digital Channel Capacity | Up to 1,024 inputs / 1,024 outputs |
| Analog Channel Capacity | Up to 256 inputs / 128 outputs |
| S7 Counters | 64 |
| S7 Timers | 128 |
Frequently Asked Questions
Which C7 complete units use 6ES7315-1AF00-0AB0 as the integrated CPU?
The documented C7-626 and C7-626/A variants with the first hardware release use this CPU together with an OP25 operator panel.
Is 6ES7315-1AF00-0AB0 compatible with the documented positioning modules?
Yes, but Siemens notes that module replacement in this early compatibility group should not be performed without a programming device or PC.
How should MPI communication be checked on 6ES7315-1AF00-0AB0?
Verify the station address, baud rate, bus termination and project configuration before reconnecting the automation network.
What memory backup is needed before replacing 6ES7315-1AF00-0AB0?
Archive the STEP 7 project and the installed load-memory contents, then record the CPU and rack configuration before power is removed.
What should be verified when wiring the supply for 6ES7315-1AF00-0AB0?
Confirm the regulated 24 V DC supply, polarity, protective grounding and the power requirements of the complete S7-300 rack.
How can technicians evaluate project size for 6ES7315-1AF00-0AB0?
Compare the compiled user program with the 48 KB working-memory limit and check data-block and local-data usage.
What must be reviewed when moving 6ES7315-1AF00-0AB0 to another S7-300 rack?
Match the rack layout, module addresses, MPI settings, memory media and any connected C7 or positioning components before download.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7315-1AF00-0AB0
- Match the complete article number 6ES7315-1AF00-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Integrated 24 V DC power supply.
- Confirm included front connectors, memory card and accessories in the written quotation.
