Overview
6ES7314-1AG13-0AB0 CPU 314
Official Siemens identification and specifications for 6ES7314-1AG13-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7314-1AG13-0AB0 |
| Product Type | SIMATIC S7-300 CPU 314 |
| Core Function | Executes S7 control programs through MPI and S7 communication |
| Application / Compatible Series | SIMATIC S7-300 multi-tier configurations with up to 32 modules |
Exact Identification

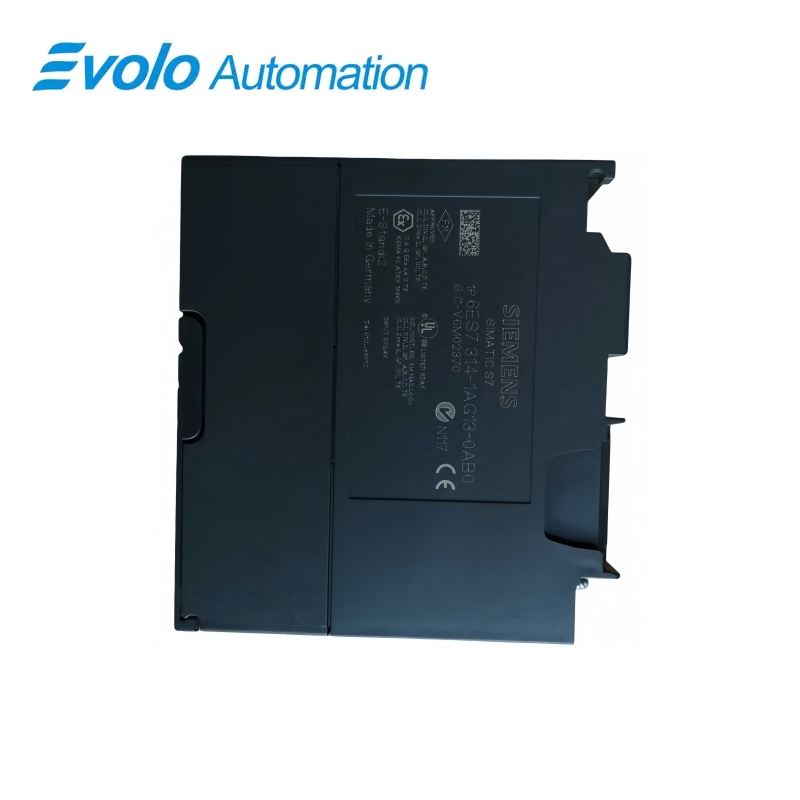

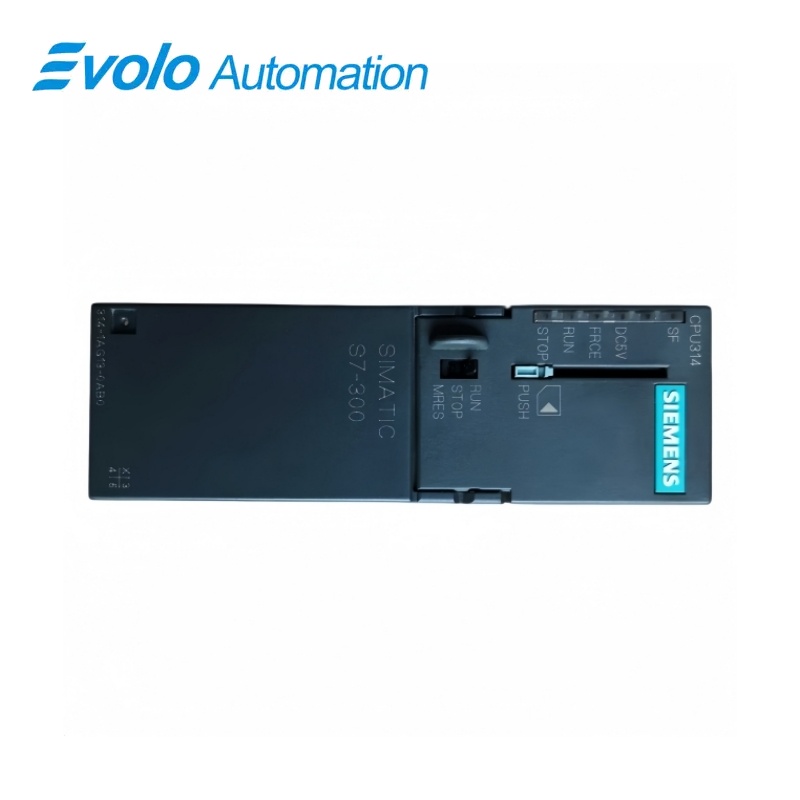

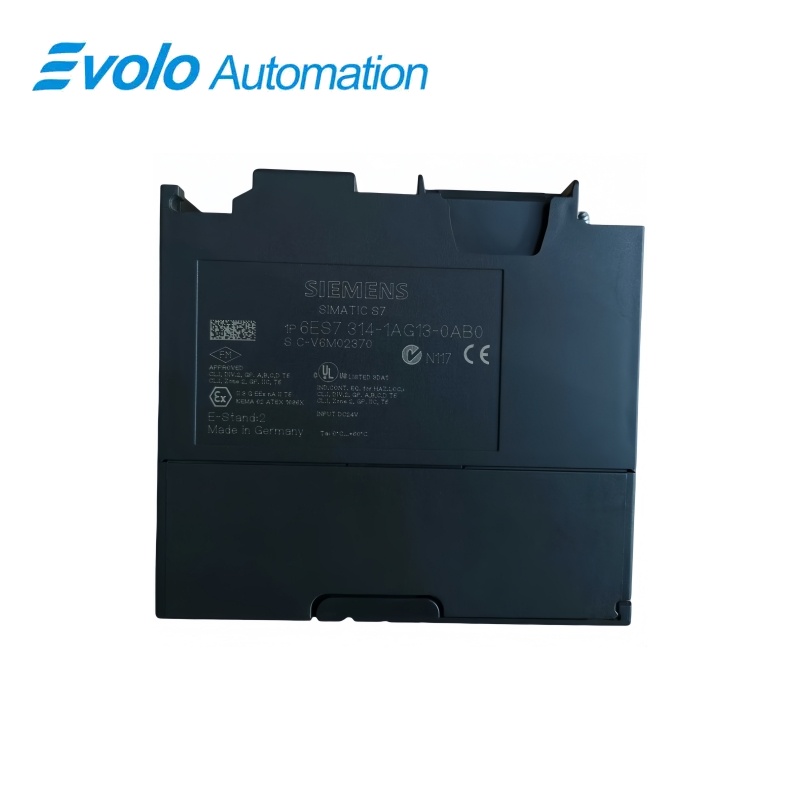

Match the complete Siemens article number 6ES7314-1AG13-0AB0 and the photographed hardware revision.
Work memory
Work memory: 96 KB
Configuration Check
Interfaces: MPI; confirm rack, connectors and revision before replacement.
Product Overview
6ES7314-1AG13-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 314 Central processing unit with MPI, Integr. power supply 24 V DC, Work memory 96 KB, Micro Memory Card required.
The complete article number 6ES7314-1AG13-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7314-1AG13-0AB0: Work memory: 96 KB.
System Interface
6ES7314-1AG13-0AB0: Interfaces: MPI.
Replacement Control
6ES7314-1AG13-0AB0: SIMATIC Micro Memory Card required.
Official Specifications
| Work Memory | 96 KB |
|---|---|
| Basic Instruction Performance | 0.1 ms per 1,000 instructions |
| Firmware Generation | V2.6 |
| Latest Listed Firmware | V2.6.11 |
| Engineering Software | STEP 7 V5.2 SP1 with HSP 124 or STEP 7 V5.4 SP3 |
| Communication Interface | MPI |
| Rack Configuration | Multi-tier |
| Maximum Expansion | Up to 32 modules |
| S7 Communication | Supported through loadable FBs/FCs |
| Load Memory Medium | SIMATIC Micro Memory Card |
| Supply Voltage | 24 V DC |
Frequently Asked Questions
Which STEP 7 versions support 6ES7314-1AG13-0AB0?
Use STEP 7 V5.2 SP1 with the specified hardware support package, or STEP 7 V5.4 SP3, for the listed CPU generation.
How many S7-300 modules can be configured with 6ES7314-1AG13-0AB0?
The multi-tier configuration supports expansion to as many as 32 modules.
Does 6ES7314-1AG13-0AB0 require a SIMATIC Micro Memory Card?
Yes. A compatible Micro Memory Card is required as the load-memory medium.
What project-size limit should be checked for 6ES7314-1AG13-0AB0?
Confirm that the user program and data fit within the 96 KB work-memory capacity.
How should an engineer connect a programming device to 6ES7314-1AG13-0AB0?
Use the integrated MPI interface with the address and baud-rate parameters stored in the STEP 7 hardware configuration.
What rack details must be matched when replacing 6ES7314-1AG13-0AB0?
Compare the power-supply arrangement, module order, MPI parameters, memory card and hardware configuration before exchanging the CPU.
Which checks confirm successful commissioning of 6ES7314-1AG13-0AB0?
Verify a clean startup, compare the online and offline hardware configuration, test MPI communication and review the diagnostic buffer for configuration faults.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7314-1AG13-0AB0
- Match the complete article number 6ES7314-1AG13-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Work memory: 96 KB.
- Confirm included front connectors, memory card and accessories in the written quotation.
