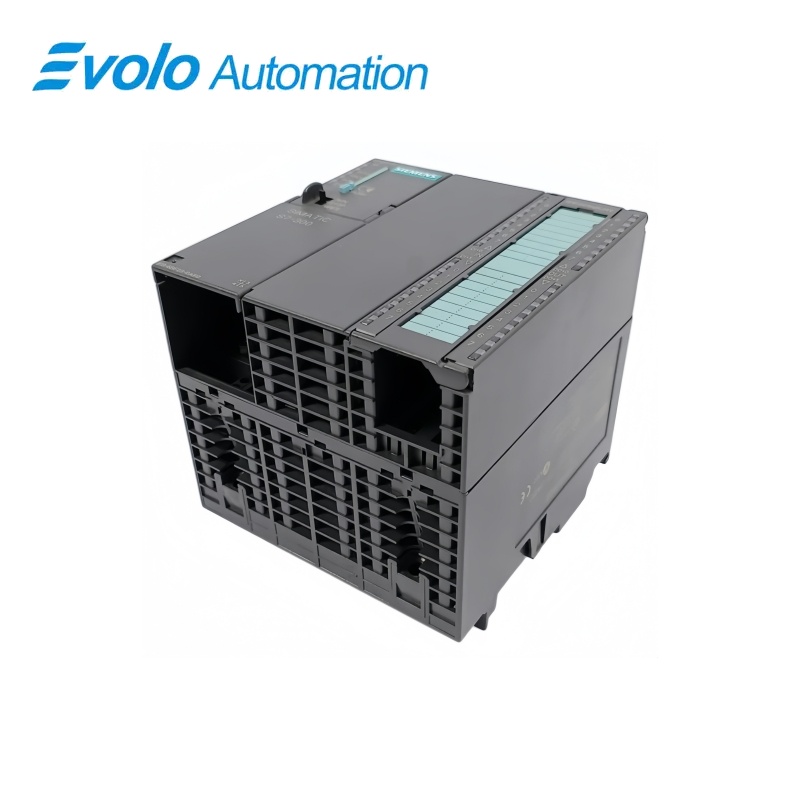

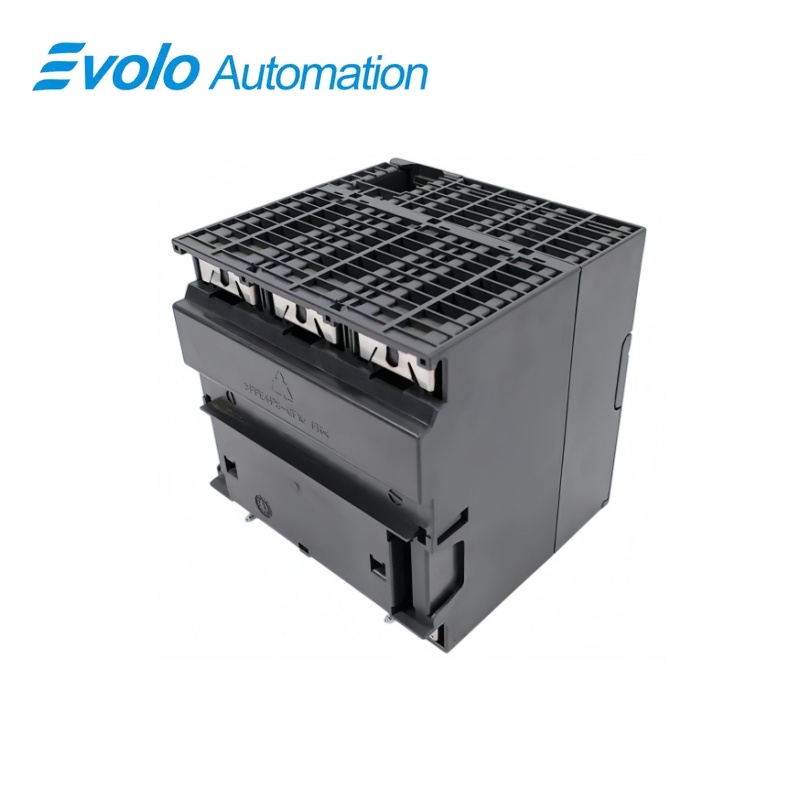

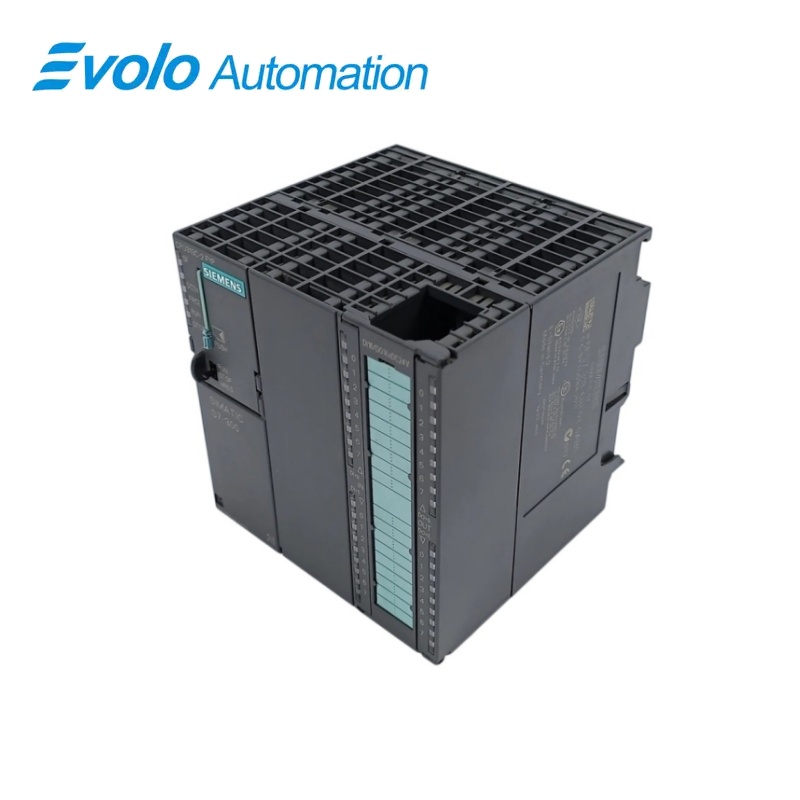

Siemens SIMATIC S7-300 6ES7313-6BF03-0AB0 CPU 313C-2 PTP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7313-6BF03-0AB0 CPU 313C-2 PTP
Official Siemens identification and specifications for 6ES7313-6BF03-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7313-6BF03-0AB0 |
| Product Type | SIMATIC S7-300 CPU 313C-2 PtP |
| Core Function | Combines control execution, integrated digital I/O and point-to-point serial communication |
| Application / Compatible Series | SIMATIC S7-300 systems using MPI and RS422/485 serial devices |
Exact Identification
Match the complete Siemens article number 6ES7313-6BF03-0AB0 and the photographed hardware revision.
Work memory
Work memory: 64 KB
Configuration Check
Integrated I/O: 16 DI / 16 DO; confirm rack, connectors and revision before replacement.
Product Overview
6ES7313-6BF03-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 313C-2 PTP Compact CPU with MPI, 16 DI/16 DO, 3 high-speed counters (30 kHz), integrated interface RS485, Integr. power supply 24 V DC, work memory 64 KB, Front connector (1x 40-pole) and Micro Memory Card required.
The complete article number 6ES7313-6BF03-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7313-6BF03-0AB0: Work memory: 64 KB.
System Interface
6ES7313-6BF03-0AB0: Integrated I/O: 16 DI / 16 DO.
Replacement Control
6ES7313-6BF03-0AB0: 3 high-speed counters (30 kHz).
Official Specifications
| Work Memory | 64 KB |
|---|---|
| Basic Instruction Performance | 0.1 ms per 1,000 instructions |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Pulse Outputs | 3 |
| Pulse Output Frequency | 2.5 kHz |
| High-Speed Counter Channels | 3 |
| Maximum Counter Frequency | 30 kHz |
| Encoder Signal Level | 24 V |
| Communication Interfaces | MPI and PtP RS422/485 |
| Point-to-Point Protocols | ASCII and 3964(R) |
| Rack Configuration | Multi-tier |
| Maximum Expansion | Up to 31 modules |
| Firmware Generation | V2.6 |
| Engineering Software | STEP 7 V5.4 SP3 or STEP 7 V5.3 SP2 with HSP 0123 |
Frequently Asked Questions
Which serial protocols are available on 6ES7313-6BF03-0AB0?
The integrated point-to-point interface supports ASCII and 3964(R) communication over RS422/485.
How many onboard digital signals can 6ES7313-6BF03-0AB0 handle?
The compact CPU includes 16 digital inputs and 16 digital outputs.
What counter performance is provided by 6ES7313-6BF03-0AB0?
Three integrated counting and measuring channels accept 24 V incremental-encoder signals at up to 30 kHz.
How far can an S7-300 station using 6ES7313-6BF03-0AB0 be expanded?
A multi-tier station can be configured with up to 31 modules.
Which STEP 7 environment is suitable for 6ES7313-6BF03-0AB0?
Use STEP 7 V5.4 SP3 or V5.3 SP2 with the designated hardware support package for this hardware generation.
What wiring must be checked on the PtP port of 6ES7313-6BF03-0AB0?
Confirm the RS422/485 electrical mode, pin assignment, shielding, termination and selected serial protocol before enabling communication.
What tests should follow commissioning of 6ES7313-6BF03-0AB0?
Test the onboard inputs and outputs, exercise the high-speed counters, verify MPI access and confirm data exchange on the serial interface.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7313-6BF03-0AB0
- Match the complete article number 6ES7313-6BF03-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Work memory: 64 KB.
- Confirm included front connectors, memory card and accessories in the written quotation.
