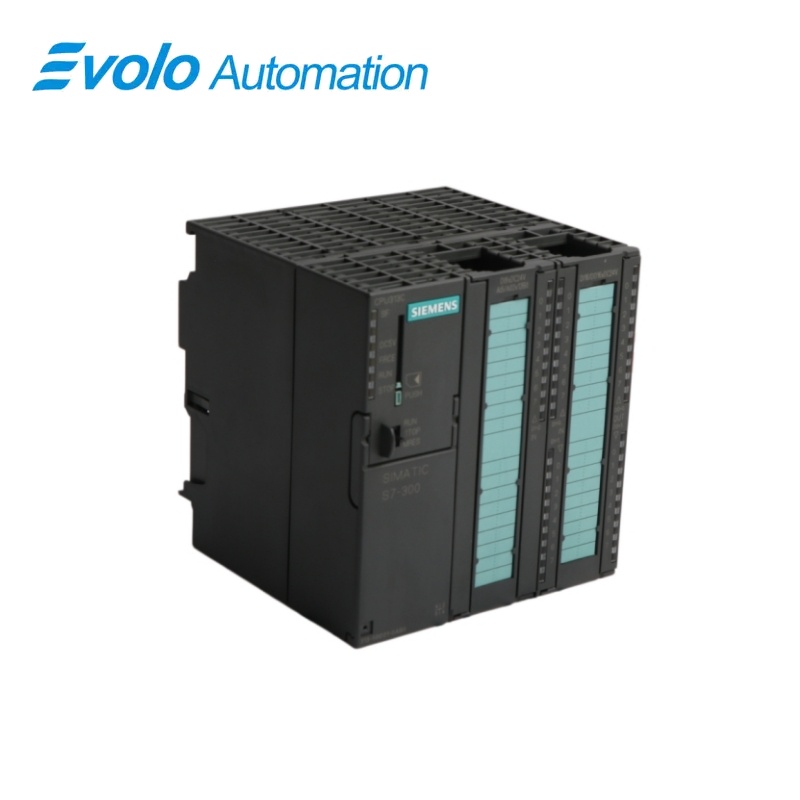

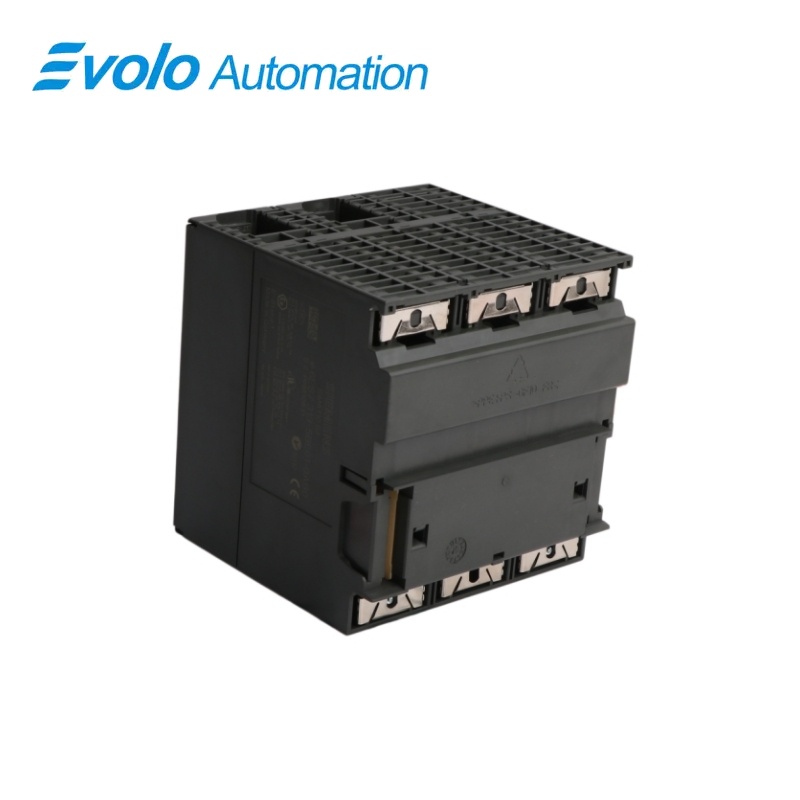

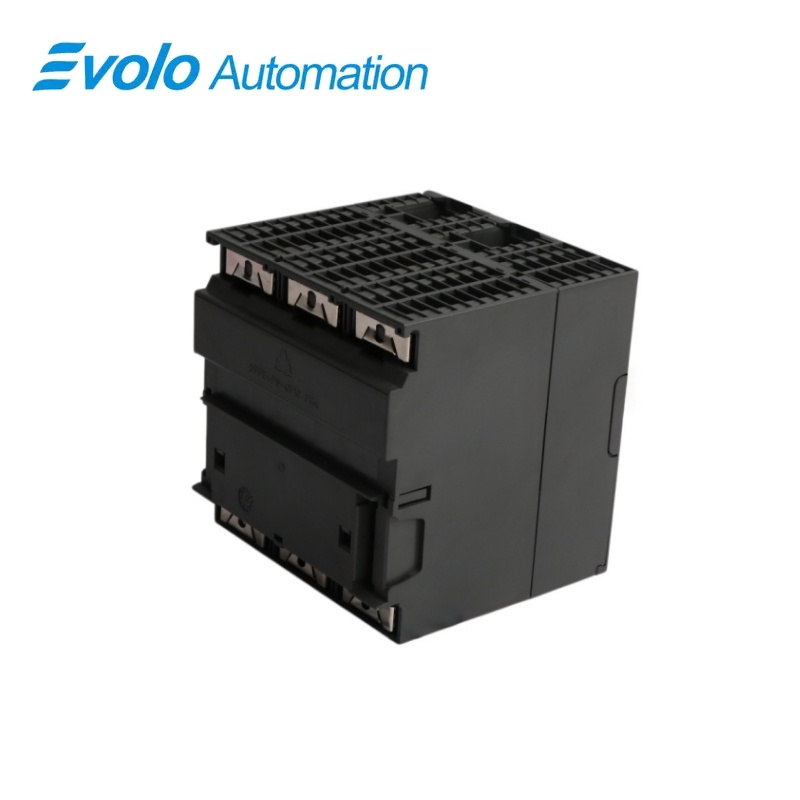

Siemens SIMATIC S7-300 6ES7313-5BE00-0AB0 CPU 313C
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7313-5BE00-0AB0 CPU 313C
Official Siemens identification and specifications for 6ES7313-5BE00-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7313-5BE00-0AB0 |
| Product Type | SIMATIC S7-300 CPU 313C |
| Core Function | Executes control logic with integrated digital, analog and counting functions |
| Application / Compatible Series | SIMATIC S7-300 multi-tier stations with up to 31 modules |
Exact Identification
Match the complete Siemens article number 6ES7313-5BE00-0AB0 and the photographed hardware revision.
Integrated I/O
Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO
Configuration Check
3 high-speed COUNTERS (30 KHZ); confirm rack, connectors and revision before replacement.
Product Overview
6ES7313-5BE00-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 313C COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO 1 PT100, 3 FAST COUNTERS (30 KHZ), INTEGRATED 24V DC POWER SUPPLY, 32 KBYTE WORKING MEMORY, MICRO MEMORY CARD REQUIRED.
The complete article number 6ES7313-5BE00-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7313-5BE00-0AB0: Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
System Interface
6ES7313-5BE00-0AB0: 3 high-speed COUNTERS (30 KHZ).
Replacement Control
6ES7313-5BE00-0AB0: Interfaces: MPI.
Official Specifications
| Work Memory | 32 KB |
|---|---|
| Basic Instruction Performance | 0.1 ms per 1,000 instructions |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Integrated Analog Inputs | 4 general analog inputs plus 1 Pt100 input |
| Integrated Analog Outputs | 2 |
| Pulse Outputs | 3 |
| Pulse Output Frequency | 2.5 kHz |
| High-Speed Counter Channels | 3 |
| Maximum Counter Frequency | 30 kHz |
| Encoder Signal Level | 24 V |
| Communication Interface | MPI |
| Rack Configuration | Multi-tier |
| Maximum Expansion | Up to 31 modules |
| Firmware Generation | V1.0 |
| Listed Operating-System Firmware | V1.0.5 |
| Engineering Software | STEP 7 V5.1 SP4 |
Frequently Asked Questions
Which process signals are integrated in 6ES7313-5BE00-0AB0?
The compact CPU combines 24 digital inputs, 16 digital outputs, four general analog inputs, one Pt100 input and two analog outputs.
Can a Pt100 sensor be connected directly to 6ES7313-5BE00-0AB0?
Yes. One dedicated Pt100 measuring input is included with the onboard analog channels.
What high-speed counting capability does 6ES7313-5BE00-0AB0 provide?
Three channels support counting and measuring with 24 V incremental encoders at frequencies up to 30 kHz.
How can the pulse outputs of 6ES7313-5BE00-0AB0 be used?
Three integrated pulse outputs are available, each with a specified frequency of 2.5 kHz.
What communication connection is used to program 6ES7313-5BE00-0AB0?
The integrated MPI interface is used for programming and S7 communication; its address and bus parameters must match the project.
How many modules can be added around 6ES7313-5BE00-0AB0?
The documented multi-tier S7-300 configuration supports expansion to as many as 31 modules.
What should be checked before starting 6ES7313-5BE00-0AB0 after replacement?
Verify the STEP 7 hardware configuration, onboard I/O wiring, analog ranges, counter parameters, MPI connection and 24 V DC supply before switching to RUN.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7313-5BE00-0AB0
- Match the complete article number 6ES7313-5BE00-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
- Confirm included front connectors, memory card and accessories in the written quotation.
