Siemens SIMATIC IPC3000 SMART Industrial PC 6AG4010-5BA12-0XX5
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC IPC3000 SMART

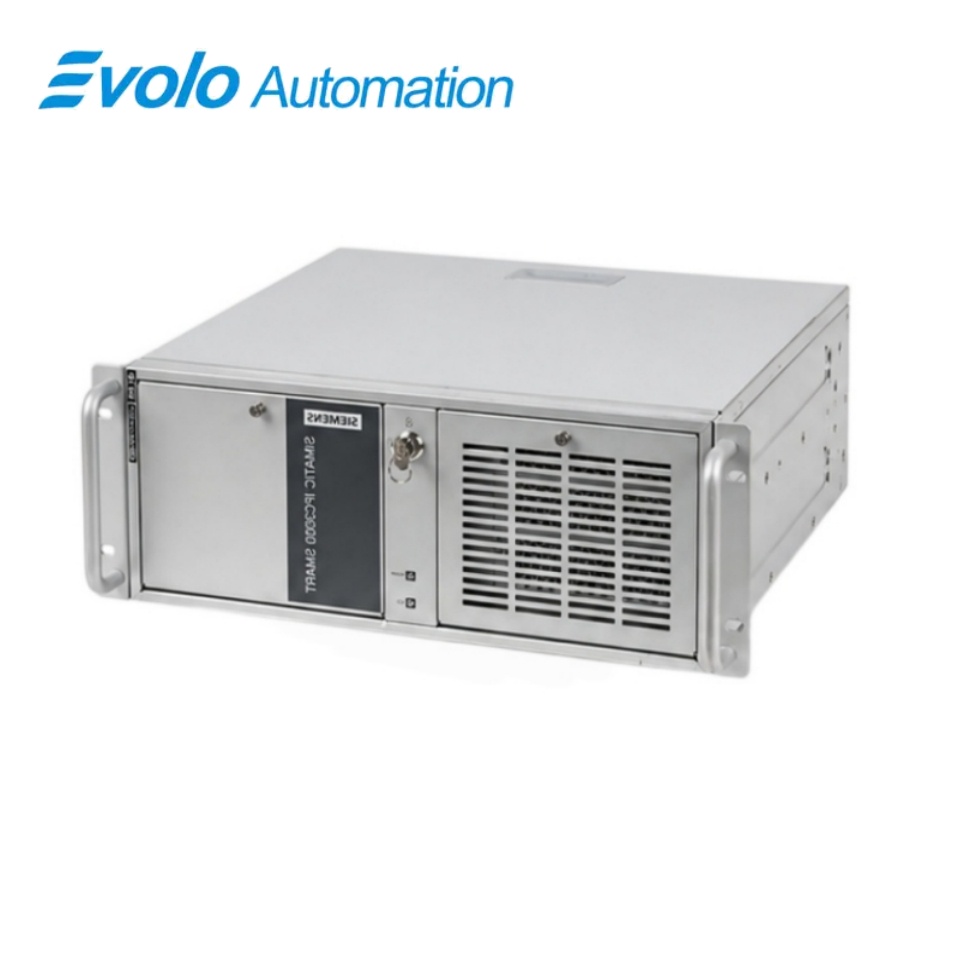

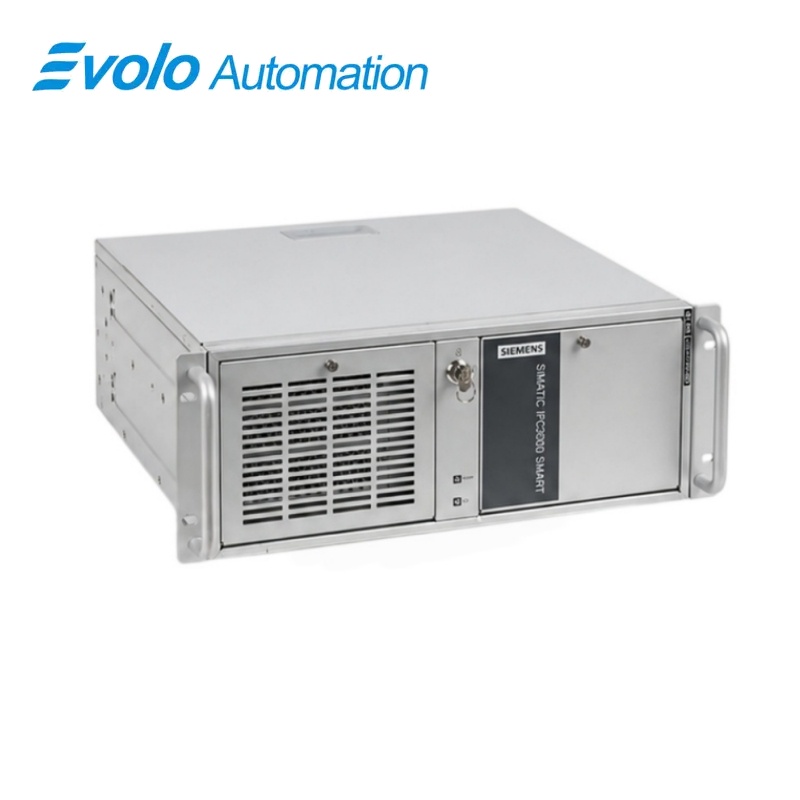

6AG4010-5BA12-0XX5 SIMATIC IPC3000 SMART Industrial PC
The SIMATIC IPC3000 SMART is a 19-inch, 4U industrial PC designed for industrial automation applications, with supported rack, base, tower and telescopic-rail mounting arrangements.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6AG4010-5BA12-0XX5 |
| Product Type | 19-inch rack industrial PC |
| Core Function | Provides PC-based computing for industrial automation and control applications |
| Application or Compatible Series | Industrial automation systems requiring a 4U rack or supported tower installation |
Exact Identification
Match 6AG4010-5BA12-0XX5 character by character and confirm the complete SIMATIC IPC3000 SMART Industrial PC designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC IPC3000 SMART is a 19-inch, 4U industrial PC designed for industrial automation applications, with supported rack, base, tower and telescopic-rail mounting arrangements.
The 19-inch, 4U enclosure supports control-room and machine-system computer installations. The chassis supports angle-bracket, device-base, tower and telescopic-rail mounting when the required mechanical supports are fitted. USB and PS/2 peripheral connections plus the documented display interfaces support commissioning and local operation.
Key Functions
Industrial Rack Architecture
The 19-inch, 4U enclosure supports control-room and machine-system computer installations.
Flexible Installation Options
The chassis supports angle-bracket, device-base, tower and telescopic-rail mounting when the required mechanical supports are fitted.
Automation-Oriented Connectivity
USB and PS/2 peripheral connections plus the documented display interfaces support commissioning and local operation.
Official Specifications
| Mechanical Format | 19-inch rack enclosure |
|---|---|
| Rack Height | 4U |
| Operating Temperature | +5 to +40 °C |
| Minimum Free Space Around Device | 50 mm |
| Supported Mounting Arrangements | Angle brackets, device bases, tower installation or telescopic rails |
| Permitted Power-System Type | Grounded TN system according to IEC 60364-3 |
| Peripheral Interfaces | PS/2 and USB |
| Documented Display Interfaces | DisplayPort and DVI-D; VGA available with the applicable option |
| Internal Hard-Disk Interface | 3.5-inch SATA |
| Documented Hard-Disk Options | 250 GB or 500 GB, configuration-dependent |
| Documented Hard-Disk Speed | 7200 rpm |
| Maximum Power per PCI Module with Dedicated 5 V Supply | 25 W |
| Maximum Total Slot Power with 5 V and 3.3 V Power Board | Less than 75 W |
| Maximum Total Slot Power with 12 V-Only Power Board | Less than 100 W |
| Maximum Total 3.3 Vaux Current | 1.2 A |
Frequently Asked Questions
How much rack space should I reserve for 6AG4010-5BA12-0XX5?
Reserve four rack units in a standard 19-inch installation and allow space for the mechanical supports.
Which power-system arrangement is suitable for 6AG4010-5BA12-0XX5?
Connect the equipment only to a correctly grounded TN power system that meets IEC 60364-3.
How much ventilation clearance is required around 6AG4010-5BA12-0XX5?
Keep at least 50 mm of free space around the enclosure.
Which local display connections can be used with 6AG4010-5BA12-0XX5?
Use DisplayPort or DVI-D, or the applicable optional VGA connection when fitted.
What should I check before fitting storage in 6AG4010-5BA12-0XX5?
Confirm the installed SATA drive configuration, available bay and validated system image before making changes.

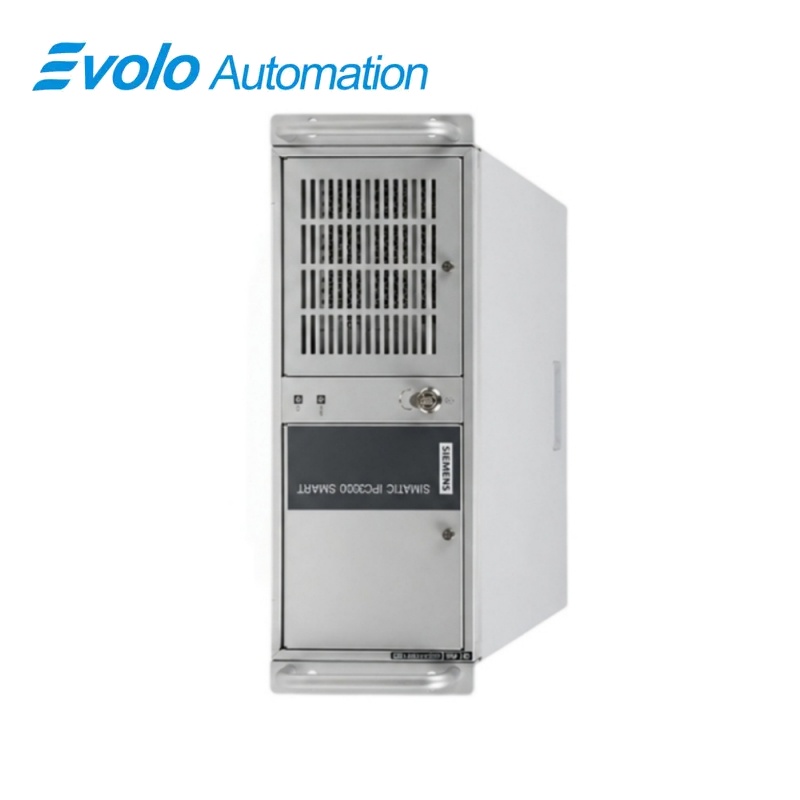

Can 6AG4010-5BA12-0XX5 be installed as a tower instead of in a rack?
Yes; use the approved tower arrangement and secure the chassis with the specified mechanical supports.
What should I verify after commissioning 6AG4010-5BA12-0XX5?
Check power, cooling airflow, every connected peripheral, display output, network communication and the restored automation application.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the replacement to the installed hardware configuration and system image rather than relying on the family name alone.
- Use the approved rack, tower or telescopic-rail hardware and maintain the required ventilation clearance.
- Restore the validated automation software, drivers and network settings before returning the system to service.
