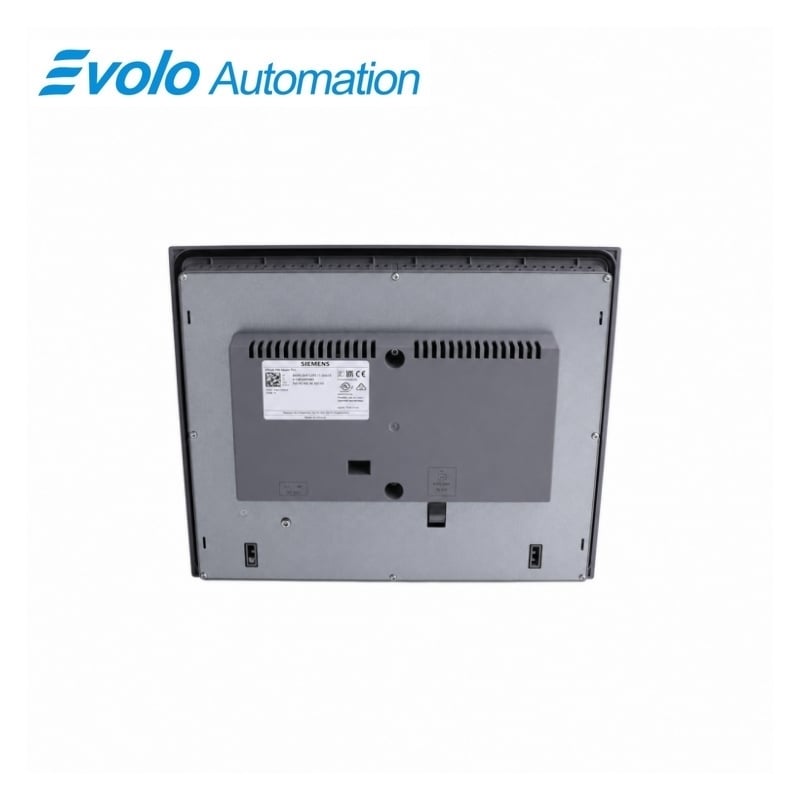

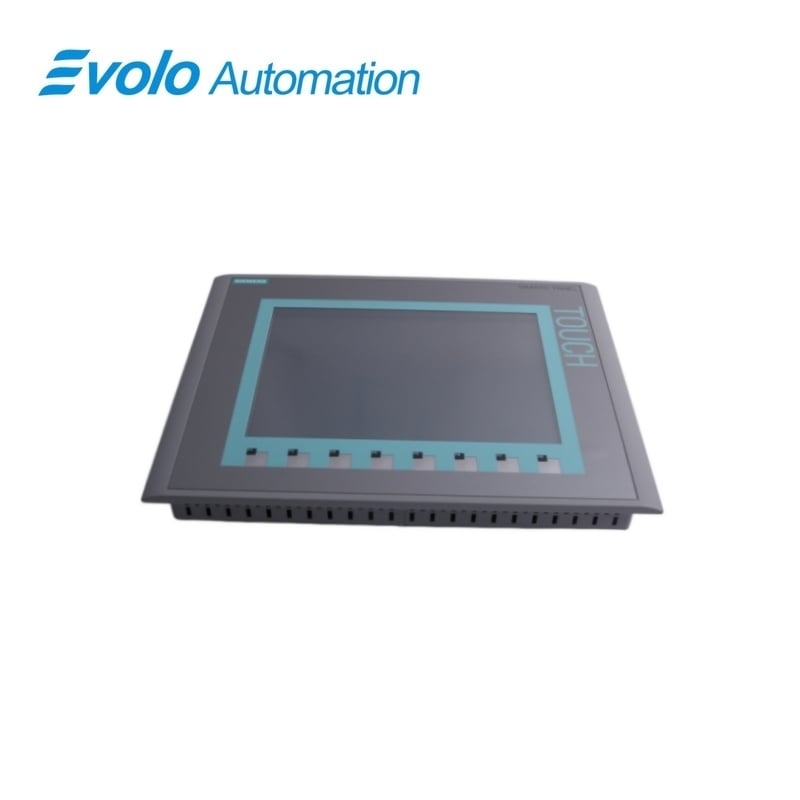

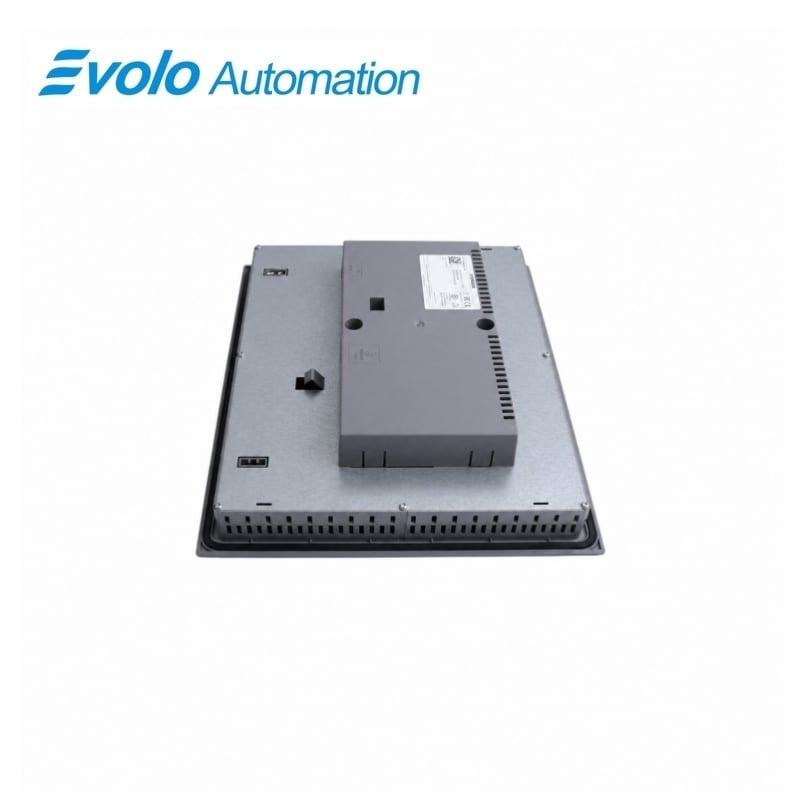

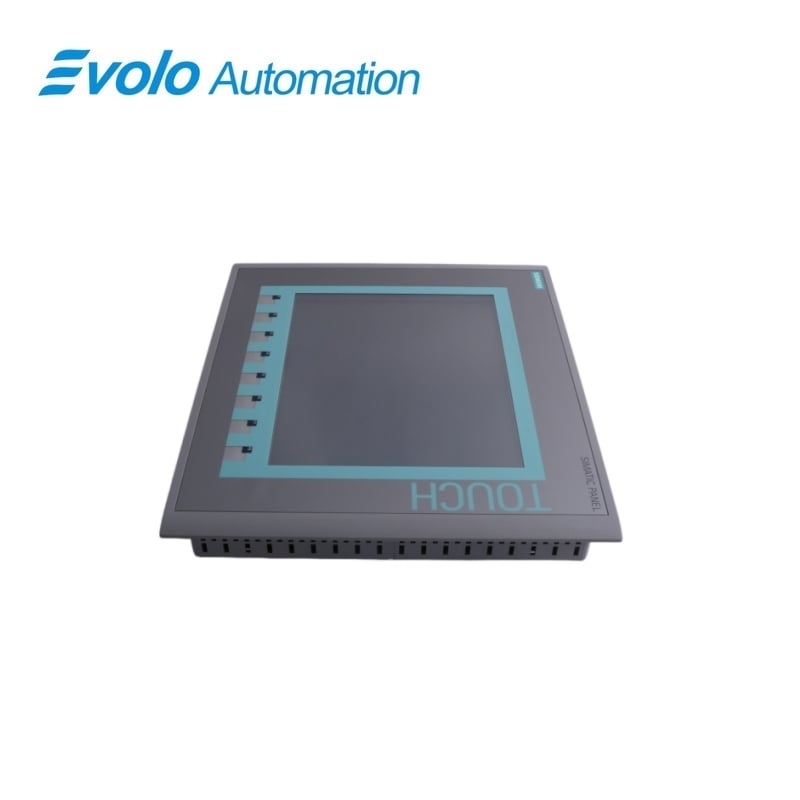

Siemens SIMATIC HMI 6AV6647-0AF11-3AX0 KTP1000 Basic Color PN
Manufacturer: Siemens
Product Family: SIMATIC HMI Basic Panels
Product Type: KTP1000 Basic Color PN
Article Number: 6AV6647-0AF11-3AX0
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6AV6647-0AF11-3AX0 KTP1000 Basic Color PN
Official Siemens identification and specifications for the KTP1000 Basic Color PN operator panel.
At a Glance
| Article Number | 6AV6647-0AF11-3AX0 |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMATIC HMI Basic Panels |
| Product Type | KTP1000 Basic Color PN |
| Display | 10.4-inch TFT |
Exact Identification
Match the complete Siemens article number and KTP1000 Basic Color PN designation.
Display Check
Verify the 10.4-inch 640 × 480 TFT display and key/touch operation.
Interface Check
Confirm the PROFINET connection and project configuration before replacement.
Product Overview
Siemens identifies 6AV6647-0AF11-3AX0 as a SIMATIC HMI KTP1000 Basic Color PN Basic Panel.
The official product data lists key/touch operation, a 10.4-inch TFT display with 256 colors and 640 × 480 pixel resolution.
The unit uses a PROFINET interface and provides 2 MB of user data memory.
Key Functions
Key and Touch Operation
Eight function keys are combined with an analog-resistive touch screen.
Display
10.4-inch TFT display, 256 colors and 640 × 480 pixel resolution.
Industrial Ethernet
One Industrial Ethernet interface with PROFINET connectivity.
Configuration Memory
Siemens lists 2 MB of memory available for user data.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Product Family | SIMATIC HMI Basic Panels |
| Product Type | KTP1000 Basic Color PN |
| Article Number | 6AV6647-0AF11-3AX0 |
| Display | 10.4-inch TFT |
| Resolution | 640 × 480 pixels |
| Colors | 256 |
| Function Keys | 8 |
| Touch Screen | Analog-resistive |
| Industrial Ethernet Interfaces | 1 |
| Interface | PROFINET |
| User Data Memory | 2 MB |
| Rated Supply Voltage | 24 V DC |
| Permissible Voltage Range | 19.2 to 28.8 V DC |
| Typical Power Input | 15 W |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Housing Front | 335 × 275 mm |
| Mounting Cutout | 310 × 248 mm |
| Mounting Depth | 60 mm |
| Net Weight | 2.65 kg |
Official source: Siemens Industry Mall product data for 6AV6647-0AF11-3AX0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is Siemens 6AV6647-0AF11-3AX0?
It is the Siemens SIMATIC HMI KTP1000 Basic Color PN Basic Panel.
What display does the panel use?
Siemens specifies a 10.4-inch TFT display with 256 colors and 640 × 480 pixel resolution.
How is the panel operated?
The panel combines eight function keys with an analog-resistive touch screen.
Which communication interface is integrated?
The official Siemens data lists one Industrial Ethernet interface with PROFINET connectivity.
How much user data memory is available?
Siemens specifies 2 MB of memory available for user data.
What supply voltage is required?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 to 28.8 V DC.
What should be checked before replacement?
Verify the full article number, mounting cutout, PROFINET connection, supply voltage and compatible HMI project.
Compatibility & Ordering Notes
Compatibility Checklist for 6AV6647-0AF11-3AX0
Match the complete 6AV6647-0AF11-3AX0 article number.
Confirm the 10.4-inch display and 310 × 248 mm mounting cutout.
Verify PROFINET cabling and the 24 V DC supply.
Back up the HMI project before replacement.
