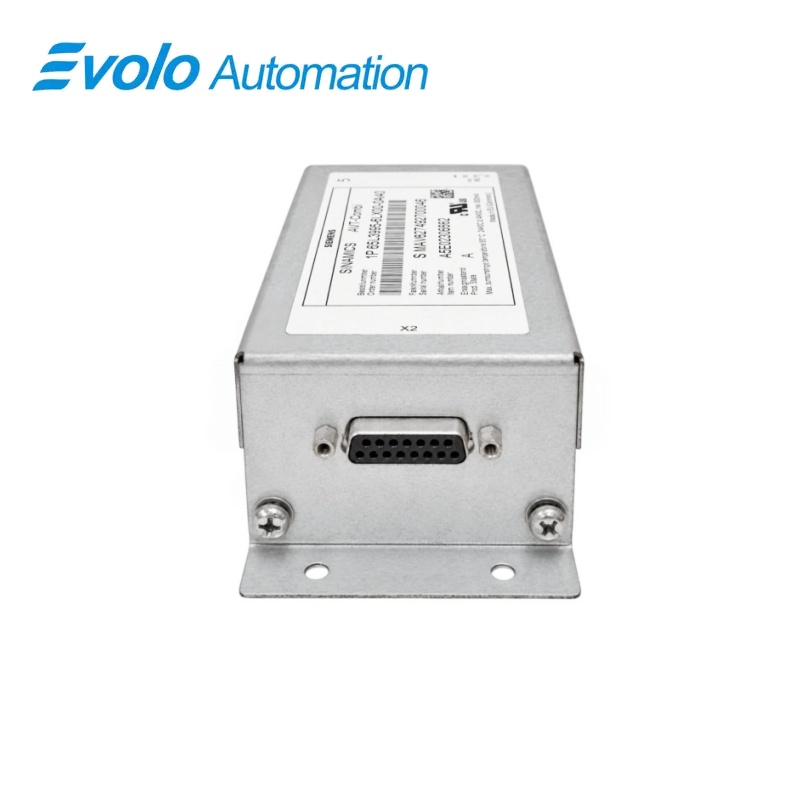

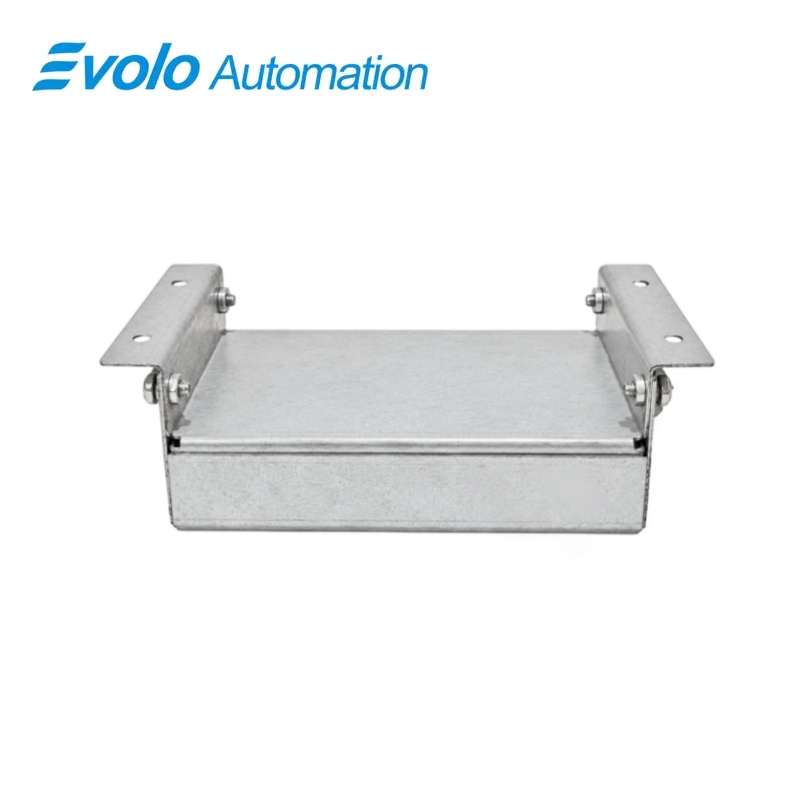

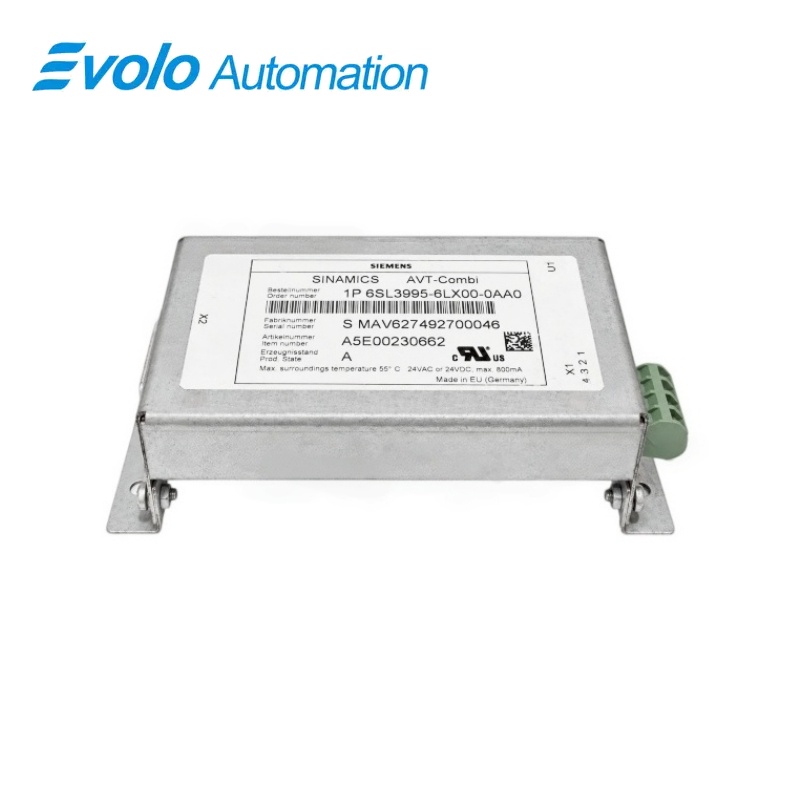

Siemens 6SL3995-6LX00-0AA0 AVT Combination Module
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Match the installed SINAMICS medium-voltage converter configuration.
- Keep each fiber-optic cable on its assigned actual-value channel.
- Verify the 3 V commissioning input limit before energizing the measurement path.
Siemens 6SL3995-6LX00-0AA0 AVT Combination Module
AVT combination module for SINAMICS medium-voltage converters, providing isolated actual-value conversion and fiber-optic signal transfer.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3995-6LX00-0AA0 |
| Product Type | AVT combination module |
| Core Function | Actual-value signal conversion |
| Compatible Series | SINAMICS medium-voltage converters |
Exact Module Match
Use the full 6SL3995-6LX00-0AA0 order number when identifying the replacement.
Optical Signal Path
The converted actual values are sent to the Power Stack Adapter through fiber-optic links.
Circuit Assignment
Match the installed actual-value channels, fiber assignment and cabinet mounting position.
Product Overview
Siemens 6SL3995-6LX00-0AA0 is an AVT combination module for SINAMICS medium-voltage converter systems. The module converts analog actual-value signals into digital signals for the drive control path.
Transformer isolation separates the measurement circuits from touchable circuits, while fiber-optic cables carry the converted signals to the Power Stack Adapter.
Key Functions
Actual-Value Conversion
The module converts analog sensing inputs into digital signals used by the converter control system.
Fiber-Optic Transmission
Digitized actual values are transferred to the Power Stack Adapter through fiber-optic cables.
Transformer Isolation
The module separates measurement circuits from touchable circuits through transformer isolation.
Official Specifications
| Signal Conversion | Analog actual values converted to digital signals |
|---|---|
| Transmission Medium | Fiber-optic cables |
| Receiving Assembly | Power Stack Adapter |
| Isolation Method | Transformer isolation |
| Commissioning Input Limit | Maximum 3 V |
| Voltage Actual-Value Channel | Um sensing |
| Ground-Fault Channel | Ground-fault detection |
| Current Actual-Value Channel | Actual-current sensing |
Frequently Asked Questions
How does 6SL3995-6LX00-0AA0 process converter actual values?
The module converts incoming analog measurement signals into digital data for the control system.
What communication path connects 6SL3995-6LX00-0AA0 to the Power Stack Adapter?
Fiber-optic cables carry the converted signals to the receiving assembly.
What input limit should be observed when commissioning 6SL3995-6LX00-0AA0?
Keep the actual-value channel input voltage at or below 3 V during commissioning checks.
Which sensing channels should be verified for 6SL3995-6LX00-0AA0?
Verify voltage sensing, ground-fault detection and actual-current sensing against the installed circuit assignment.
How is electrical separation provided in 6SL3995-6LX00-0AA0?
Transformer isolation separates the measurement circuits from circuits that can be touched.
What should be matched before replacing 6SL3995-6LX00-0AA0?
Match the fiber-optic assignment, actual-value channels, Power Stack Adapter connection and cabinet position.
How should 6SL3995-6LX00-0AA0 be checked after installation?
Confirm correct channel assignment and stable actual-value feedback before returning the converter to service.
