Overview
Siemens • SIMATIC ET 200pro FC-2

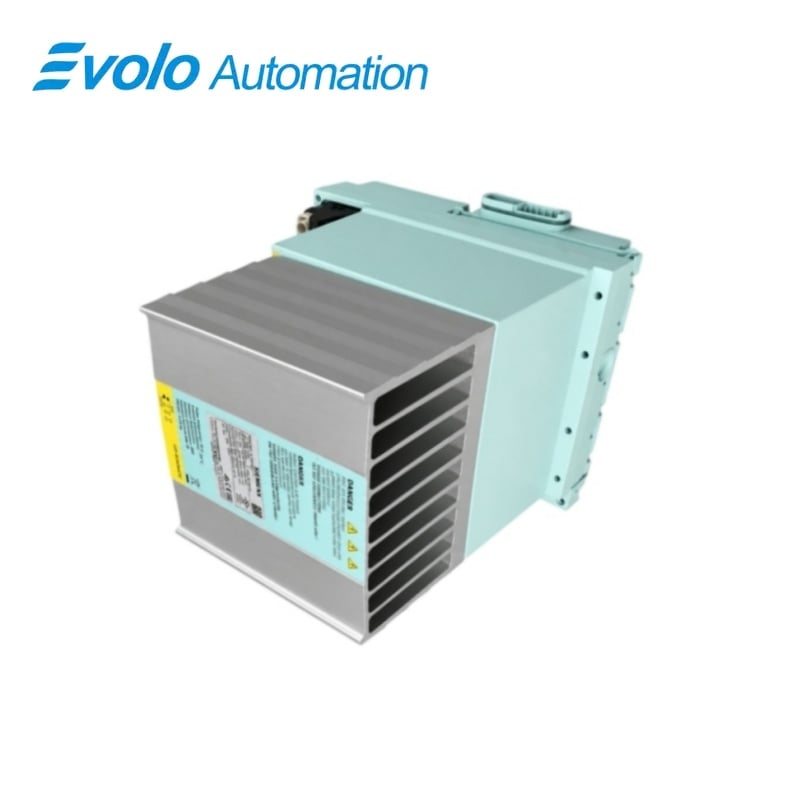

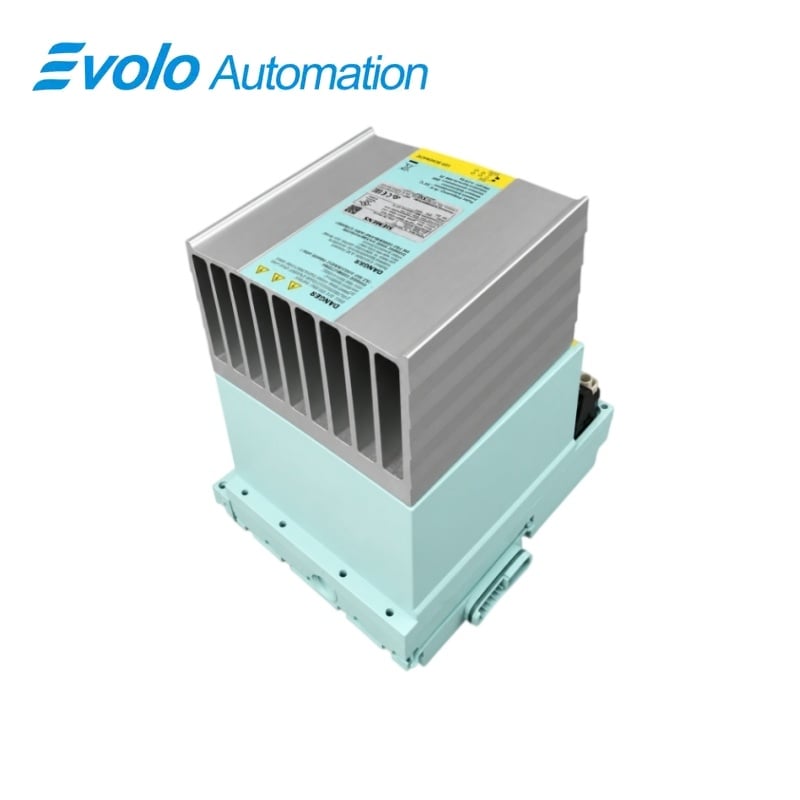

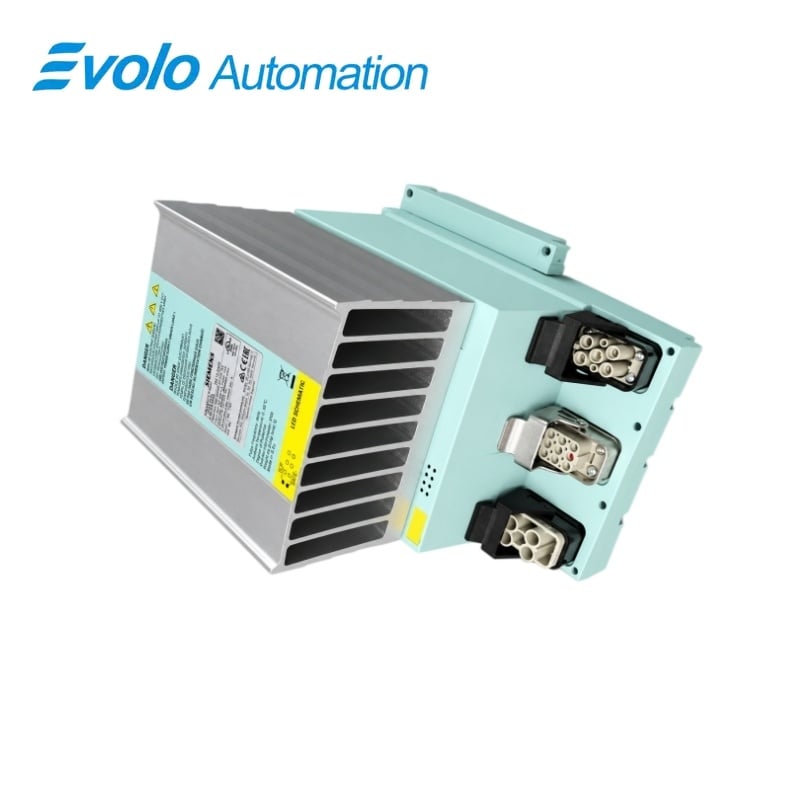

6SL3514-1KE13-5AE0 SIMATIC ET 200pro FC-2 Frequency Converter 1.1/1.5 kW
The SIMATIC ET 200pro FC-2 is an IP65 distributed frequency converter for decentralized motor control, rated for 1.1 kW at 55 °C or 1.5 kW at 45 °C and equipped with Safety Integrated STO.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3514-1KE13-5AE0 |
| Product Type | Distributed frequency converter with integrated STO |
| Core Function | Controls a three-phase motor in a decentralized ET 200pro installation |
| Application or Compatible Series | ET 200pro machine modules requiring IP65 motor control and Safety Integrated STO |
Exact Identification
Match 6SL3514-1KE13-5AE0 character by character and confirm the complete SIMATIC ET 200pro FC-2 Frequency Converter 1.1/1.5 kW designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC ET 200pro FC-2 is an IP65 distributed frequency converter for decentralized motor control, rated for 1.1 kW at 55 °C or 1.5 kW at 45 °C and equipped with Safety Integrated STO.
The converter mounts close to the motor and integrates into the modular ET 200pro automation system. Built-in STO supports a designed safety shutdown when correctly wired, parameterized and validated. The IP65 enclosure and convection cooling suit distributed equipment without a central cabinet drive bay.
Key Functions
Decentralized Motor Control
The converter mounts close to the motor and integrates into the modular ET 200pro automation system.
Integrated Safe Torque Off
Built-in STO supports a designed safety shutdown when correctly wired, parameterized and validated.
Rugged Machine Installation
The IP65 enclosure and convection cooling suit distributed equipment without a central cabinet drive bay.
Official Specifications
| Input Supply | 3-phase 380 to 480 V AC, ±10% |
|---|---|
| Line Frequency | 47 to 63 Hz |
| Rated Power at 55 °C | 1.1 kW |
| Rated Power at 45 °C | 1.5 kW |
| Rated Input Current at 55 °C | 2.0 A |
| Rated Input Current at 45 °C | 2.5 A |
| Rated Output Current at 55 °C | 3.5 A |
| Rated Output Current at 45 °C | 3.9 A |
| Pulse Frequency | 4 kHz standard; adjustable from 4 to 16 kHz |
| Output Frequency Range | 0 to 550 Hz |
| Overload Capability | 150% for 60 s and 200% for 3 s in a 300 s cycle |
| Short-Circuit Rating | 10 kA |
| Efficiency | 0.95 to 0.97 |
| Maximum Shielded Motor Cable | 15 m |
| Degree of Protection | IP65 |
| Dimensions | 155 x 246 x 248 mm |
| Net Weight | 4 kg |
| Cooling Method | Natural convection; vertical wall mounting |
Frequently Asked Questions
Which motor can be connected to 6SL3514-1KE13-5AE0?
Use a three-phase motor whose voltage, current, power, thermal data and required overload fit the engineered converter configuration.
How should STO be validated on 6SL3514-1KE13-5AE0?
Test the complete safety circuit, configured stop behavior, reset logic and acceptance criteria before production operation.
What mounting orientation is required for 6SL3514-1KE13-5AE0?
Install it vertically with unobstructed natural airflow and the heat-sink fins in the specified orientation.
How long can the motor cable be for 6SL3514-1KE13-5AE0?
Keep the shielded motor connection within the specified maximum and bond the shield correctly at both ends.
What should be backed up before replacing 6SL3514-1KE13-5AE0?
Save the converter parameters, motor data, communication configuration, safety settings and application commissioning records.
Which supply checks are required for 6SL3514-1KE13-5AE0?
Confirm the three-phase voltage, frequency, protective earth, branch protection and phase condition before energizing.
What should be tested after commissioning 6SL3514-1KE13-5AE0?
Verify motor direction, current, acceleration, stopping, fault handling, communications, STO and the full machine cycle.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the converter size and temperature rating required by the motor load.
- Restore the ET 200pro communication and complete drive parameter set.
- Validate STO and all machine safety functions before enabling production.
