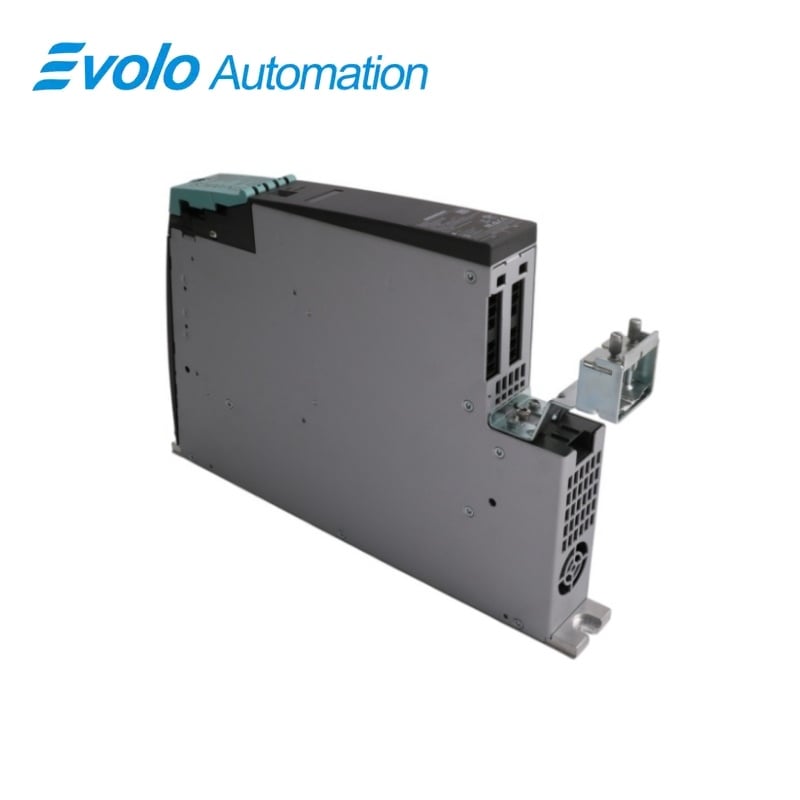

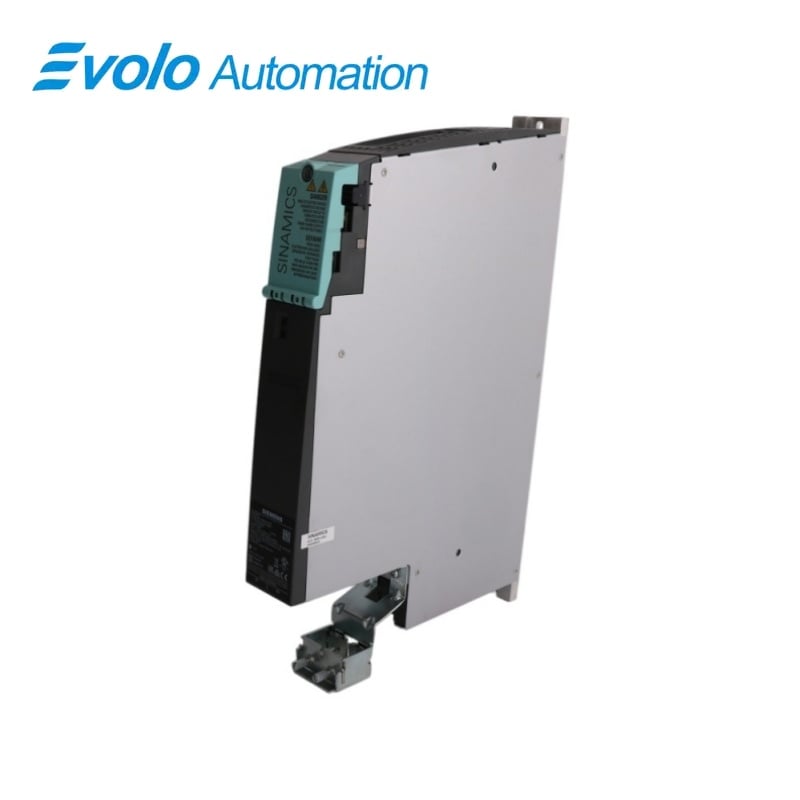

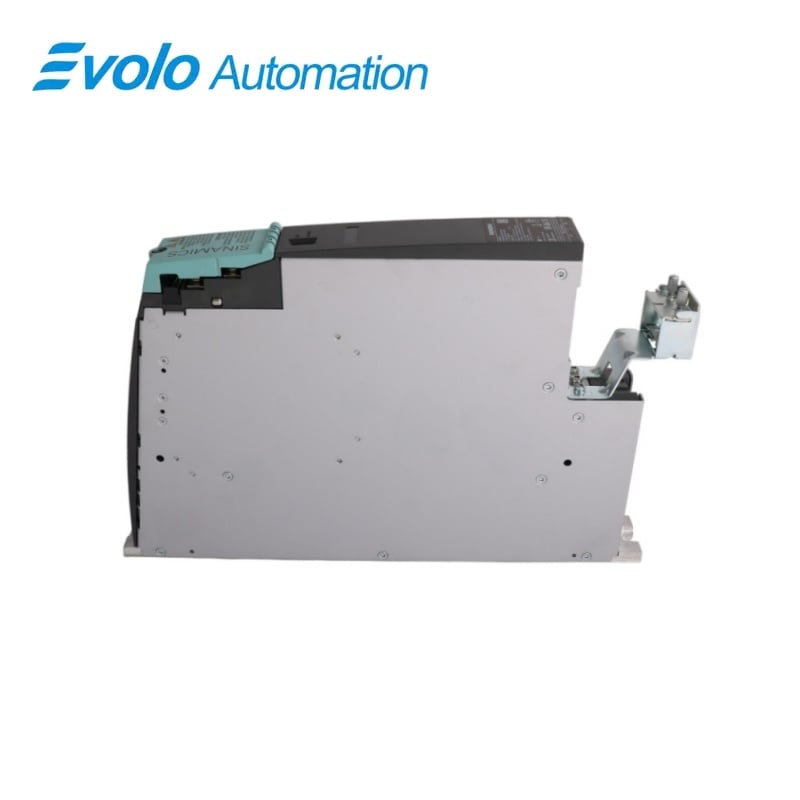

Siemens SINAMICS S120 3 A Single Motor Module 6SL3120-1TE13-0AD0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SINAMICS S120 Booksize
6SL3120-1TE13-0AD0 SINAMICS S120 3 A Single Motor Module
This internally air-cooled SINAMICS S120 booksize D-type module provides a 3 A, three-phase 400 V motor output from the common DC link and includes a DRIVE-CLiQ cable.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3120-1TE13-0AD0 |
| Product Type | Booksize single motor module |
| Core Function | Controls power delivery to one motor axis |
| Application or Compatible Series | SINAMICS S120 booksize drive systems |
Exact Identification
Match 6SL3120-1TE13-0AD0 character by character and confirm the complete SINAMICS S120 3 A Single Motor Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This internally air-cooled SINAMICS S120 booksize D-type module provides a 3 A, three-phase 400 V motor output from the common DC link and includes a DRIVE-CLiQ cable.
The module supplies one motor from the SINAMICS S120 common DC link. The hardware supports the documented extended Safety Integrated functions when used in the approved drive architecture. The 50 mm wide internal-air-cooled design fits the modular SINAMICS booksize lineup.
Key Functions
Single-Axis Power Stage
The module supplies one motor from the SINAMICS S120 common DC link.
Extended Safety Support
The hardware supports the documented extended Safety Integrated functions when used in the approved drive architecture.
Booksize Integration
The 50 mm wide internal-air-cooled design fits the modular SINAMICS booksize lineup.
Official Specifications
| DC-Link Voltage Range | 510 to 720 V DC |
|---|---|
| Rated Motor Output | 400 V three-phase, 3 A |
| Electronics Supply | 24 V DC, -15 % to +20 % |
| Motor Connection | Connector X1 |
| Motor Conductor Cross-Section | 1.5 to 6 mm² |
| Protective-Earth Connection | M5 screw |
| Maximum Shielded Motor Cable | 50 m |
| Maximum Unshielded Motor Cable | 75 m |
| Safety Integrity | SIL 2 according to IEC 61508 |
| Performance Level | PL d, Category 3 according to EN ISO 13849-1 |
| Dimensions | 50 x 380 x 270 mm |
| Degree of Protection | IP20 / UL open type |
| Construction | Booksize D-type |
| Cooling | Internal air cooling |
| Net Weight | 4.6 kg |
| Sound Pressure Level at 1 m | 60 dB |
Frequently Asked Questions
Which DC-link range supplies 6SL3120-1TE13-0AD0?
Use the module within the documented 510 to 720 V DC-link range.
What motor cable length can I use with 6SL3120-1TE13-0AD0?
Keep shielded motor cables within 50 m and unshielded cables within 75 m.
Which motor connector is fitted on 6SL3120-1TE13-0AD0?
The motor-end connection uses connector X1 with the specified conductor cross-section.
Can 6SL3120-1TE13-0AD0 participate in an extended Safety Integrated application?
Yes; configure and validate the supported safety functions within the approved SINAMICS architecture.
What should I save before replacing 6SL3120-1TE13-0AD0?
Archive the drive project, parameters, safety checksums, firmware versions, topology and fault history.
How do I isolate 6SL3120-1TE13-0AD0 safely?
Disconnect all supplies, wait for the common DC link to discharge and prove absence of voltage before work.
Which tests follow installation of 6SL3120-1TE13-0AD0?
Check the DC link, electronics supply, DRIVE-CLiQ topology, motor cable, cooling, parameters, safety functions and authorized axis test.
Compatibility & Ordering Notes
Compatibility Checklist
- Install only in a supported SINAMICS S120 booksize configuration.
- Maintain the documented cable lengths, conductor sizes and cooling clearances.
- Repeat the required Safety Integrated acceptance tests after replacement.
