Siemens • SINAMICS AOP30

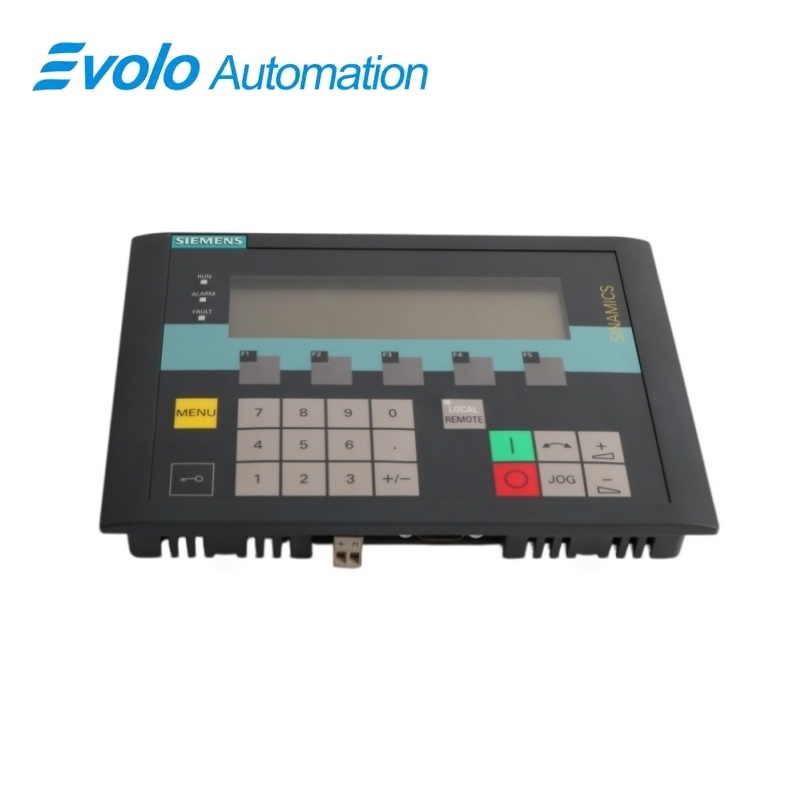

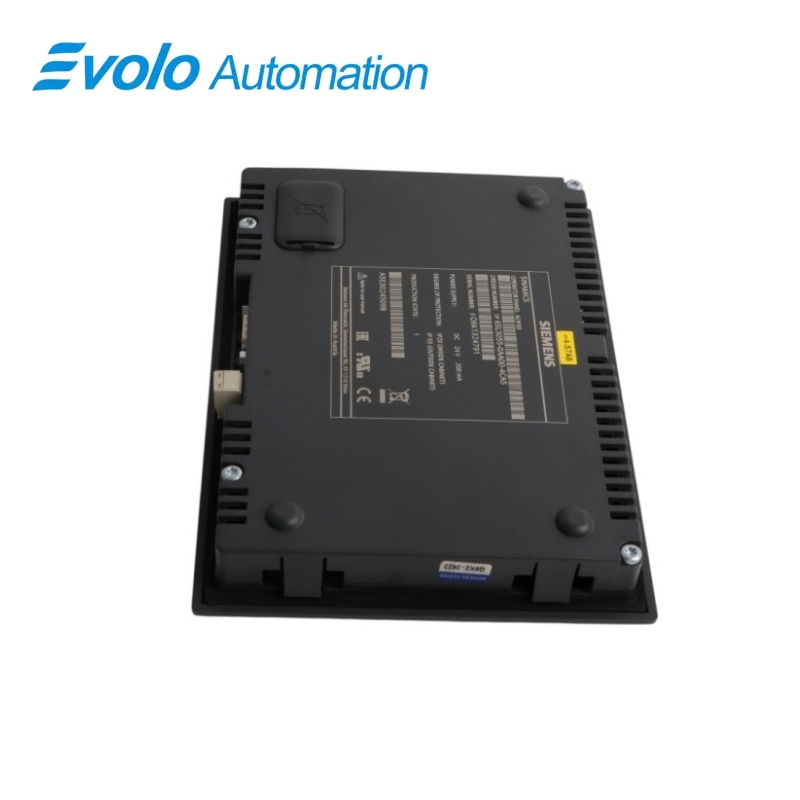

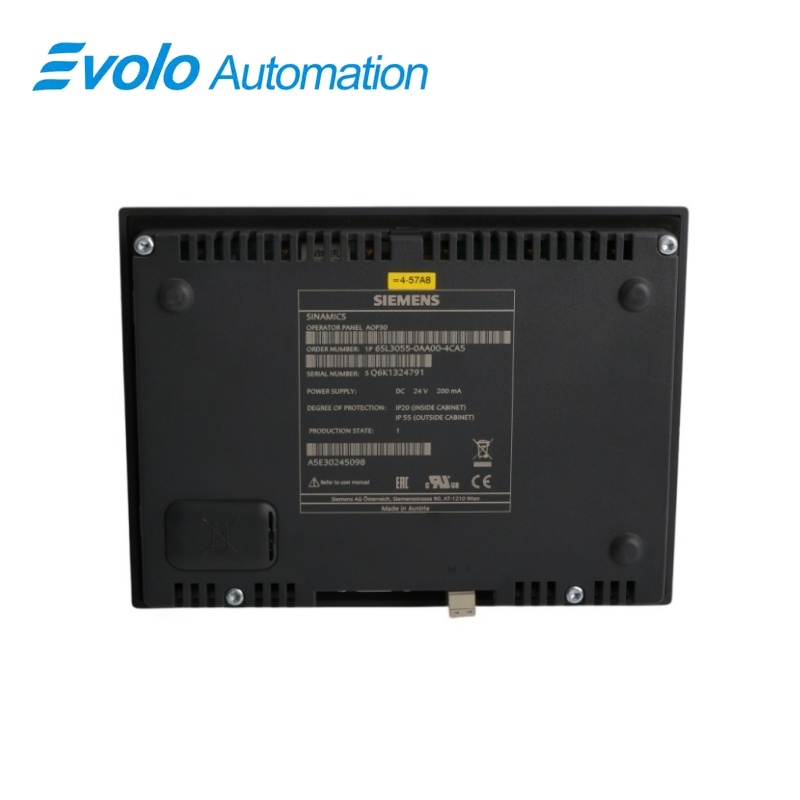

6SL3055-0AA00-4CA5 SINAMICS AOP30 Advanced Operator Panel
The Siemens SINAMICS AOP30 is a language-neutral cabinet-door operator panel with memory expansion for drive firmware V2.4 or later, local status indication and an RS232 PPI interface.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3055-0AA00-4CA5 |
| Product Type | Door-mounted advanced drive operator panel |
| Core Function | Provides local commissioning, operation and diagnostics for compatible SINAMICS drives |
| Application or Compatible Series | SINAMICS drive systems using firmware V2.4 or later and an RS232 PPI connection |
Exact Identification
Match 6SL3055-0AA00-4CA5 character by character and confirm the complete SINAMICS AOP30 Advanced Operator Panel designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The Siemens SINAMICS AOP30 is a language-neutral cabinet-door operator panel with memory expansion for drive firmware V2.4 or later, local status indication and an RS232 PPI interface.
The panel provides keypad-based parameter access, control and status display at the drive cabinet. The front reaches IP55 while the cabinet interior side is rated IP20. A replaceable CR2032 lithium cell supports the documented clock and data backup functions.
Key Functions
Local Drive Operation
The panel provides keypad-based parameter access, control and status display at the drive cabinet.
Protected Door Installation
The front reaches IP55 while the cabinet interior side is rated IP20.
Battery-Backed Data
A replaceable CR2032 lithium cell supports the documented clock and data backup functions.
Official Specifications
| Minimum Drive Firmware | Version 2.4 |
|---|---|
| Power Supply | 24 V DC; permissible range 20.4 to 28.8 V DC |
| Current Without Backlighting | Less than 100 mA |
| Current at Maximum Backlighting | Less than 200 mA |
| Data Interface | RS232 with PPI protocol |
| Backup Battery | 3 V lithium CR2032 |
| Operating Temperature | 0 to 55 °C |
| Storage and Transport Temperature | -25 to +70 °C |
| Cabinet Interior Protection | IP20 |
| Cabinet Exterior Protection | IP55 |
| Panel Dimensions | 212 x 156 x 31 mm |
| Required Door Cutout | 141.5 x 197.5 mm |
| Approximate Weight | 0.55 kg |
| Status Indicators | RUN, ALARM, FAULT and LOCAL/REMOTE LEDs |
| Certifications | cULus and CE |
| Product Standard | EN 61800-5-1 |
Frequently Asked Questions
Which drive firmware is required for 6SL3055-0AA00-4CA5?
Use it with a supported SINAMICS system running firmware V2.4 or later.
How does 6SL3055-0AA00-4CA5 communicate with the drive?
An RS232 interface using the PPI protocol provides the connection.
What supply is needed for 6SL3055-0AA00-4CA5?
Provide 24 V DC within the permitted 20.4 to 28.8 V range.
Which battery is installed in 6SL3055-0AA00-4CA5?
The backup function uses a 3 V CR2032 lithium cell.
Can 6SL3055-0AA00-4CA5 be mounted in a cabinet door?
Yes; the front is designed for door installation with a 141.5 x 197.5 mm cutout.
What protection is available after mounting 6SL3055-0AA00-4CA5?
The front is rated IP55 and the cabinet-interior side is rated IP20.
What should be saved before replacing 6SL3055-0AA00-4CA5?
Back up drive parameters and record the operator-panel settings, language, communication cable and access configuration.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the panel only with a SINAMICS drive family and firmware release that supports AOP30.
- Match the cabinet opening and retain the sealing and mounting arrangement required for front-side IP55.
- Restore drive and panel settings from the approved backup before returning local control to service.
