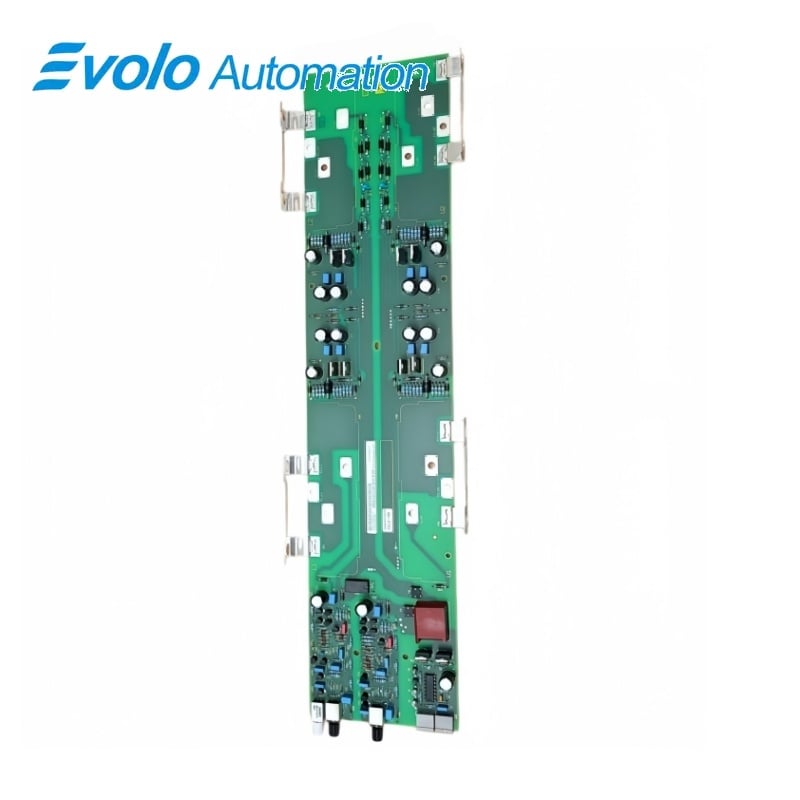

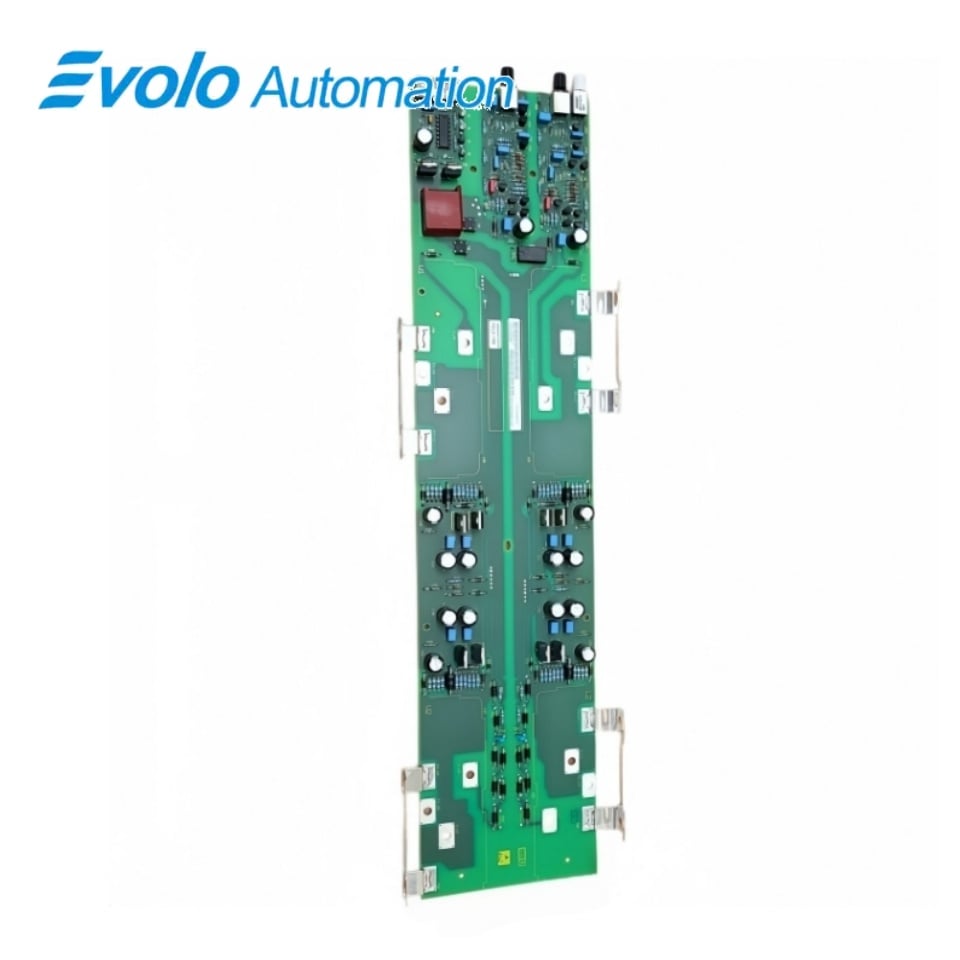

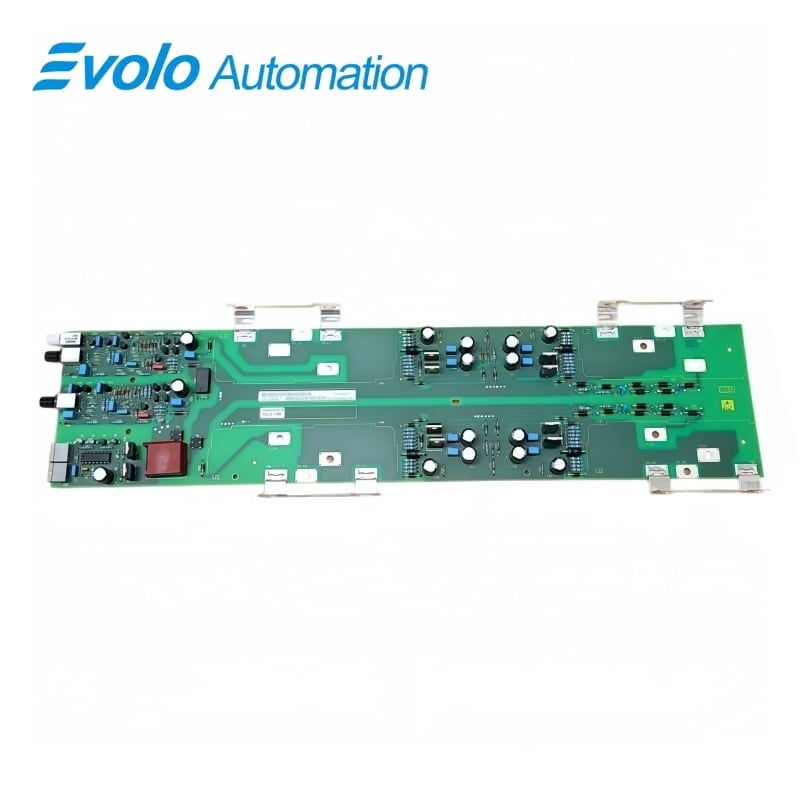

Siemens SIMOVERT MASTERDRIVES IGD8 Inverter Control Module 6SE7038-6GK84-1JC2
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMOVERT MASTERDRIVES
6SE7038-6GK84-1JC2 SIMOVERT MASTERDRIVES IGD8 Inverter Control Module
This SIMOVERT MASTERDRIVES IGD8 spare module is specified for inverter units operating from 500 to 690 V three-phase AC at 50/60 Hz or 675 to 930 V DC, in the designated 650 A and 1230 A power classes.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SE7038-6GK84-1JC2 |
| Product Type | Inverter control module |
| Core Function | Controls the specified high-power SIMOVERT inverter power sections |
| Application or Compatible Series | Service replacement in matching 500–690 V AC or 675–930 V DC MASTERDRIVES units |
Exact Identification
Match 6SE7038-6GK84-1JC2 character by character and confirm the complete SIMOVERT MASTERDRIVES IGD8 Inverter Control Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This SIMOVERT MASTERDRIVES IGD8 spare module is specified for inverter units operating from 500 to 690 V three-phase AC at 50/60 Hz or 675 to 930 V DC, in the designated 650 A and 1230 A power classes.
Provides the specified inverter-control function for matching MASTERDRIVES power units. Designed for defined 500–690 V AC and 675–930 V DC equipment. Selection depends on the complete drive type, current class, connector layout and parameter set.
Key Functions
IGD8 Control Function
Provides the specified inverter-control function for matching MASTERDRIVES power units.
High-Voltage Application
Designed for defined 500–690 V AC and 675–930 V DC equipment.
Exact-Unit Replacement
Selection depends on the complete drive type, current class, connector layout and parameter set.
Official Specifications
| Module Designation | IGD8 |
|---|---|
| AC Voltage Class | 500 to 690 V 3 AC |
| AC Frequency | 50/60 Hz |
| DC Voltage Class | 675 to 930 V DC |
| Supported Current Class | 650 A |
| Additional Current Class | 1230 A |
| Installation Role | Inverter control module |
| Quantity Unit | 1 piece |
| Net Weight | 0.598 kg |
| Package Dimensions | 70 x 16 x 6 cm |
| Commodity Classification | Drive spare/control component |
Frequently Asked Questions
Which voltage classes are associated with 6SE7038-6GK84-1JC2?
It is specified for matching units in the 500 to 690 V AC and 675 to 930 V DC classes.
Which current ratings must be checked for 6SE7038-6GK84-1JC2?
Confirm whether the installed power unit is the designated 650 A or 1230 A configuration.
Can 6SE7038-6GK84-1JC2 be chosen from the converter family name alone?
No; match the complete article number, power-unit type, voltage class, current class and hardware revision.
What must be done before removing 6SE7038-6GK84-1JC2?
Isolate all supplies, wait for the DC link to discharge and prove absence of voltage under the approved procedure.
How should 6SE7038-6GK84-1JC2 be handled outside the converter?
Use grounded ESD controls and avoid touching electronic components or connector contacts.
What information should be saved before replacing 6SE7038-6GK84-1JC2?
Preserve the parameter set, software version, commissioning record, connector map and fault history.
What tests are required after fitting 6SE7038-6GK84-1JC2?
Check connectors and auxiliary supplies before performing the authorized drive diagnostics and functional test.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only in the exact designated SIMOVERT MASTERDRIVES power unit.
- Observe high-voltage lockout, DC-link discharge and ESD procedures.
- Restore the validated parameter set and complete an authorized functional test.
