Overview
Siemens · SIMATIC S7-400 / PCS 7

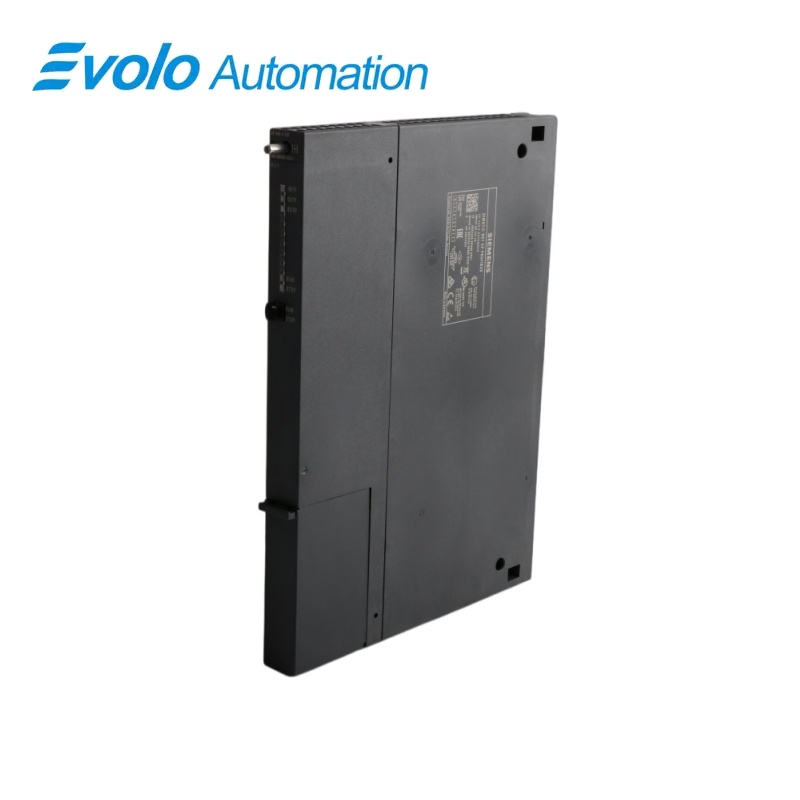

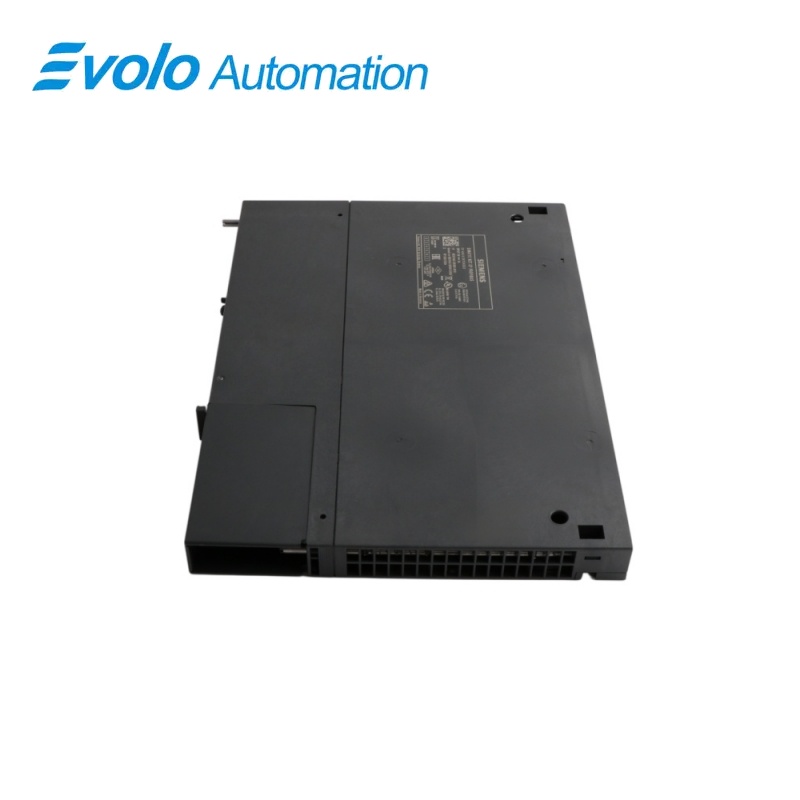

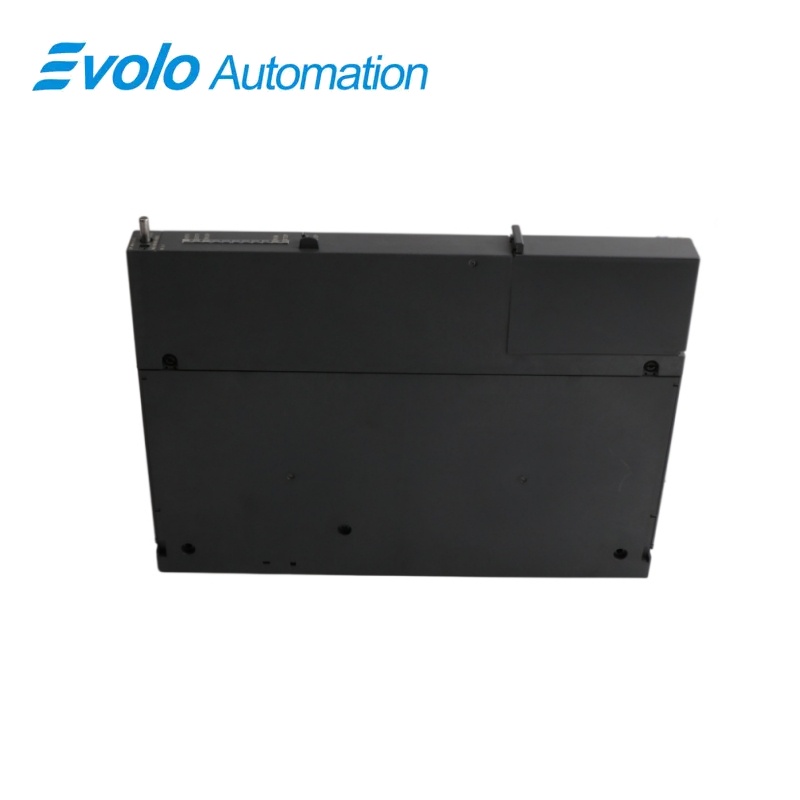

6GK7443-5DX05-0XE1 SIMATIC NET CP 443-5 Extended PROFIBUS Processor
This coated CP 443-5 Extended communication processor integrates an S7-400 or PCS 7 station with the configured PROFIBUS network.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK7443-5DX05-0XE1 |
| Product Type | Conformal-coated PROFIBUS communication processor |
| Core Function | Adds a dedicated PROFIBUS DP interface and communication services to an S7-400 station |
| Application or Compatible Series | SIMATIC S7-400 and PCS 7 systems requiring the coated CP 443-5 Extended execution |
Exact Identification
Match 6GK7443-5DX05-0XE1 character by character and confirm the complete SIMATIC NET CP 443-5 Extended PROFIBUS Processor designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This coated CP 443-5 Extended communication processor integrates an S7-400 or PCS 7 station with the configured PROFIBUS network.
The processor handles the configured DP network independently of the CPU. S7 and PROFIBUS services support distributed devices and engineering access. The exact -0XE1 version is selected for the documented coated hardware configuration.
Key Functions
Dedicated PROFIBUS Interface
The processor handles the configured DP network independently of the CPU.
Extended Communication
S7 and PROFIBUS services support distributed devices and engineering access.
Coated Execution
The exact -0XE1 version is selected for the documented coated hardware configuration.
Official Specifications
| Automation System | SIMATIC S7-400 |
|---|---|
| Module Type | CP 443-5 Extended |
| Network | PROFIBUS DP |
| Coating | Conformal-coated execution |
| Installation | S7-400 rack |
| Configuration | STEP 7 or PCS 7 hardware configuration |
| DP Role | Project-defined master or communication role |
| Diagnostics | Module and bus diagnostics |
| Backplane Interface | S7-400 system bus |
| Project Requirement | Exact hardware catalog entry |
Frequently Asked Questions
Why must the final suffix be matched for PROFIBUS processor 6GK7443-5DX05-0XE1?
The suffix identifies the coated hardware execution used by the installed S7-400 configuration.
Which network parameters should be saved for PROFIBUS processor 6GK7443-5DX05-0XE1?
Save the PROFIBUS address, baud rate, DP system, connection table and rack slot.
Which installed configuration should be recorded before replacing PROFIBUS processor 6GK7443-5DX05-0XE1?
Record the configured addresses, wiring assignments, parameters, firmware and neighboring hardware before removal.
What identification must match when selecting PROFIBUS processor 6GK7443-5DX05-0XE1?
Match the complete article number, hardware revision and every option used by the installed system.
How should technicians handle PROFIBUS processor 6GK7443-5DX05-0XE1?
Isolate the affected equipment and use grounded electrostatic-discharge precautions throughout the exchange.
Which checks are required after installing PROFIBUS processor 6GK7443-5DX05-0XE1?
Verify power, diagnostics, communication, field signals and the complete approved machine or plant function.
When should a visually similar unit replace PROFIBUS processor 6GK7443-5DX05-0XE1?
Use a visually similar unit only after engineering confirms identical electrical, mechanical and software compatibility.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the exact CP 443-5 Extended hardware entry.
- Preserve the complete DP configuration and communication connections.
- Inspect shielding and termination before startup.
