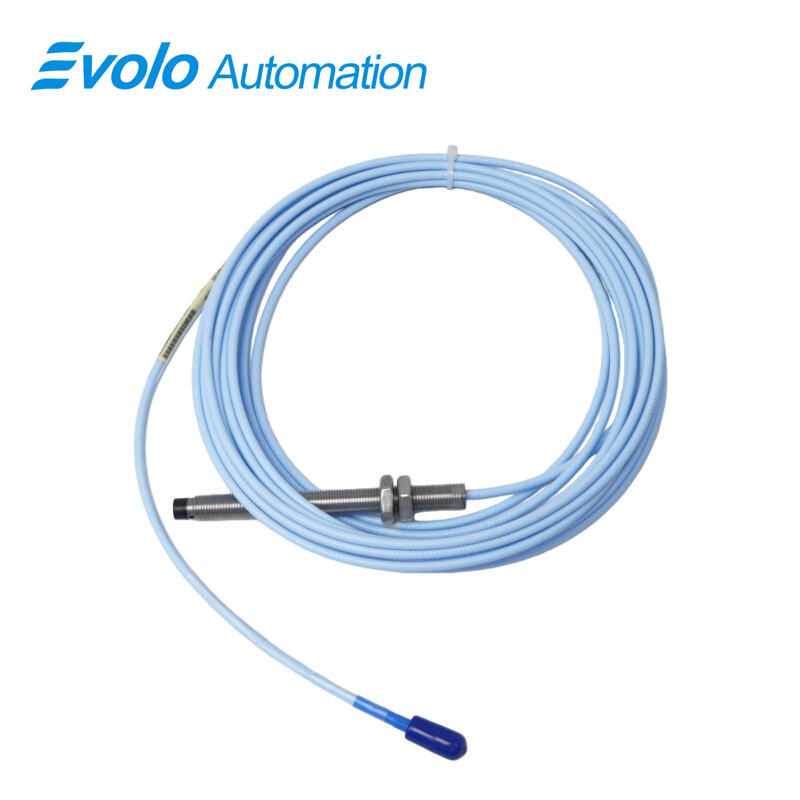

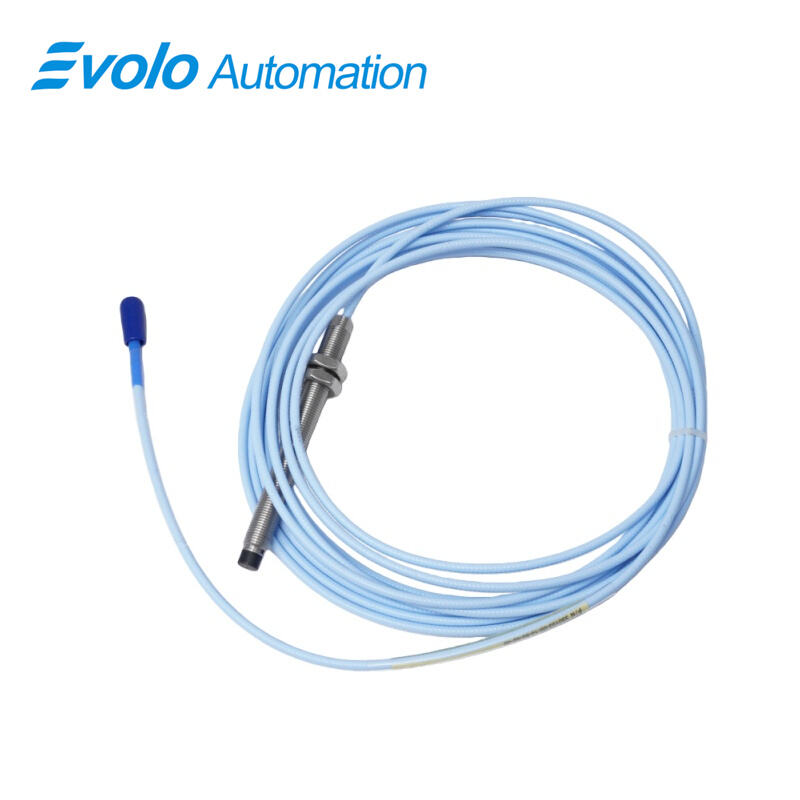

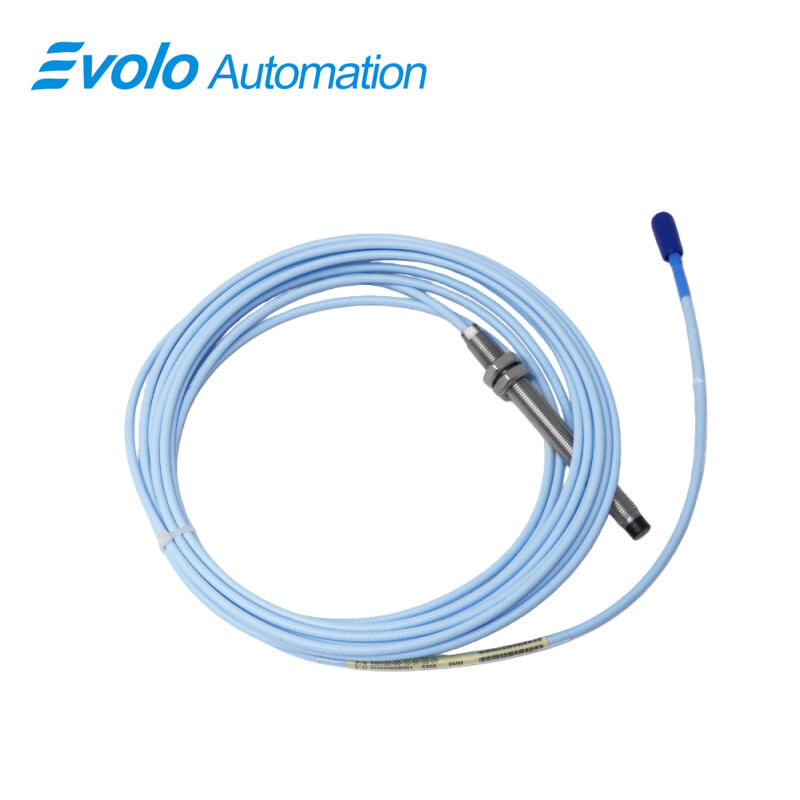

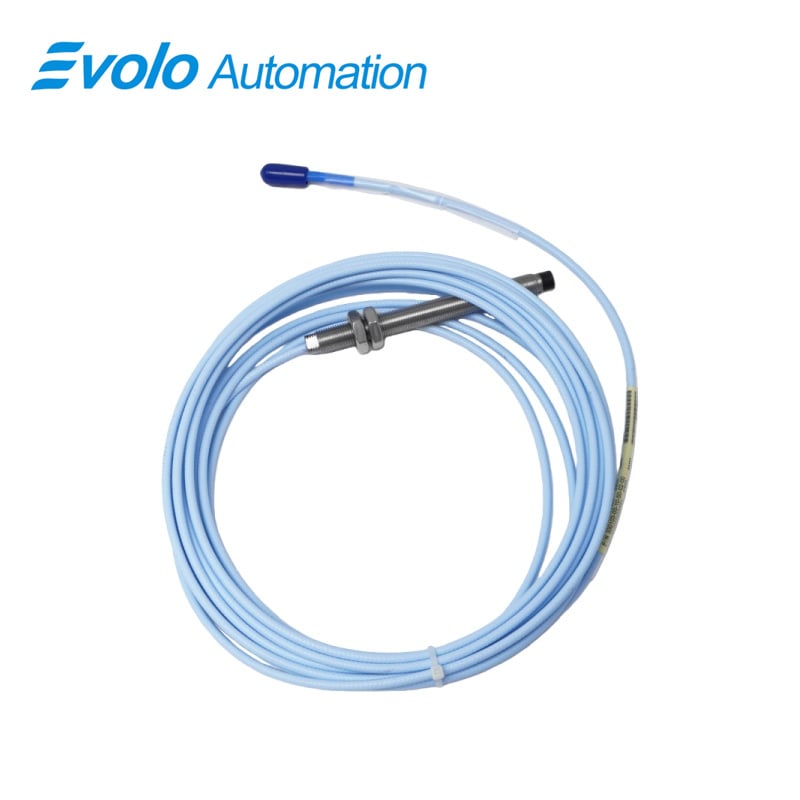

330103-00-10-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-10-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-10-50-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy-current proximity transducer engineered for precision vibration and position measurements in industrial automation systems. Featuring a 5-meter total length with miniature coaxial ClickLoc connector and standard cable, the probe provides a linear output voltage directly proportional to the distance between the probe tip and a conductive surface. Operating reliably across extreme temperatures from -52°C to +177°C (-62°F to +350°F), it supports a 2 mm linear range (80 mils) and an output stability of less than 2 mV per volt change in input voltage. The M10x1 threaded design allows up to 15 mm of engagement, ensuring secure mounting in fluid-film bearing machines, turbines, and other critical rotating equipment. Its patented TipLoc and CableLoc designs provide a 330 N (75 lbf) pull strength, enhancing mechanical integrity and preventing accidental disconnections. Optional FluidLoc cable prevents oil or other liquids from leaking through the cable interior. Fully compatible with the 3300 series 5 mm and 8 mm components, this probe enables seamless retrofits, upgrades, and compliance with API 670 standards for predictive maintenance systems.

Applications

1. Vibration Monitoring in Fluid-Film Bearings
Provides real-time shaft vibration data on pumps, compressors, and turbines, enabling early detection of imbalance or misalignment to prevent failures.

2. Shaft Position Tracking
Accurately monitors radial and axial shaft displacement in high-speed rotating machinery, ensuring proper alignment and clearance.

3. Keyphasor Speed Reference
Generates precise trigger signals for rotational speed and phase measurement in vibration analysis systems, supporting advanced diagnostics.

4. Predictive Maintenance Programs
Integrates with Proximitor sensors and monitoring modules to identify early signs of bearing wear, rotor misalignment, or imbalance.

5. High-Temperature Industrial Environments
Suitable for use in extreme thermal conditions, including turbines and high-speed machinery, due to its -52°C to +177°C temperature range.

Specifications

Competitive Advantage

1. Long Cable Reach
Offers 5-meter cable length, allowing flexible placement of transducers without compromising signal integrity.

2. Exceptional Signal Stability
Maintains accurate measurements with less than 2 mV change per volt input, ensuring reliable performance in demanding automation systems.

3. Robust Mechanical Integrity
Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, preventing cable detachment and enhancing durability.

4. Seamless Interchangeability
Compatible with 3300 series 5 mm and 8 mm probes, reducing the need for custom calibration or component matching.

5. Fluid and Contamination Protection
Optional FluidLoc cable prevents leakage of oil or other industrial fluids, ensuring safe operation and equipment protection.
