Overview
Siemens · SCALANCE M-800
6GK5876-4AA00-2DA2 SCALANCE M876-4 LTE NAM Industrial Router

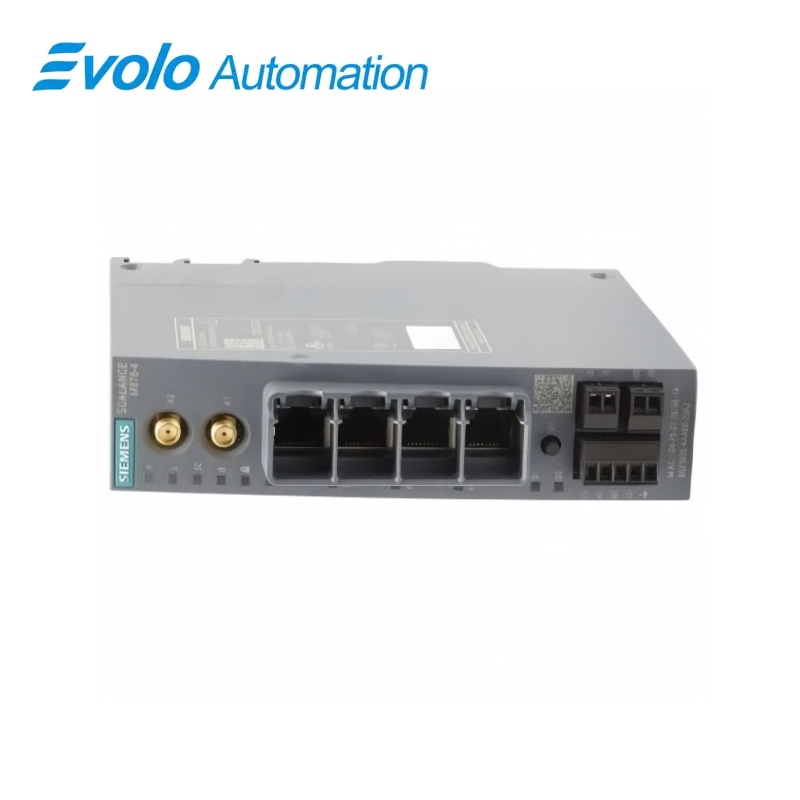

The SCALANCE M876-4 NAM is an industrial LTE router optimized for North America, with a four-port Fast Ethernet switch, two SMA antenna connections, MIMO, VPN, firewall, NAT and digital I/O.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5876-4AA00-2DA2 |
| Product Type | Industrial LTE mobile router |
| Core Function | Routes Industrial Ethernet traffic over North American LTE networks with VPN, firewall, NAT and MIMO |
| Application or Compatible Series | Secure remote communication for Ethernet-based automation devices over approved North American mobile networks |
Exact Identification
Match 6GK5876-4AA00-2DA2 character by character and confirm the complete SCALANCE M876-4 LTE NAM Industrial Router designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE M876-4 NAM is an industrial LTE router optimized for North America, with a four-port Fast Ethernet switch, two SMA antenna connections, MIMO, VPN, firewall, NAT and digital I/O.
Supports mobile IP communication over approved LTE networks in the NAM region. Two SMA antenna connections support the documented MIMO installation. VPN, firewall and NAT functions protect and segment remote automation traffic.
Key Functions
North American LTE
Supports mobile IP communication over approved LTE networks in the NAM region.
MIMO Radio Design
Two SMA antenna connections support the documented MIMO installation.
Secure Routing
VPN, firewall and NAT functions protect and segment remote automation traffic.
Official Specifications
| Mobile-Radio Standard | LTE (4G), NAM variant |
| Ethernet Interfaces | 4 × RJ45, 10/100BASE-T |
| Ethernet Data Rate | 10/100 Mbit/s |
| Antenna Connections | 2 × straight SMA sockets, 50 Ω nominal |
| LTE Frequency Bands | 700, 850, AWS-1 (1700/2100) and 1900 MHz |
| LTE Data Rate | Downlink up to 100 Mbit/s; uplink up to 50 Mbit/s |
| MIMO Reception | LTE receive MIMO via antenna port A2 |
| Digital Inputs | 1 isolated input; 24 V DC SELV |
| Digital Outputs | 1 isolated relay output; 24 V DC SELV, maximum 1 A |
| VPN Capacity and Protocols | Up to 20 connections using IPsec VPN or OpenVPN client |
| Firewall Processing | Stateful packet inspection at Layers 3 and 4 with port forwarding and global or user-defined rules |
| NAT Operating Modes | IP masquerading, NAPT, SourceNAT and NETMAP |
| IPsec Encryption | AES 128/192/256-bit and 3DES 168-bit |
| Network Management | SNMPv1/v2/v3 |
| Time Functions | NTP client/server, secure NTP server and SNTP client |
| Management Access | Web Based Management over HTTP/HTTPS and CLI over Telnet/SSH |
| Supply Voltage | 12 to 24 V DC; permitted range 10.8 to 28.8 V DC |
| Power Consumption | Maximum 8 W |
| Net Weight | 0.389 kg |
| Package Dimensions | 147 × 35 × 127 mm |
Frequently Asked Questions
Where is the radio variant of 6GK5876-4AA00-2DA2 intended to operate?
Use it only in the North American mobile bands and countries covered by the applicable approvals.
Why does 6GK5876-4AA00-2DA2 have two antenna connectors?
The two SMA ports support the documented LTE MIMO antenna arrangement.
How many local Ethernet devices can attach directly to 6GK5876-4AA00-2DA2?
Four 10/100 Mbit/s RJ45 switch ports are provided.
Can 6GK5876-4AA00-2DA2 establish a protected service connection?
Yes; configure the supported VPN and firewall functions under the site security policy.
Does 6GK5876-4AA00-2DA2 offer digital alarm or control points?
One digital input and one digital output are available for the approved application.
What should be confirmed with the mobile carrier for 6GK5876-4AA00-2DA2?
Verify the SIM, APN, LTE bands, data plan, coverage and any carrier certification requirements.
What should be exported before exchanging 6GK5876-4AA00-2DA2?
Save the complete router configuration, VPN credentials, firewall rules, NAT, APN, IP addressing and antenna design record.
Compatibility & Ordering Notes
Compatibility Checklist
- Do not substitute a regional LTE variant without confirming bands and approvals.
- Use the documented dual-antenna MIMO arrangement.
- Restore and validate the complete security and mobile-network configuration.
