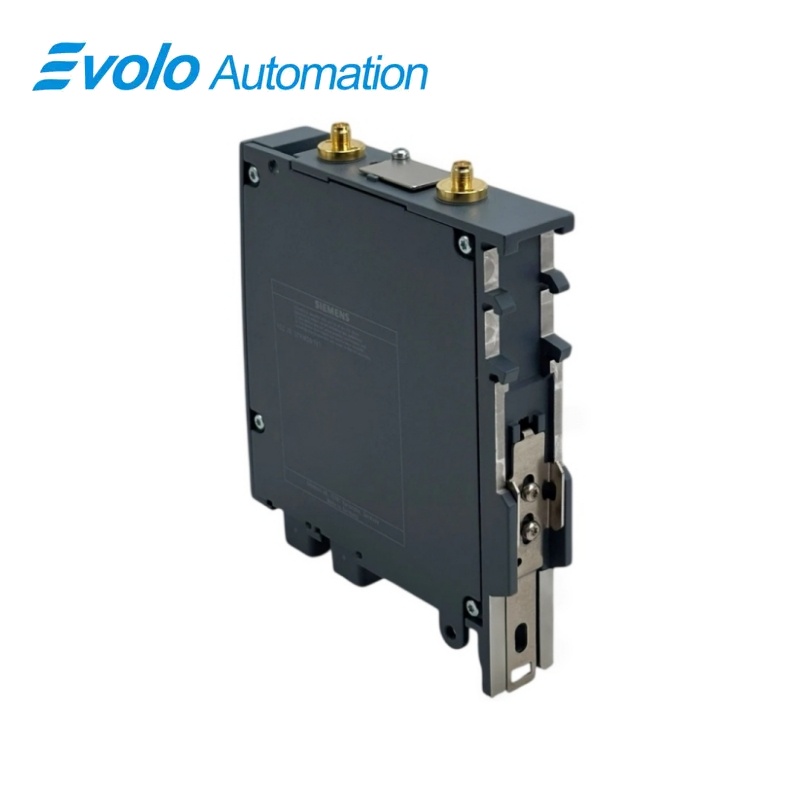

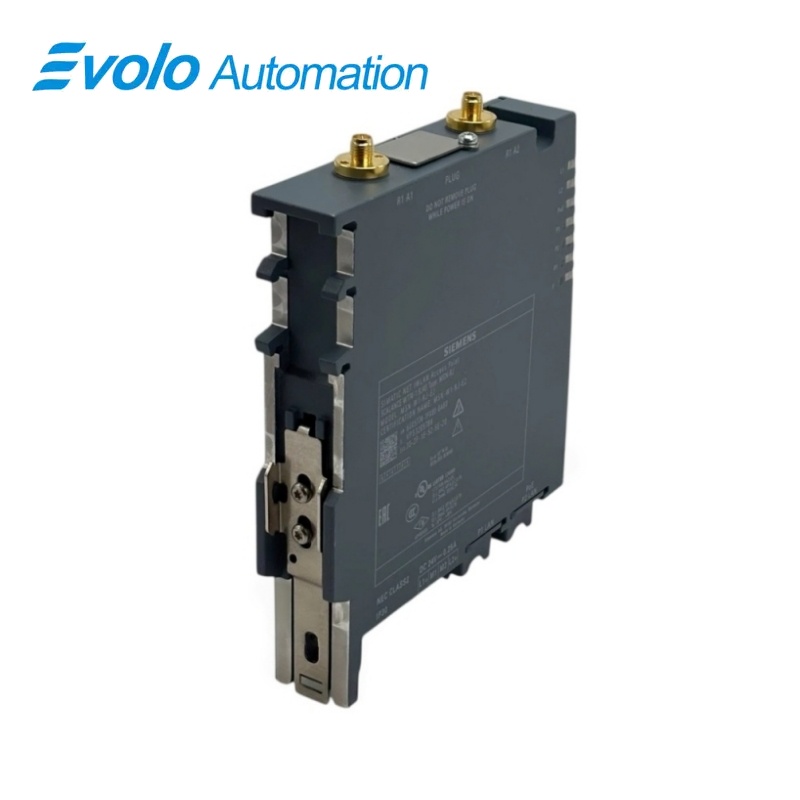

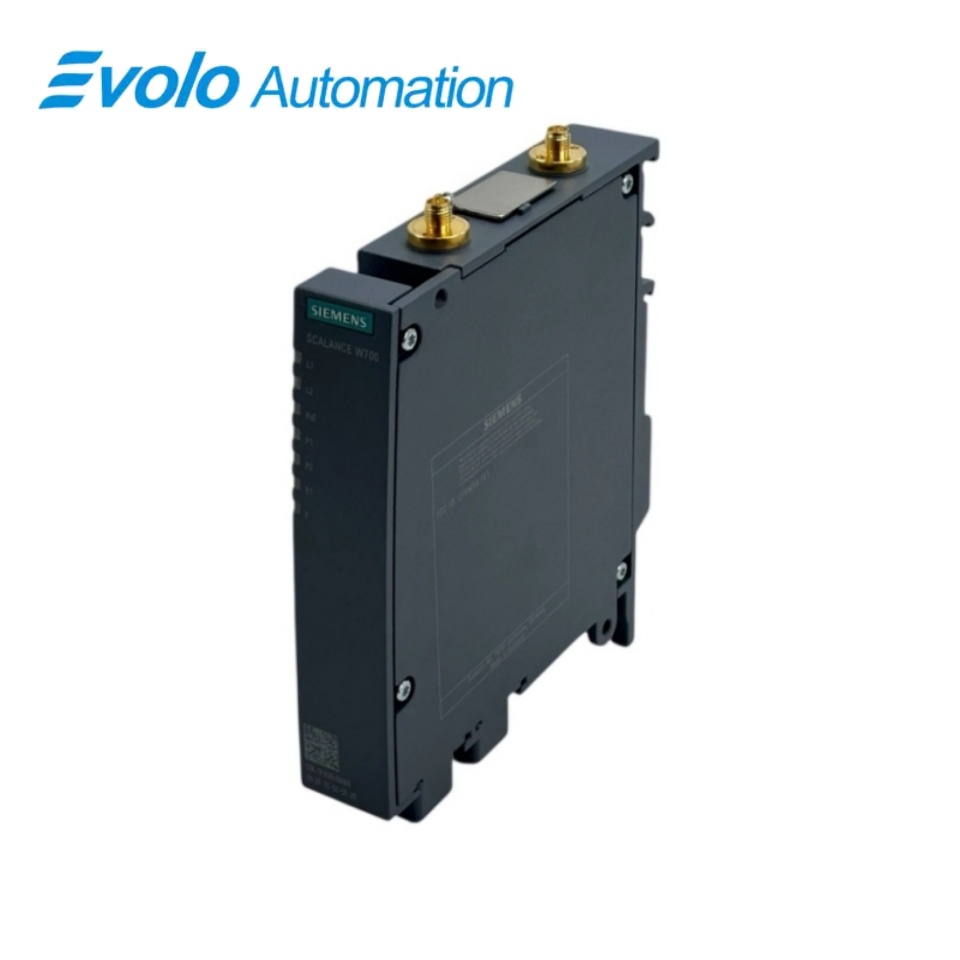

Siemens SCALANCE W774-1 RJ45 IWLAN Access Point 6GK5774-1FX00-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC Industrial Automation
6GK5774-1FX00-0AB0 SCALANCE W774-1 RJ45 IWLAN Access Point
The Siemens SCALANCE W774-1 RJ45 is an IWLAN access point with one radio, two R-SMA antenna ports, two RJ45 Ethernet ports, redundant 24 V DC supply and PoE support.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5774-1FX00-0AB0 |
| Product Type | Industrial WLAN access point |
| Core Function | Provides IEEE 802.11a/b/g/h/n wireless access with two Industrial Ethernet ports |
| Application or Compatible Series | US-approved industrial WLAN installations requiring 2.4/5 GHz access-point operation and wired Ethernet integration |
Exact Identification
Match 6GK5774-1FX00-0AB0 character by character and confirm the complete SCALANCE W774-1 RJ45 IWLAN Access Point designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The Siemens SCALANCE W774-1 RJ45 is an IWLAN access point with one radio, two R-SMA antenna ports, two RJ45 Ethernet ports, redundant 24 V DC supply and PoE support.
One installed radio supports IEEE 802.11a/b/g/h/n operation at 2.4 and 5 GHz. Two RJ45 Ethernet ports and the integrated two-port switch support local Industrial Ethernet connection. The device accepts redundant 24 V DC supply or 48 V Power over Ethernet.
Key Functions
Dual-Band IWLAN Radio
One installed radio supports IEEE 802.11a/b/g/h/n operation at 2.4 and 5 GHz.
Wired Network Integration
Two RJ45 Ethernet ports and the integrated two-port switch support local Industrial Ethernet connection.
Flexible Powering
The device accepts redundant 24 V DC supply or 48 V Power over Ethernet.
Official Specifications
| Wireless Standard | IEEE 802.11a/b/g/h/n |
|---|---|
| Wireless Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum WLAN Data Rate | 300 Mbit/s |
| Industrial Ethernet Data Rate | 10 or 100 Mbit/s |
| Installed Radio Cards | 1 |
| MIMO Configuration | 2x2 |
| Spatial Streams | 2 |
| External Antenna Connections | 2 R-SMA sockets |
| Network Ports | 2 RJ45 |
| Integrated Ethernet Switch | 2-port |
| DC Supply | 24 V DC, redundant |
| Power-over-Ethernet Supply | 48 V |
| Typical Current at 24 V DC | 0.25 A |
| Typical Current with PoE | 0.125 A |
| Typical Power Loss | 6 W |
| Removable Storage Support | C-PLUG and KEY-PLUG |
| Housing Protection | IP30 |
| Operating Temperature | -20 to 60 °C |
Frequently Asked Questions
Which wireless bands can 6GK5774-1FX00-0AB0 use?
The access point operates in the 2.4 GHz and 5 GHz bands under the supported IEEE 802.11 standards.
How many antenna connections does 6GK5774-1FX00-0AB0 provide?
The unit has two R-SMA sockets for external antennas.
Can 6GK5774-1FX00-0AB0 be powered by PoE?
Yes; it accepts 48 V Power over Ethernet as an alternative to the redundant 24 V DC supply.
How many Ethernet ports are on 6GK5774-1FX00-0AB0?
The device provides two RJ45 Industrial Ethernet ports through its integrated two-port switch.
What removable storage can be used with 6GK5774-1FX00-0AB0?
The access point supports C-PLUG and KEY-PLUG storage media.
What should be backed up before replacing 6GK5774-1FX00-0AB0?
Save the WLAN configuration, security settings, IP parameters, antenna arrangement and plug data.
What should be checked after installing 6GK5774-1FX00-0AB0?
Confirm power input, antenna connections, Ethernet links, wireless association and network reachability.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the appropriate country-approved article number.
- Match antenna type, cable routing and radio configuration to the engineered WLAN.
- Restore the saved network and security configuration before commissioning.
