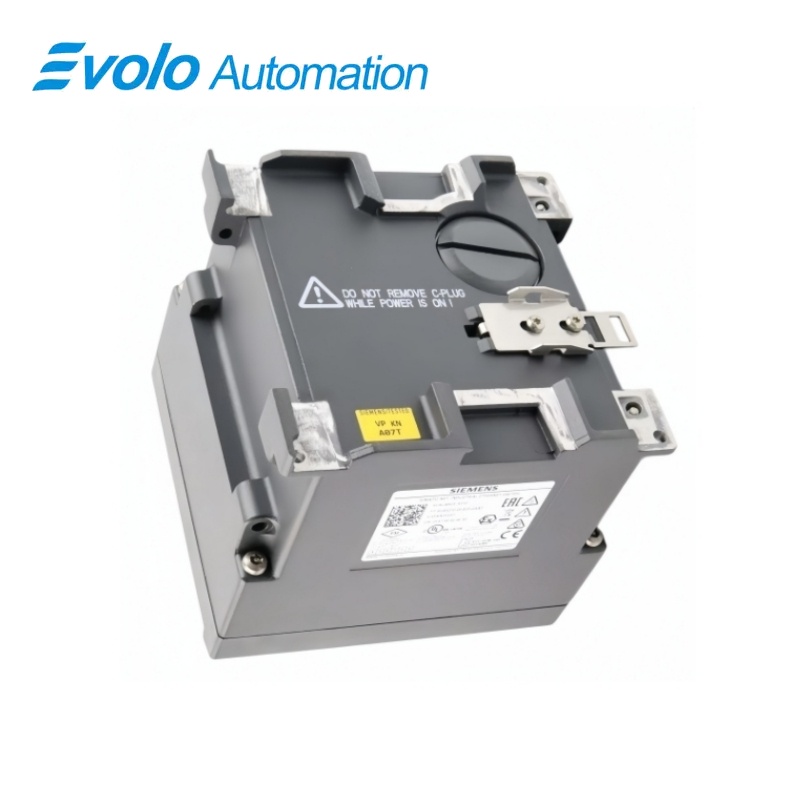

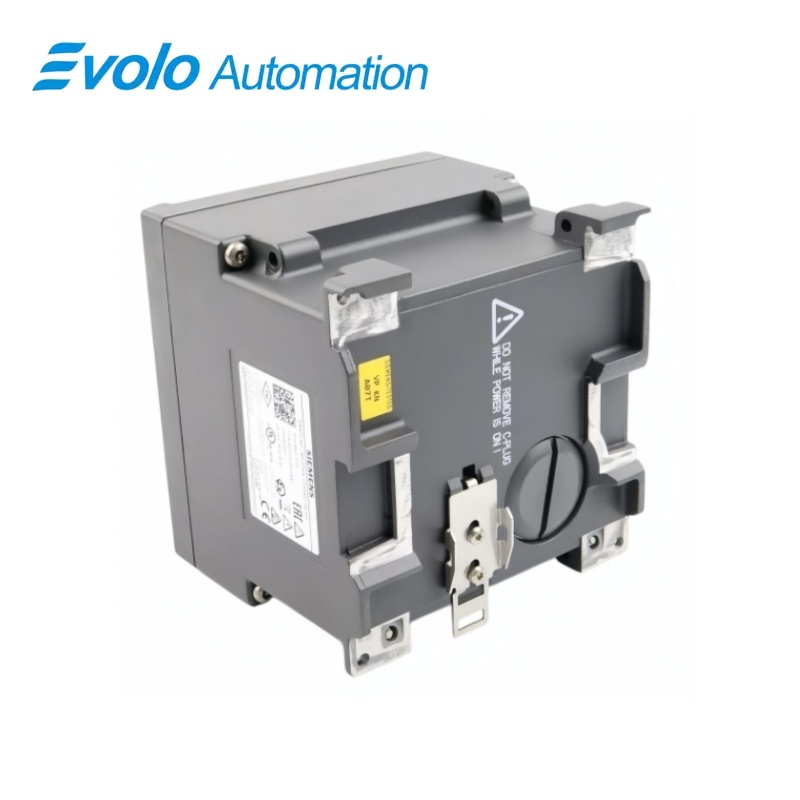

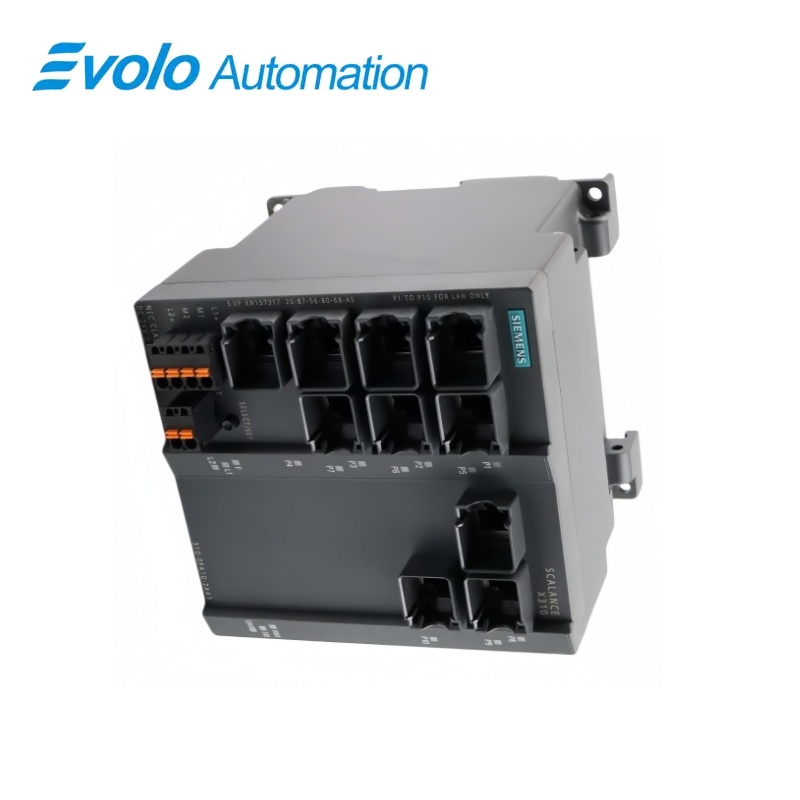

Siemens SCALANCE X310 Managed Plus Industrial Ethernet Switch 6GK5310-0FA10-2AA3
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SCALANCE X-300
6GK5310-0FA10-2AA3 SCALANCE X310 Managed Plus Industrial Ethernet Switch
The SCALANCE X310 is a Managed Plus Industrial Ethernet switch with three Gigabit-capable RJ45 ports, seven 10/100 Mbit/s RJ45 ports, PROFINET IO device functionality and integrated redundancy management.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5310-0FA10-2AA3 |
| Product Type | Managed Plus Industrial Ethernet switch |
| Core Function | Connects ten copper Ethernet segments with PROFINET device diagnostics and integrated redundancy management |
| Application or Compatible Series | Industrial networks requiring mixed Gigabit and Fast Ethernet RJ45 connectivity |
Exact Identification
Match 6GK5310-0FA10-2AA3 character by character and confirm the complete SCALANCE X310 Managed Plus Industrial Ethernet Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE X310 is a Managed Plus Industrial Ethernet switch with three Gigabit-capable RJ45 ports, seven 10/100 Mbit/s RJ45 ports, PROFINET IO device functionality and integrated redundancy management.
Three ports support 10/100/1000 Mbit/s and seven additional ports support 10/100 Mbit/s. The switch supports configured ring redundancy together with RSTP and VLAN functions. The supplied C-PLUG can preserve the device configuration for controlled exchange.
Key Functions
Mixed-Speed Copper Switching
Three ports support 10/100/1000 Mbit/s and seven additional ports support 10/100 Mbit/s.
Integrated Redundancy Manager
The switch supports configured ring redundancy together with RSTP and VLAN functions.
Service Configuration Memory
The supplied C-PLUG can preserve the device configuration for controlled exchange.
Official Specifications
| Gigabit-Capable RJ45 Ports | 3 x 10/100/1000 Mbit/s |
|---|---|
| Fast Ethernet RJ45 Ports | 7 x 10/100 Mbit/s |
| Port Diagnostics | LED indication |
| Fault Signaling | Signaling contact |
| Local Controls | Select and set pushbuttons |
| PROFINET IO Device Function | Supported |
| Network Management | Supported |
| Integrated Redundancy Manager | Provided |
| Office Network Functions | RSTP, VLAN and IGMP |
| Configuration Memory | C-PLUG supplied |
| Net Weight | 1.451 kg |
| Packaging Dimensions | 305 x 483 x 44 mm |
Frequently Asked Questions
Which ports on 6GK5310-0FA10-2AA3 support Gigabit Ethernet?
Three RJ45 ports support 10, 100 or 1000 Mbit/s operation.
How many Fast Ethernet device ports does 6GK5310-0FA10-2AA3 provide?
Seven additional RJ45 ports support 10 or 100 Mbit/s.
Can 6GK5310-0FA10-2AA3 manage a redundant ring?
Yes; configure the integrated redundancy manager for the approved network topology.
Should I transfer the C-PLUG when replacing 6GK5310-0FA10-2AA3?
Transfer only the validated C-PLUG after confirming firmware and configuration compatibility.
How does 6GK5310-0FA10-2AA3 signal a network fault?
LED diagnostics and the signaling contact report the configured device and link conditions.
What should I back up before exchanging 6GK5310-0FA10-2AA3?
Save the IP settings, PROFINET name, VLANs, redundancy parameters, management configuration and port assignments.
What commissioning checks are needed for 6GK5310-0FA10-2AA3?
Verify every port, the signaling contact, PROFINET diagnostics, VLAN behavior and redundancy switchover.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the installed firmware and C-PLUG configuration before exchange.
- Keep the three Gigabit-capable ports and seven Fast Ethernet ports mapped correctly.
- Validate the complete redundant ring and network-management configuration.
