Siemens SCALANCE X308-2LD Managed Plus Industrial Ethernet Switch 6GK5308-2FM00-2AA3
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SCALANCE X-300

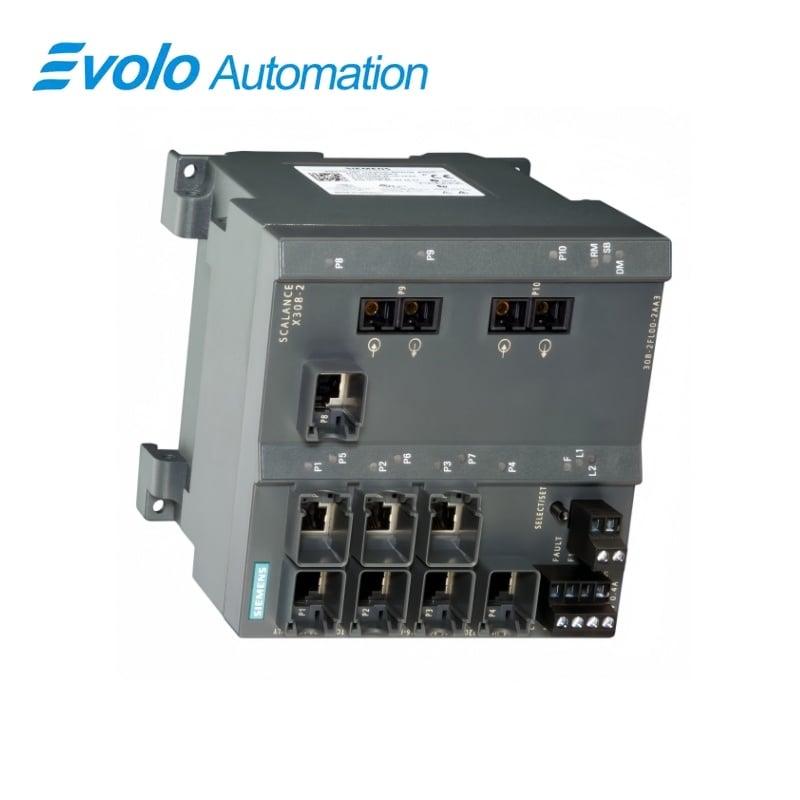

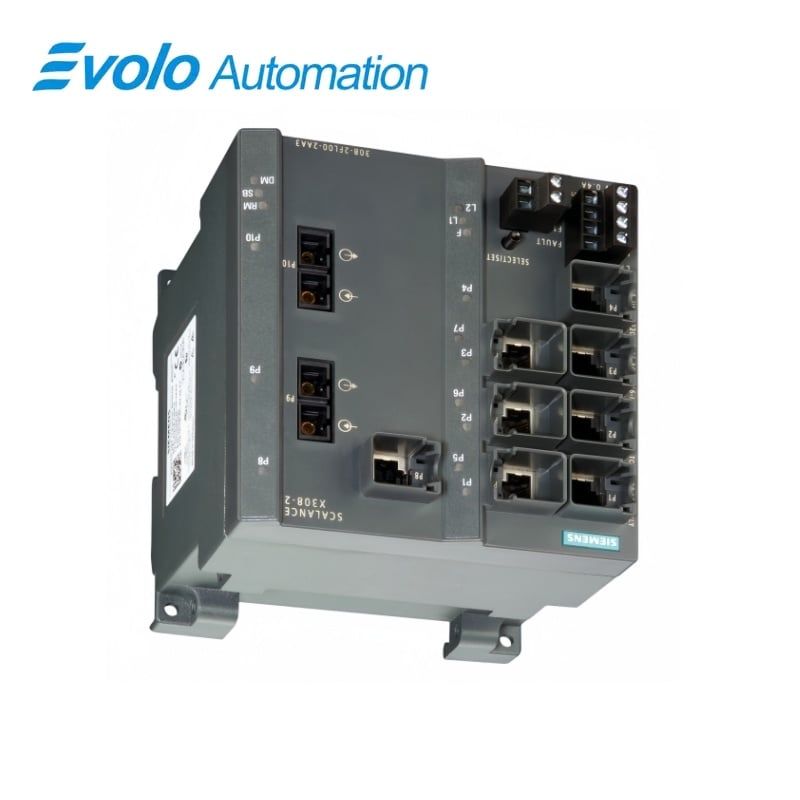

6GK5308-2FM00-2AA3 SCALANCE X308-2LD Managed Plus Industrial Ethernet Switch
The SCALANCE X308-2LD provides two 1000 Mbit/s single-mode SC fiber ports, one Gigabit-capable RJ45 port and seven 10/100 Mbit/s RJ45 ports with managed redundancy and PROFINET functions.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5308-2FM00-2AA3 |
| Product Type | Managed Plus Industrial Ethernet switch with long-distance fiber uplinks |
| Core Function | Switches copper industrial Ethernet devices through two 1000 Mbit/s single-mode optical uplinks |
| Application or Compatible Series | Industrial backbone networks requiring SC single-mode Gigabit fiber connections |
Exact Identification
Match 6GK5308-2FM00-2AA3 character by character and confirm the complete SCALANCE X308-2LD Managed Plus Industrial Ethernet Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE X308-2LD provides two 1000 Mbit/s single-mode SC fiber ports, one Gigabit-capable RJ45 port and seven 10/100 Mbit/s RJ45 ports with managed redundancy and PROFINET functions.
Two single-mode SC optical ports provide the documented 1000 Mbit/s uplink connections. One RJ45 port supports Gigabit Ethernet and seven additional ports support 10/100 Mbit/s devices. Network management, PROFINET device operation, integrated redundancy management and LED diagnostics support industrial service.
Key Functions
Long-Distance Fiber Backbone
Two single-mode SC optical ports provide the documented 1000 Mbit/s uplink connections.
Mixed Copper Access Ports
One RJ45 port supports Gigabit Ethernet and seven additional ports support 10/100 Mbit/s devices.
Managed Redundancy and Diagnostics
Network management, PROFINET device operation, integrated redundancy management and LED diagnostics support industrial service.
Official Specifications
| Single-Mode Optical Ports | 2 x SC |
|---|---|
| Optical Port Data Rate | 1000 Mbit/s |
| Gigabit-Capable Copper Ports | 1 x 10/100/1000 Mbit/s RJ45 |
| Fast Ethernet Copper Ports | 7 x 10/100 Mbit/s RJ45 |
| Port Diagnostics | LED indication |
| Fault Signaling | Signaling contact |
| Local Controls | Select and set pushbuttons |
| PROFINET IO Device Function | Supported |
| Integrated Redundancy Manager | Provided |
| Office Network Functions | RSTP, VLAN and IGMP |
| Configuration Memory | C-PLUG supplied |
| Net Weight | 1.67 kg |
| Packaging Dimensions | 26.6 x 24.8 x 18.8 cm |
Frequently Asked Questions
Which fiber type should I use with 6GK5308-2FM00-2AA3?
Use the specified single-mode fiber and SC connectors for both Gigabit optical ports.
How many copper device ports are available on 6GK5308-2FM00-2AA3?
One RJ45 port supports Gigabit Ethernet and seven RJ45 ports support 10 or 100 Mbit/s.
Can 6GK5308-2FM00-2AA3 operate as a PROFINET IO device?
Yes; assign the configured device name and parameters in the automation project.
What should I do with the C-PLUG when exchanging 6GK5308-2FM00-2AA3?
Retain the validated C-PLUG and confirm firmware compatibility before moving it to the replacement.
How should I document the optical links of 6GK5308-2FM00-2AA3?
Record the transmit and receive fibers, remote ports, connector condition and optical link budget.
Which settings should be backed up from 6GK5308-2FM00-2AA3?
Save IP addressing, the PROFINET name, VLANs, redundancy, management settings and complete port configuration.
What should I test after installing 6GK5308-2FM00-2AA3?
Verify both optical links, every RJ45 port, the signaling contact, PROFINET diagnostics and redundancy behavior.
Compatibility & Ordering Notes
Compatibility Checklist
- Use single-mode fiber and SC connectors that meet the Siemens optical specification.
- Preserve the C-PLUG and complete managed-switch configuration.
- Verify the documented successor separately before replacing the device with a different article number.
