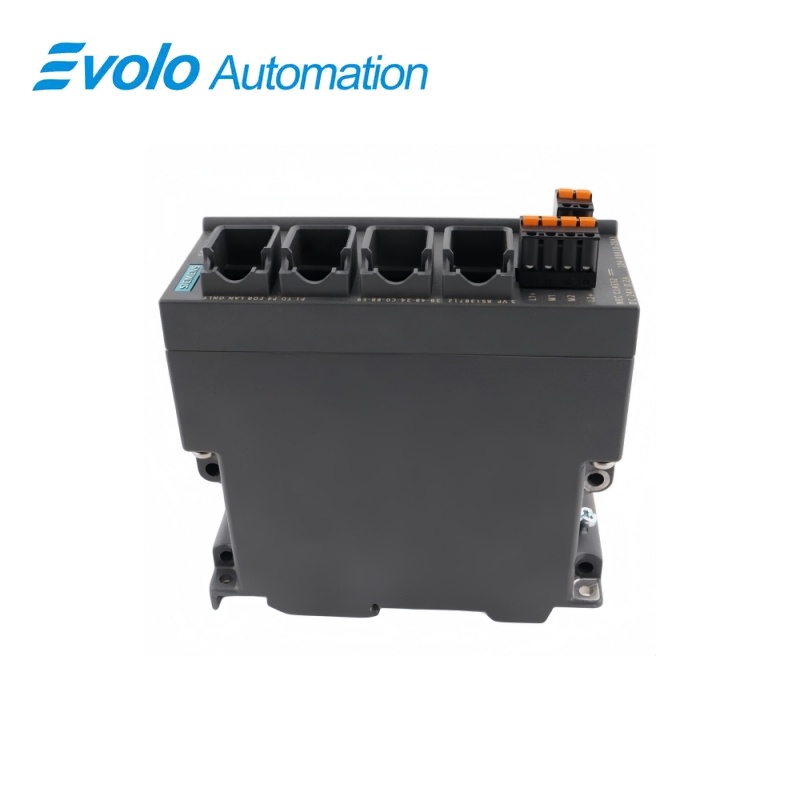

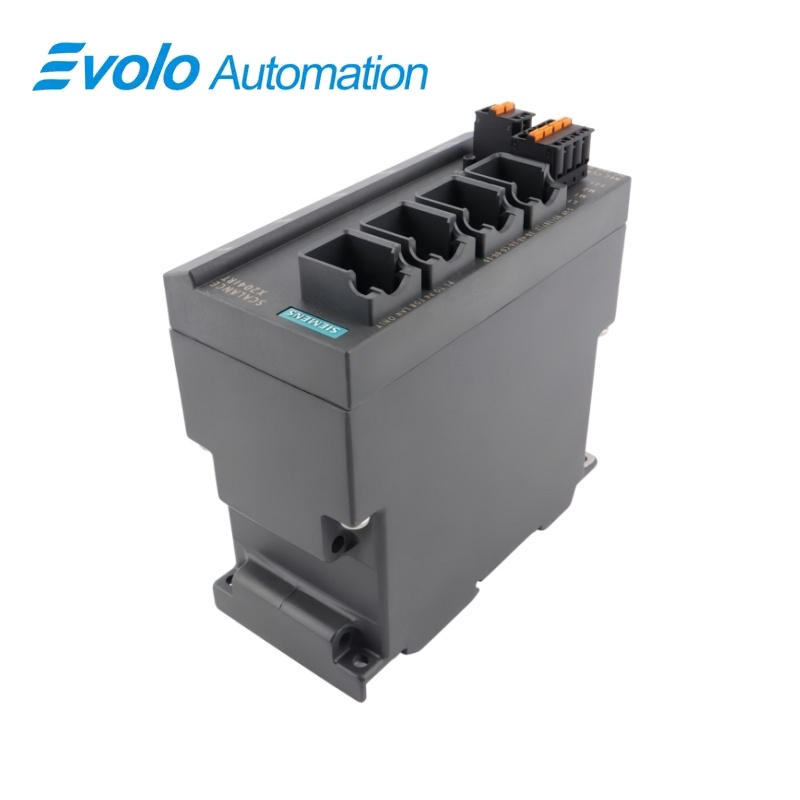

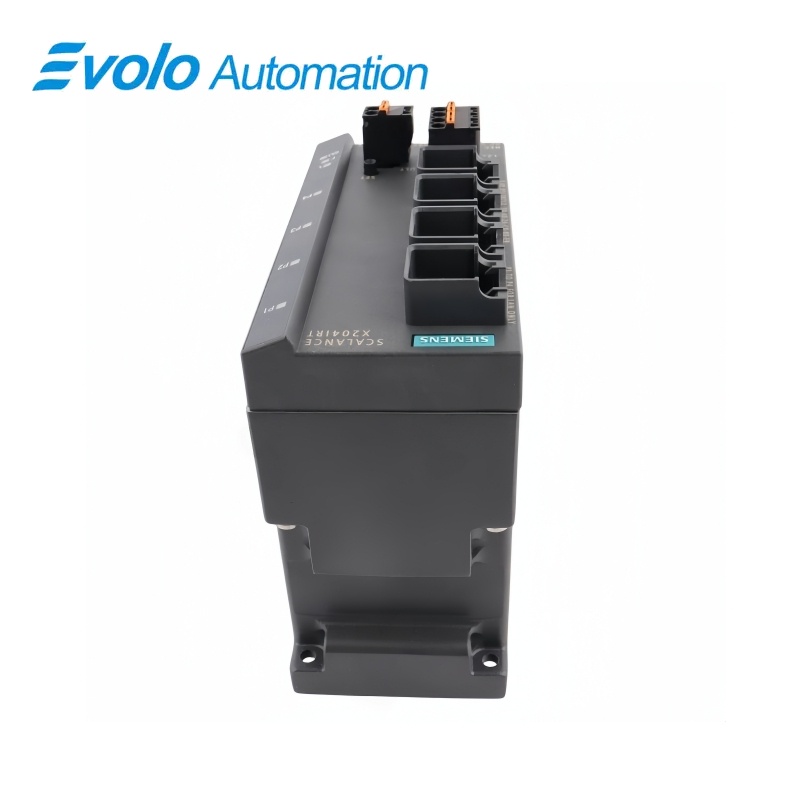

Siemens SCALANCE X204 IRT Managed Switch 6GK5204-0BA10-2BA3
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SCALANCE X-200IRT
6GK5204-0BA10-2BA3 SCALANCE X204 IRT Managed Switch
The SCALANCE X204 IRT is a managed Industrial Ethernet switch with four RJ45 ports, PROFINET IO device functionality and integrated redundancy management.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5204-0BA10-2BA3 |
| Product Type | Four-port managed PROFINET IRT switch |
| Core Function | Switches deterministic PROFINET IRT traffic and provides diagnostics and redundancy management |
| Application or Compatible Series | PROFINET IRT machine networks using four 10/100 Mbit/s copper ports |
Exact Identification
Match 6GK5204-0BA10-2BA3 character by character and confirm the complete SCALANCE X204 IRT Managed Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE X204 IRT is a managed Industrial Ethernet switch with four RJ45 ports, PROFINET IO device functionality and integrated redundancy management.
Four RJ45 interfaces connect Industrial Ethernet devices. The switch supports deterministic real-time communication. Network management and the integrated redundancy manager support resilient topologies.
Key Functions
Four Copper Ports
Four RJ45 interfaces connect Industrial Ethernet devices.
PROFINET IRT
The switch supports deterministic real-time communication.
Managed Redundancy
Network management and the integrated redundancy manager support resilient topologies.
Official Specifications
| Copper Interfaces | 4 × RJ45 |
|---|---|
| Ethernet Data Rate | 10/100 Mbit/s, half or full duplex |
| Rated Supply Voltage | 24 V DC with redundant supply terminals |
| Permissible Supply Range | 19.2 to 31.2 V DC |
| Current Consumption | 140 mA |
| Power Loss | 3.4 W |
| Signaling Contact | 24 V DC, 0.1 A maximum; less than 8 Ω between F1 and F2 |
| Input Protection | 2.5 A non-replaceable fuse |
| Switching Method | Store-and-forward or cut-through |
| Switching Latency | Less than 5 µs |
| MAC Address Table | Up to 4,096 learned addresses |
| Address Aging Time | 30 s, configurable |
| Parallel Redundancy Protocol | Available from hardware release 1 |
| Operating Temperature | -40 to +70 °C |
| Storage and Transport Temperature | -40 to +85 °C |
| Relative Humidity | Below 95%, non-condensing |
| Degree of Protection | IP30 |
| Mounting | 35 mm DIN rail, S7-300 standard rail or wall |
| Dimensions (W × H × D) | 60 × 125 × 124 mm |
| Net Weight | 780 g |
Frequently Asked Questions
How many Ethernet ports are provided by IRT switch 6GK5204-0BA10-2BA3?
Four 10/100 Mbit/s RJ45 ports are available.
Which real-time network feature is supported by IRT switch 6GK5204-0BA10-2BA3?
The switch supports PROFINET IRT traffic.
Which installed configuration should be recorded before replacing IRT switch 6GK5204-0BA10-2BA3?
Record the configured addresses, wiring assignments, parameters, firmware and neighboring hardware before removal.
What identification must match when selecting IRT switch 6GK5204-0BA10-2BA3?
Match the complete article number, hardware revision and every option used by the installed system.
How should technicians handle IRT switch 6GK5204-0BA10-2BA3?
Isolate the affected equipment and use grounded electrostatic-discharge precautions throughout the exchange.
Which checks are required after installing IRT switch 6GK5204-0BA10-2BA3?
Verify power, diagnostics, communication, field signals and the complete approved machine or plant function.
When should a visually similar unit replace IRT switch 6GK5204-0BA10-2BA3?
Use a visually similar unit only after engineering confirms identical electrical, mechanical and software compatibility.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the matching PROFINET hardware configuration.
- Preserve the redundancy and management settings.
- Reconnect all four ports to their recorded devices.
