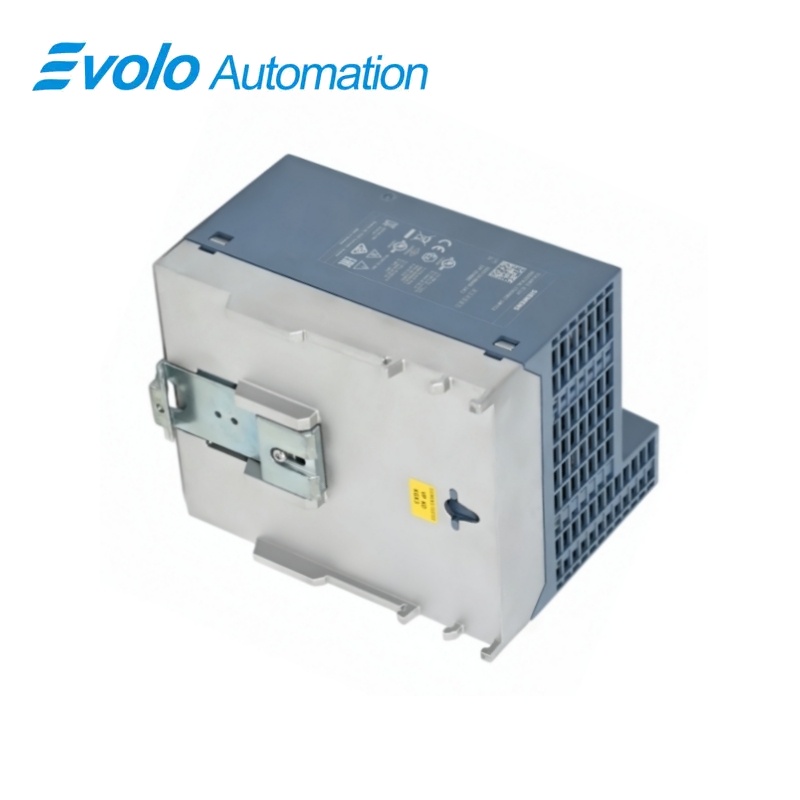

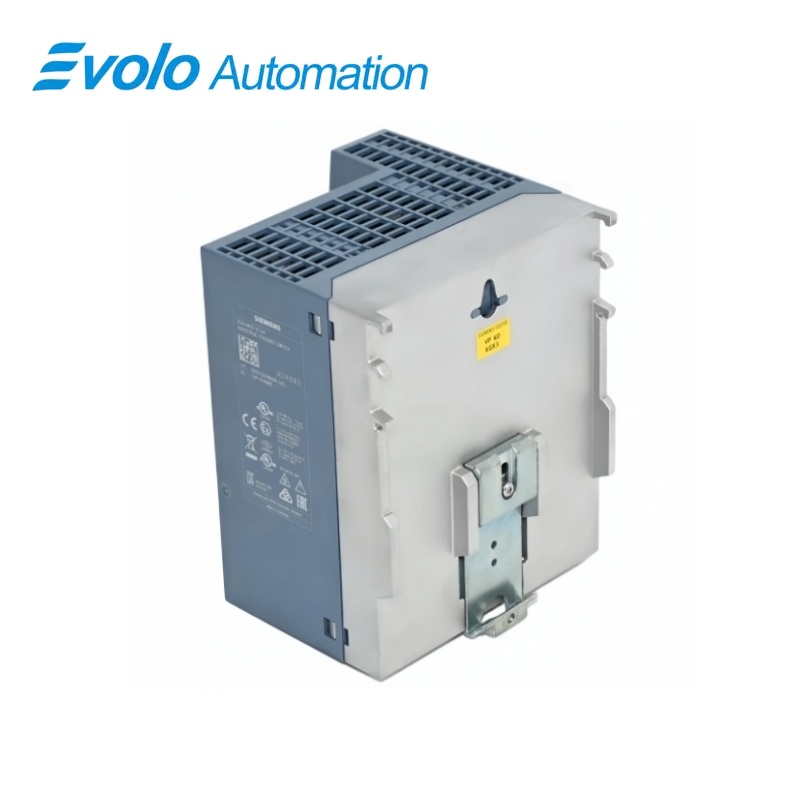

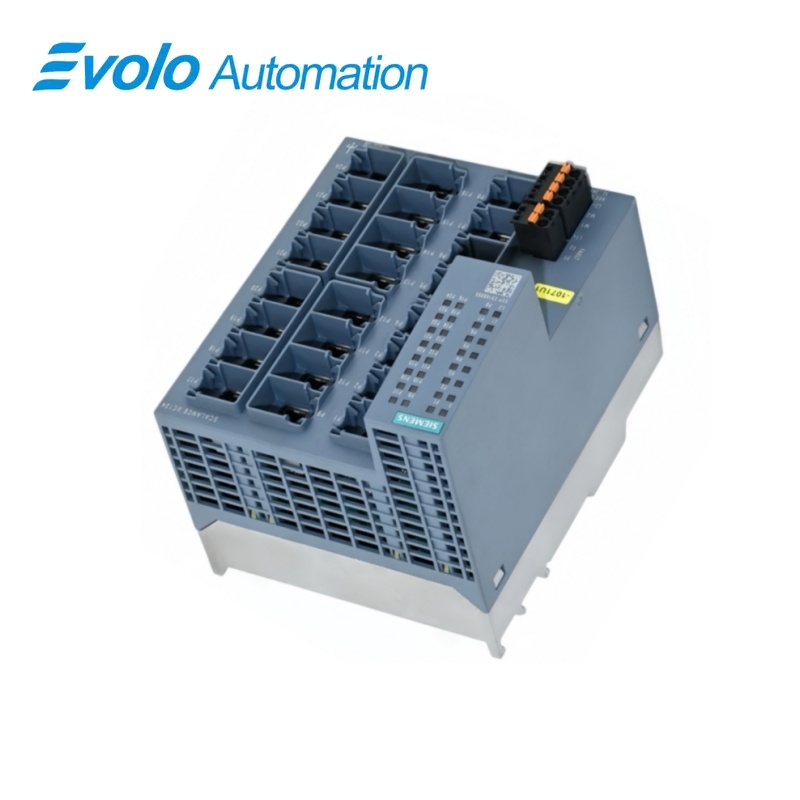

Siemens SCALANCE XC124 Unmanaged Industrial Ethernet Switch 6GK5124-0BA00-2AC2
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SCALANCE XC-100
6GK5124-0BA00-2AC2 SCALANCE XC124 Unmanaged Industrial Ethernet Switch
The SCALANCE XC124 is an unmanaged Industrial Ethernet switch with twenty-four 10/100 Mbit/s RJ45 ports, LED diagnostics, an error-signaling contact with set pushbutton and redundant power input.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5124-0BA00-2AC2 |
| Product Type | Unmanaged Industrial Ethernet switch |
| Core Function | Connects up to 24 Fast Ethernet copper devices with redundant power and signaling-contact diagnostics |
| Application or Compatible Series | Machine and plant networks requiring a high-density unmanaged 10/100 Mbit/s copper switch |
Exact Identification
Match 6GK5124-0BA00-2AC2 character by character and confirm the complete SCALANCE XC124 Unmanaged Industrial Ethernet Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE XC124 is an unmanaged Industrial Ethernet switch with twenty-four 10/100 Mbit/s RJ45 ports, LED diagnostics, an error-signaling contact with set pushbutton and redundant power input.
Twenty-four Fast Ethernet RJ45 ports connect a large group of copper network devices. Unmanaged switching requires no network configuration for normal forwarding. LEDs and an error-signaling contact provide local status and alarm indication.
Key Functions
High Port Density
Twenty-four Fast Ethernet RJ45 ports connect a large group of copper network devices.
Simple Commissioning
Unmanaged switching requires no network configuration for normal forwarding.
Industrial Diagnostics
LEDs and an error-signaling contact provide local status and alarm indication.
Official Specifications
| RJ45 Ports | 24 |
|---|---|
| Transfer Rate | 10/100 Mbit/s |
| Ethernet Medium | Copper twisted pair |
| Switch Management | Unmanaged |
| LED Diagnostics | Supported |
| Error-Signaling Contact | Supported |
| Set Pushbutton | Included |
| Redundant Power Input | Supported |
| Quantity Unit | 1 piece |
| Net Weight | 1.032 kg |
| Dimensions | 60 x 124 x 125 mm |
| Commodity Code | 85176200 |
| RoHS Substance-Restriction Compliance | Given |
| WEEE Take-Back Obligation | Yes |
Frequently Asked Questions
How many copper Ethernet devices can connect to 6GK5124-0BA00-2AC2?
The switch provides twenty-four 10/100 Mbit/s RJ45 ports.
Does 6GK5124-0BA00-2AC2 require an IP address for basic switching?
No; normal forwarding is unmanaged and does not require device configuration.
Can 6GK5124-0BA00-2AC2 use redundant power feeds?
Yes; wire the two approved supply inputs if the plant design requires supply redundancy.
How does 6GK5124-0BA00-2AC2 indicate a network or supply fault?
Use the front LEDs and the error-signaling contact for local and external indication.
Can Gigabit-only devices be connected to 6GK5124-0BA00-2AC2?
Use devices that can negotiate or operate at 10 or 100 Mbit/s on copper Ethernet.
What should be checked before installing 6GK5124-0BA00-2AC2?
Confirm the DIN-rail space, supply wiring, grounding, RJ45 cable category and alarm-contact circuit.
What commissioning test is appropriate for 6GK5124-0BA00-2AC2?
Verify every port link, traffic path, redundant power feed and signaling-contact response.
Compatibility & Ordering Notes
Compatibility Checklist
- Use endpoints compatible with 10/100 Mbit/s RJ45 Ethernet.
- Match the redundant supply and signaling-contact wiring.
- Allow the documented mounting space and ventilation clearances.
