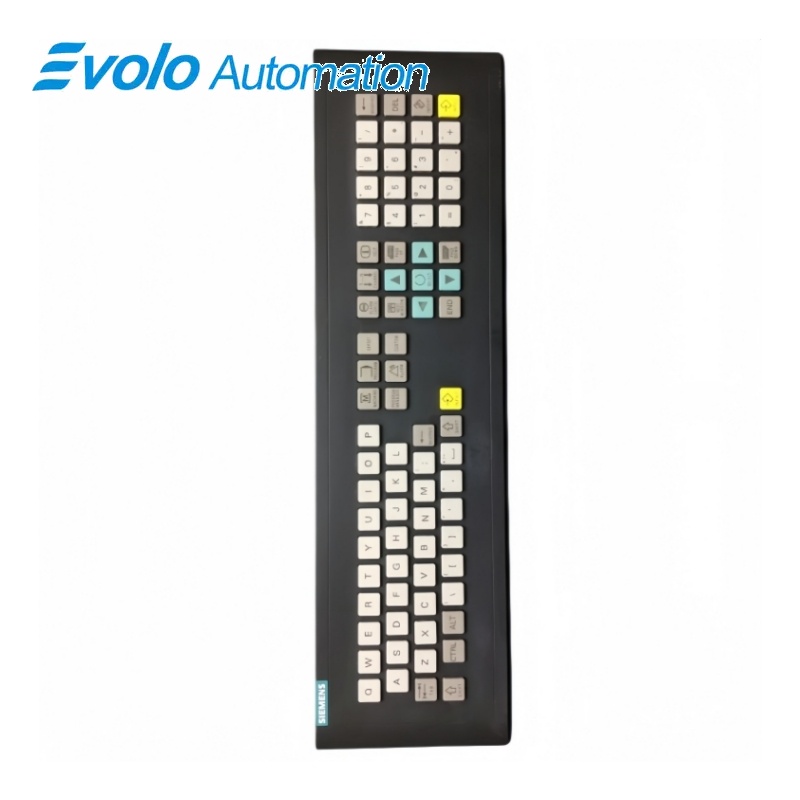

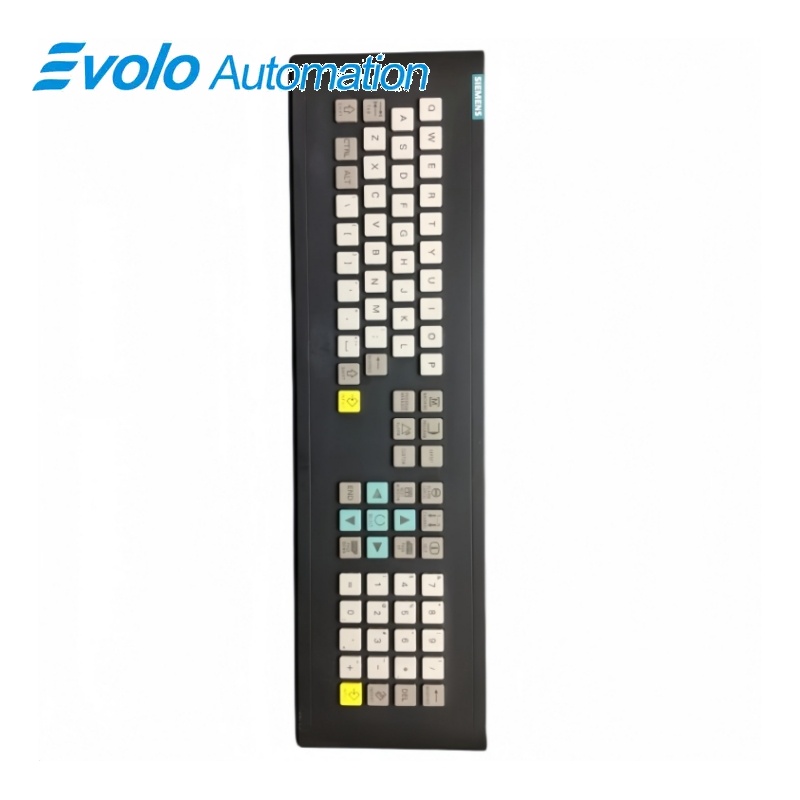

Siemens SINUMERIK KB 483C CNC Full Keyboard 6FC5203-0AF20-0AA1
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SINUMERIK 840D sl
6FC5203-0AF20-0AA1 SINUMERIK KB 483C CNC Full Keyboard
The SINUMERIK KB 483C is a compact CNC full keyboard with a US layout, short-stroke keys and USB connection for integration into compatible 840D sl operator stations.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6FC5203-0AF20-0AA1 |
| Product Type | Industrial CNC full keyboard |
| Core Function | Provides alphanumeric, cursor and CNC operating keys for operator-panel integration |
| Application or Compatible Series | SINUMERIK 840D sl operator stations requiring the KB 483C US keyboard layout |
Exact Identification
Match 6FC5203-0AF20-0AA1 character by character and confirm the complete SINUMERIK KB 483C CNC Full Keyboard designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SINUMERIK KB 483C is a compact CNC full keyboard with a US layout, short-stroke keys and USB connection for integration into compatible 840D sl operator stations.
Dedicated CNC, cursor, numeric and alphanumeric key blocks support machine operation. The compact enclosure is designed for flush mounting in an operator-panel cutout. A USB device interface connects the keyboard through the approved powered USB arrangement.
Key Functions
CNC-Oriented Layout
Dedicated CNC, cursor, numeric and alphanumeric key blocks support machine operation.
Panel Integration
The compact enclosure is designed for flush mounting in an operator-panel cutout.
USB Connection
A USB device interface connects the keyboard through the approved powered USB arrangement.
Official Specifications
| Keyboard Type | KB 483C CNC full keyboard |
|---|---|
| Keyboard Layout | US QWERTY |
| Keys | 78 short-stroke mechanical keys |
| Key Groups | Alphanumeric, numeric, cursor and CNC hotkeys |
| USB Interface | USB 1.1, Type B |
| Supply Voltage | 5.25 V DC via USB |
| Typical Power Consumption | 0.4 W |
| Maximum USB Cable Length | 3 m |
| Front Protection | IP54 |
| Rear Protection | IP00 |
| Operating Temperature | 0 to +45 °C at front; 0 to +55 °C at rear |
| Storage Temperature | -25 to +55 °C |
| Dimensions | 483 × 133 × 31 mm |
| Panel Cutout | 450 × 112.5 mm |
| Weight | Approximately 1.3 kg |
Frequently Asked Questions
Which control platform is 6FC5203-0AF20-0AA1 intended to serve?
It is designed for compatible SINUMERIK 840D sl operator-station configurations.
What connector is used by 6FC5203-0AF20-0AA1?
The keyboard uses a USB Type B device connection.
Does 6FC5203-0AF20-0AA1 require a powered USB path?
Yes; provide the specified 5 V supply capability through the approved powered connection.
What panel opening is needed for 6FC5203-0AF20-0AA1?
Prepare the documented 450 × 112.5 mm cutout and verify rear clearance.
What protection is available after mounting 6FC5203-0AF20-0AA1?
The front is rated IP54 when installed correctly, while the rear remains IP00.
What should be checked before replacing 6FC5203-0AF20-0AA1?
Confirm the complete article number, US key layout, cutout, USB route and operator-panel compatibility.
What should be tested after installing 6FC5203-0AF20-0AA1?
Check every key group, CNC hotkeys, USB communication and enclosure sealing.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only with a supported SINUMERIK operator-station configuration.
- Maintain the specified cutout, rear clearance and IP54 front seal.
- Verify the powered USB connection before functional testing.
