Overview
Siemens • SIMATIC ET 200SP Open Controller

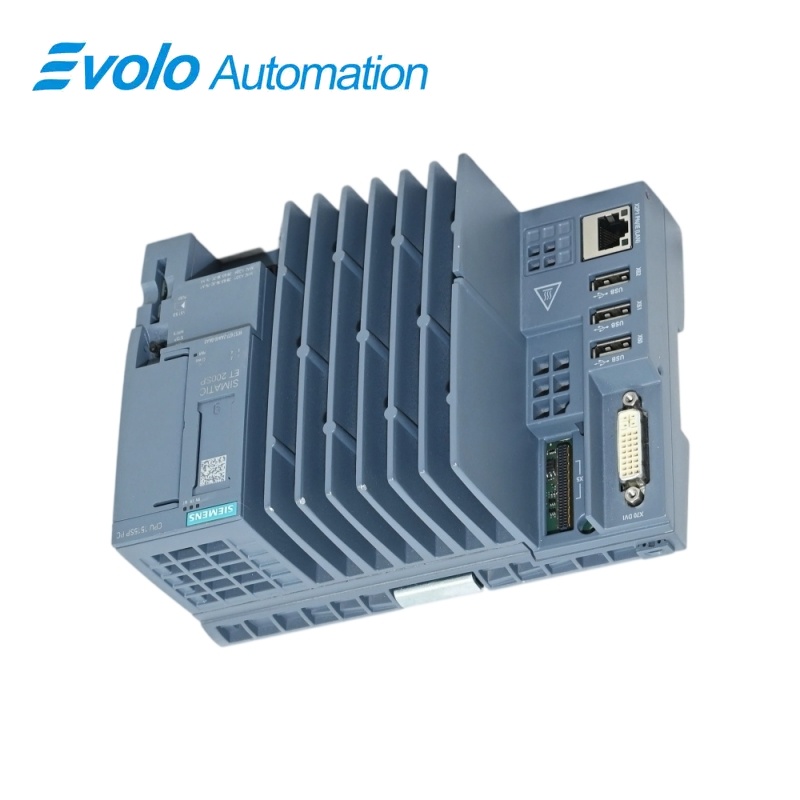

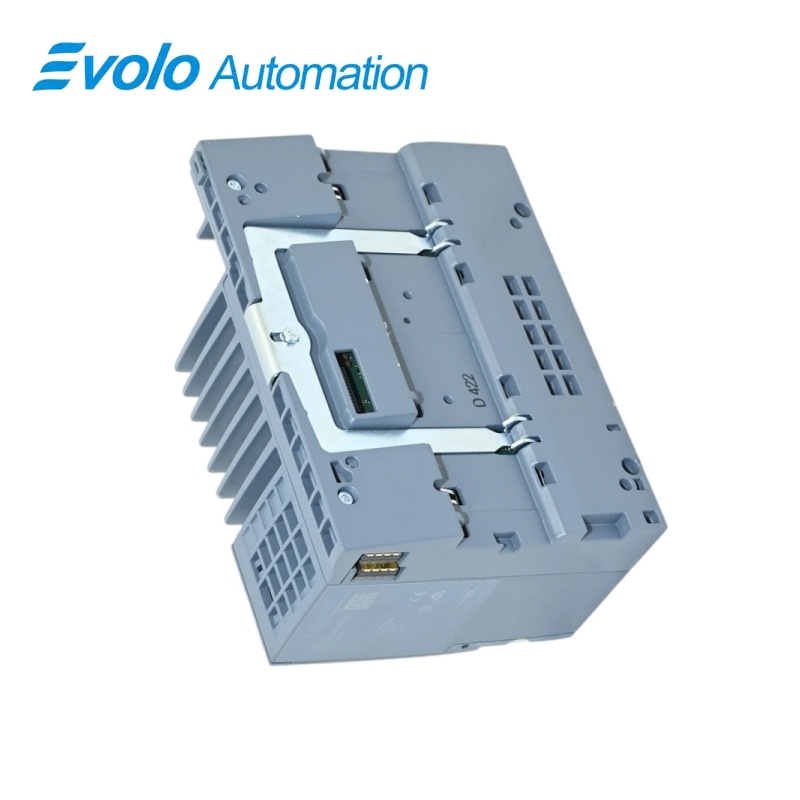

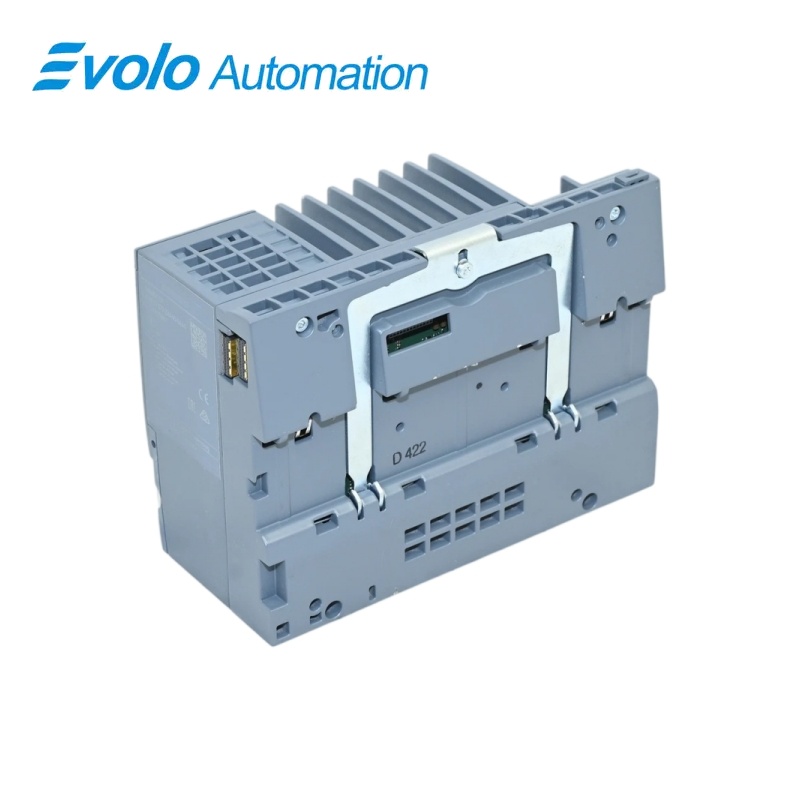

6ES7677-2AA40-0AA0 ET 200SP CPU 1515SP PC Open Controller
The CPU 1515SP PC combines a 4 GB PC platform with ET 200SP expansion, Industrial Ethernet, PROFINET, USB, removable-media and DVI-I interfaces.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7677-2AA40-0AA0 |
| Product Type | PC-based open controller |
| Core Function | Combines PC applications and software control in a compact controller |
| Application or Compatible Series | SIMATIC ET 200SP open-controller automation systems |
Exact Identification
Match 6ES7677-2AA40-0AA0 character by character and confirm the complete ET 200SP CPU 1515SP PC Open Controller designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CPU 1515SP PC combines a 4 GB PC platform with ET 200SP expansion, Industrial Ethernet, PROFINET, USB, removable-media and DVI-I interfaces.
The unit hosts PC applications and SIMATIC software-control functions in the ET 200SP form factor. Up to 64 ET 200SP modules can be installed in one row within the documented mounting width. USB, SD/MMC, CFast, Ethernet and DVI-I connections support storage, networking and local diagnostics.
Key Functions
Integrated Open Controller
The unit hosts PC applications and SIMATIC software-control functions in the ET 200SP form factor.
Direct Distributed-I/O Expansion
Up to 64 ET 200SP modules can be installed in one row within the documented mounting width.
Local Service Interfaces
USB, SD/MMC, CFast, Ethernet and DVI-I connections support storage, networking and local diagnostics.
Official Specifications
| Rated Current Consumption | 1.5 A at full processor load including ET 200SP modules and USB use |
|---|---|
| Typical No-Load Current | 0.6 A |
| Maximum Inrush Current | 4.7 A |
| Maximum Power Consumption | 36 W |
| Backplane-Bus Feed Power | 8.75 W |
| Typical Power Loss | 15 W without ET 200SP modules and USB use |
| Memory Type | DDR3-SDRAM |
| Integrated Work Memory | 4 GB |
| Included CFast Card | No |
| Maximum Modules per Rack | 64 plus CPU and server module |
| Maximum Rows | 1 |
| Clock Type | Hardware clock |
| Typical Clock Buffering | 6 weeks at 40 °C |
| Industrial Ethernet Interfaces | 2 |
| PROFINET Interfaces | 1 |
| USB Interfaces | 3 x USB 2.0 on the front |
| SD Card Slots | 1 |
| Graphics Interface | 1 x DVI-I |
Frequently Asked Questions
How many ET 200SP modules can I place beside 6ES7677-2AA40-0AA0?
The documented single-row configuration allows up to 64 modules plus the CPU and server module within the mounting-width limit.
Does 6ES7677-2AA40-0AA0 include a CFast card?
No; provide the approved storage medium and validated system image required by the installation.
Which display connection is available on 6ES7677-2AA40-0AA0?
Use the integrated DVI-I interface for the supported local graphics connection.
How many USB service ports are provided on 6ES7677-2AA40-0AA0?
Three front USB 2.0 interfaces are available subject to the documented simultaneous-current limits.
What should I back up before replacing 6ES7677-2AA40-0AA0?
Archive the PC image, controller project, licenses, network settings, removable-media contents and application data.
Can I move an SD or CFast card directly into 6ES7677-2AA40-0AA0?
Use only media and images approved for the controller hardware and verify the complete recovery procedure first.
What commissioning tests are essential for 6ES7677-2AA40-0AA0?
Check power, storage media, PC startup, software controller state, every network interface, ET 200SP I/O and the local display connection.
Compatibility & Ordering Notes
Compatibility Checklist
- Keep the ET 200SP row within the documented module count and mounting width.
- Use the exact supported operating-system image, software-controller version and licenses.
- Preserve network, removable-media and application backups before hardware exchange.
