Overview
Siemens • SIMATIC ET 200PA SMART

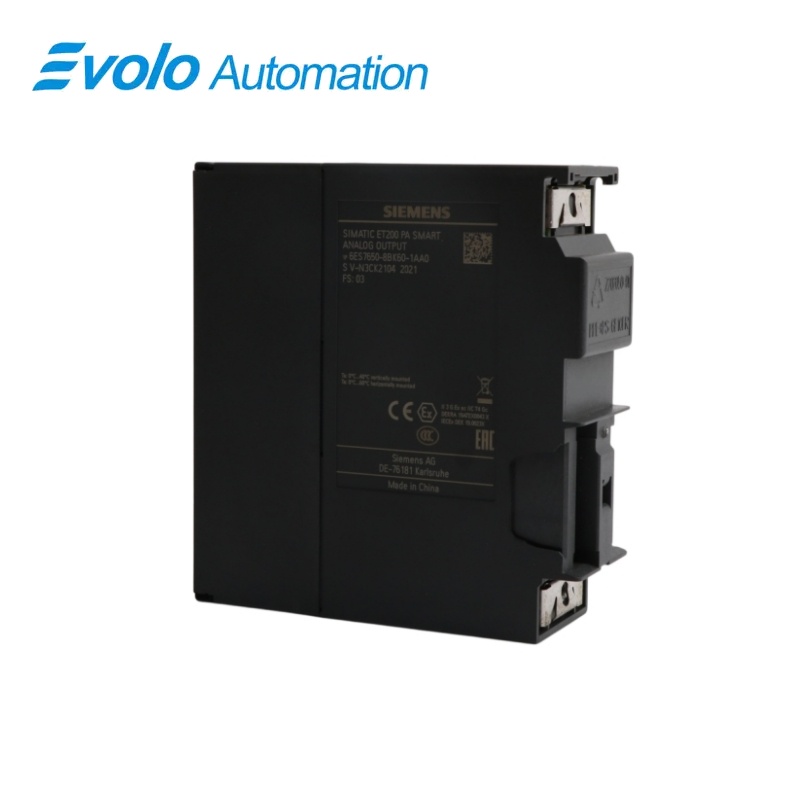

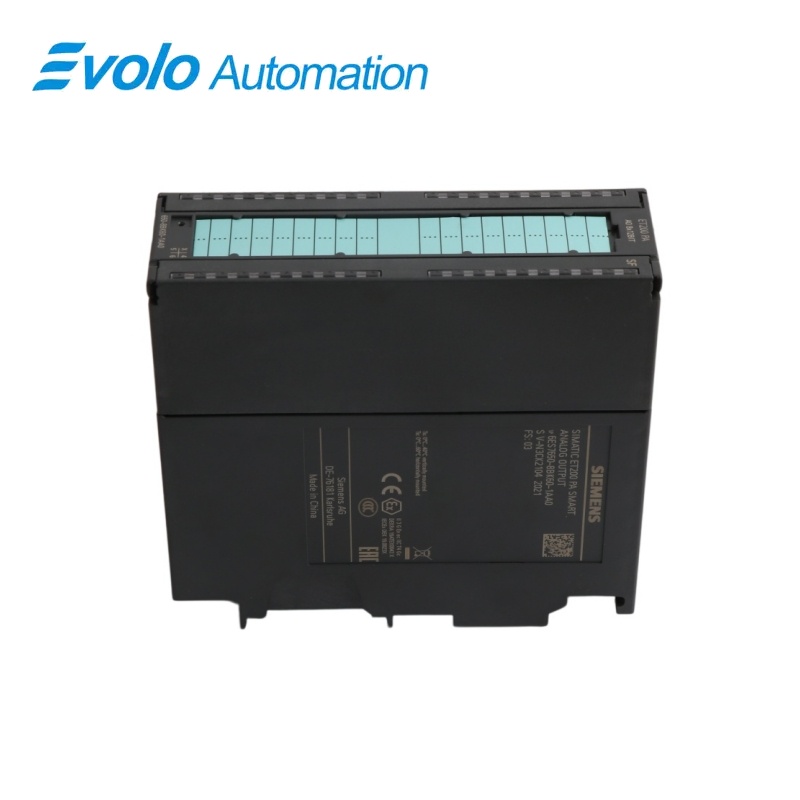

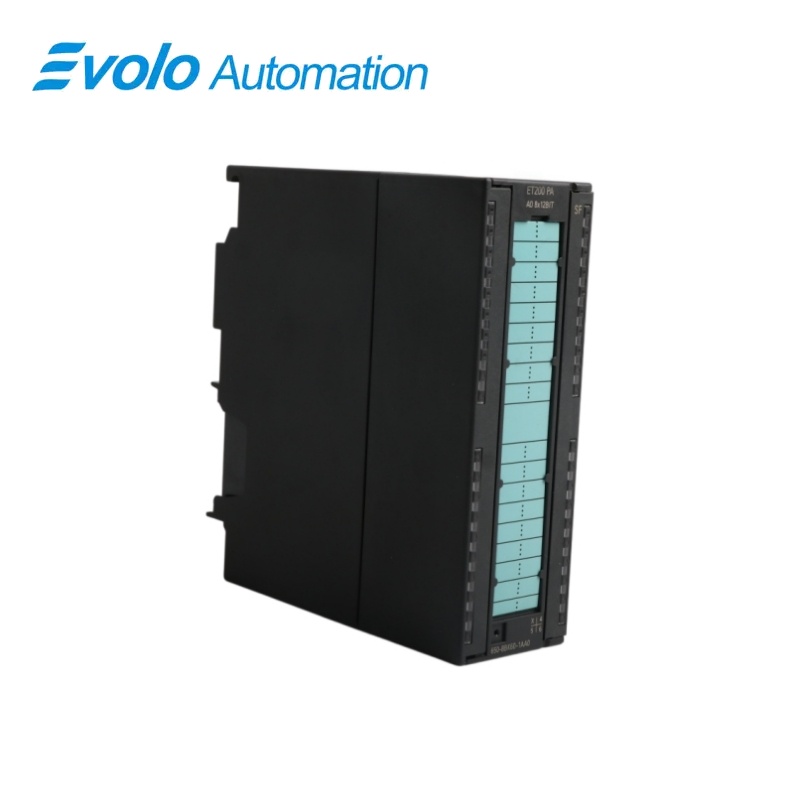

6ES7650-8BK60-1AA0 SIMATIC ET 200PA SMART AO8x12Bit Coated Module
The conformal-coated SIMATIC ET 200PA SMART AO8x12Bit module provides eight isolated analog output channels for current or voltage actuators, with 12-bit resolution, configurable diagnostics and runtime parameterization.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7650-8BK60-1AA0 |
| Product Type | Eight-channel isolated analog output module with conformal coating |
| Core Function | Generates configurable current or voltage signals for process actuators |
| Application or Compatible Series | ET 200PA SMART stations with IM 650-8 SMART and PCS 7 process control |
Exact Identification
Match 6ES7650-8BK60-1AA0 character by character and confirm the complete SIMATIC ET 200PA SMART AO8x12Bit Coated Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The conformal-coated SIMATIC ET 200PA SMART AO8x12Bit module provides eight isolated analog output channels for current or voltage actuators, with 12-bit resolution, configurable diagnostics and runtime parameterization.
Eight channels can be assigned for standard process current or voltage signals according to the installed product version. Configurable diagnostic functions, a diagnostic interrupt and the red SF indicator support channel and module troubleshooting. The ordered variant uses conformal coating for demanding process-control installation conditions.
Key Functions
Eight Analog Outputs
Eight channels can be assigned for standard process current or voltage signals according to the installed product version.
Process Diagnostics
Configurable diagnostic functions, a diagnostic interrupt and the red SF indicator support channel and module troubleshooting.
Coated Process Hardware
The ordered variant uses conformal coating for demanding process-control installation conditions.
Official Specifications
| Analog Output Channels | 8 in one group |
|---|---|
| Resolution | 12 bits |
| Current Ranges | 0 to 20 mA, 4 to 20 mA and ±20 mA |
| Voltage Ranges from Product Version 3 | 1 to 5 V, 0 to 10 V and ±10 V |
| HART Compatibility | Supported for current output |
| Configuration in RUN | Supported |
| Isochronous Mode | Not supported |
| Rated Load Voltage | 24 V DC |
| Maximum Backplane Current | 100 mA |
| Maximum Load-Supply Current | 340 mA |
| Maximum Shielded Cable Length | 200 m |
| Maximum Current-Output Load | 500 Ω |
| Minimum Voltage-Output Load | 1 kΩ |
| Voltage-Output Short-Circuit Protection | Yes; 25 mA maximum |
| Actuator Connector | 40-pin front connector |
| Isolation Test Voltage | 500 V DC |
| Dimensions | 40 x 125 x 117 mm |
| Approximate Weight | 272 g |
Frequently Asked Questions
Which station interface is required for 6ES7650-8BK60-1AA0?
Install it in a compatible ET 200PA SMART station using the IM 650-8 SMART and the approved engineering configuration.
Can each channel on 6ES7650-8BK60-1AA0 use a different output range?
Yes; assign the supported current or voltage range individually for each channel and match the connected actuator.
When can voltage output be used on 6ES7650-8BK60-1AA0?
Use the supported voltage ranges only with product version 3 or later and the correct four-wire actuator connection.
How should analog cables be routed for 6ES7650-8BK60-1AA0?
Use shielded twisted-pair wiring, keep it separated from power cables and apply the site equipotential-bonding design.
What should be backed up before replacing 6ES7650-8BK60-1AA0?
Save the hardware configuration, channel ranges, diagnostic settings, addresses, symbols and process-loop assignments.
Can 6ES7650-8BK60-1AA0 be reconfigured while the station is running?
Configuration in RUN is supported when the system design and engineering procedure permit the change.
What should be tested after commissioning 6ES7650-8BK60-1AA0?
Verify each output range, loop current or voltage, actuator response, diagnostics, SF indication and fail-safe process behavior.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the conformal-coated module variant required by the station.
- Match every channel range, actuator load and two-wire or four-wire connection.
- Restore the ET 200PA SMART addresses and validate all eight process loops.
