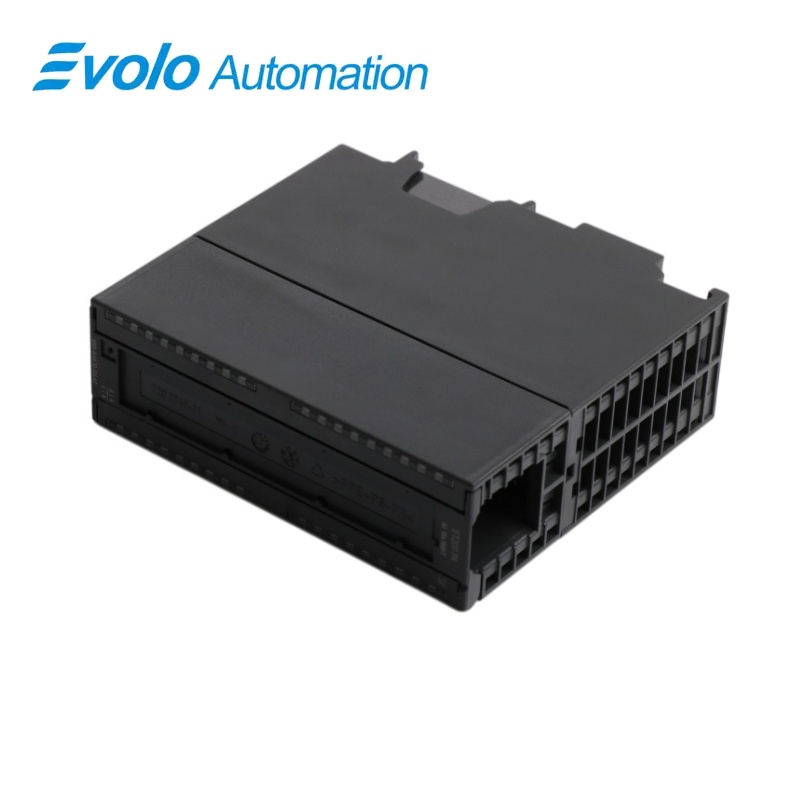

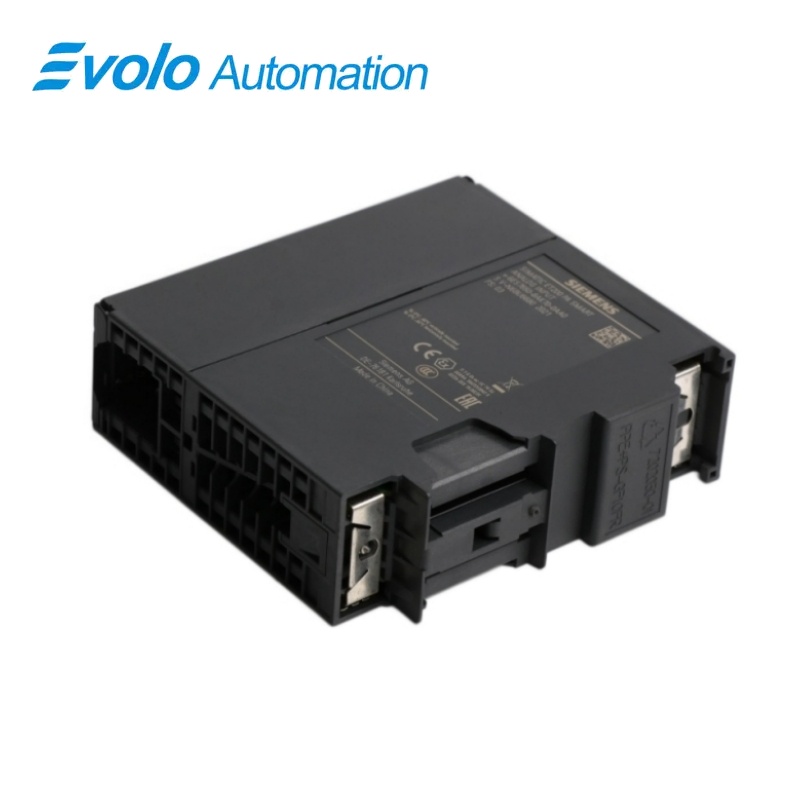

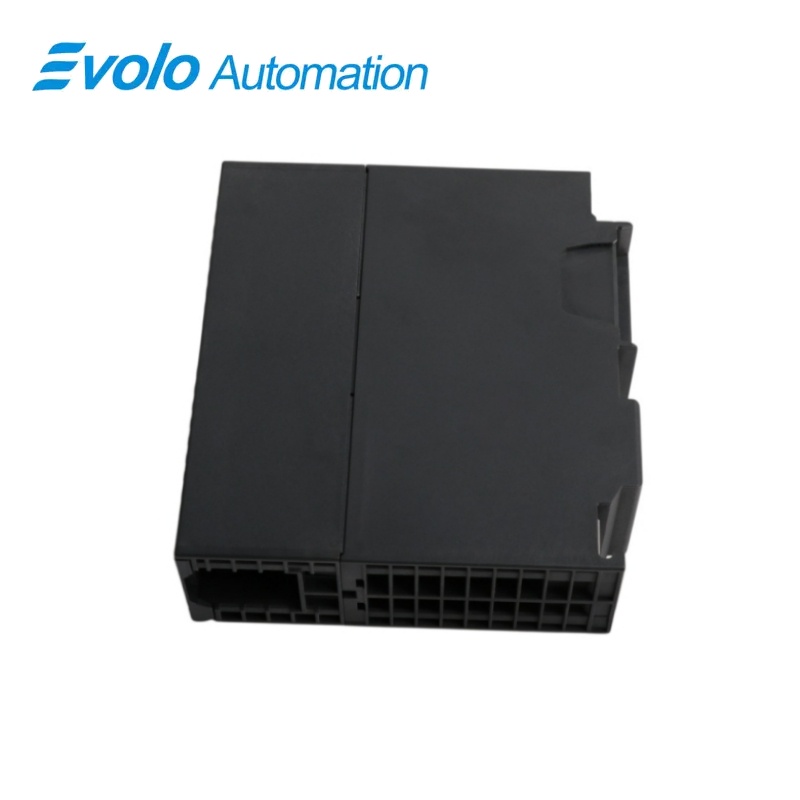

Siemens ET 200PA SMART AI16x16-Bit Analog Input Module 6ES7650-8AK70-0AA0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • ET 200PA SMART
6ES7650-8AK70-0AA0 ET 200PA SMART AI16x16-Bit Analog Input Module
The ET 200PA SMART AI16 module provides sixteen current-input channels with configurable integration times, high-resolution conversion and transmitter connections for process measurement.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7650-8AK70-0AA0 |
| Product Type | Sixteen-channel analog input module |
| Core Function | Acquires and digitizes process measurement signals |
| Application or Compatible Series | ET 200PA SMART stations in supported PCS 7 environments |
Exact Identification
Match 6ES7650-8AK70-0AA0 character by character and confirm the complete ET 200PA SMART AI16x16-Bit Analog Input Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The ET 200PA SMART AI16 module provides sixteen current-input channels with configurable integration times, high-resolution conversion and transmitter connections for process measurement.
The module concentrates sixteen analog current channels in one ET 200PA SMART slot. Integration time and measured-value smoothing can be selected to suit signal speed and interference conditions. Both two-wire and four-wire current transmitters are supported with the documented channel burden limits.
Key Functions
Sixteen Process Inputs
The module concentrates sixteen analog current channels in one ET 200PA SMART slot.
Configurable Conversion
Integration time and measured-value smoothing can be selected to suit signal speed and interference conditions.
Process Transmitter Support
Both two-wire and four-wire current transmitters are supported with the documented channel burden limits.
Official Specifications
| Maximum Supply Current | 70 mA |
|---|---|
| Typical Power Loss | 3.3 W |
| Analog Input Channels | 16 |
| Current Input Destruction Limit | 70 mA maximum; 40 mA continuous |
| Maximum Shielded Cable Length | 800 m |
| Measurement Principle | Sigma-delta |
| Maximum Resolution with Overrange | 24 bit including sign |
| Selectable Integration Times | 16.6 ms, 20 ms or 100 ms |
| Basic Conversion Times | 19.8 ms, 23.8 ms or 119 ms |
| Interference-Frequency Suppression | 10 Hz, 50 Hz or 60 Hz |
| Supported Transmitter Connections | Two-wire and four-wire current transmitters |
| Maximum Two-Wire Transmitter Burden | 750 Ω |
| Linearity Error | ±0.01 % of input range |
| Temperature Error | ±0.001 %/K of input range |
| Minimum Input Crosstalk Attenuation | 70 dB |
| Basic Current Error at 25 °C | ±0.1 % of input range |
Frequently Asked Questions
Can 6ES7650-8AK70-0AA0 accept both two-wire and four-wire current transmitters?
Yes; configure each channel for the supported transmitter connection and current range.
How many process signals can 6ES7650-8AK70-0AA0 acquire?
The module provides sixteen analog current-input channels.
Which integration settings can I select on 6ES7650-8AK70-0AA0?
Choose 16.6 ms, 20 ms or 100 ms according to the required response and interference rejection.
How long may a shielded signal cable be for 6ES7650-8AK70-0AA0?
Keep a shielded analog input cable within the documented 800 m maximum.
What should I check when commissioning 6ES7650-8AK70-0AA0 in PCS 7?
Verify the hardware catalog entry, channel ranges, transmitter wiring, integration time, diagnostics and process scaling.
How do I reduce unstable readings on 6ES7650-8AK70-0AA0?
Select an appropriate integration time and smoothing level while checking shielding, grounding and transmitter quality.
What must be preserved before replacing 6ES7650-8AK70-0AA0?
Record the slot, channel parameters, process ranges, alarm settings, cable assignments and the validated control-system project.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only in an ET 200PA SMART configuration supported by the installed control-system release.
- Match every transmitter type and channel range to the approved project.
- Maintain the documented shielding, grounding and cable-length limits.
