Overview
Siemens • SIMATIC ET 200SP / S7-1500F

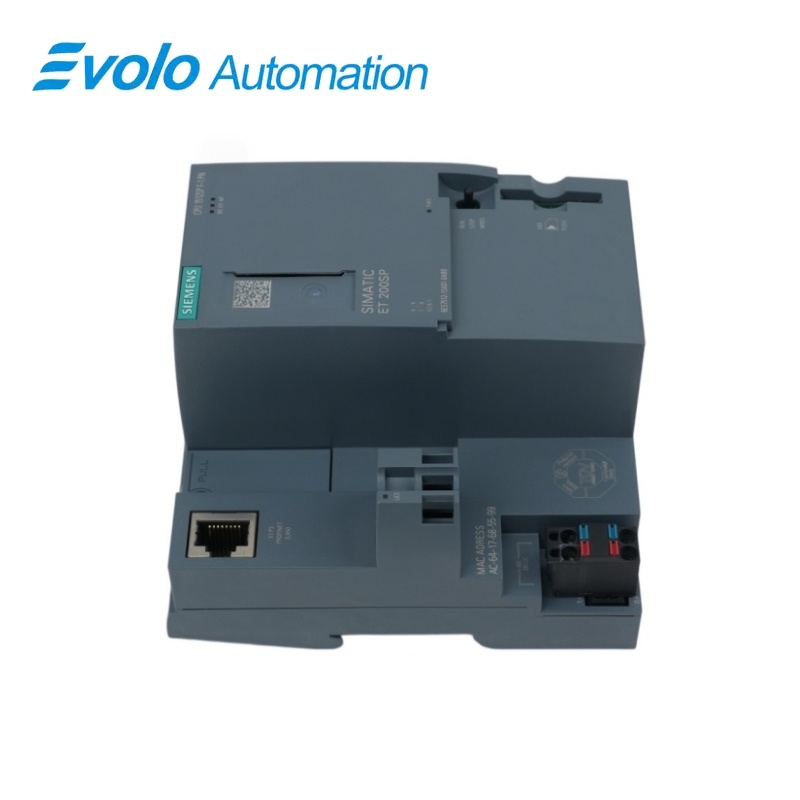

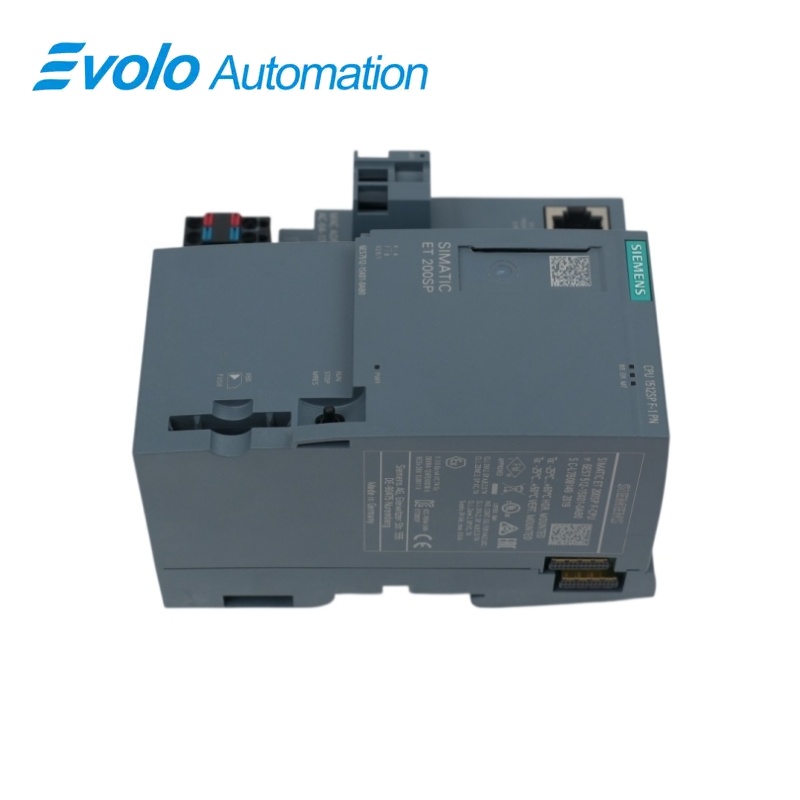

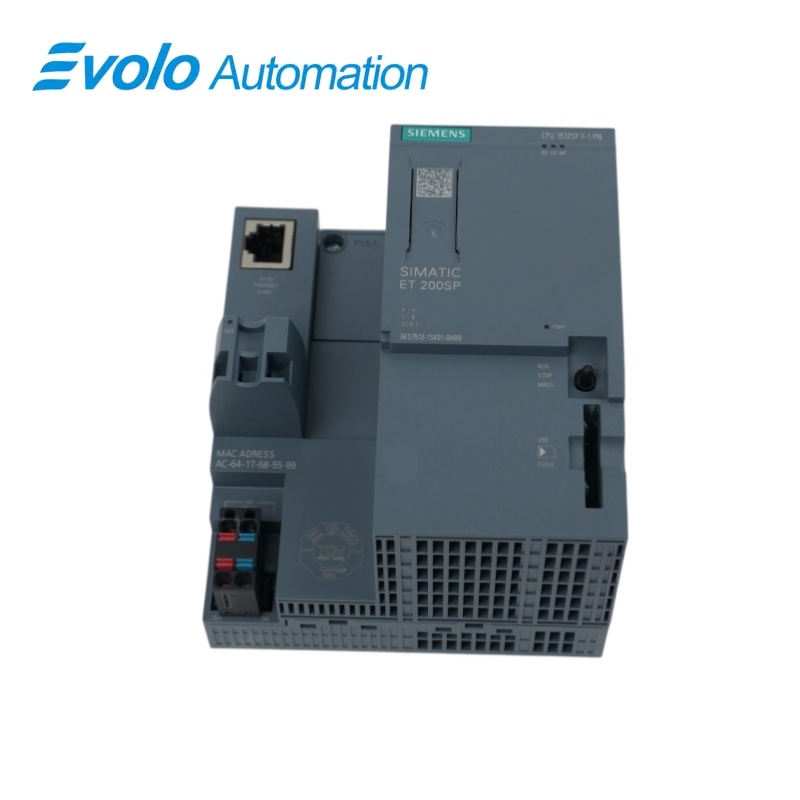

6ES7512-1SK01-0AB0 SIMATIC ET 200SP CPU 1512SP F-1 PN
The CPU 1512SP F-1 PN combines fail-safe S7-1500 control with the ET 200SP form factor, 300 KB program memory, 1 MB data memory and a PROFINET IRT interface with a three-port switch.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7512-1SK01-0AB0 |
| Product Type | Fail-safe distributed-controller CPU with PROFINET IRT |
| Core Function | Executes standard and safety control programs while controlling ET 200SP I/O and PROFINET devices |
| Application or Compatible Series | ET 200SP stations requiring a fail-safe CPU 1512SP F-1 PN |
Exact Identification
Match 6ES7512-1SK01-0AB0 character by character and confirm the complete SIMATIC ET 200SP CPU 1512SP F-1 PN designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CPU 1512SP F-1 PN combines fail-safe S7-1500 control with the ET 200SP form factor, 300 KB program memory, 1 MB data memory and a PROFINET IRT interface with a three-port switch.
The CPU executes the validated standard and fail-safe application in one ET 200SP station. A three-port switched interface supports real-time and isochronous communication. The controller integrates directly with ET 200SP I/O and uses a BusAdapter for the first two network ports.
Key Functions
Integrated Safety Control
The CPU executes the validated standard and fail-safe application in one ET 200SP station.
PROFINET IRT Networking
A three-port switched interface supports real-time and isochronous communication.
Compact Distributed Architecture
The controller integrates directly with ET 200SP I/O and uses a BusAdapter for the first two network ports.
Official Specifications
| Hardware Functional Status | FS05 |
|---|---|
| Firmware Version | V2.9 |
| Program Work Memory | 300 KB |
| Data Work Memory | 1 MB |
| Maximum Plug-In Load Memory | 32 GB |
| SIMATIC Memory Card | Required |
| Bit Execution Time | 48 ns |
| BusAdapter Requirement | Required for ports 1 and 2 |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Rated Current Consumption | 0.6 A |
| Maximum Current Consumption | 0.9 A |
| Maximum Inrush Current | 4.7 A |
| Backplane-Bus Feed Power | 8.75 W |
| Typical Power Loss | 5.6 W |
| Voltage-Failure Buffer Time | 10 ms |
| Configuration Software | STEP 7 TIA Portal V17 for firmware V2.9 |
| Net Weight | 0.391 kg |
| Packaging Dimensions | 13.4 x 13.3 x 8.8 cm |
Frequently Asked Questions
Which engineering version should I use for firmware V2.9 on 6ES7512-1SK01-0AB0?
Configure that firmware with STEP 7 TIA Portal V17.
Does 6ES7512-1SK01-0AB0 require a SIMATIC Memory Card?
Yes; install a compatible card containing the validated project and firmware context.
Which network accessory is required for 6ES7512-1SK01-0AB0?
Fit the approved BusAdapter for the first and second PROFINET ports.
How much work memory is available in 6ES7512-1SK01-0AB0?
The CPU provides 300 KB for the program and 1 MB for data.
Can I replace a standard CPU with 6ES7512-1SK01-0AB0 without changing the project?
No; the fail-safe hardware configuration, safety program and acceptance process must all support the selected CPU.
What should I archive before replacing 6ES7512-1SK01-0AB0?
Save the complete TIA Portal project, safety signature, memory-card contents, device name, IP settings and acceptance records.
What must be validated after installing 6ES7512-1SK01-0AB0?
Verify standard control, safety functions, ET 200SP I/O, all PROFINET ports, diagnostics and the required safety acceptance test.
Compatibility & Ordering Notes
Compatibility Checklist
- Use ET 200SP modules, BusAdapters and firmware versions supported by the project.
- Preserve the fail-safe program and complete safety acceptance documentation.
- Validate the successor separately before changing to a different CPU article number.
