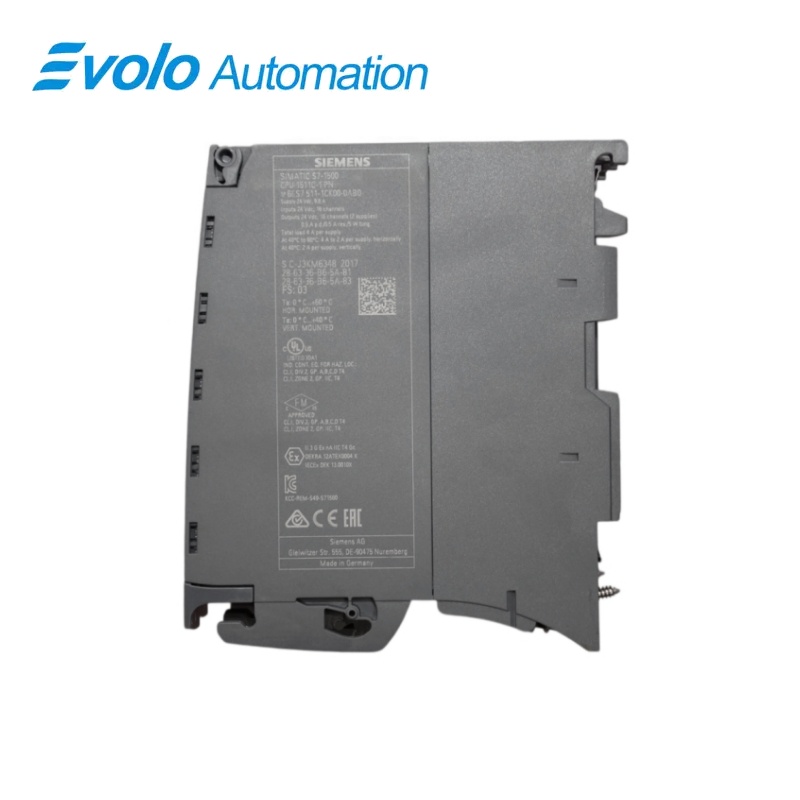

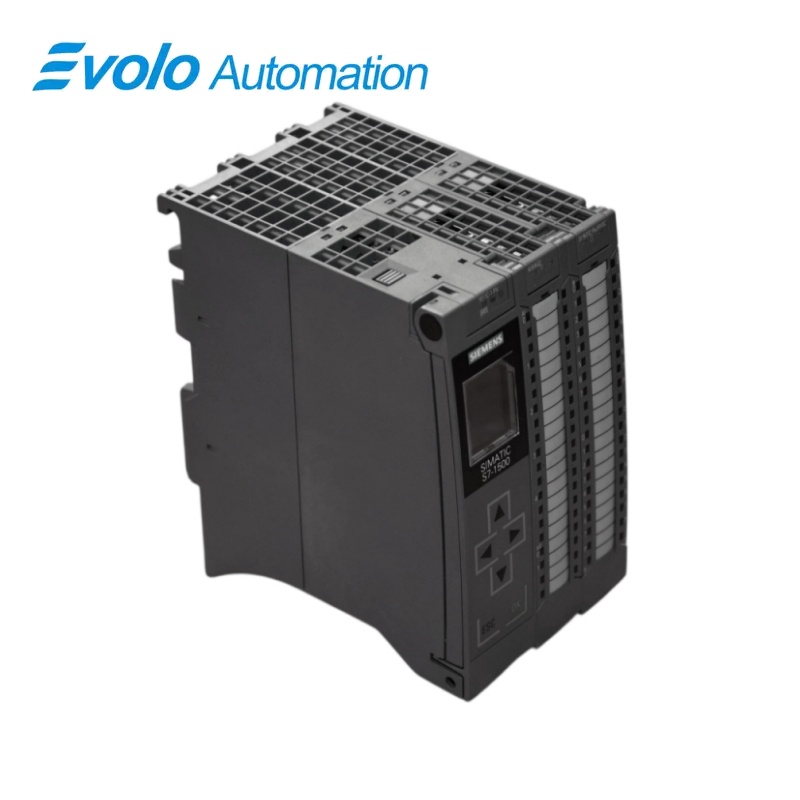

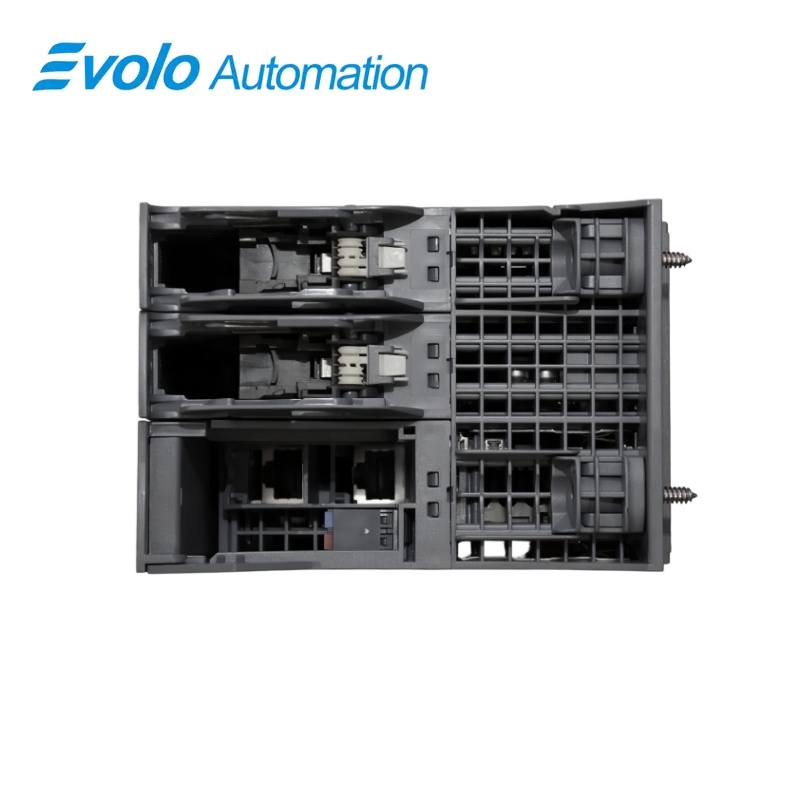

Siemens SIMATIC S7-1500 CPU 1511C-1 PN Compact CPU 6ES7511-1CK00-0AB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC S7-1500
6ES7511-1CK00-0AB0 SIMATIC S7-1500 CPU 1511C-1 PN Compact CPU
The CPU 1511C-1 PN combines S7-1500 processing, a two-port PROFINET IRT interface, mixed onboard I/O, high-speed counters and PTO/PWM/frequency outputs.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7511-1CK00-0AB0 |
| Product Type | Compact programmable controller CPU |
| Core Function | Executes machine control, counting and positioning functions |
| Application or Compatible Series | Compact S7-1500 machine automation |
Exact Identification
Match 6ES7511-1CK00-0AB0 character by character and confirm the complete SIMATIC S7-1500 CPU 1511C-1 PN Compact CPU designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CPU 1511C-1 PN combines S7-1500 processing, a two-port PROFINET IRT interface, mixed onboard I/O, high-speed counters and PTO/PWM/frequency outputs.
Digital and analog points are built into the compact CPU for direct machine wiring. High-speed counters and dedicated outputs support counting, PTO, PWM and frequency applications. A two-port switched interface connects the CPU to PROFINET controllers, devices and engineering stations.
Key Functions
Integrated Mixed I/O
Digital and analog points are built into the compact CPU for direct machine wiring.
High-Speed Technology Functions
High-speed counters and dedicated outputs support counting, PTO, PWM and frequency applications.
PROFINET IRT Networking
A two-port switched interface connects the CPU to PROFINET controllers, devices and engineering stations.
Official Specifications
| Program Work Memory | 175 KB |
|---|---|
| Data Work Memory | 1 MB |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
| Analog Inputs | 5 |
| Analog Outputs | 2 |
| High-Speed Counters | 6 |
| High-Speed PTO/PWM/Frequency Outputs | 4 |
| PROFINET Interface | IRT with two-port switch |
| Bit Execution Time | 60 ns |
| Front Connector | Push-in type included |
| SIMATIC Memory Card | Required |
| Net Weight | 1.267 kg |
Frequently Asked Questions
Does 6ES7511-1CK00-0AB0 need a SIMATIC Memory Card?
Yes; install a compatible card containing the validated program and firmware context.
How much program and data memory does 6ES7511-1CK00-0AB0 provide?
The CPU provides 175 KB for the program and 1 MB for data.
Can 6ES7511-1CK00-0AB0 handle analog signals without separate modules?
Yes; the compact CPU includes five analog inputs and two analog outputs.
Which motion-style outputs are integrated in 6ES7511-1CK00-0AB0?
Four high-speed outputs support configured PTO, PWM or frequency functions.
How should I retain the PROFINET identity of 6ES7511-1CK00-0AB0?
Record the device name, IP settings, topology and port assignments before replacement.
What should I back up before exchanging 6ES7511-1CK00-0AB0?
Archive the complete TIA Portal project, memory-card contents, technology-object settings, tags and diagnostic buffer.
What must be tested after installing 6ES7511-1CK00-0AB0?
Verify every onboard I/O point, counters, technology outputs, PROFINET communication, alarms and machine safety interlocks.
Compatibility & Ordering Notes
Compatibility Checklist
- Retain the exact onboard terminal and push-in connector assignments.
- Use a supported SIMATIC Memory Card and engineering version.
- Validate counter and PTO/PWM functions against the original machine project.
