Overview
Siemens • SIMATIC S7-1500

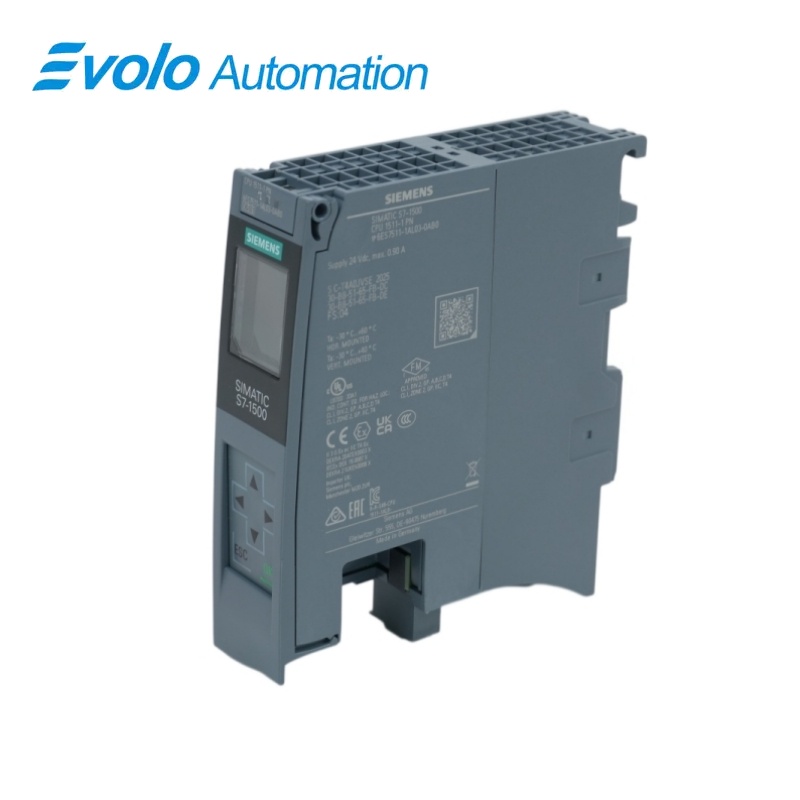

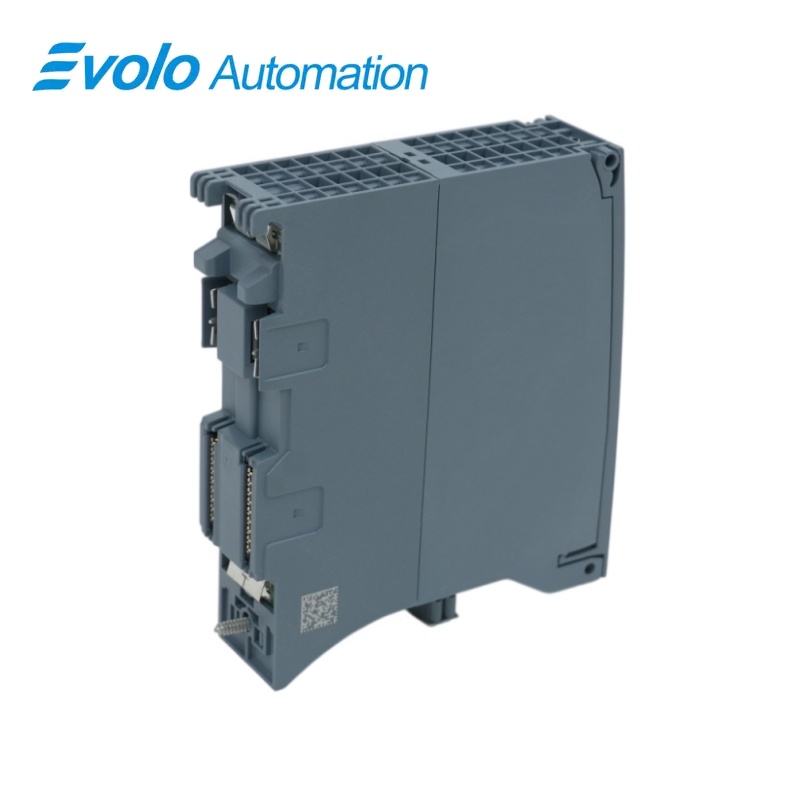

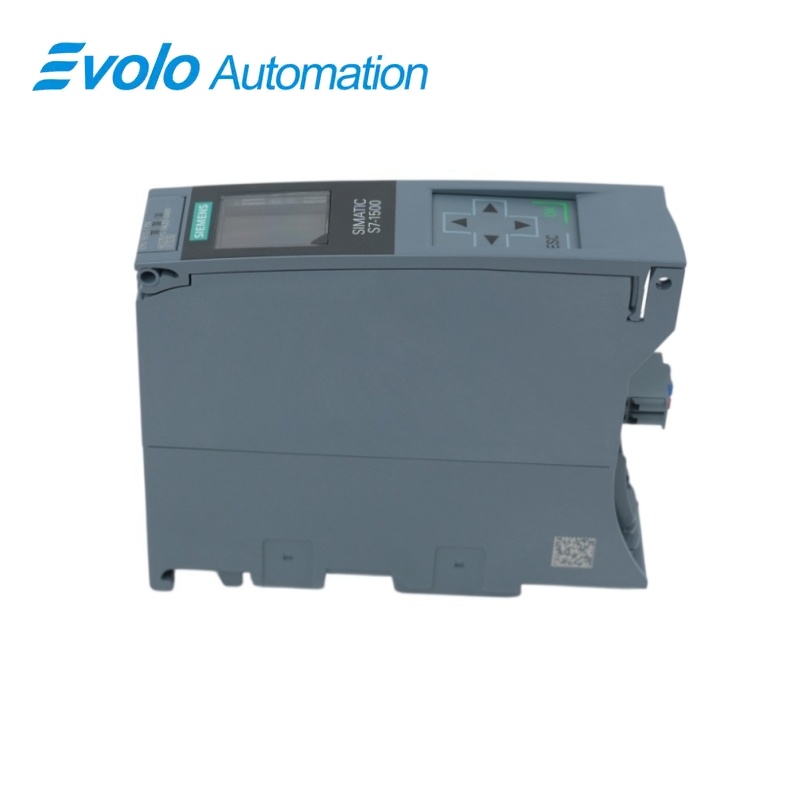

6ES7511-1AL03-0AB0 SIMATIC S7-1500 CPU 1511-1 PN
The SIMATIC S7-1500 CPU 1511-1 PN combines 300 KB program memory, 1.5 MB data memory, a two-port PROFINET IRT interface and fast instruction processing for compact automation systems.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7511-1AL03-0AB0 |
| Product Type | Standard programmable controller CPU |
| Core Function | Executes machine-control logic and manages PROFINET IRT devices |
| Application or Compatible Series | Small to medium S7-1500 applications engineered in TIA Portal |
Exact Identification
Match 6ES7511-1AL03-0AB0 character by character and confirm the complete SIMATIC S7-1500 CPU 1511-1 PN designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC S7-1500 CPU 1511-1 PN combines 300 KB program memory, 1.5 MB data memory, a two-port PROFINET IRT interface and fast instruction processing for compact automation systems.
A 6 ns bit-instruction time supports responsive logic processing in compact machines. The two-port interface operates as a controller or device and supports isochronous communication. The integrated display provides operating information, diagnostics and controlled address configuration.
Key Functions
Fast Program Execution
A 6 ns bit-instruction time supports responsive logic processing in compact machines.
Integrated PROFINET IRT
The two-port interface operates as a controller or device and supports isochronous communication.
Local Display and Diagnostics
The integrated display provides operating information, diagnostics and controlled address configuration.
Official Specifications
| Hardware Functional Status | FS04 |
|---|---|
| Firmware Version | V4.1; firmware update supported |
| Program Work Memory | 300 KB |
| Data Work Memory | 1.5 MB |
| Bit Instruction Time | 6 ns |
| PROFINET Interfaces | 1 |
| Ethernet Ports | 2 RJ45 ports with integrated switch |
| Supported Network Roles | PROFINET IO controller and PROFINET IO device |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Rated Current Consumption | 0.56 A |
| Maximum Current Consumption | 0.9 A |
| Backplane-Bus Infeed Power | 10 W |
| Balanced Backplane-Bus Consumption | 5.5 W |
| Display Resolution | 128 x 120 pixels |
| Clock Backup Time | 6 weeks at 40 °C, typical |
| Operating-Hours Counters | 16 |
| Dimensions | 35 x 147 x 129 mm |
| Approximate Weight | 336 g |
| Operating Temperature | -30 to 60 °C |
Frequently Asked Questions
Which TIA Portal version supports 6ES7511-1AL03-0AB0?
Use V21 for firmware V4.1 or V18 for firmware V3.0 and follow the supported compatibility path for older projects.
Does 6ES7511-1AL03-0AB0 require a SIMATIC Memory Card?
Yes; install an approved card containing the correct firmware and validated project.
How many PROFINET cable connections are available on 6ES7511-1AL03-0AB0?
The integrated interface provides two RJ45 ports through an internal switch.
Can 6ES7511-1AL03-0AB0 operate as both a PROFINET controller and device?
Yes; configure the required role and network parameters in the validated TIA Portal project.
What supply should be prepared for 6ES7511-1AL03-0AB0?
Provide protected 24 V DC power within the permissible range of 19.2 to 28.8 V.
What should be backed up before replacing 6ES7511-1AL03-0AB0?
Archive the TIA Portal project, device name, IP settings, firmware, memory-card contents and technology configuration.
What should be tested after commissioning 6ES7511-1AL03-0AB0?
Verify startup, I/O communication, cycle behavior, diagnostics, web access, interlocks and all configured technology functions.
Compatibility & Ordering Notes
Compatibility Checklist
- Use a supported TIA Portal version for the installed firmware.
- Install an approved SIMATIC Memory Card before commissioning.
- Restore the exact PROFINET identity and validated controller project.
