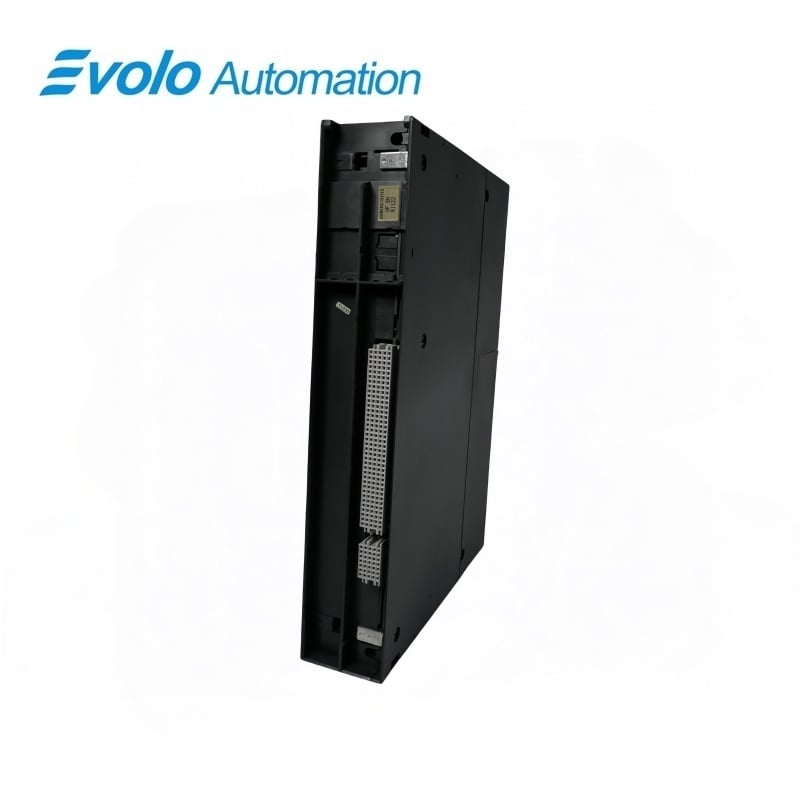

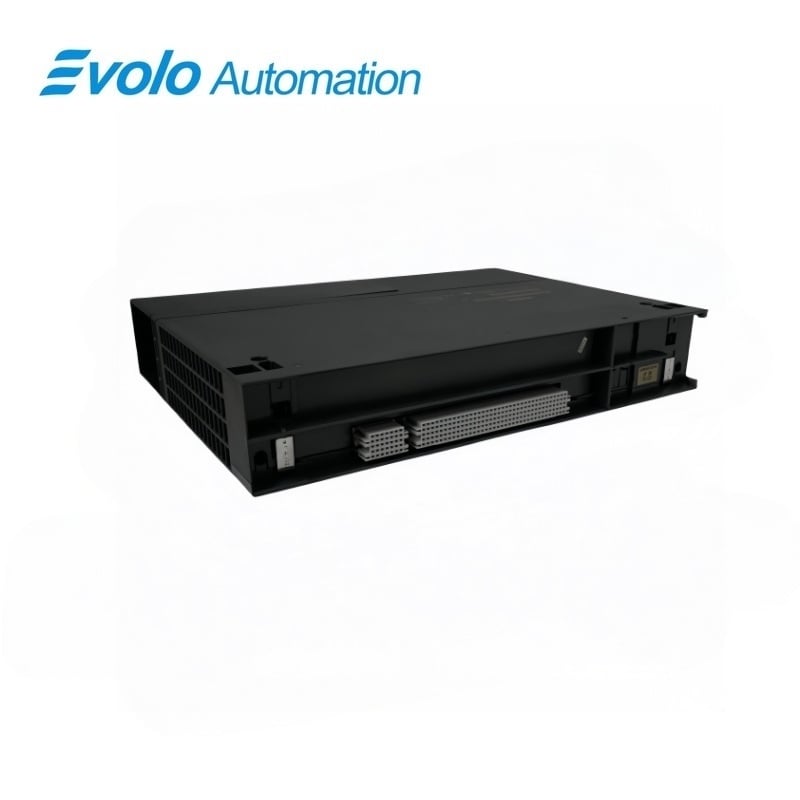

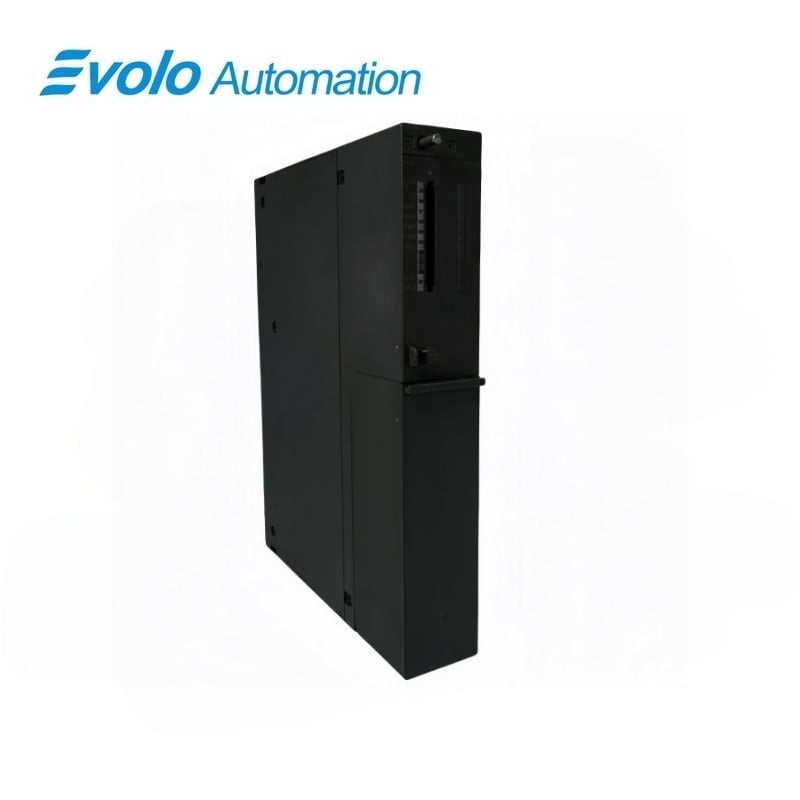

Siemens SIMATIC S7-400 6ES7417-4XL04-0AB0 CPU 417-4
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
WhatsApp: +86-18150117685
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIMATIC S7-400 6ES7417-4XL04-0AB0 CPU 417-4
CPU 417-4 for SIMATIC S7-400 with 20 MB working memory, divided into 10 MB code and 10 MB data.
At a Glance
| Article Number | 6ES7417-4XL04-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S7-400 |
| Product Type | CPU 417-4 |
| Working Memory | 20 MB: 10 MB code / 10 MB data |
Exact Identification
Match the complete article number and installed hardware.
Interfaces
Confirm MPI/PROFIBUS DP, an additional PROFIBUS DP interface and two interface-module slots.
Configuration Check
Verify project data and official system documentation.
Product Overview
6ES7417-4XL04-0AB0 is officially identified by Siemens as the CPU 417-4 in the SIMATIC S7-400 family. CPU 417-4 for SIMATIC S7-400 with 20 MB working memory, divided into 10 MB code and 10 MB data.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6ES7417-4XL04-0AB0: High-performance S7-400 central processing unit.
System Interface
6ES7417-4XL04-0AB0: 20 MB working memory split equally between code and data.
Performance & Memory
6ES7417-4XL04-0AB0: MPI/DP and additional PROFIBUS DP communications.
Replacement Control
6ES7417-4XL04-0AB0: Two interface-module slots for system expansion.
Official Specifications
| Firmware Version | V4.0.0 |
|---|---|
| Engineering Software | STEP 7 V5.2 SP1 HF3 with the required hardware update |
| Program Work Memory | 10 MB |
| Data Work Memory | 10 MB |
| Integrated Load RAM | 256 KB |
| Maximum Flash Memory Card | 64 MB |
| Maximum RAM Memory Card | 64 MB |
| Retentive Flag Memory | 16 KB |
| Maximum Data Blocks | 8,191 |
| Maximum Data Block Size | 64 KB |
| Maximum Local Data | 64 KB |
| Communication Capability | MPI/DP, PROFIBUS DP and two interface-module slots |
| Programming Languages | LAD, FBD, STL, SCL, CFC, GRAPH and HiGraph |
| Required Slots | 2 |
| Module Dimensions | 50 × 290 × 219 mm |
Official source: Siemens Industry Mall product data for 6ES7417-4XL04-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which STEP 7 release is needed to service 6ES7417-4XL04-0AB0?
Use STEP 7 V5.2 SP1 HF3 or higher together with the required hardware catalog update for the CPU version.
How should the memory card be selected for 6ES7417-4XL04-0AB0?
Choose FLASH or RAM according to the startup and retentivity concept, with a supported capacity not exceeding 64 MB.
What should be checked before moving a project to 6ES7417-4XL04-0AB0?
Compare the 10 MB code and 10 MB data usage, block sizes, communication resources, interface modules and startup organization blocks.
Can 6ES7417-4XL04-0AB0 support an additional communication module?
Two interface-module slots are available, but the fitted modules and project configuration must match the documented CPU hardware.
What rack space is required for 6ES7417-4XL04-0AB0?
Reserve two S7-400 slots and verify the 50 × 290 × 219 mm module envelope and cabinet clearances.
How should PROFIBUS wiring be verified for 6ES7417-4XL04-0AB0?
Confirm the bus address, baud rate, connector orientation, shielding and termination at both physical segment ends.
What commissioning evidence should be recorded for 6ES7417-4XL04-0AB0?
Save the diagnostic buffer, firmware identification, memory utilization, reachable stations and results of the controlled restart test.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7417-4XL04-0AB0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC S7-400 hardware and project version.
Verify MPI/PROFIBUS DP, an additional PROFIBUS DP interface and two interface-module slots.
Confirm required memory media, connectors and accessories in the written quotation.
