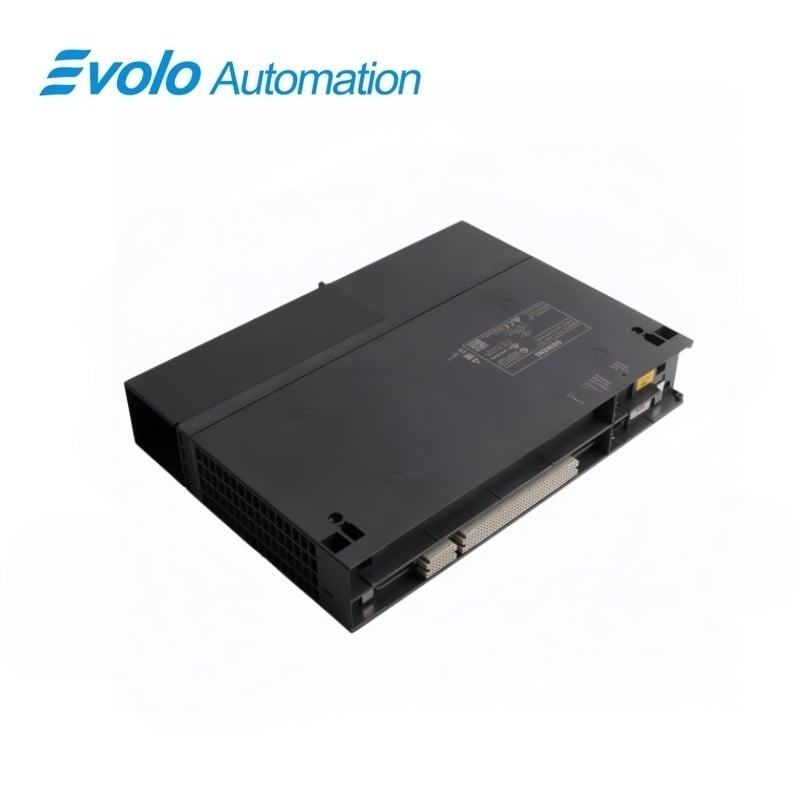

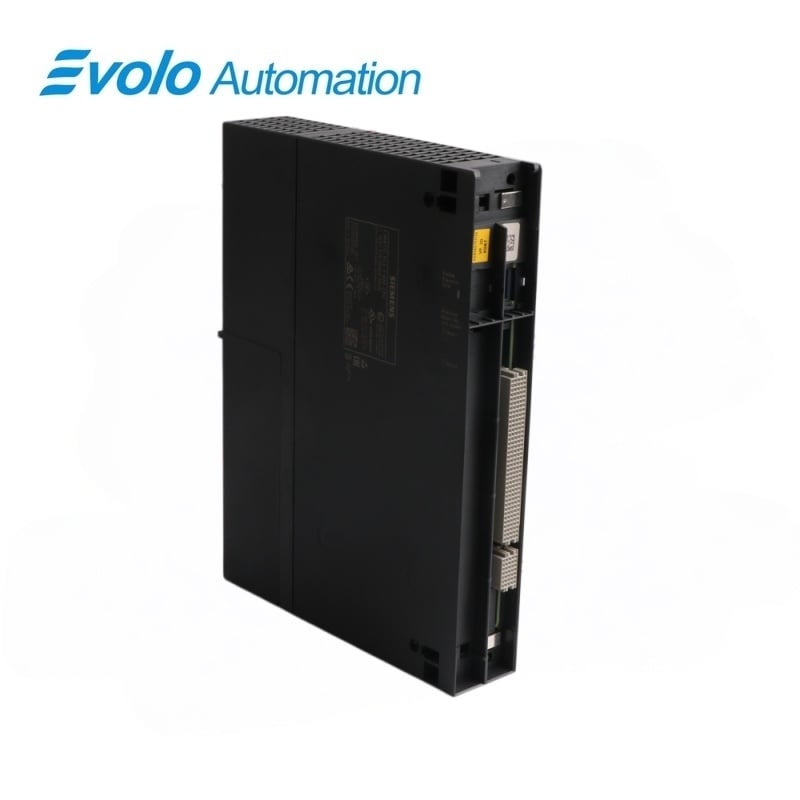

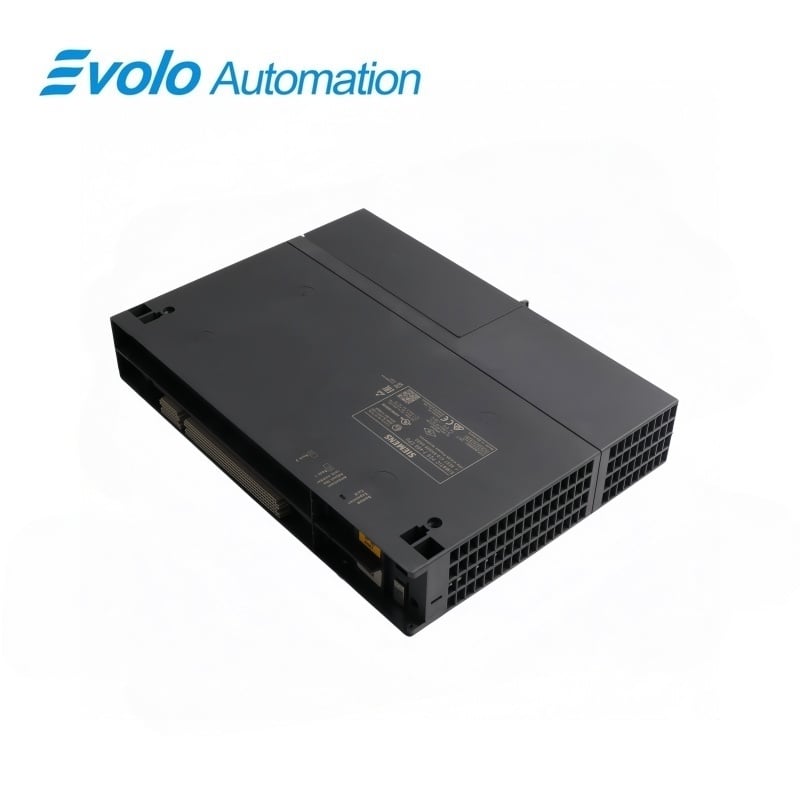

Siemens SIMATIC 6ES7410-5HX08-0AB0 CPU 410-5H Process Automation
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7410-5HX08-0AB0 SIMATIC CPU 410-5H Process Automation
Official Siemens identification and technical data, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7410-5HX08-0AB0 |
| Manufacturer | Siemens |
| Platform | SIMATIC S7-400 / PCS 7 |
| Product Type | CPU 410-5H process automation controller |
| Official Source | Siemens Industry Mall / SiePortal |
Match the complete 6ES7410-5HX08-0AB0 article number and installed hardware.
Verify connectors, ports and communication configuration.
Confirm firmware, project data and required accessories.
Product Overview
6ES7410-5HX08-0AB0 is officially identified by Siemens as CPU 410-5H central unit for SIMATIC S7-400 and S7-400H/F/FH process automation systems.
The full article number should be matched against the installed device, hardware revision and official Siemens project documentation before replacement or ordering.
Key Functions
Process Automation Control
Designed as the CPU 410-5H central unit for process automation.
High-Availability Integration
Supports S7-400H/F/FH architectures with two synchronization-module interfaces.
Industrial Communication
Provides two PROFINET interfaces and one PROFIBUS DP interface.
Official Specifications
| HW Functional Status | 2 |
|---|---|
| Firmware Version | V8.3 |
| Controller Architecture | 450 MHz multi-processor system |
| Maximum Work Memory | 32 MB; determined by the System Expansion Card |
| Integrated Load Memory | 48 MB RAM maximum |
| System Expansion Card Memory | 8 MB, 16 MB or 32 MB with R1 license |
| Communication Capability | 2 PROFINET, 1 PROFIBUS DP and 2 synchronization-module connections |
| SysLog Capacity | Up to 4 receivers and 3,200 buffered entries |
| Field Interface Security | Supported |
| CiR Basic Synchronization Time | 60 ms |
| Backplane Current at 5 V DC | 2.0 A typical; 2.4 A maximum |
| 24 V DC DP Interface Current | 150 mA maximum |
| Typical Power Loss | 10 W |
| Conformal Coating | ISA-S71.04 severity levels G1, G2 and G3 |
| Maximum Operating Temperature | 70 °C |
| Engineering Package | SIMATIC PCS 7 V10.0.1 with HSP 324, 325 and 326 |
Official source: Siemens Industry Mall product data for 6ES7410-5HX08-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which System Expansion Card is required for 6ES7410-5HX08-0AB0?
Select the 8 MB, 16 MB or 32 MB SEC that matches the licensed process-object capacity and the validated project; the CPU cannot start without a valid card.
Can two 6ES7410-5HX08-0AB0 CPUs use different SEC capacities in one redundant pair?
No. Both partners must use matching expansion cards and compatible licenses before redundant operation is enabled.
Which PCS 7 version supports 6ES7410-5HX08-0AB0 firmware V8.3?
The official data specifies PCS 7 V10.0.1 with the applicable HSP 324, 325 and 326 packages.
How should 6ES7410-5HX08-0AB0 cooling be planned in a hot cabinet?
Base the thermal design on the 10 W typical power loss, installed modules, airflow and the permitted ambient conditions.
What should be archived before replacing 6ES7410-5HX08-0AB0?
Back up the PCS 7 project, hardware configuration, licenses, SEC assignment, network settings and redundancy parameters.
How are the synchronization connections used on 6ES7410-5HX08-0AB0?
They link the redundant partners through the specified synchronization modules and cables; both paths must be installed and diagnosed.
What checks are required after installing 6ES7410-5HX08-0AB0?
Verify the SEC, firmware, partner state, PROFINET and PROFIBUS communication, synchronization links, diagnostics and a controlled switchover.
Compatibility & Ordering Notes
Compatibility checklist for 6ES7410-5HX08-0AB0
- Match the complete article number without shortening the suffix.
- Confirm the installed SIMATIC S7-400 / PCS 7 system and hardware revision.
- Verify interface, power, connector and mounting requirements.
- Confirm the engineering project, firmware and memory requirements.
