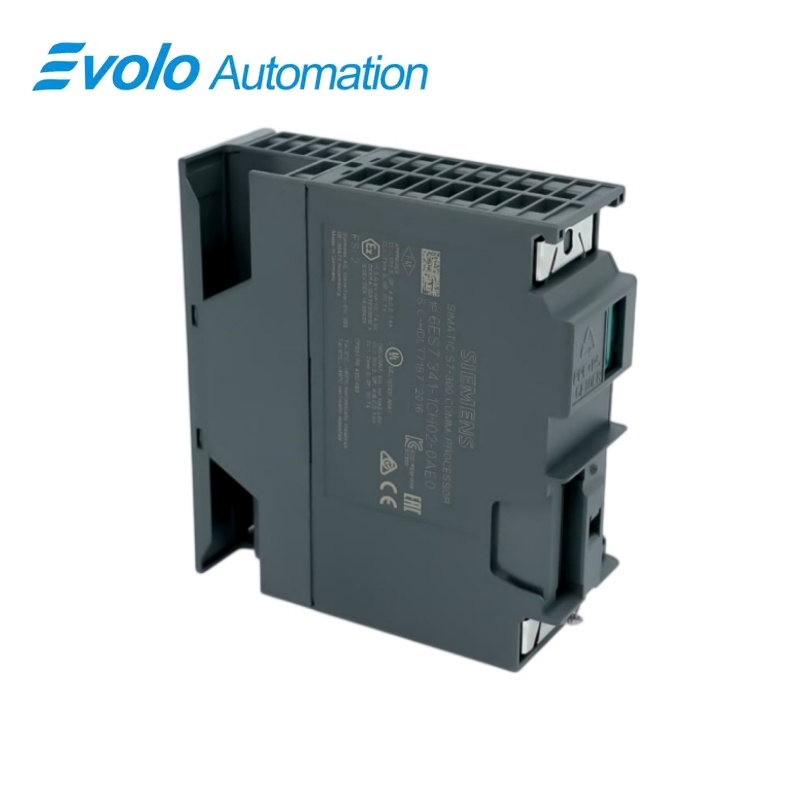

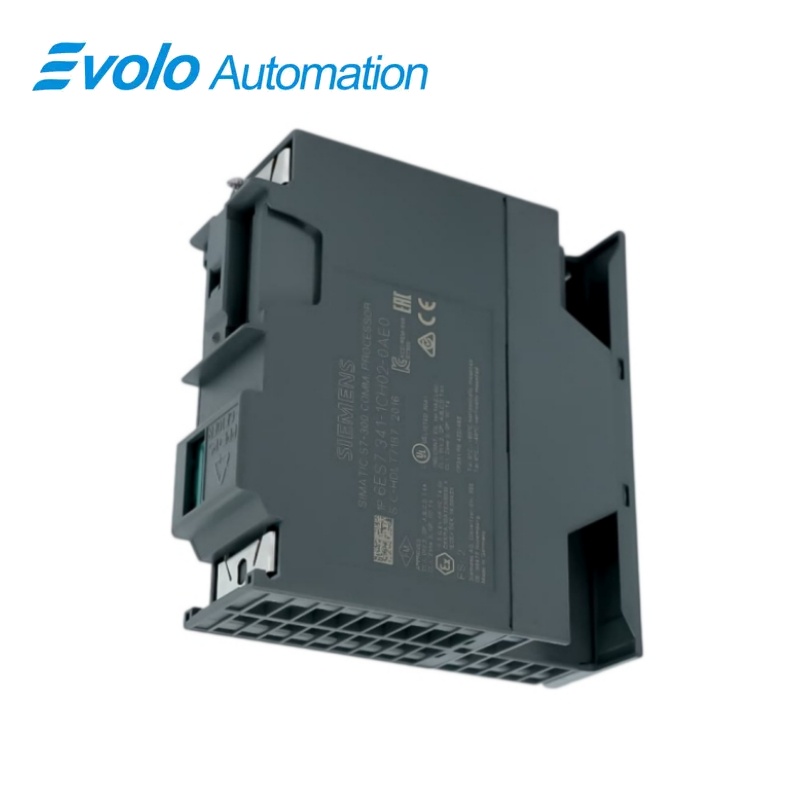

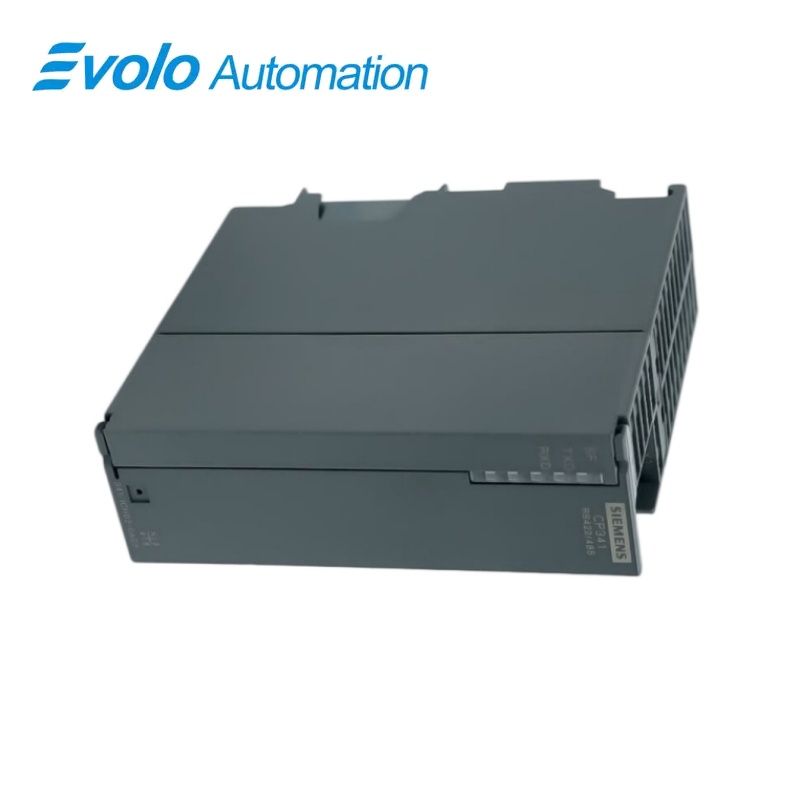

Siemens SIMATIC S7-300 CP 341 RS422/485 Communication Processor 6ES7341-1CH02-0AE0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC S7-300 CP 341
6ES7341-1CH02-0AE0 SIMATIC S7-300 CP 341 RS422/485 Communication Processor
The CP 341 provides an isolated RS422/485 point-to-point interface for configurable serial communication in an S7-300 station.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7341-1CH02-0AE0 |
| Product Type | Point-to-point serial communication processor |
| Core Function | Adds an isolated RS422/485 serial interface and configurable protocols to an S7-300 station |
| Application or Compatible Series | S7-300 systems communicating with serial devices through RS422 or RS485 |
Exact Identification
Match 6ES7341-1CH02-0AE0 character by character and confirm the complete SIMATIC S7-300 CP 341 RS422/485 Communication Processor designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CP 341 provides an isolated RS422/485 point-to-point interface for configurable serial communication in an S7-300 station.
The module provides one RS422/485 communication port. Serial communication is processed independently of the CPU. The article includes the CP 341 configuration package.
Key Functions
Isolated Serial Interface
The module provides one RS422/485 communication port.
Protocol Processing
Serial communication is processed independently of the CPU.
Configuration Package
The article includes the CP 341 configuration package.
Official Specifications
| Controller Family | SIMATIC S7-300 |
|---|---|
| Module Type | CP 341 |
| Physical Interface | RS422/485 |
| Port Count | 1 |
| Electrical Isolation | Provided |
| Configuration Package | Included |
| Installation | S7-300 rack |
| Net Weight | 0.302 kg |
| Packaging Dimensions | 12.8 x 15.3 x 5.2 cm |
| Product Family | CP 341 |
| Lifecycle | Phase-out announced |
Frequently Asked Questions
Which electrical interfaces are supported by serial processor 6ES7341-1CH02-0AE0?
Configure the isolated port for RS422 or RS485 as required.
Which serial settings should be preserved for serial processor 6ES7341-1CH02-0AE0?
Record the protocol, baud rate, parity, station role and connector pinout.
Which installed configuration should be recorded before replacing serial processor 6ES7341-1CH02-0AE0?
Record the configured addresses, wiring assignments, parameters, firmware and neighboring hardware before removal.
What identification must match when selecting serial processor 6ES7341-1CH02-0AE0?
Match the complete article number, hardware revision and every option used by the installed system.
How should technicians handle serial processor 6ES7341-1CH02-0AE0?
Isolate the affected equipment and use grounded electrostatic-discharge precautions throughout the exchange.
Which checks are required after installing serial processor 6ES7341-1CH02-0AE0?
Verify power, diagnostics, communication, field signals and the complete approved machine or plant function.
When should a visually similar unit replace serial processor 6ES7341-1CH02-0AE0?
Use a visually similar unit only after engineering confirms identical electrical, mechanical and software compatibility.
Compatibility & Ordering Notes
Compatibility Checklist
- Do not substitute an RS232 execution.
- Match the serial cable and termination.
- Restore the CP parameterization and application blocks.
