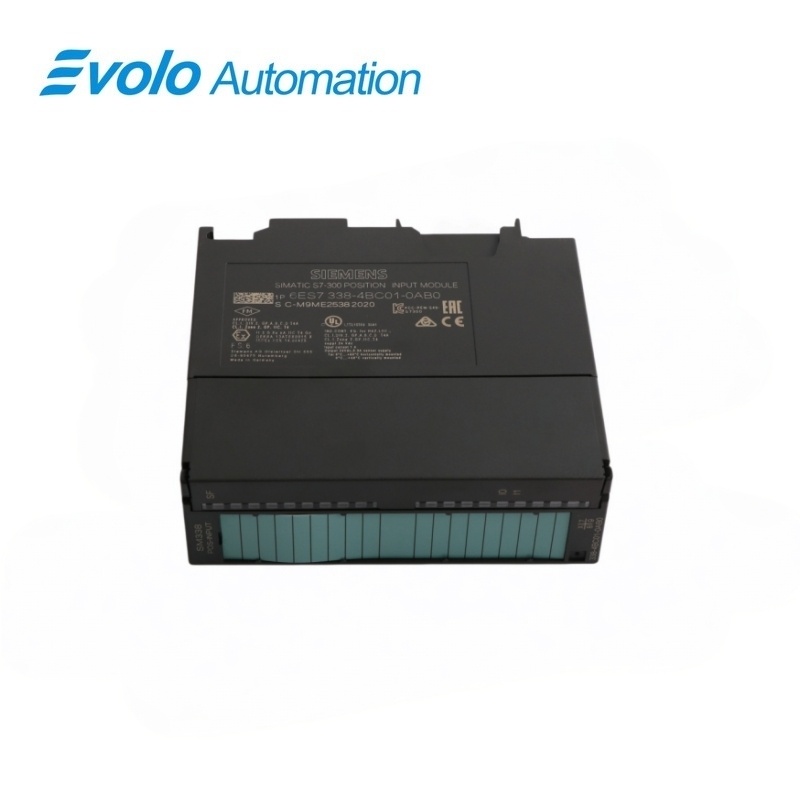

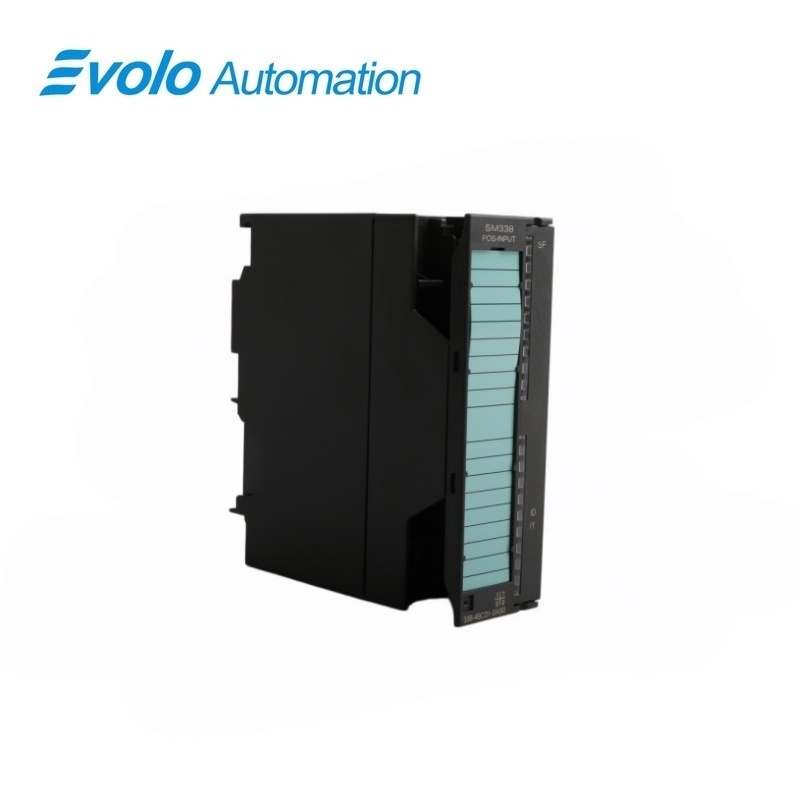

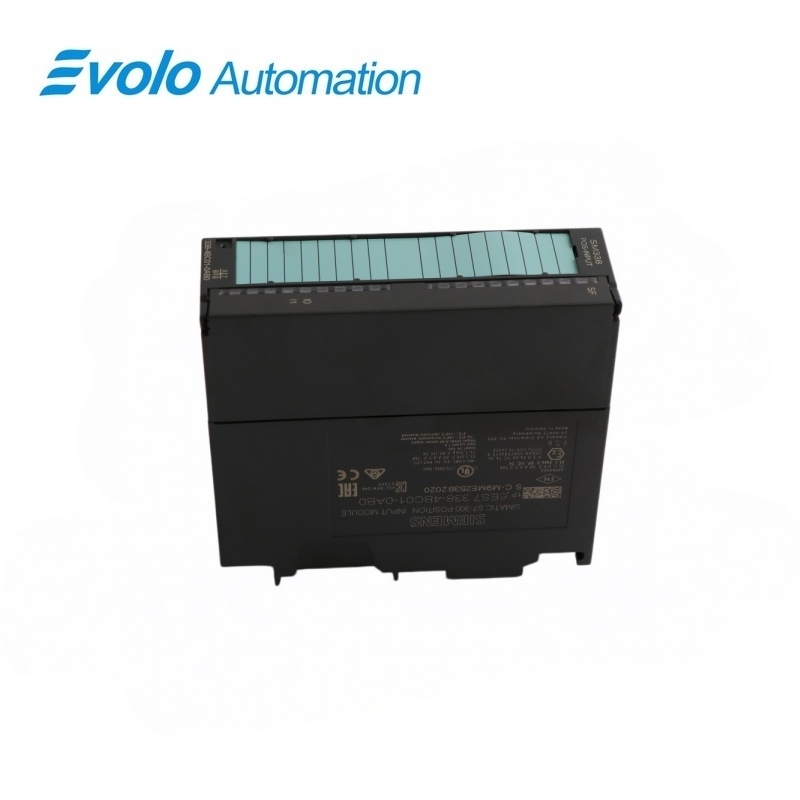

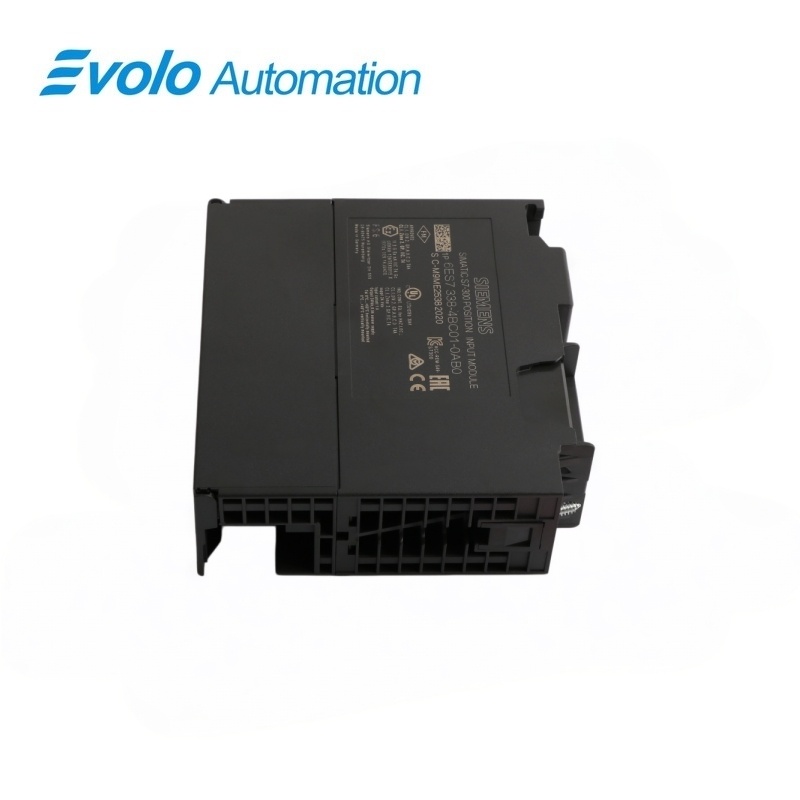

Siemens SIMATIC S7-300 6ES7338-4BC01-0AB0 SM 338 POS Input Module
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIEMENS SIMATIC S7-300 • SSI POSITION INPUT MODULE
6ES7338-4BC01-0AB0 SM 338 POS Input Module
Official Siemens identification and technical data for 6ES7338-4BC01-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7338-4BC01-0AB0 |
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | SM 338 POS Input Module |
| Official Configuration | Position input module for three SSI encoders with two FREEZE inputs and isochronous mode |
Exact Identification
Match the complete Siemens article number 6ES7338-4BC01-0AB0 and the installed hardware configuration.
Official Configuration
Position input module for three SSI encoders with two FREEZE inputs and isochronous mode.
Connection Check
Three SSI encoder channels, two FREEZE inputs and one 20-pole front connection.
Product Overview
6ES7338-4BC01-0AB0 is officially identified by Siemens as SM 338 POS Input Module for 3 SSI Encoders in the SIMATIC S7-300 product range.
Siemens identifies this SIMATIC S7-300 signal module for reading position values from three SSI encoders, with two FREEZE inputs, one 20-pole connection and isochronous-mode support.
Ordering focus: verify the complete 6ES7338-4BC01-0AB0 article number, installed hardware configuration, connections and Siemens system documentation before replacement.
Key Functions
Model-Specific Configuration
6ES7338-4BC01-0AB0: Position input module for three SSI encoders with two FREEZE inputs and isochronous mode.
System Connection
Three SSI encoder channels, two FREEZE inputs and one 20-pole front connection.
Replacement Control
Use the full 6ES7338-4BC01-0AB0 article number and official Siemens documentation to verify the installed configuration before replacement.
Official Specifications
| Manufacturer | Siemens |
| Series | SIMATIC S7-300 |
| Article Number | 6ES7338-4BC01-0AB0 |
| Product Type | SM 338 POS Input Module |
| SSI Encoders | 3 |
| FREEZE Inputs | 2 |
| Front Connection | 1 x 20-pole |
| Isochronous Mode | Supported |
| Application | Position-value acquisition |
| Net Weight | 0.248 kg |
| Packaging Dimension | 12.80 x 15.20 x 5.00 cm |
| Country of Origin | Germany |
Official source: Siemens Industry Mall product data for 6ES7338-4BC01-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is Siemens 6ES7338-4BC01-0AB0?
6ES7338-4BC01-0AB0 is the Siemens SM 338 POS Input Module for 3 SSI Encoders for the SIMATIC S7-300 product range.
Which Siemens system uses 6ES7338-4BC01-0AB0?
Siemens identifies 6ES7338-4BC01-0AB0 for the SIMATIC S7-300 system.
What is the official configuration of 6ES7338-4BC01-0AB0?
6ES7338-4BC01-0AB0 is officially configured as Position input module for three SSI encoders with two FREEZE inputs and isochronous mode.
Which connections are specified for 6ES7338-4BC01-0AB0?
6ES7338-4BC01-0AB0 uses Three SSI encoder channels, two FREEZE inputs and one 20-pole front connection.
What should be checked before installing 6ES7338-4BC01-0AB0?
Before installing 6ES7338-4BC01-0AB0, verify the full article number, installed system, electrical ratings, connectors and official Siemens documentation.
How should 6ES7338-4BC01-0AB0 be matched for replacement?
Match 6ES7338-4BC01-0AB0 by the complete Siemens article number, product family, hardware configuration and documented connection requirements.
Which documentation should be confirmed for 6ES7338-4BC01-0AB0?
Confirm the Siemens Industry Mall product data and the applicable Siemens system manual for 6ES7338-4BC01-0AB0.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7338-4BC01-0AB0
- Match the complete 6ES7338-4BC01-0AB0 article number without shortening the suffix.
- Confirm compatibility with the installed SIMATIC S7-300 product range.
- Verify Position input module for three SSI encoders with two FREEZE inputs and isochronous mode.
- Confirm Three SSI encoder channels, two FREEZE inputs and one 20-pole front connection.
