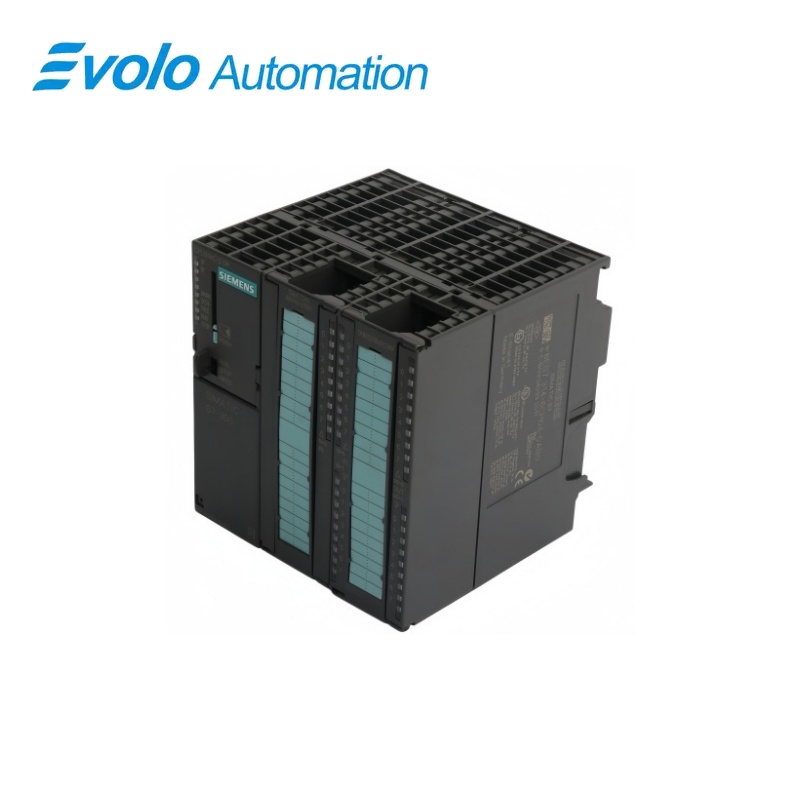

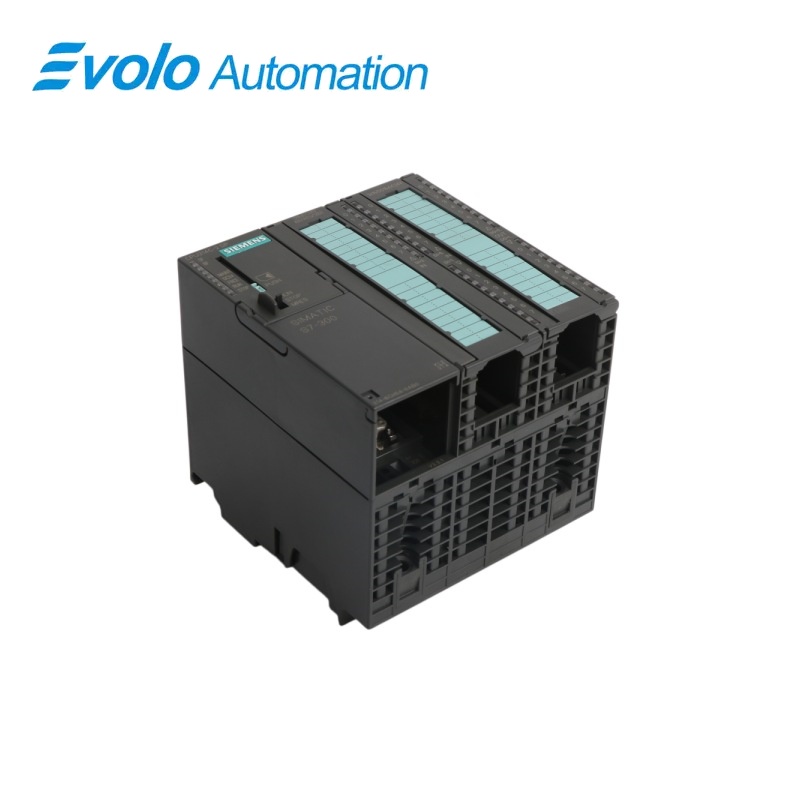

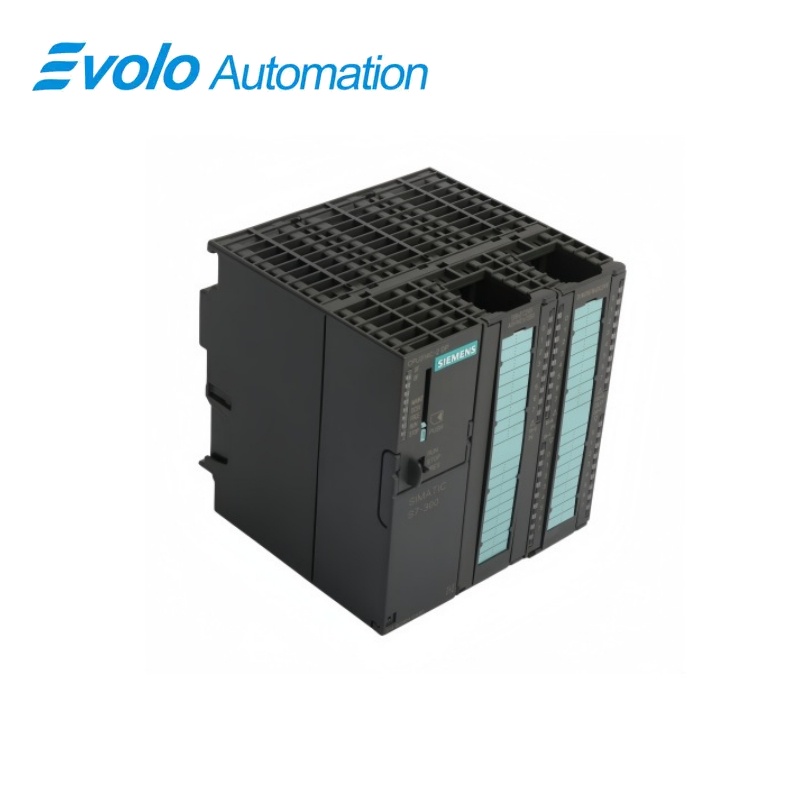

Siemens SIMATIC S7-300 6ES7314-6CF02-0AB0 CPU 314C-2 DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7314-6CF02-0AB0 CPU 314C-2 DP
Siemens S7-300 compact controller with 64 KB working memory, onboard I/O and PROFIBUS DP communication.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7314-6CF02-0AB0 |
| Product Type | SIMATIC S7-300 CPU 314C-2 DP |
| Core Function | Runs compact-machine control with integrated technology I/O |
| Application / Compatible Series | SIMATIC S7-300 systems requiring local I/O and DP networking |
Match the complete article number and installed hardware version.
Confirm the installed interfaces, connectors and wiring.
Back up and verify the matching engineering project before replacement.
Product Overview
6ES7314-6CF02-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR ( X 40PIN) AND MICRO MEMORY CARD REQUIRED.
The complete article number 6ES7314-6CF02-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7314-6CF02-0AB0: Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
System Interface
6ES7314-6CF02-0AB0: 4 high-speed COUNTERS (60 KHZ).
Replacement Control
6ES7314-6CF02-0AB0: Interfaces: MPI, PROFIBUS DP.
Official Specifications
| Working Memory | 64 KB |
|---|---|
| Firmware Version | V2.0.12 |
| Instruction Processing | 0.1 ms per 1,000 instructions |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Integrated Analog Inputs | 4 channels plus 1 Pt100 input |
| Integrated Analog Outputs | 2 |
| High-Speed Counters | 4 channels, up to 60 kHz |
| Pulse Outputs | 4 channels, up to 2.5 kHz |
| Controlled Positioning | 1 channel |
| Integrated Controller | PID control function |
| Communication Interfaces | MPI and PROFIBUS DP |
| PROFIBUS DP Role | Master or slave |
| Direct Data Exchange | Send and receive supported |
| Multi-Tier Expansion | Up to 31 modules |
| Mounting Dimensions | 120 x 125 x 130 mm |
| Rated Supply Voltage | 24 V DC |
| Power Loss | 14 W typical |
Frequently Asked Questions
How much project memory is available in 6ES7314-6CF02-0AB0?
The CPU provides 64 KB of working memory; compile the project and check the memory assignment before download.
Which firmware entry should be selected for 6ES7314-6CF02-0AB0?
Select firmware V2.0.12 in the supported STEP 7 hardware catalog configuration.
How are the fast counters wired for 6ES7314-6CF02-0AB0?
Use the designated integrated digital channels and the wiring rules for 24 V incremental encoder or counting signals, with a maximum frequency of 60 kHz.
Can 6ES7314-6CF02-0AB0 exchange data directly with DP stations?
Yes. Send and receive functions for direct data exchange are supported when the bus configuration is built consistently.
What must be tested after commissioning 6ES7314-6CF02-0AB0?
Check CPU startup, onboard digital and analog channels, technology functions, MPI access and the configured DP master or slave operation.
Which positioning task is available in 6ES7314-6CF02-0AB0?
One integrated controlled-positioning channel is provided and must be parameterized with the applicable technology function.
How should 6ES7314-6CF02-0AB0 be integrated into an existing rack?
Verify the 120 mm module width, the 24 V DC supply, adjacent-module clearance and the configured multi-tier expansion layout.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7314-6CF02-0AB0
- Match the complete article number 6ES7314-6CF02-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
- Confirm included front connectors, memory card and accessories in the written quotation.
