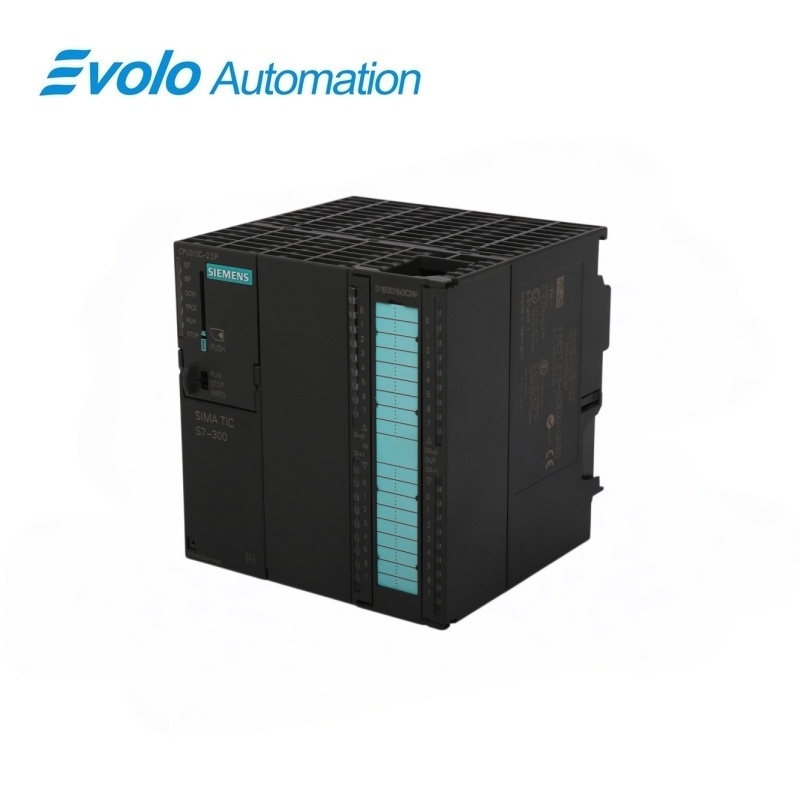

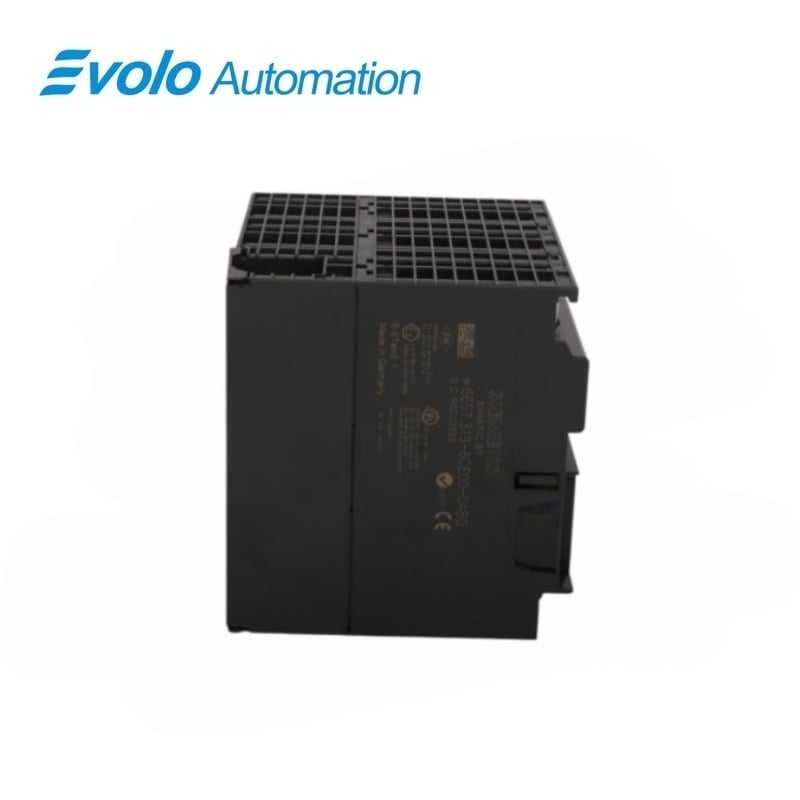

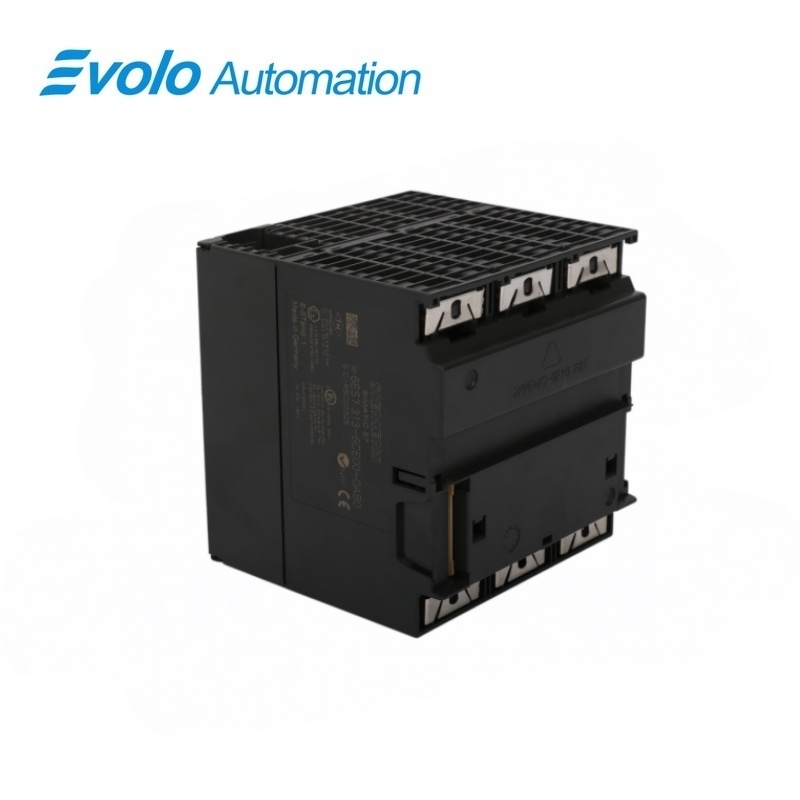

Siemens SIMATIC S7-300 6ES7313-6CE00-0AB0 CPU 313C-2 DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7313-6CE00-0AB0 CPU 313C-2 DP
Official Siemens identification and specifications for 6ES7313-6CE00-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7313-6CE00-0AB0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC S7-300 |
| Product Type | CPU 313C-2 DP |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 6ES7313-6CE00-0AB0 and the photographed hardware revision.
Integrated I/O
Integrated I/O: 16 DI / 16 DO
Configuration Check
3 high-speed COUNTERS (30 KHZ); confirm rack, connectors and revision before replacement.
Product Overview
6ES7313-6CE00-0AB0 is the first V1.0 generation of the Siemens SIMATIC S7-300 CPU 313C-2 DP compact controller. It combines the CPU, digital I/O, counting functions and the DP interface in a single module.
Siemens firmware documentation identifies V1.0.5 for this order number and STEP 7 V5.1 SP4 as the corresponding engineering baseline. The configured hardware includes 16 DI, 16 DO, three 30 kHz counters, MPI, PROFIBUS DP, 24 V DC supply and a Micro Memory Card.
Key Functions
Original V1.0 CPU revision
6ES7313-6CE00-0AB0 is associated with firmware V1.0.5, making its engineering baseline distinct from the later 6CE01, 6CF03 and 6CG04 versions.
Compact signal connection
The unit provides 16 onboard digital inputs, 16 onboard digital outputs and three high-speed counter channels.
Integrated MPI and DP paths
MPI is used for programming and S7 services, while the second interface connects the CPU to its PROFIBUS DP configuration.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-300 |
| Article Number | 6ES7313-6CE00-0AB0 |
| Product Type | CPU 313C-2 DP |
| Integrated I/O | 16 DI / 16 DO |
| Official Configuration | 3 high-speed COUNTERS (30 KHZ) |
| Interfaces | MPI, PROFIBUS DP |
| Official Configuration | SIMATIC Micro Memory Card required |
| Official Configuration | Integrated 24 V DC power supply |
| Net Weight | 0,637 Kg |
| Packaging Dimension | 13,40 x 15,40 x 12,80 CM |
| Country of Origin | Germany |
| Product Lifecycle | PM500:Discontinued Product or end of PLM & Support; End of product lifecycle since: 01.10.2012 |
Official source: Siemens Industry Mall product data for 6ES7313-6CE00-0AB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which CPU family contains 6ES7313-6CE00-0AB0?
It belongs to the Siemens SIMATIC S7-300 CPU 313C-2 DP compact CPU family.
Why is the firmware revision important for 6ES7313-6CE00-0AB0?
Siemens identifies this order number with firmware V1.0.5, so later CPU revisions should not be assumed to have identical project requirements.
How many digital channels are onboard in 6ES7313-6CE00-0AB0?
The official configuration provides 16 DI and 16 DO.
What communication interfaces are present on 6ES7313-6CE00-0AB0?
The CPU includes MPI and an integrated PROFIBUS DP interface.
What counting capability does 6ES7313-6CE00-0AB0 include?
Three integrated high-speed counters support frequencies up to 30 kHz.
Which engineering software is linked to 6ES7313-6CE00-0AB0?
The Siemens firmware overview lists STEP 7 V5.1 SP4 for the V1.0.5 version.
How should 6ES7313-6CE00-0AB0 be prepared for replacement?
Archive the original project, record MPI/DP addresses, verify connector wiring and identify the installed Micro Memory Card before removal.
Compatibility & Ordering Notes
Pre-installation checklist for 6ES7313-6CE00-0AB0
- Confirm firmware V1.0.5 and the STEP 7 V5.1 SP4 project baseline.
- Document all MPI and PROFIBUS DP network settings.
- Compare the 16 DI/16 DO terminal allocation with the replacement hardware.
- Verify the 24 V DC supply, front connector and Micro Memory Card.
