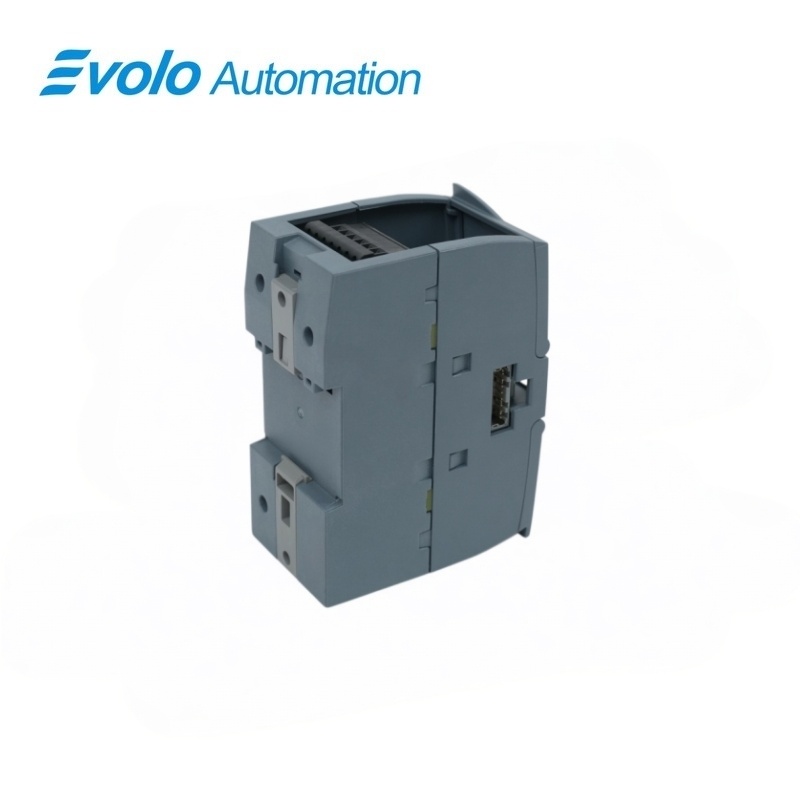

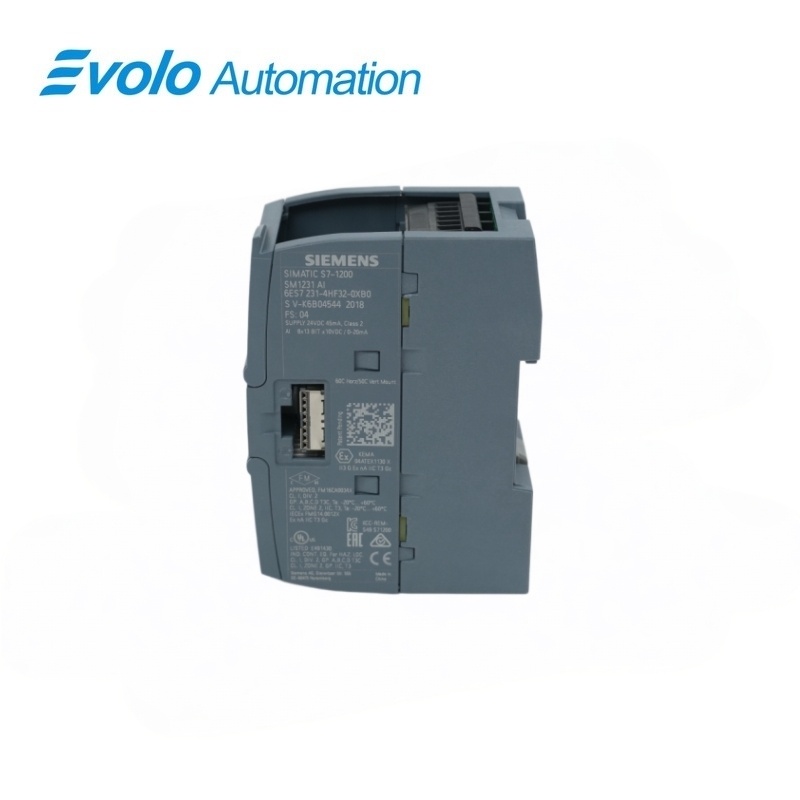

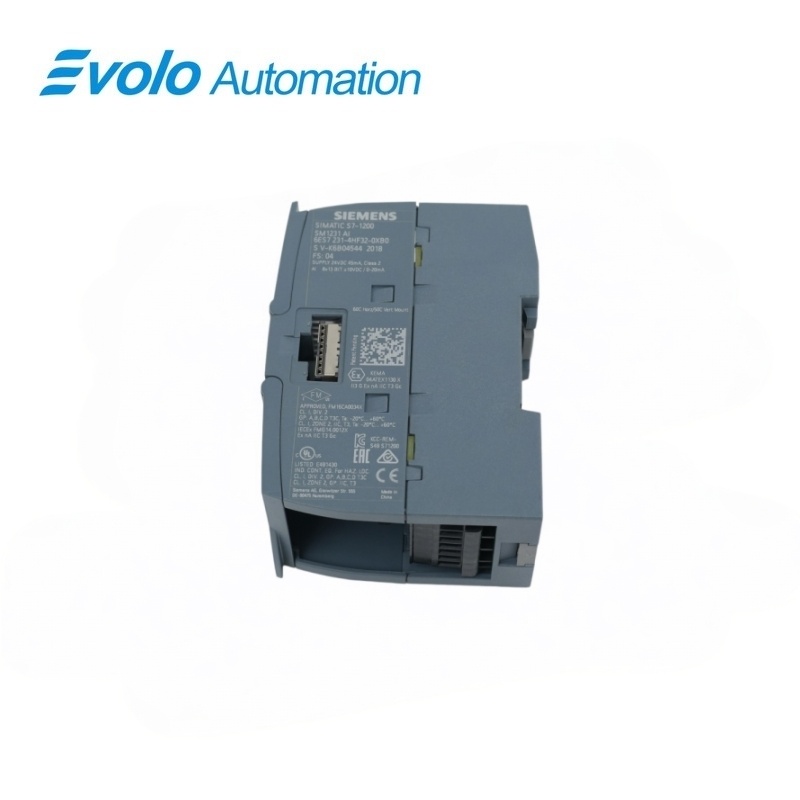

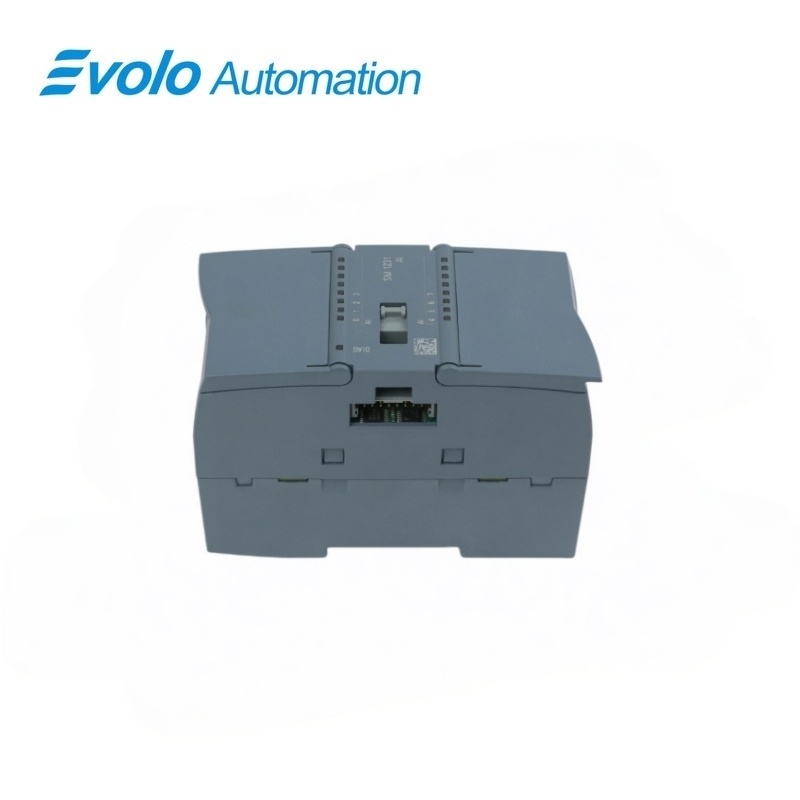

Siemens SIMATIC S7-1200 6ES7231-4HF32-0XB0 SM 1231 AI 8x13 Bit
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIEMENS SIMATIC S7-1200 • ANALOG INPUT MODULE
6ES7231-4HF32-0XB0 SM 1231 AI 8x13 Bit
Official Siemens identification and technical data for 6ES7231-4HF32-0XB0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6ES7231-4HF32-0XB0 |
| Manufacturer | Siemens |
| Platform | SIMATIC S7-1200 |
| Product Type | SM 1231 AI 8x13 Bit |
| Official Configuration | Eight analog inputs for ±10 V, ±5 V, ±2.5 V, 0 to 20 mA or 4 to 20 mA |
Exact Identification
Match the complete Siemens article number 6ES7231-4HF32-0XB0 and the installed hardware configuration.
Official Configuration
Eight analog inputs for ±10 V, ±5 V, ±2.5 V, 0 to 20 mA or 4 to 20 mA.
Connection Check
SIMATIC S7-1200 backplane-bus connection with a required front connector.
Product Overview
6ES7231-4HF32-0XB0 is officially identified by Siemens as SM 1231 AI 8x13 Bit Analog Input Module in the SIMATIC S7-1200 product range.
Siemens identifies this SIMATIC S7-1200 SM 1231 analog input module with eight differential voltage or current inputs, selectable voltage and current ranges, and 13-bit ADC performance.
Ordering focus: verify the complete 6ES7231-4HF32-0XB0 article number, installed hardware configuration, connections and Siemens system documentation before replacement.
Key Functions
Model-Specific Configuration
6ES7231-4HF32-0XB0: Eight analog inputs for ±10 V, ±5 V, ±2.5 V, 0 to 20 mA or 4 to 20 mA.
System Connection
SIMATIC S7-1200 backplane-bus connection with a required front connector.
Replacement Control
Use the full 6ES7231-4HF32-0XB0 article number and official Siemens documentation to verify the installed configuration before replacement.
Official Specifications
| Manufacturer | Siemens |
| Series | SIMATIC S7-1200 |
| Article Number | 6ES7231-4HF32-0XB0 |
| Product Type | SM 1231 AI 8x13 Bit |
| Analog Inputs | 8 differential inputs |
| Voltage Ranges | ±10 V, ±5 V, ±2.5 V |
| Current Ranges | 0 to 20 mA, 4 to 20 mA |
| Rated Supply | 24 V DC |
| Maximum Cycle Time | 625 µs for all channels |
| Required Front Connector | Yes |
| Dimensions | 45 x 100 x 75 mm |
| Approximate Weight | 180 g |
Official source: Siemens Industry Mall product data for 6ES7231-4HF32-0XB0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is Siemens 6ES7231-4HF32-0XB0?
6ES7231-4HF32-0XB0 is the Siemens SM 1231 AI 8x13 Bit Analog Input Module for the SIMATIC S7-1200 product range.
Which Siemens system uses 6ES7231-4HF32-0XB0?
Siemens identifies 6ES7231-4HF32-0XB0 for the SIMATIC S7-1200 system.
What is the official configuration of 6ES7231-4HF32-0XB0?
6ES7231-4HF32-0XB0 is officially configured as Eight analog inputs for ±10 V, ±5 V, ±2.5 V, 0 to 20 mA or 4 to 20 mA.
Which connections are specified for 6ES7231-4HF32-0XB0?
6ES7231-4HF32-0XB0 uses SIMATIC S7-1200 backplane-bus connection with a required front connector.
What should be checked before installing 6ES7231-4HF32-0XB0?
Before installing 6ES7231-4HF32-0XB0, verify the full article number, installed system, electrical ratings, connectors and official Siemens documentation.
How should 6ES7231-4HF32-0XB0 be matched for replacement?
Match 6ES7231-4HF32-0XB0 by the complete Siemens article number, product family, hardware configuration and documented connection requirements.
Which documentation should be confirmed for 6ES7231-4HF32-0XB0?
Confirm the Siemens Industry Mall product data and the applicable Siemens system manual for 6ES7231-4HF32-0XB0.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7231-4HF32-0XB0
- Match the complete 6ES7231-4HF32-0XB0 article number without shortening the suffix.
- Confirm compatibility with the installed SIMATIC S7-1200 product range.
- Verify Eight analog inputs for ±10 V, ±5 V, ±2.5 V, 0 to 20 mA or 4 to 20 mA.
- Confirm SIMATIC S7-1200 backplane-bus connection with a required front connector.
