330104-05-13-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-05-13-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

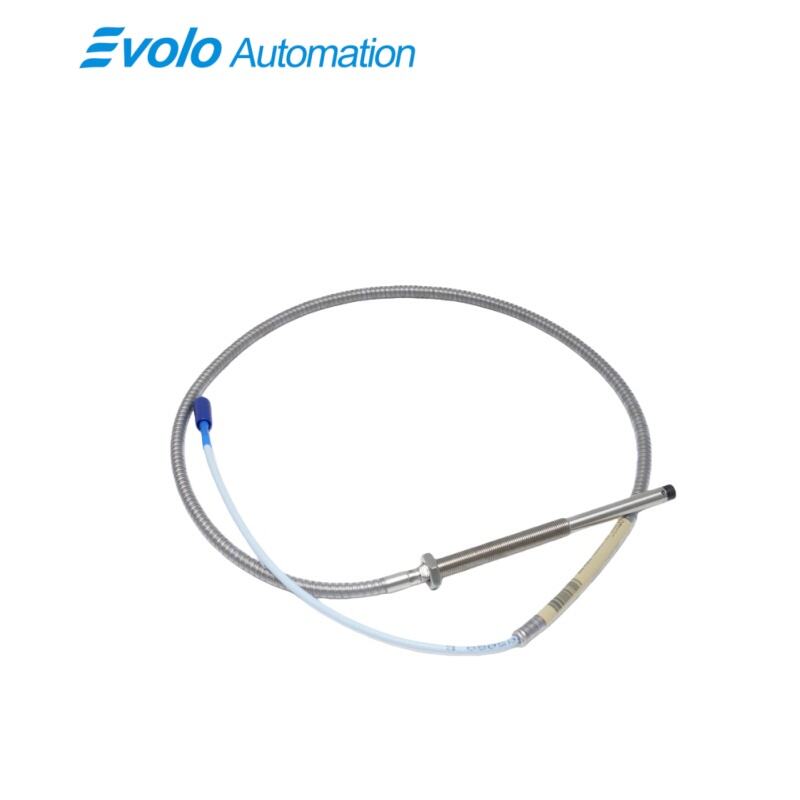

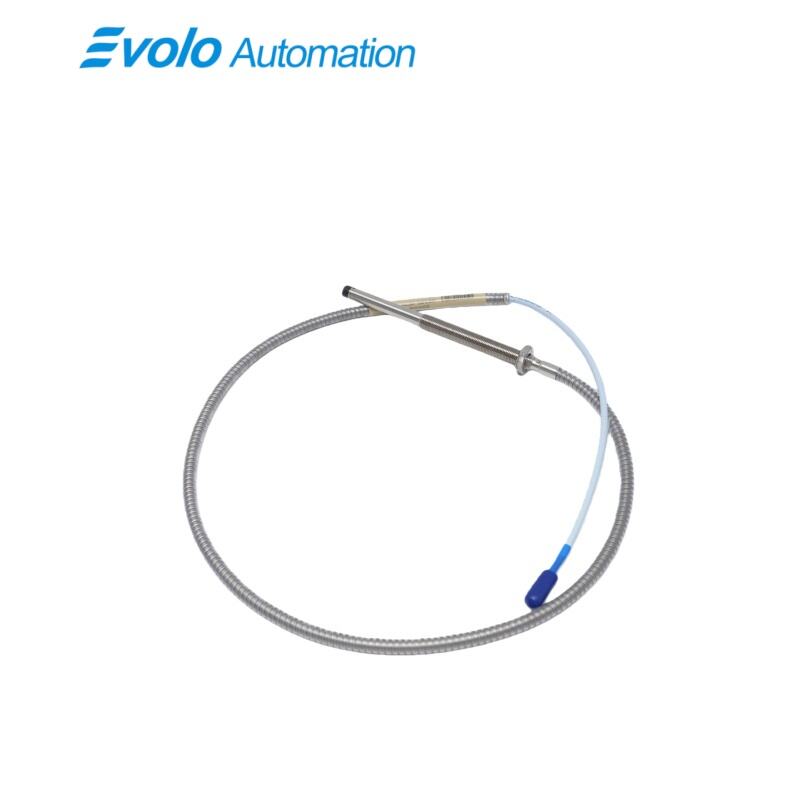

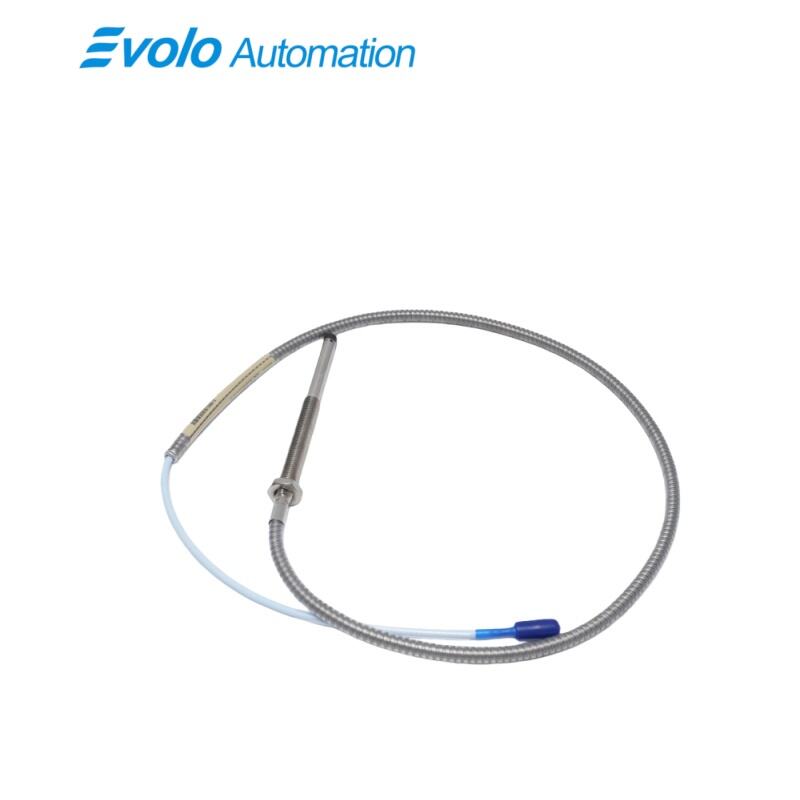

The 330104-05-13-10-02-00 is a sophisticated eddy current transducer within the esteemed 3300 XL 8 mm Proximity Probes family by Bently Nevada. This high-precision sensor is engineered specifically for non-contacting displacement measurement, offering a robust solution for monitoring the health of critical rotating machinery. Featuring a unique mechanical profile, this 3300 XL 8 mm Proximity Probe is configured with a 50 mm unthreaded length and a 130 mm overall case length, providing the necessary reach and adjustability for deep-seated bearing housings or specialized mounting brackets. As a vital component of the 3300 XL 8 mm Proximity Probes system, it accurately converts the distance between the probe tip and a target shaft into a linear voltage signal, essential for identifying vibration signatures and axial movements.

The technical integrity of these 3300 XL 8 mm Proximity Probes is rooted in their strict adherence to the API 670 standard, ensuring global compatibility and interchangeability. The 330104-05-13-10-02-00 features a 1.0-meter (3.3 feet) total length and is equipped with the patented Miniature coaxial ClickLoc connector, which provides a secure, moisture-resistant connection to extension cables without the need for specialized tools. Its probe tip is manufactured from advanced Polyphenylene Sulfide (PPS), an engineering thermoplastic that withstands extreme industrial fluids and temperatures ranging from -50°C to +110°C.

Applications

The 330104-05-13-10-02-00 is primarily deployed for Radial Vibration Monitoring in high-performance fluid-film bearing machinery. Its 130 mm overall case length allows the probe to be mounted through thick machine casings to accurately measure the dynamic displacement of the shaft. By providing a continuous voltage signal within its 2 mm linear range, it enables early detection of imbalances, misalignments, or rotor instabilities in large centrifugal compressors and industrial motors.

This 3300 XL 8 mm Proximity Probe serves as a critical safety barrier in Axial Position (Thrust) Monitoring. By measuring the gap between the probe tip and the thrust collar of a turbine or generator, it ensures that axial float remains within safe design limits. This prevents catastrophic metal-to-metal contact between rotating and stationary components, which is a mandatory protection requirement for "Category 1" machinery in the power generation and oil and gas sectors.

The sensor is also widely used for Keyphasor Reference and Speed Measurement. The 330104-05-13-10-02-00 reliably detects a keyway or notch on a rotating shaft to provide a timing pulse essential for phase analysis and balancing procedures. Given its high-frequency response and ability to operate at temperatures up to +110°C, it is an ideal choice for providing real-time rotational speed feedback to electronic overspeed protection systems in harsh plant environments.

Specifications

Competitive Advantage

1. Optimized Deep-Reach Installation Design

The 330104-05-13-10-02-00 provides a significant advantage with its 50 mm unthreaded portion and 130 mm total case length. This specialized geometry allows for flexible mounting in deep ports that standard short probes cannot reach. It eliminates the need for expensive custom-made probe holders, simplifying the installation process and reducing potential mechanical resonance issues in the mounting assembly.

2. Exceptional Signal Stability and Consistency

Equipped with a 50 Ω output impedance and low supply sensitivity (<2 mV/V), this probe delivers an incredibly stable signal even in environments with power supply fluctuations or high electromagnetic noise. Its consistent 7.87 V/mm scale factor across the entire temperature range ensures that monitoring data remains accurate year-round, minimizing false alarms and improving the precision of fault diagnosis.

3. High-Integrity ClickLoc Connector System

The integration of the Miniature coaxial ClickLoc connector offers superior reliability compared to traditional threaded alternatives. The "click" feedback provides a tactile confirmation of a secure lock, preventing the cable from vibrating loose—a common failure point in industrial monitoring. This gold-plated connection ensures long-term electrical conductivity and signal fidelity in high-vibration environments.
