Siemens SIMATIC S5-95U CPU 95C Compact Controller 6ES5095-8MC03
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC S5-95U

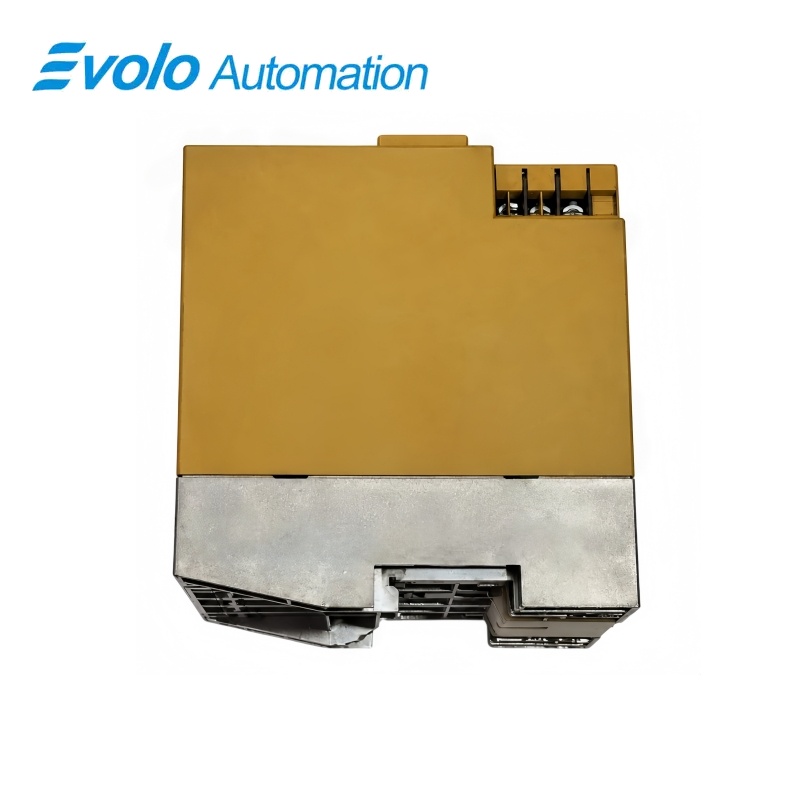

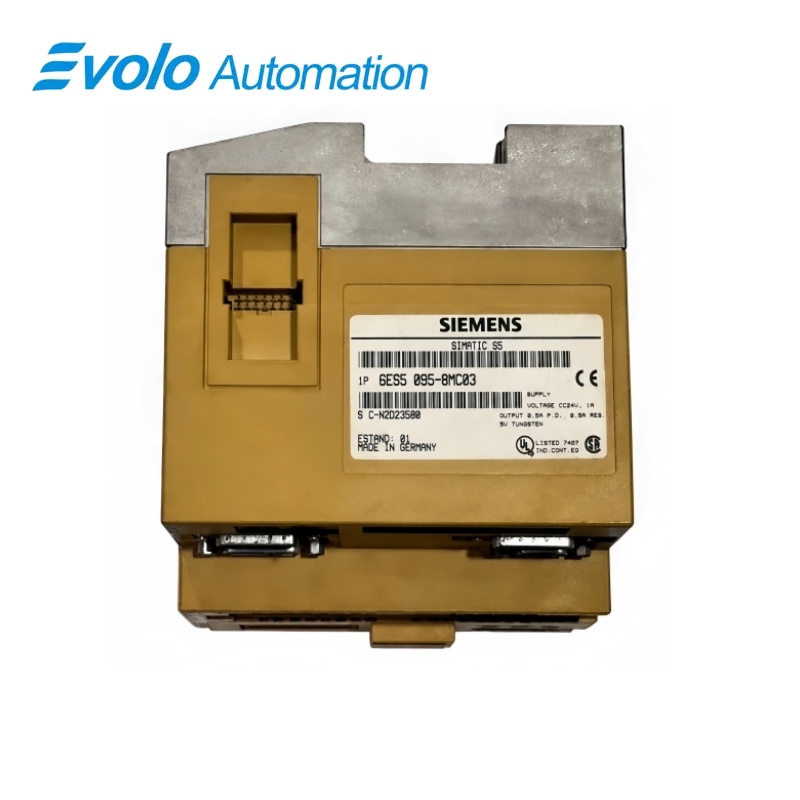

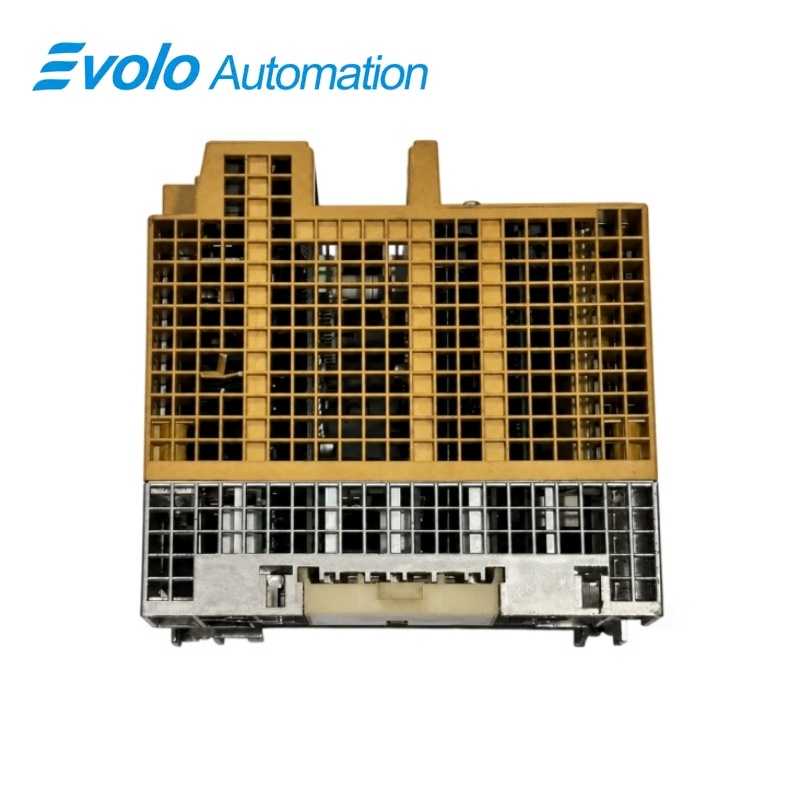

6ES5095-8MC03 SIMATIC S5-95U CPU 95C Compact Controller
The SIMATIC S5-95U CPU 95C is a compact 24 V DC PLC with 16 KB user memory, integrated digital and analog I/O, interrupt and counter inputs, and two AS511-compatible serial interfaces.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES5095-8MC03 |
| Product Type | Compact PLC with integrated mixed I/O and two AS511 interfaces |
| Core Function | Executes the S5 control program and directly handles integrated digital, analog, interrupt and counter signals |
| Application or Compatible Series | Legacy SIMATIC S5-95U machines requiring the CPU 95C second-serial-interface version |
Exact Identification
Match 6ES5095-8MC03 character by character and confirm the complete SIMATIC S5-95U CPU 95C Compact Controller designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC S5-95U CPU 95C is a compact 24 V DC PLC with 16 KB user memory, integrated digital and analog I/O, interrupt and counter inputs, and two AS511-compatible serial interfaces.
The CPU, power supply and mixed digital and analog I/O are integrated in one S5-95U unit. Two AS511-compatible interfaces support programming and the configured operator or communication connection. The compact controller can be expanded with supported S5-100U modules for the installed application.
Key Functions
Compact Controller and I/O
The CPU, power supply and mixed digital and analog I/O are integrated in one S5-95U unit.
Second Serial Interface
Two AS511-compatible interfaces support programming and the configured operator or communication connection.
Expandable S5 Architecture
The compact controller can be expanded with supported S5-100U modules for the installed application.
Official Specifications
| CPU Designation | CPU 95C |
|---|---|
| User Memory | 16 KB RAM |
| Supply Voltage | 24 V DC |
| Digital Inputs | 16 x 24 V DC |
| Digital Outputs | 16 x 24 V DC |
| Output Current per Digital Channel | 0.5 A |
| Analog Inputs | 8 x 0–10 V |
| Analog Outputs | 1 x 0–10 V or 0–20 mA |
| Interrupt Inputs | 4 |
| Counter Inputs | 2 |
| Counter Input Frequency | 5 kHz on channel A; 2 kHz on channel B |
| Serial Interfaces | 2 x AS511-compatible 20 mA current-loop interfaces |
| Timers | 128 |
| Counters | 128 |
| Expansion Capability | Up to 32 supported S5-100U modules |
| Backup Battery | Required for retained operation as configured |
Frequently Asked Questions
Which programming interface is available on 6ES5095-8MC03?
Use the configured AS511-compatible 20 mA current-loop interface with the correct service cable.
How much user memory is provided by 6ES5095-8MC03?
The compact controller provides 16 KB of RAM for the S5 application.
Which I/O is integrated in 6ES5095-8MC03?
The unit contains sixteen digital inputs, sixteen digital outputs, eight analog inputs, one analog output, four interrupt inputs and two counter inputs.
Can 6ES5095-8MC03 be expanded with additional modules?
Yes; the installed configuration can use supported S5-100U expansion modules within the system limits.
What should be done with the battery before replacing 6ES5095-8MC03?
Check the battery condition and preserve the program and retained data before removing power.
Can a different S5-95U variant replace 6ES5095-8MC03 without changes?
No; match the CPU 95C version, second serial interface, integrated I/O and application program.
What must be tested after installing 6ES5095-8MC03?
Verify the S5 program, both serial links, all integrated I/O, counters, interrupts, analog scaling and expansion modules.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the replacement only where the exact CPU 95C second-serial-interface hardware is specified.
- Preserve the STEP 5 program, system data and retentive values before power is removed.
- Confirm the pinout and function of both AS511 interfaces and every integrated I/O channel.
